Seeed Studio XIAO RP2350 Raspberry Pi RISC-V 19 GPIOs Onboard RGB LED

---

Product Link

XIAO RP2350 Onboard RGB LED, Arm Cortex-M33 and Hazard3 RISC-V(Pre-Order)OpenELAB

Description

The XIAO RP2350 packs the power of the Raspberry Pi RP2350 (dual Cortex-M33 cores running at 150MHz with FPU, enhanced security and encryption) into the classic XIAO form factor. Measuring just 21x17.8mm, it features 19 multifunction GPIOs, an RGB LED, and a Battery Management System with ultra-low power consumption of 50μA, battery power supply, and direct battery voltage measurement. Thanks to the XIAO ecosystem, the XIAO RP2350 is compatible with a wide range of add-ons, including displays, LED matrix, Grove modules, CAN Bus, Vision AI sensors, and mmWave sensors. With native support for MicroPython, C, and C++, the XIAO RP2350 is perfect for developers of all levels looking to create compact, battery-powered applications for smart control, wearables, DIY keyboards, and more.

Features​

• Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring symmetric dual Arm Cortex-M33 @ 150MHz with FPU.

• Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security.

• Software Support: Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping.

• Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM).

• Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications.

• Efficient Power Design: Ultra-low power consumption of just 50μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS).

• Compact Thumb-Sized Design: Measuring 21 x 17.8mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications.

• Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production.

Specification​

Product	XIAO RP2040	XIAO RP2350
Processor	Raspberry Pi RP2040	Raspberry Pi RP2350
Dual Cortex-M0+ @ 133MHz	Dual Cortex-M33 @ 150MHz, FPU
RAM	264kB SRAM	520kB SRAM
Flash	2MB Onboard	2MB Flash
LEDs	1 user LED(3 colors), 1 power LED, 1 RGB LED	1 user LED, 1 charge LED(Battery Charging Indicator)，1 RGB LED
Interface	11 Pins:4x Analog,11x Digital, 1x I²C, 1x UART, 1x SPI, All PWM	19 Pins:3x Analog,19x Digital, 2x I²C, 2x UART, 2x SPI, All PWM
Button	1 RESET button, 1 BOOT button
Security	-	OTP, Secure Boot, Arm TrustZone
Low power	-	4.2V/50uA
Software compatibility	Arduino, PlatformIO, MicroPython, CircuitPython, Zephyr	Arduino, PlatformIO, MicroPython, CircuitPython
Working Temperature	-20°C~70°C
Dimensions	21x17.8 mm

Hardware

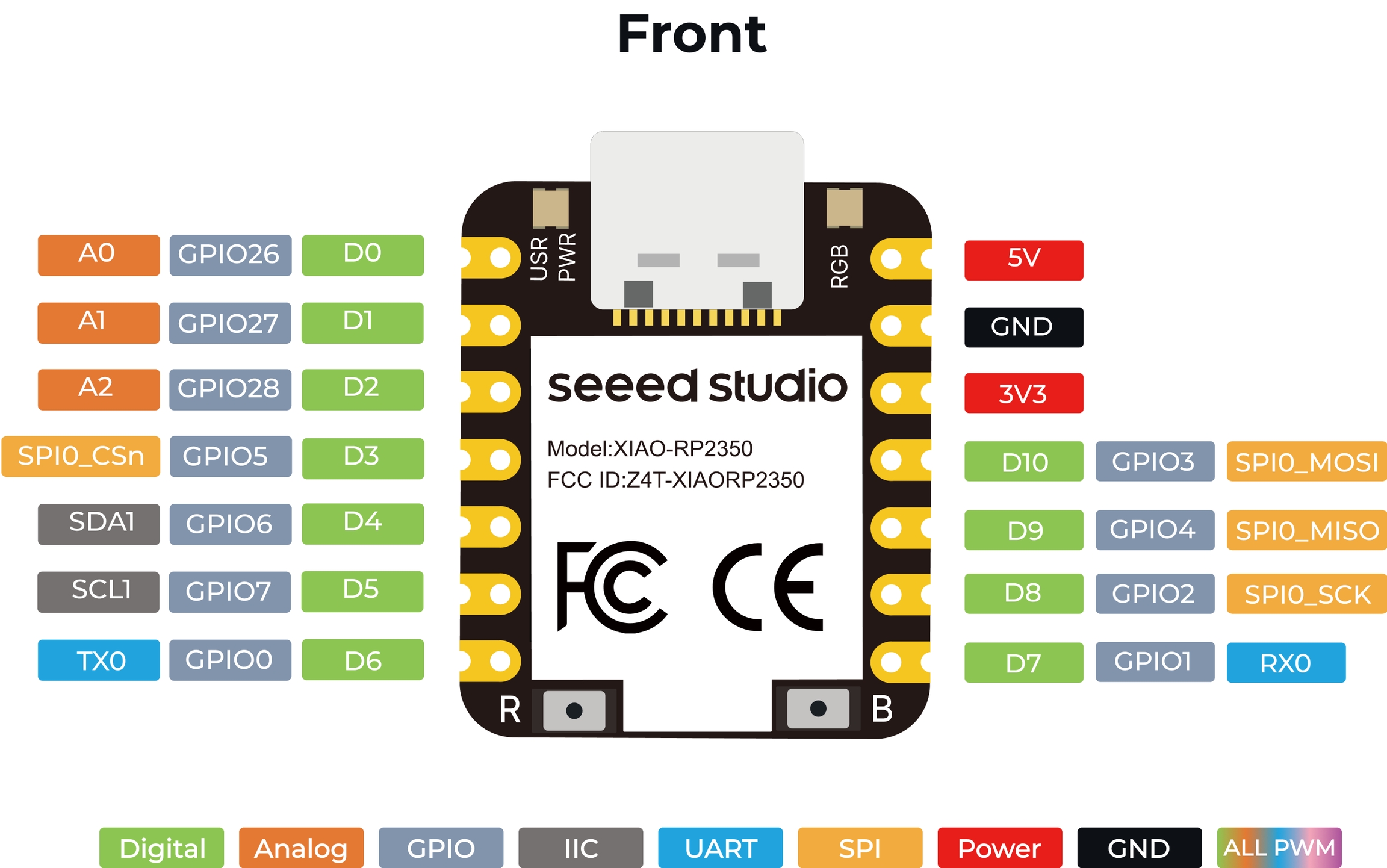

XIAO RP2350 Front Pinout
XIAO RP2350 Front Pinout

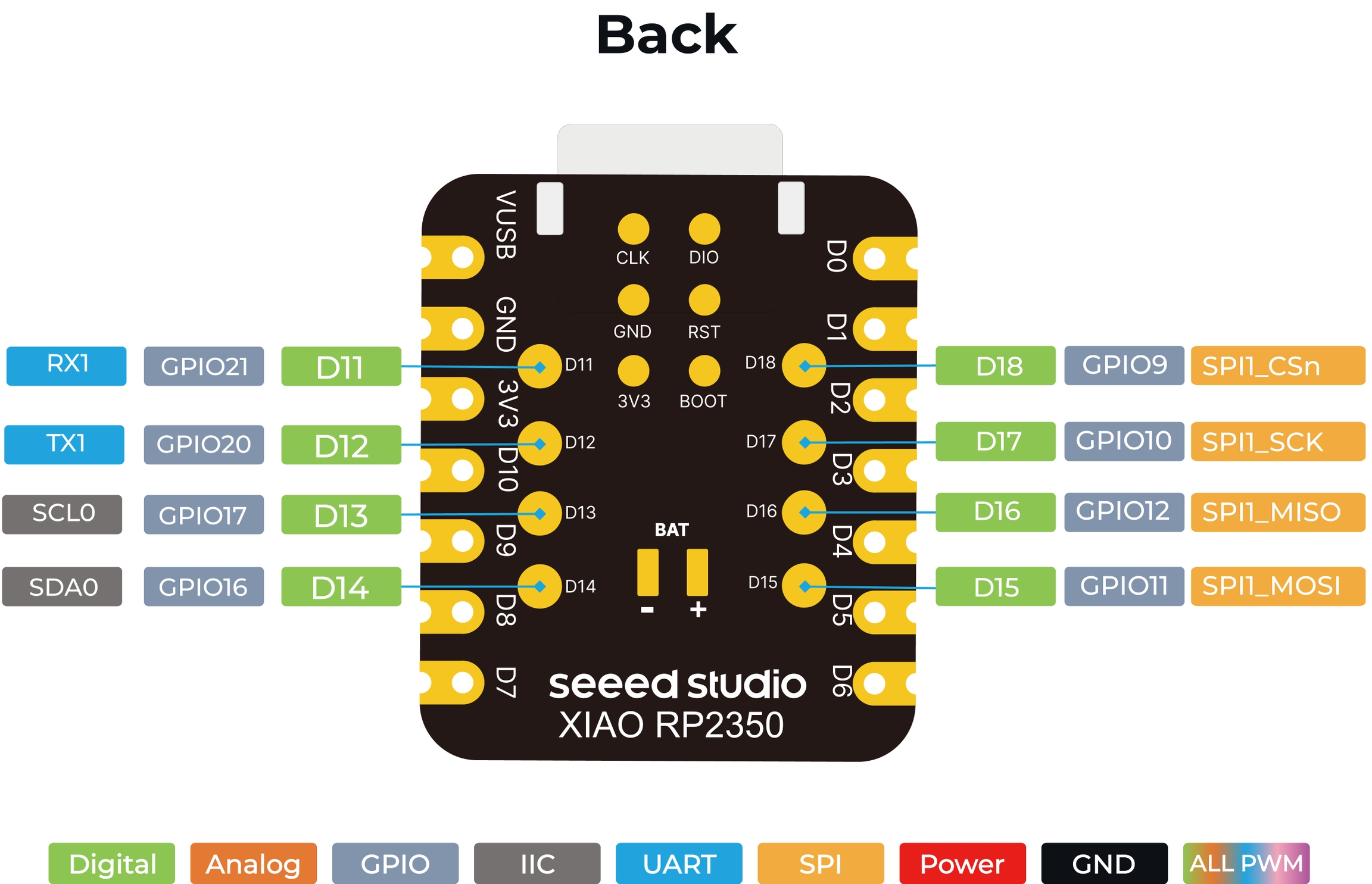

XIAO RP2350 Back Pinout
XIAO RP2350 Back Pinout

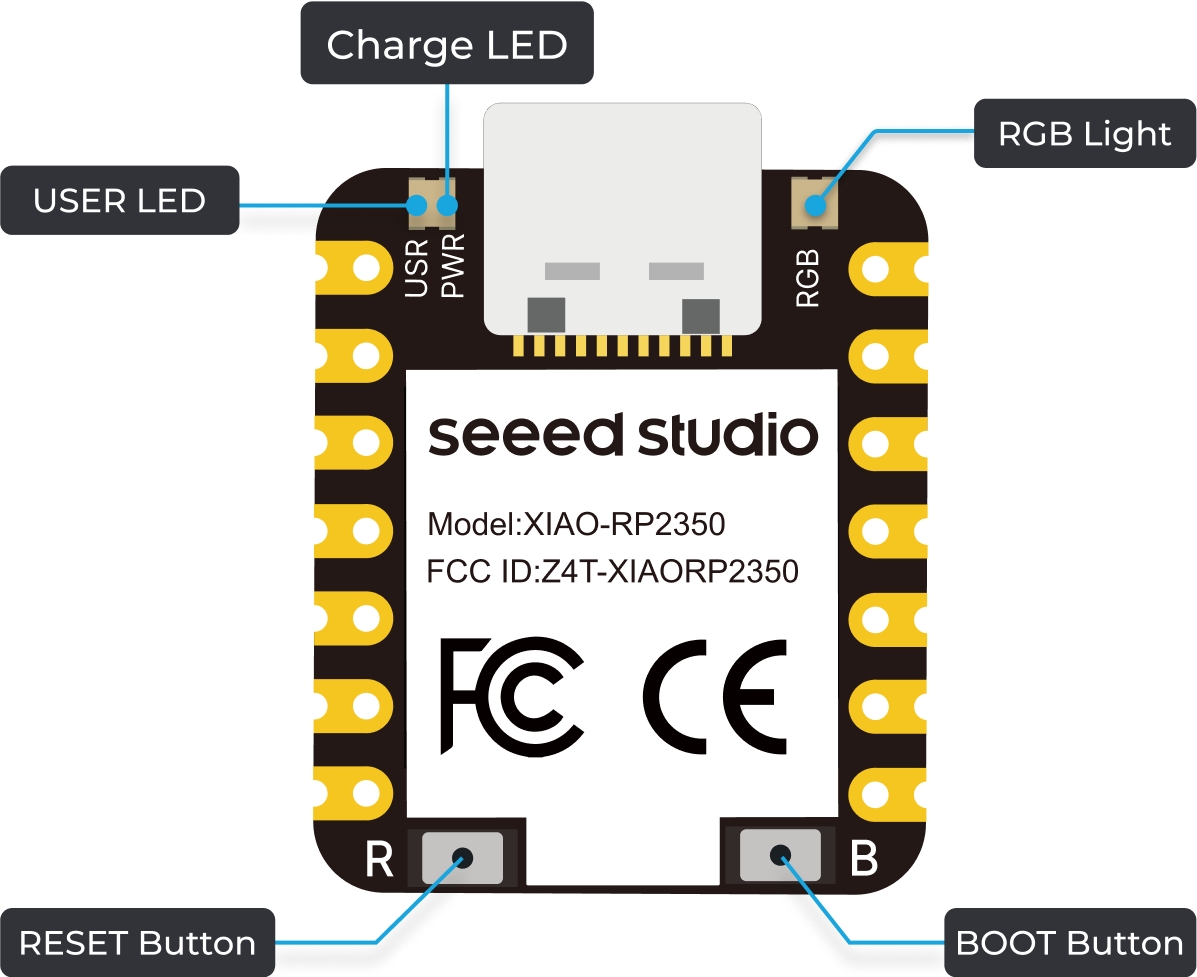

XIAO RP2350 Components
XIAO RP2350 Components
