3.5-inch 320x480 capacitive touch display
Product Link
Introduction
Now you can experience easy touch interactions with an ESP32 development board!
WT32-SC01 is an ESP32 Development board with a 3.5-inch color touch screen. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform.
WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.
By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user’s development cycle.
Features
Highly integrated ESP32-WROVER-B module with low power consumption
3.5-inch 320x480 capacitive 2-point multi-touch screen for easy interactions
Easy to program using the graphical drag-and-drop programming
Wireless connectivity with Wi-Fi and BLE
Customize functions such as button operation, voice control, and camera operation through the expansion interfaces
Specifications
| Specification | Details |
|---|---|
SoC | ESP32-WROVER-B module |
CPU | Dual-core Xtensa@ 32-bit LX6 MCU |
Connectivity | 802.11 b/g/n 2.4GHz Wi-Fi Bluetooth v4.2 BR/EDR and Bluetooth LE standards |
Display | 3.5 inch, LCD @320x480 Capacitive with 2-point multitouch |
Power Supply | DC 5V/2A. 5V/1A |
Operating Temperature | -20 to +85 °C |

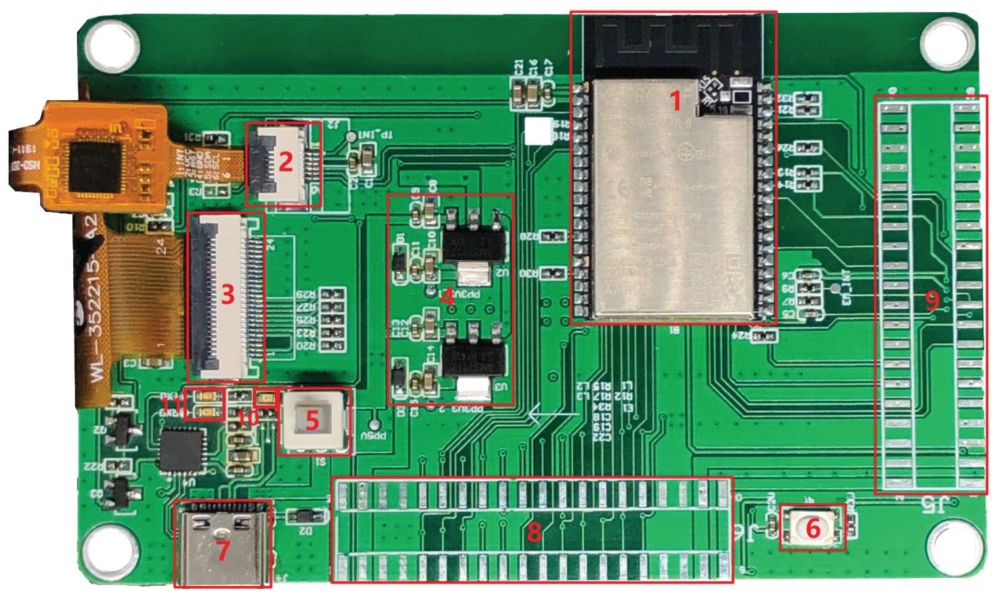

Hardware Overview
1. ESP32-WROVER-B module
2. Capacitive touchpad interface
3. LCM display interface
4. Power management
5. Power switch
6. Reset Button
7. USB Type-C interface
8 – 9. Expansion board interface
10. Power indicator
11. UART communication indicator
Dimensions
How to Use
