ATOMIC GPS Base


Description

Atomic GPS Base is a GPS positioning module specifically designed for the ATOM series main controller. It incorporates the M8030-KT positioning navigation chip and is equipped with built-in FLASH memory. The module also includes a button cell battery that supports power-off retention of user configurations.The module finds applications in various scenarios, such as geographic coordinate viewing, bus stop announcements, vehicle and marine navigation, and trajectory tracking. It provides accurate positioning information that can be utilized in these applications.

Atomic GPS Base outputs data in the NMEA-0183 protocol, which is a common standard for GPS data communication. It supports multiple satellite systems, including GPS, GLONASS, GALILEO, BDS, SBAS, and QZSS. With a 72-channel search capability, it can accurately acquire and track satellite signals for precise positioning.

Furthermore, the Atomic GPS Base includes a MicroSD card slot located below the GPS module. This slot allows people to read GPS or other file data from a MicroSD card. For example, you can export GPS data in a specific format to view movement trajectories in map software. The module can also function as a regular card reader, enabling file reading and writing operations.

Regarding the UART parameter settings, the recommended settings for communication with the Atomic GPS Base are as follows:

UART Parameter Settings:

  • Baud Rate (9600bps)

  • Start Bit (1 bit)

  • Stop Bit (1 bit)

  • Parity Bit (None)

Features

  • Applicable to Atom Lite/Atom Matrix/AtomS3/AtomS3 Lite

  • High signal acquisition sensitivity

  • Support single system positioning of BDS / GPS / GLONASS / Galileo / SBAS / QZSS multiple satellite navigation systems

  • Built in self elastic TF (microSD) card slot

  • Low power

Applications

  • Vehicle and ship positioning and navigation

  • Track record

  • File reading and writing

Specification

Resources
Parameters

Frequency accuracy

GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1

Accuracy

Horizontal: 2m, Speed: 0.1m/s, Time: 1us

Channels

72 search channel

Update frequency

1-10Hz

Maximum speed

515m/s

Maximum acceleration

< 4g

Sensitivity

Trace: - 167dbm, capture: - 160dBm, cold start: - 148dbm, hot start: - 156dbm

Start time

Cold start: 26 seconds, warm start: 25 seconds, hot start: 1 second

Baud rate

9600bps

Output protocol

NMEA-0183

NMEA sentence

RMC, VTG, GGA, GSA, GSV, GLL

Indicator light

TX: the power on blue light flashes, indicating that there is data output, PPS:3D Blink after positioning, and it will not light if it is not positioned

Working temperature

-40°C - 85°C

Product Size

64*18*18mm

Package Size

136*92*20mm

Product Weight

14.4g

Package Weight

18.1g

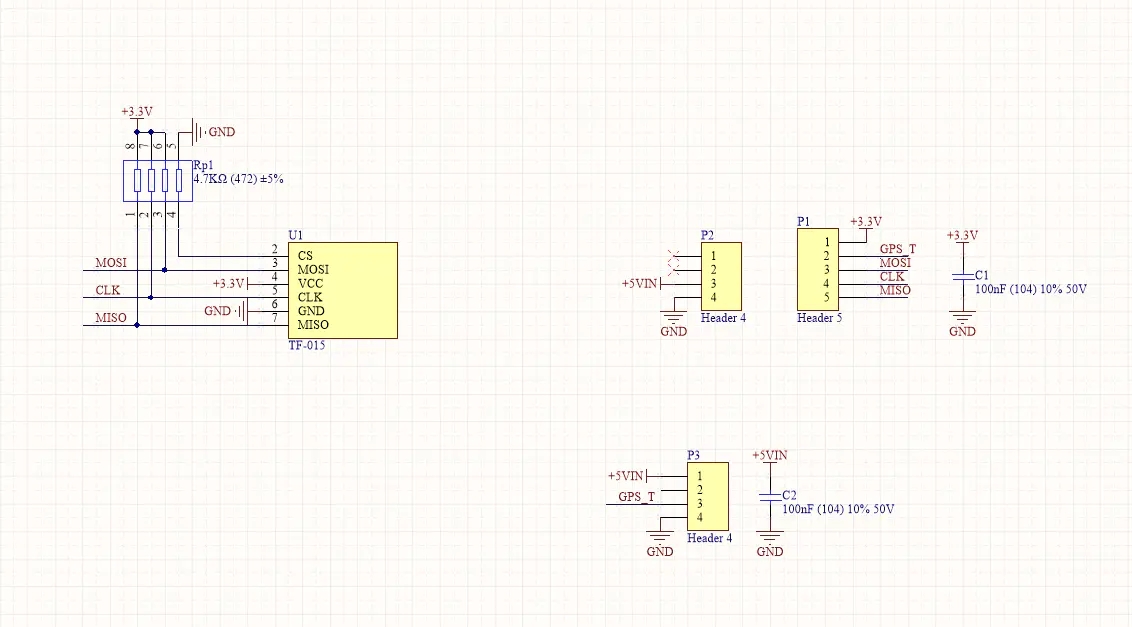

Schematic

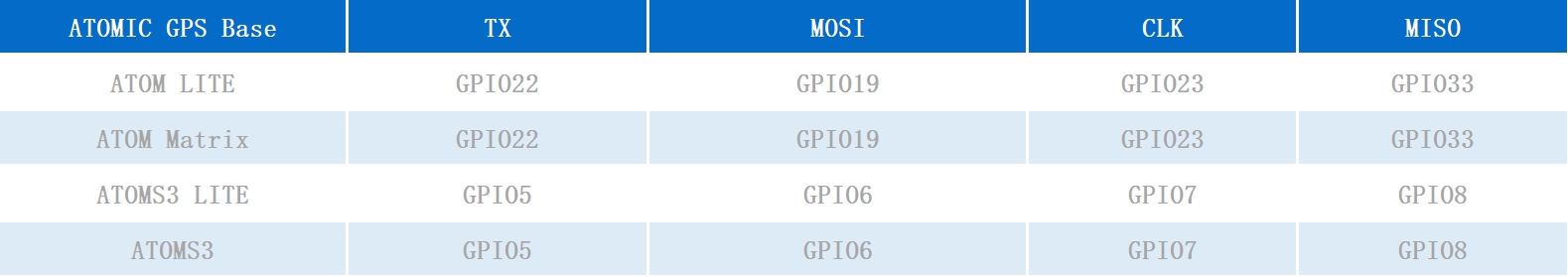

PinMap

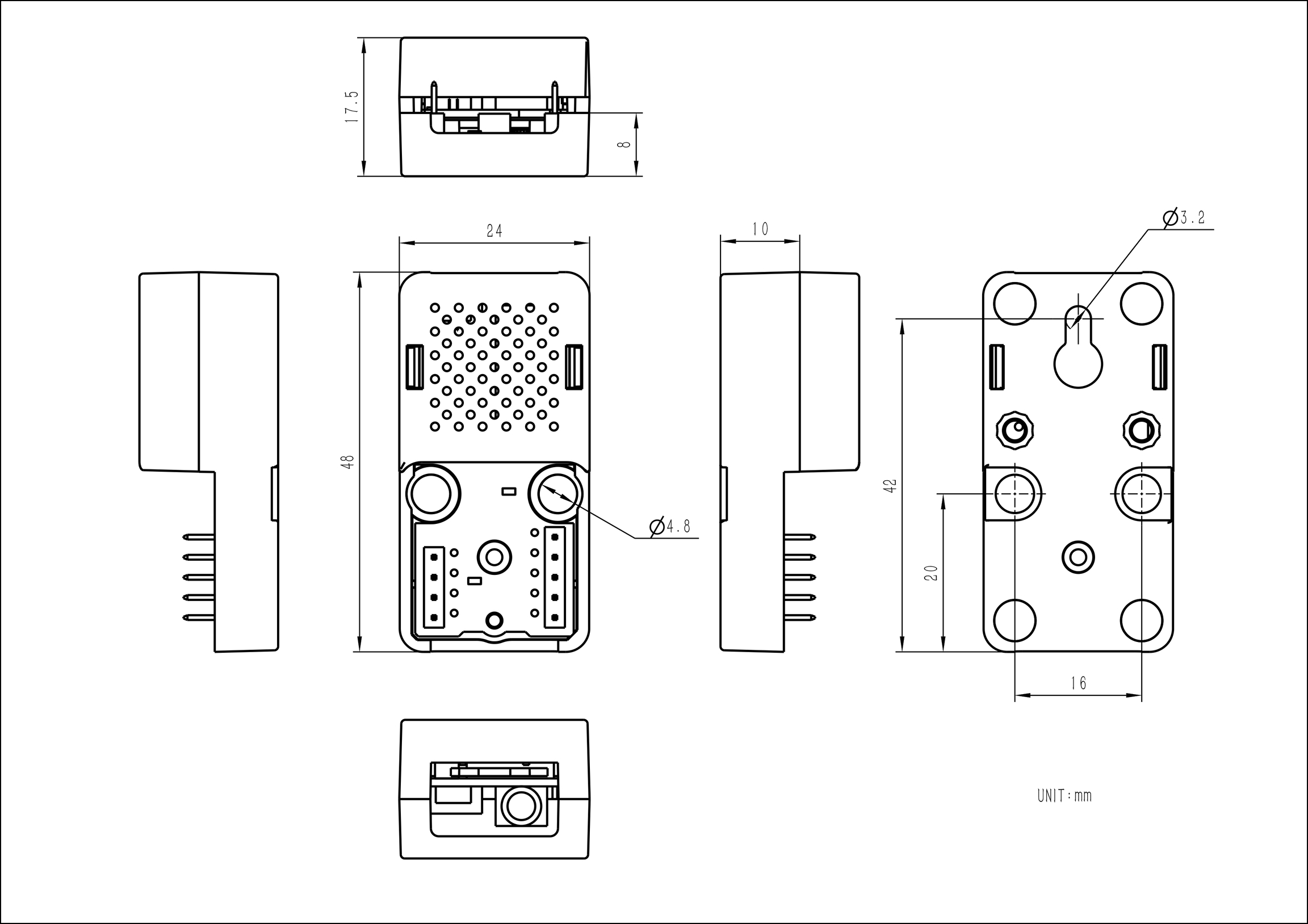

Module Size
