M5Stack Fader Unit with B10K Potentiometer


Description

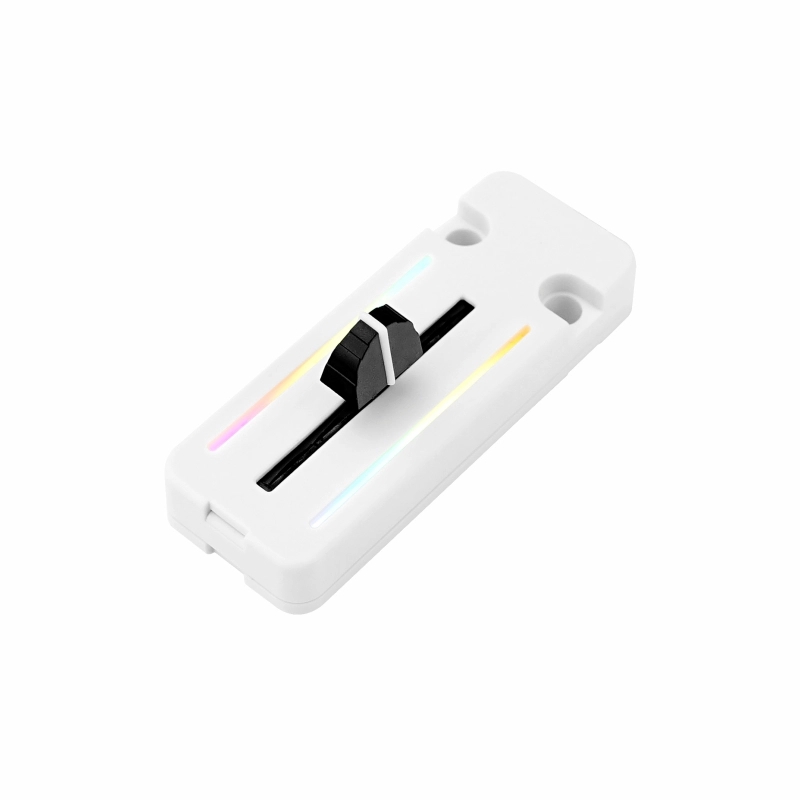

UNIT FADER is a Slide Potentiometer with color indicator, employ a 35mm slide potentiometer + 14x SK6812 programmable RGB lights. The fader has its own center point positioning, and excellent slide appliances for stable, reliable performance and precise control. The integrated beads support digital addressing, which means you can adjust the brightness and color of each LED light. The product is suitable for lighting, music control, and other applications.

Features

  • With center point positioning

  • Excellent damping

  • Single connection 1OkΩ adjustable resistor

  • Programmable RGB lights

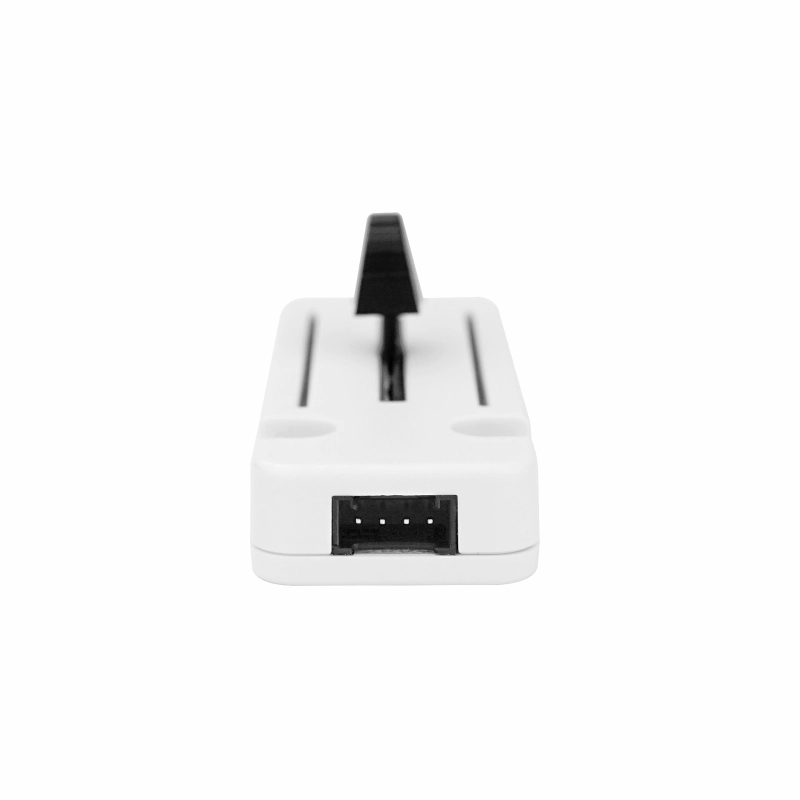

  • GROVE interface

  • Development Platform:

    • Arduino, UIFlow

Applications

  • Human–machine interaction

  • Light and music control

  • Adjustment switch

  • Potentiometer level signal input

Specifications

Specifications
Parameter

Fader stroke

35mm

Fader handle length

10mm

Single resistor

1OkΩ

Output voltage

0-3.3V (under 5V power supply)

RGB LED

14x SK6812 Programmable RGB Lamp

Working current

90.04mA (Lighting brightness configuration 50%, fader maximum output)

Net weight

15.5g

Gross weight

30g

Product size

64 * 24 * 24mm

Packing size

136 * 92 * 24mm

PinMap

M5Core(PORT B)
G36
G26
5V
GND

UNIT FADER

VALUE-INPUT

SK6812-SIGNAL

VIN

GND

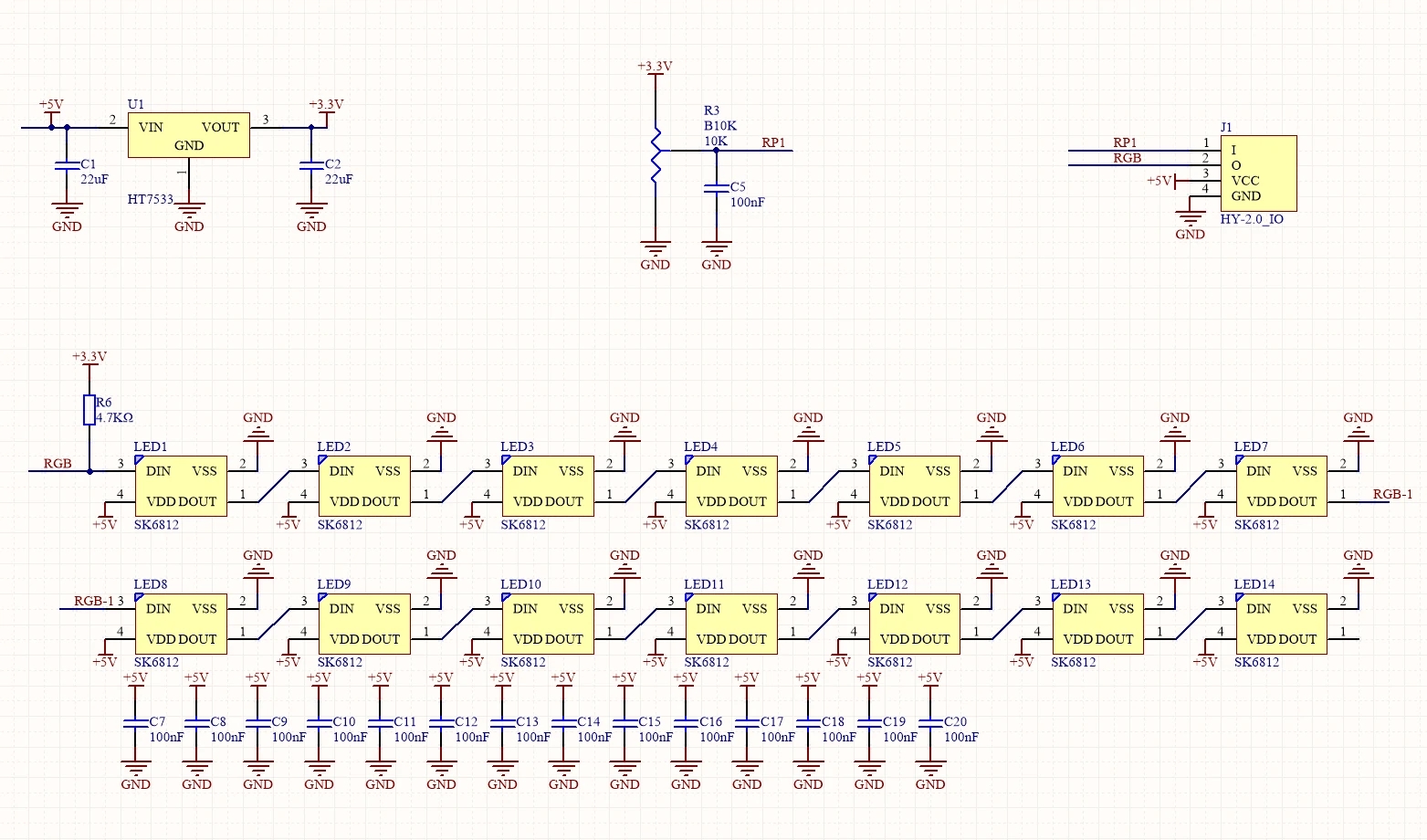

Schematics

Datasheetss

Compatible
