M5Stack Mini Angle Unit Rotary Switch

Product Link

M5Stack Mini Angle Unit Rotary Switch with PotentiometerOpenELAB

Description

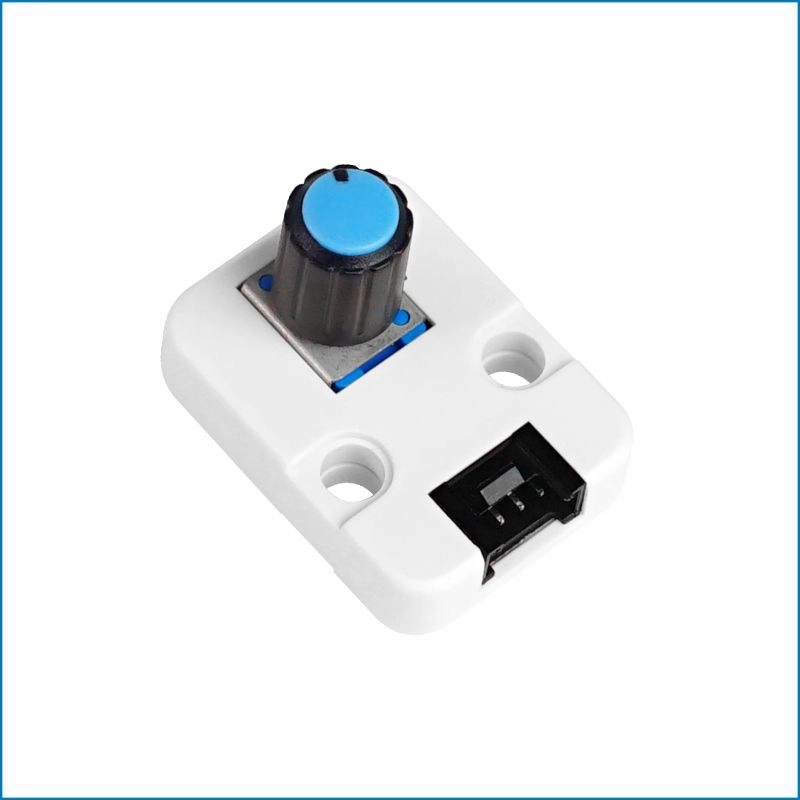

ANGLE is a rotary switch Unit which simply includes a 10K Ohm potentiometer inside. This unit can be used for Continuous signal rotatory control for applications such as volume, brightness, or motor speed.

A potentiometer is a manually adjustable variable resistor with three terminals: Two terminals are connected to a resistive element, the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage.

The out voltage is captured and converted by AD on ESP32 on portB.

Features

• Output voltage range: 0 ~ 2500mV

• GROVE interface, support UIFlow and Arduino

• Two Lego-compatible holes

Specification

*In M5Stack product system, Normally the Grove color indicates the type of communications.*

• Black: Single BUS (AD ,DA ,GPIO)

• Red: I2C

• Blue:UART

• White: Others(depends)

The Unit's Grove interface is black, specify it is an analog interface that should be connected to the M5Core's GROVE B interface.

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

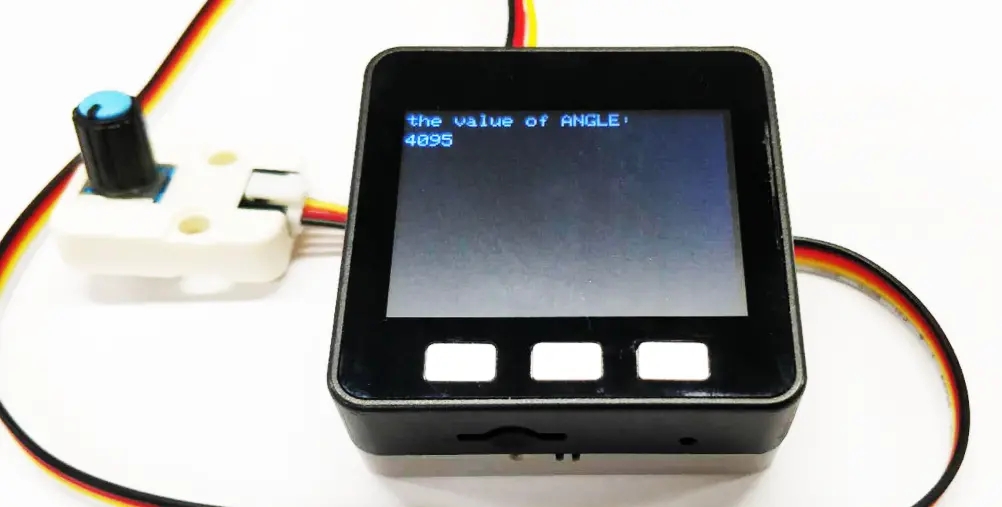

Description: Display knob analog value data.

Pinout

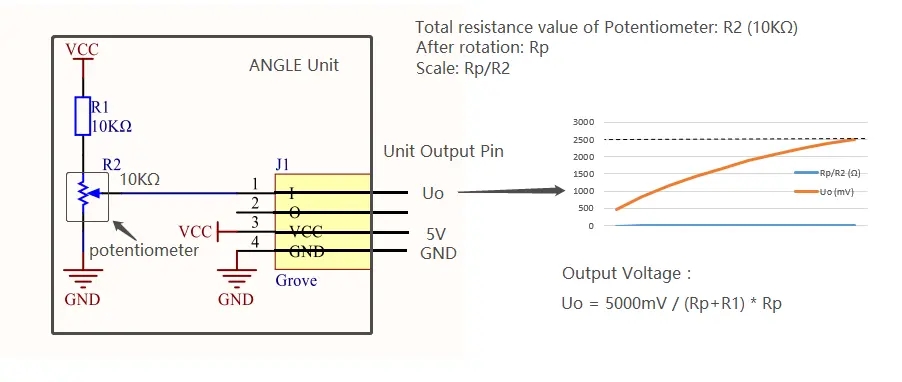

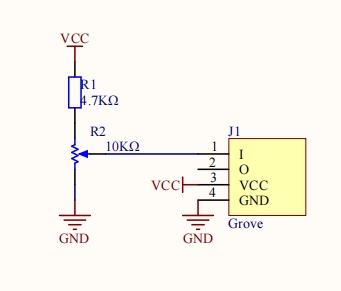

Schematic

Learn

DIY Protractor with M5StickCDIY Protractor with M5StickCM5StickC + Angle unit = Protractor (detecting range: 0-180 degrees）

Example

Arduino

The code below is incomplete. To get the complete code, please click here

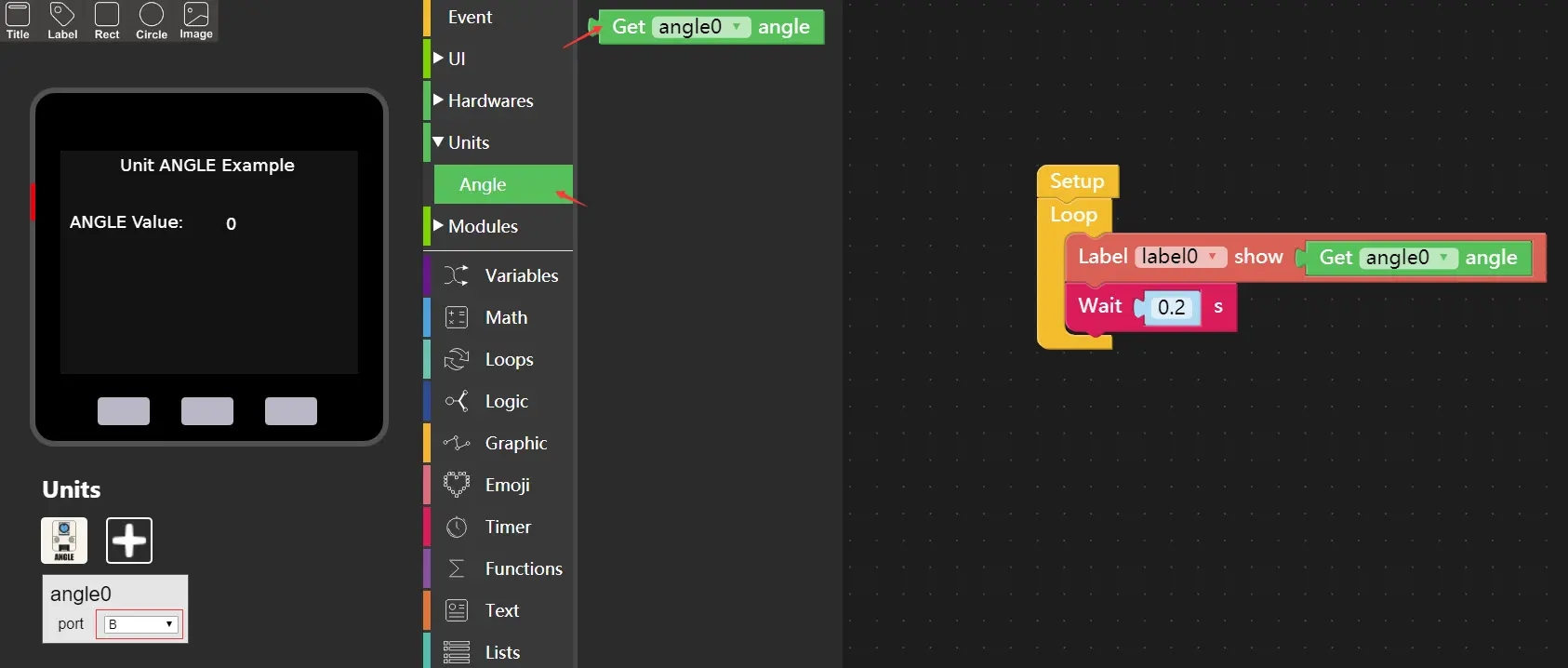

UIFlow

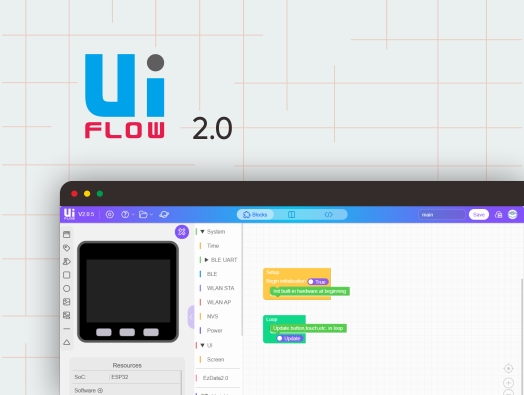

UIFlow2.0UIFlow2.0This tutorial will show you how to initialize the configuration using the UIFlow2.0 graphical programming platform

ANGLE Unit Programming Guide

Feature Introduction

Read the output value of the knob potentiometer

• Get value Return potentiometer value

Usage

• Click here to download the UIFlow example
