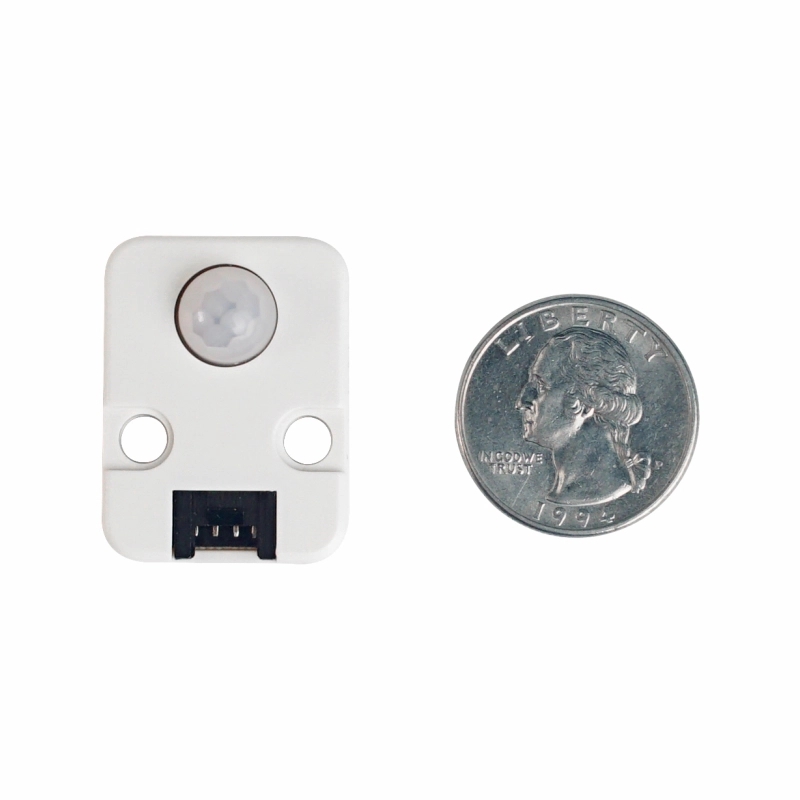

M5Stack PIR Motion Sensor
Product Link
Description
PIR is a human body infrared unit. It belongs to the "passive pyroelectric infrared detector". It detects the infrared radiation emitted and reflected by the human body or object. When infrared is detected, the output level is high and it takes a while. Delay (high during the period and allow repeated triggers) until the trigger signal disappears (restores low).
This Unit communicates with the M5Core via the GROVE B.
*Notice: This Unit has 2s delay time.*
Features
Detects the distance: 500cm
latency time: 2s
Sensing range: < 100°
Quiescent current: < 60uA
Operating temperature: -20 - 80 °C
GROVE interface, support UIFlow and Arduino
Two Lego installation holes
Applications
Human body Induction Lamp
Security Product
Automatic Induction Appliance Settings
Specification
| Resources | Parameters |
|---|---|
Product Size | 32*24*12mm |
Package Size | 60*57*17mm |
Product Weight | 5g |
Package Weight | 20g |

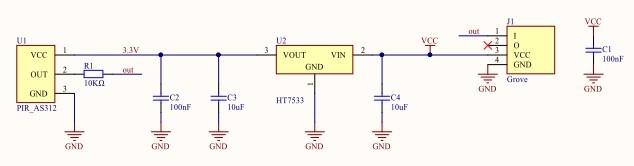

Schematic
EasyLoader
Pinout

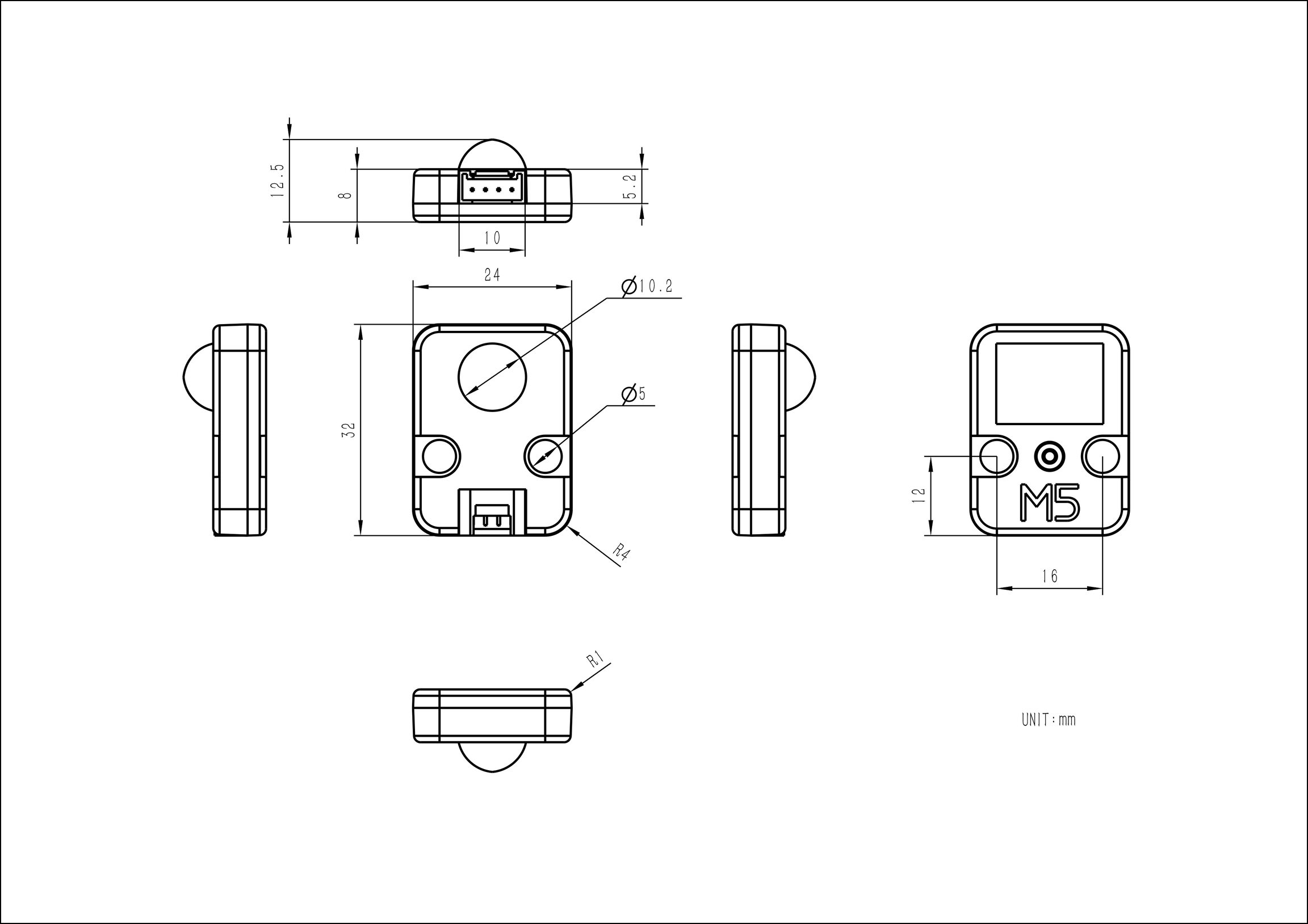

Dimensions
Examples
Arduino
UIFlow
UIFlow2.0UIFlow2.0This tutorial will show you how to initialize the configuration using the UIFlow2.0 graphical programming platform
UIFlow Blocks
I/O type sensor for detecting infrared signals from humans or animals
