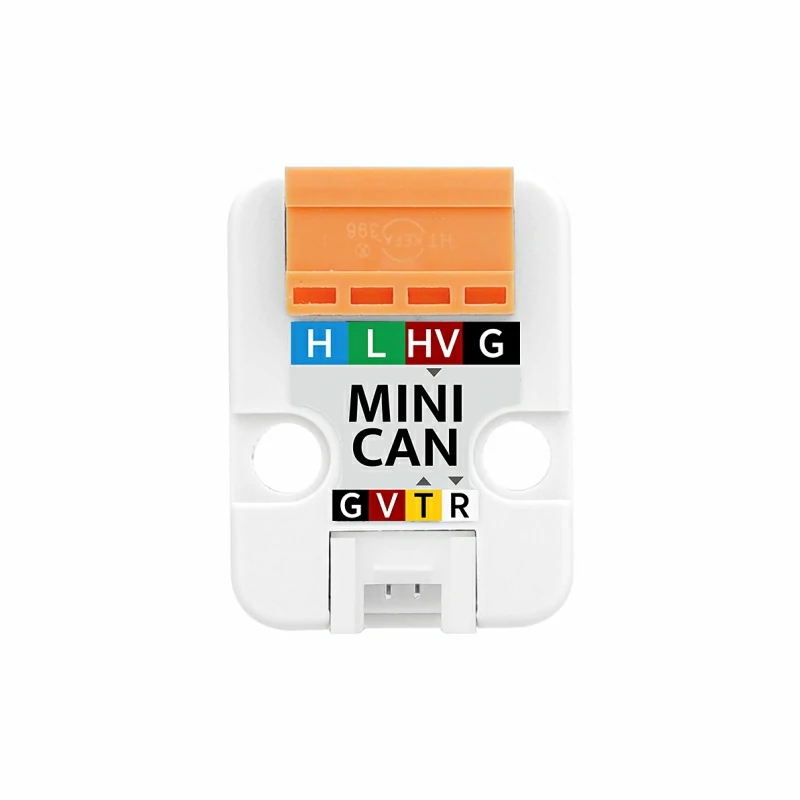

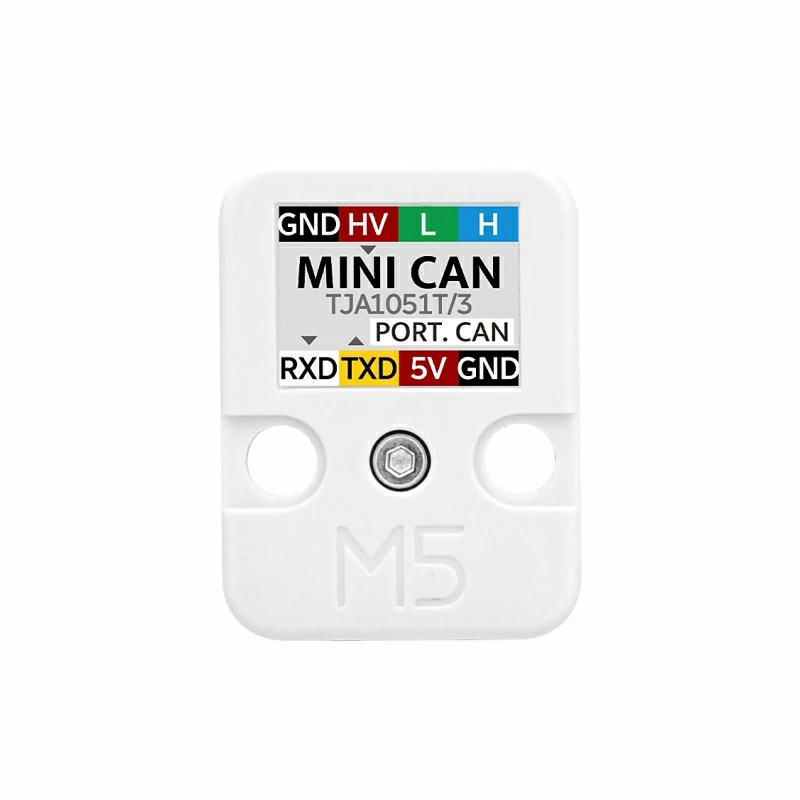

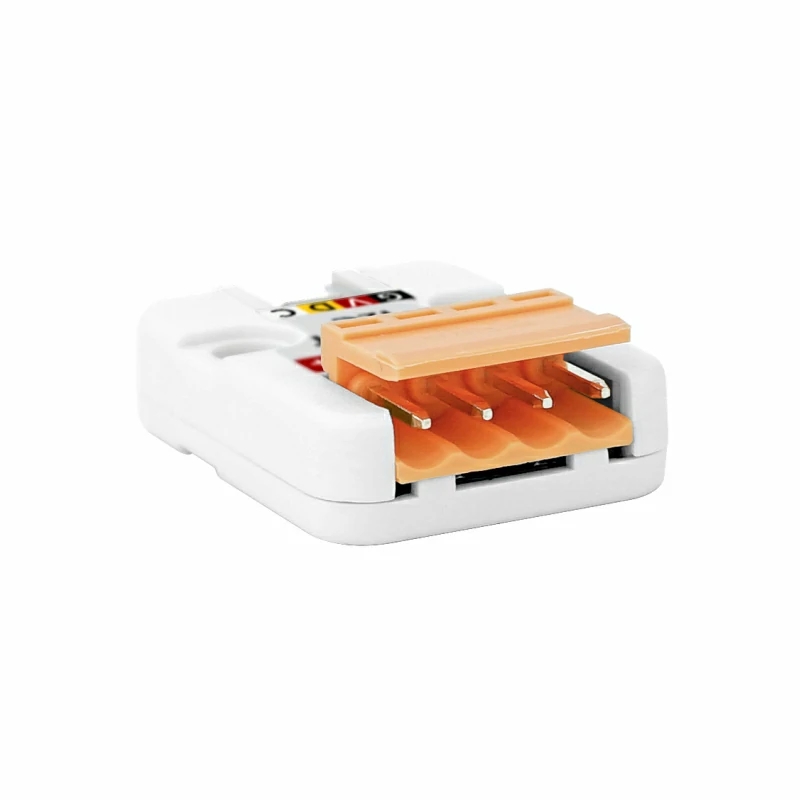

M5Stack Mini CAN Unit


Description

Mini CAN Unitis a compact CAN bus communication module that utilizes the TJA1051T chip, offering excellent high-speed data transmission capabilities. Additionally, it is equipped with electromagnetic compatibility (EMC) and electrostatic discharge (ESD) protection mechanisms, ensuring enhanced security and stability for data transmission.

Internally, Mini CAN Unit integrates a DCDC power supply chip, accommodating a wide voltage input range of 9-24V. This provides users with a stable and efficient CAN communication solution. Whether you are involved in automotive electronics, industrial automation, or communication systems, Mini CAN Unit offers a reliable and flexible CAN communication solution. It finds extensive applications in automotive electronics, industrial automation, and communication systems.

No matter if you are developing automotive electronic systems, controlling industrial automation processes, or implementing communication systems, Mini CAN Unit is your dependable choice.

Features

  • Using TJA1051T/3 chip

  • High Speed Data Transfer Capability

  • Electromagnetic compatibility (EMC) and electrostatic discharge (ESD) protection mechanisms

  • VH3.96 Wide terminal voltage input range (9-24v)

Applications

  • Automotive Electronics

  • Industrial Automation

Specification

Resources
Parameters

Transmission Speed

Up to 1Mbit/s

Protocol Standard

Compliance with ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 standards

Wide Voltage input

VH3.96 terminal: 9-24V Grove:5V

Load Capacity

DC5V/Max:700mA

Working Current

Avg:DC5V/4.02mA Avg:DC24V/2mA

Standby Current

Avg:DC5V/3.09mA

Operating Temperature

0-40°C

Product Size

32* 24* 10.2mm

Package Size

136* 92* 13.7mm

Product Weight

7.8g

Package Weight

13.1g

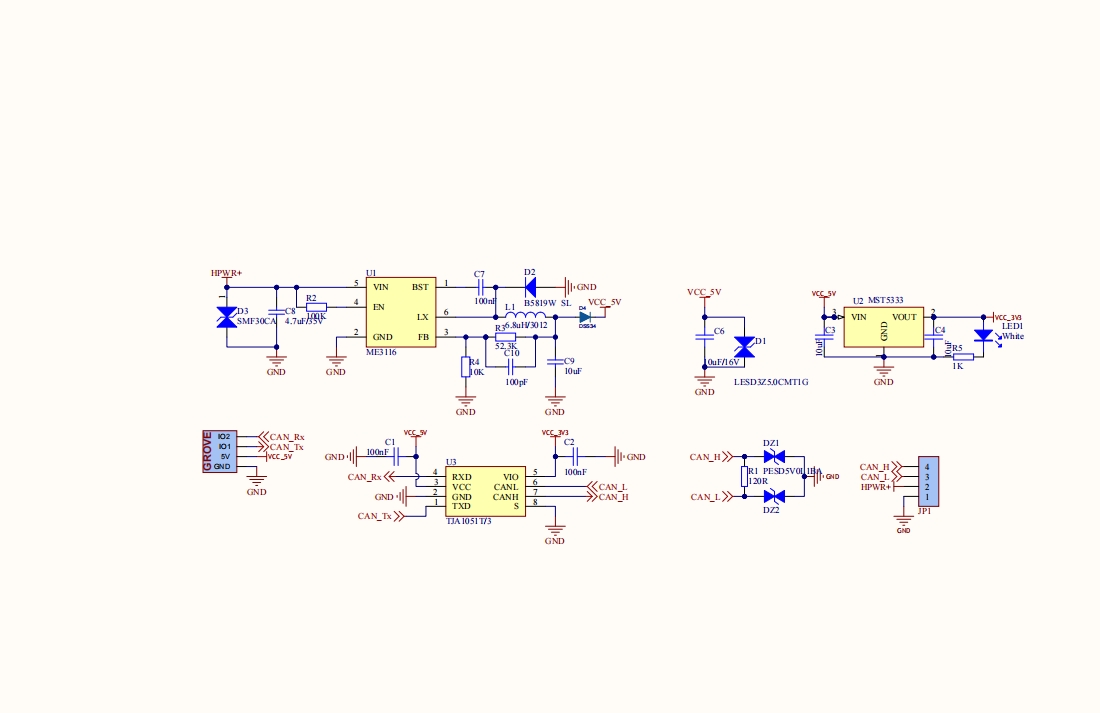

Schematic

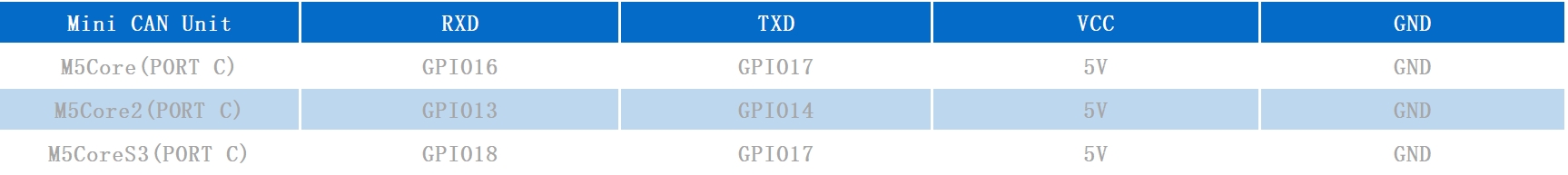

PinMap

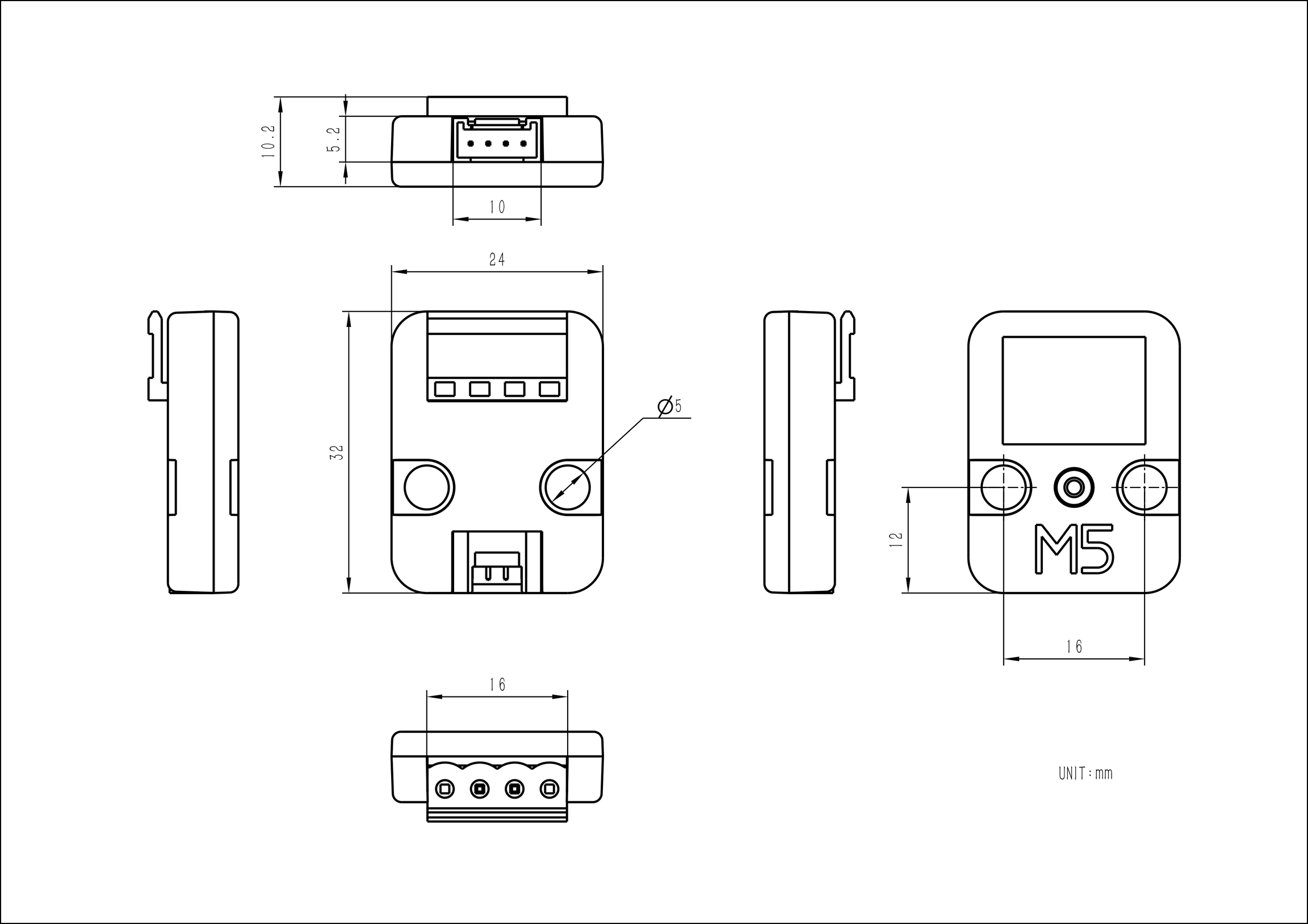

Module Size
