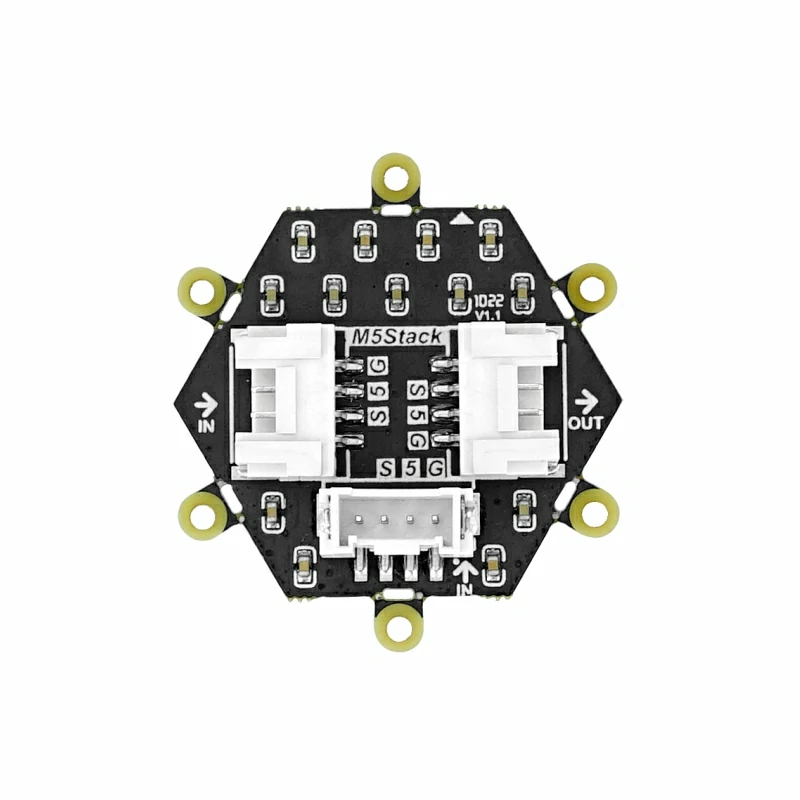

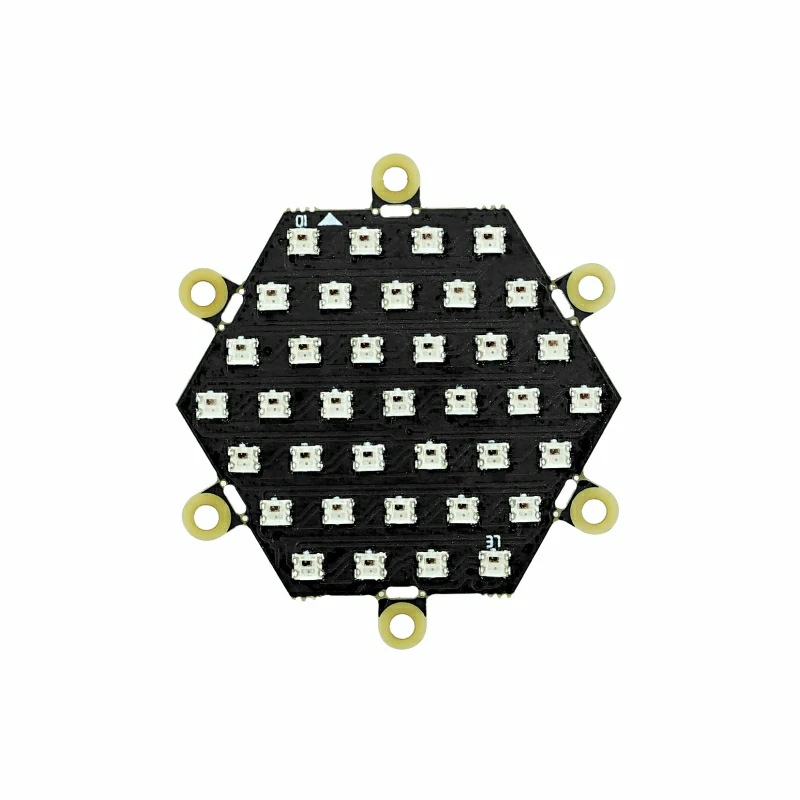

M5Stack Neo HEX 37 RGB LED Board


Description

NeoHEX is a hexagonal board with 37 RGB LED flexible beads and will be sure to 'WOW' plenty. Use single BUS control, and support multiple boards connecting. Two sets of different angle input connectors are provided for independent power supply + signal control. External structure with fixing ears for easy installation. With its opal light sheet, the diffusion creates a gentle glow and provides innovative solutions to transform your living spaces into unique pieces of functional art.

Features

  • WS2812C-2020-V1

  • Number of LEDs: 37

  • Support multiple boards connection

  • 6x fixing ears (removable)

  • Comes with opal light sheet

  • Single pixel support 256 levels of brightness display, can be combined for 16777216 kinds of full color display

Applications

  • Lighting decoration

Specifications

Specification
Parameters

LED Bead Model

WS2812C-2020-V1

Number of light beads

37

Voltage supply

3.7 ~ 5.3V

Logic input level

-0.3V ~ VDD+0.7

Output/output interface

HY2.0-4P interface: 2x input (signal, power), 1x output (extension)

Refresh Rate

30 frames (1024 cascades)

Power consumption

Actual measurement of power consumption (37 lights are fully lit, brightness 100%):Red Light:DC5V@207mAGreen Light:DC5V@109mABlue Light:DC5V@208mAWhite light:DC5V@568mA

Adjustable brightness

Level 256

Support Colors

16777216 kinds of colors

Fixing hole diameter

2mm

Net Weight

3.7g

Gross Weight

9g

Product Size

40*36*7mm

Package Size

93*138mm

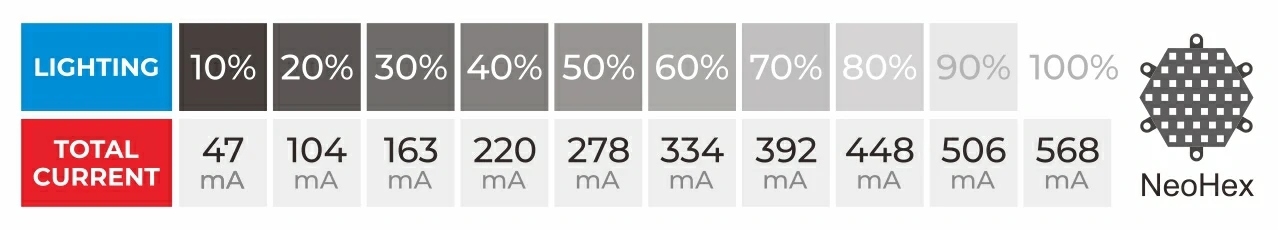

Brightness/Power consumption reference

Drive conditions

Different M5 main control in the USB power supply conditions of the light board drive for reference.

  • Actual drive conditions:

    • ATOM: White light brightness is 82% normal drive(>Unable to light up at 86%)

    • CORE: White light brightness is 100% normal drive

    • CORE2: White light brightness is 100% normal drive

    • M5StickC: White light brightness is 86% normal drive(>Unable to light up at 90%)

    • M5StickCPlus: White light brightness 78% normal drive(>Unable to light up at 86%)

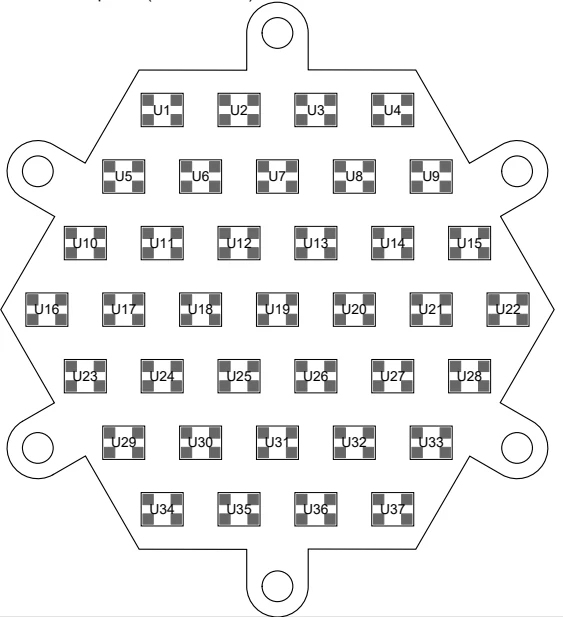

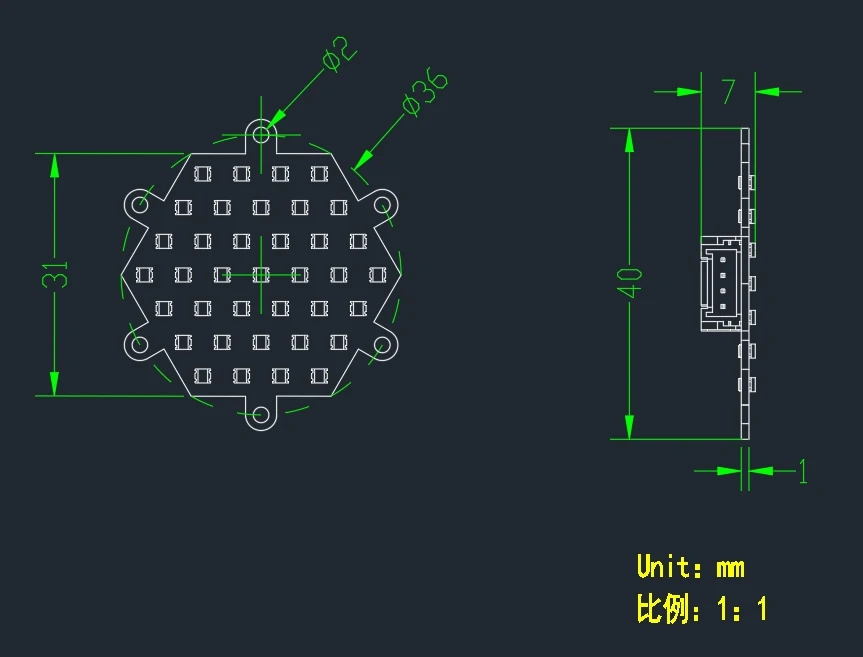

Structure Diagram

Pin Mapping

  • M5GO PORT-A

M5Core(PORT A)
GPIO22
GPIO21
5V
GND

Unit NeoHEX

/

Data Pin

5V

GND

Schematics

Example

Arduino

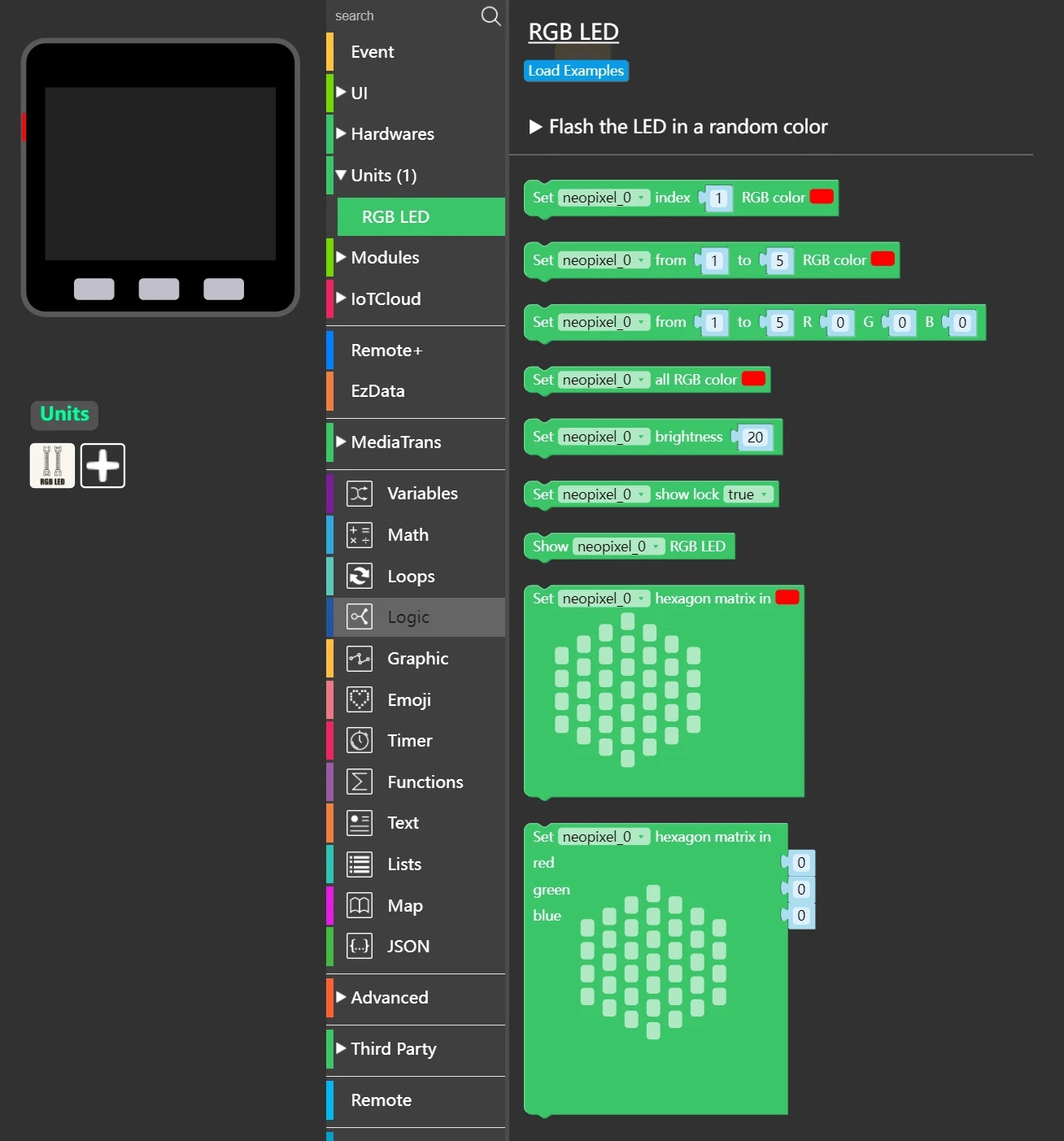

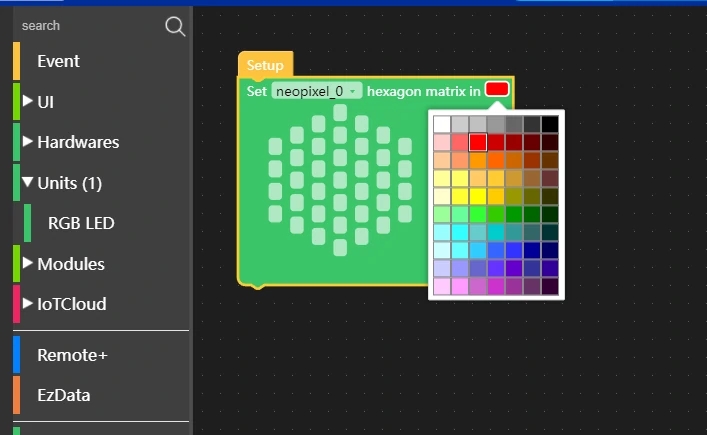

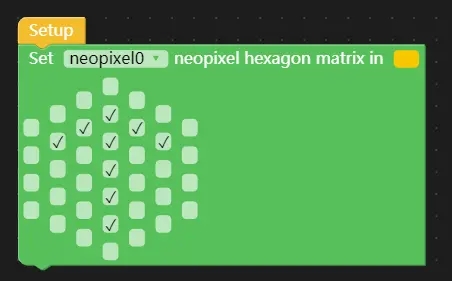

UIFlow

COMPATIBLE
