M5Stack Color Sensor RGB Unit

---

Product Link

M5Stack Color Sensor RGB UnitOpenELAB

Description

COLOR is color recognition unit integrated with TCS3472 chipset. As the name says, COLOR is able to detect color value and return RGB data as response.

Features

• Detection range: -40℃~85℃

• GROVE interface, support UIFlow and Arduino

• Two Lego-compatible holes

Includes

• 1x COLOR Unit

• 1x Grove Cable

Applications

• Product Color Verification

• Color tracking robot

Specification

Resources	Parameters
IC	TCS3472
Working temperature range	-40°C~85°C
Communication protocol	I2C:0x29
Product Size	32.2*24.2*8.2mm
Package Size	136* 92* 13mm
Product Weight	4g
Package Weight	17g

Related Link

• Datasheet - TCS3472

Schematic

EasyLoader

• Windows

  • EasyLoader_Color_UNIT_With_M5Core

PinMap

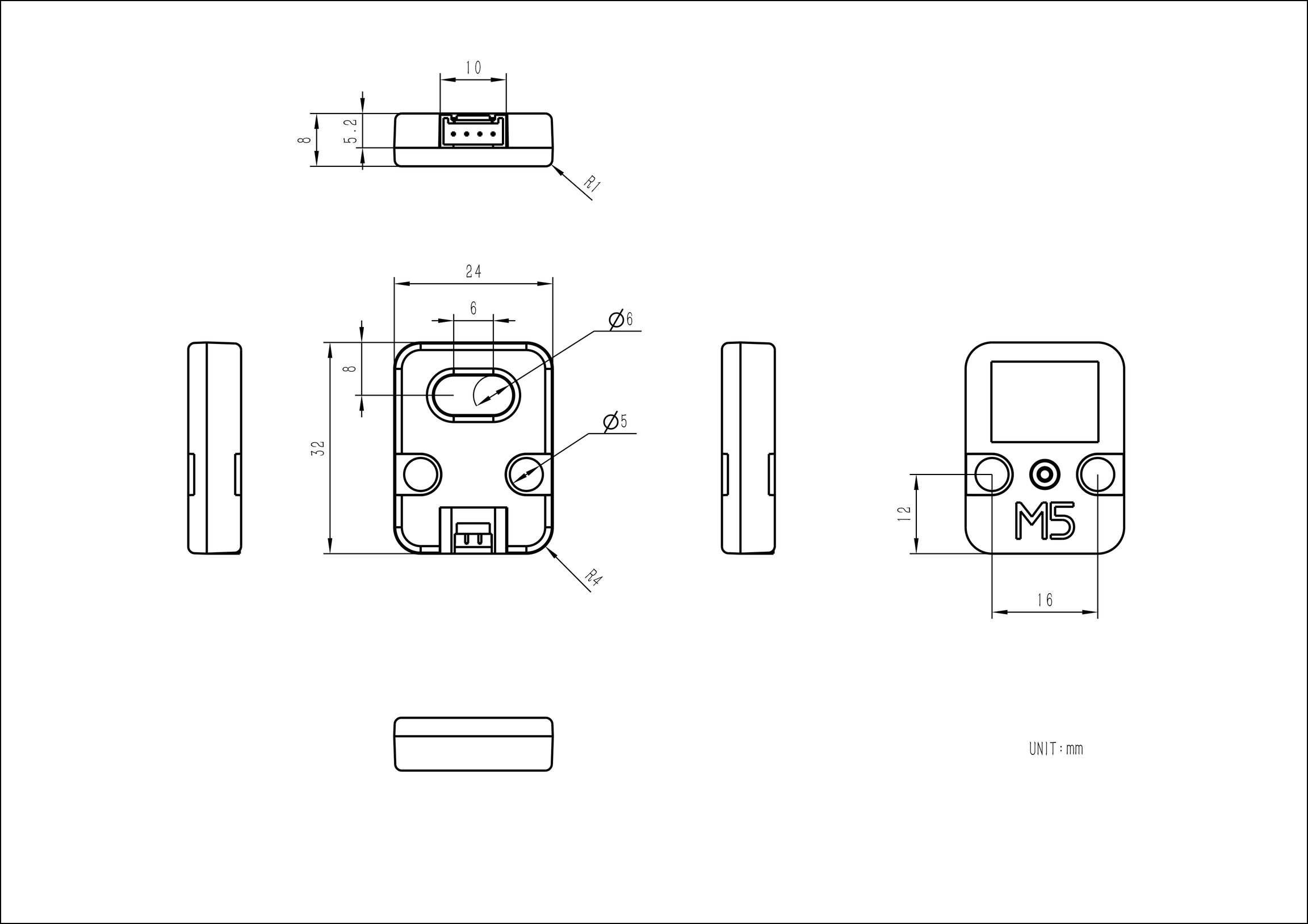

Module Size

Examples

Arduino

• The code below is incomplete. To get the complete code, please click here After burning this example firmware, PC serial terminal will print original value RGBC (red, green, blue, clear).
