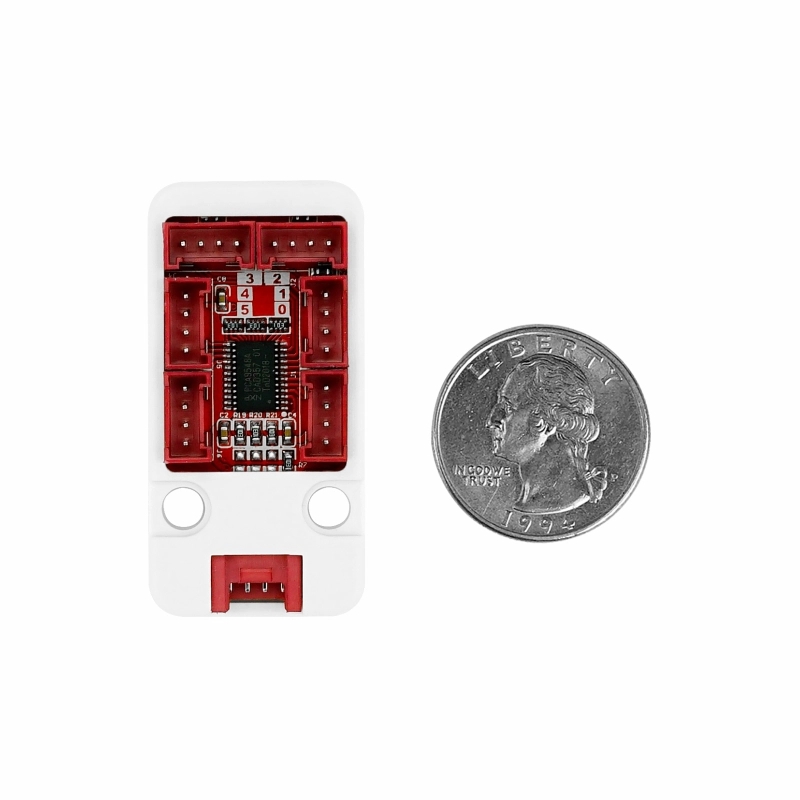

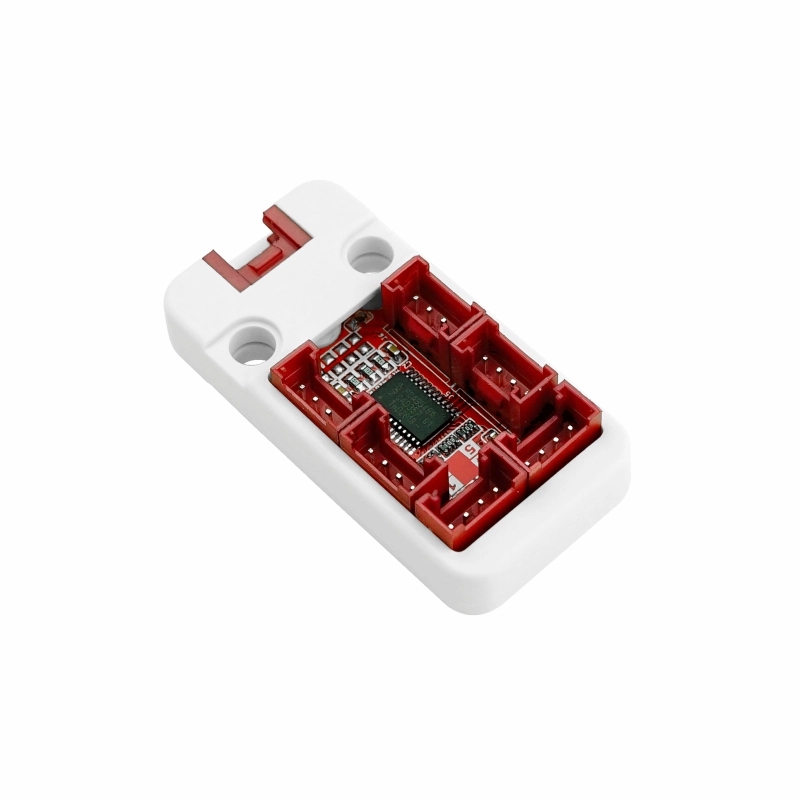

M5Stack I2C Hub 1 to 6 Expansion Unit
Product Link
Description
PaHUB2, is an I2C Expandable Hub, which can expand a single I2C HY2.0-4P interface and connects up to 6 I2C channels. It allows you to mount slave devices with the same I2C address (by polling control the different channels to achieve in-device coexistence). Embedded PCA9548AP-I2C multi-channel switch IC, Save you worries with insufficient I2C interface of the expansion.
Features
I2C HY2.0-4P PORTA expansion
2x LEGO compatible holes
Support multiple nesting
1-6 expansion
Application
I2C device expansion
Specification
| Specifications | Parameters |
|---|---|
Channel Control IC | PCA9548AP |
Communication protocol | I2C: 0x70 (can be modified by resistance A0, A1, A2) |
Net weight | 7g |
Gross weight | 19g |
Product size | 48 * 24 * 12mm |
Packing size | 67 * 53 * 12mm |
Note: When it's connected, the PaHUB2 will be polling control the different channels to achieve in-device coexistence. Please pay attention to the order of channels when programming.
Please refer to the schematic and PCA9548AP data manual, the Unit can modify the I2C address of the device by adapting the level combination of A0~A2 pins. (The default address is 0x70)
3 Position of Welding patch are reserved on the PCB board of the Unit, A0-A2 respectively, as shown in the figure below.
After welding the 0 ohm resistor, the corresponding pin will change from low level to high level. The pin level combination and its corresponding I2C address are shown in the table below.
EasyLoader
1.EasyLoader is a concise and fast program burner, which contains the test program used by Pahub2 & M5Core.
Schematic
Related Link
Datasheet
Learn
Smart Planting SystemSmart Planting SystemBuilding a smart planting system using M5Stack to monitor the lights, humidity, temperature, watering your plant automatically.
Q-BotQ-BotWe aim to build a robot that is effective in sanitizing surfaces without putting cleaners in harm's way.
3 in 1 Sanitizer Dispenser3 in 1 Sanitizer DispenserWe have devised with an innovation that dispenses hand sanitizer, measures the temperature of user, shows the count of people in vicinity.
Hand HygienicsHand HygienicsHand Hygienics aims to reduce spread of Covid-19 through contact.SEAM [Safe-Entry Access Machine]
SEAM [Safe-Entry Access Machine]An automatic system to perform the tasks of Safe Entry. It consist an adjustable Thermometer, RFID / QR Code Check in and Counting.
Example
Arduino

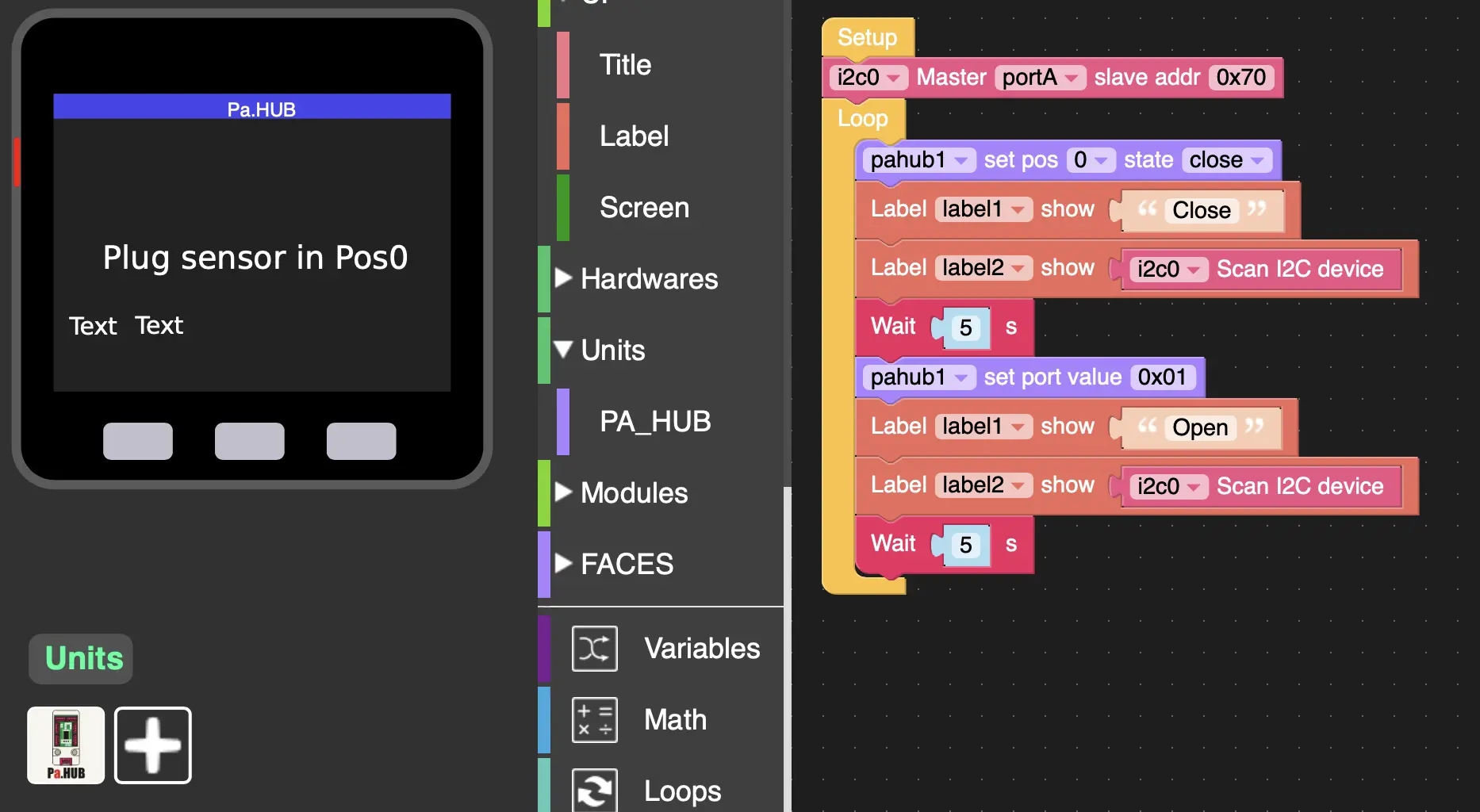

UIFlow
Feature Introduction
set pos state Set designated port I2C
set pos open Set the port to enable I2C
set port value Set up port I2C
Usage
