M5Stack PoE Camera with Wi-Fi


Description

M5PoECAM-W V1.1 is a programmable PoE camera based on the "ESP32+W5500" solution, featuring a 3-megapixel OV3660 image sensor with a 66.5° field of view. It integrates PoE (power over Ethernet, max power consumption 6W) and Wi-Fi functionality. Equipped with 16MB Flash and 8MB PSRAM, programs can be downloaded via the Micro-USB interface. This camera offers a variety of interfaces and functional modules, including a G37 button, LED indicator light (G0), Grove interface (EXT_PORT), and expansion pins. It also comes with a camera mounting clip and LEGO-compatible clip. Suitable for image monitoring, remote acquisition, smart home, industrial automation, and scenarios requiring devices powered through PoE cabling.

Features

  • Built-in ESP32-D0WDQ6-V3(Support 2.4G Wi-Fi)

  • 3 million pixel camera OV3660

  • Ethernet chip W5500

  • LAN speeds up to 10M or 100M (depending on the line provided)

  • PoE IEEE802.3 AF specification(Maximum power 6W)

  • Built-in prompt LED light

  • Ethernet standard interface RJ45

  • Standard LEGO interface and camera mount

  • Development platform:Arduino、ESP-IDF

Applications

  • Warehouse monitoring

  • Timed photograph

  • Machine vision

  • Smart home monitoring

Specifications

Resources
Parameters

SoC

ESP32-D0WDQ6-V3

Camera Module

OV3660 @3 Megapixel

DFOV

66.5°

Ethernet Chip

W5500

FLASH

16MB

PSRAM

8MB

Wi-Fi

802.11 b/g/n

Pixel Size

1.75µm x 1.75µm

Output Format

RAW RGB565/555/444 YUV422/420 YCbCr422 JPEG

Automatic image control functions

Automatic Exposure Control (AEC) Automatic Gain Control (AGC) Automatic White Balance (AWB) Automatic Band Filter (ABF) and Automatic Black-Level Calibration (ABLC)

FOV

65°

Supports Hardwired TCP/IP Protocols

TCP、UDP、ICMP、IPv4、ARP、IGMP、PPPoE

Ethernet interface specifications

RJ45

PoE

PoE IEEE802.3AF specification (Max power 6w)

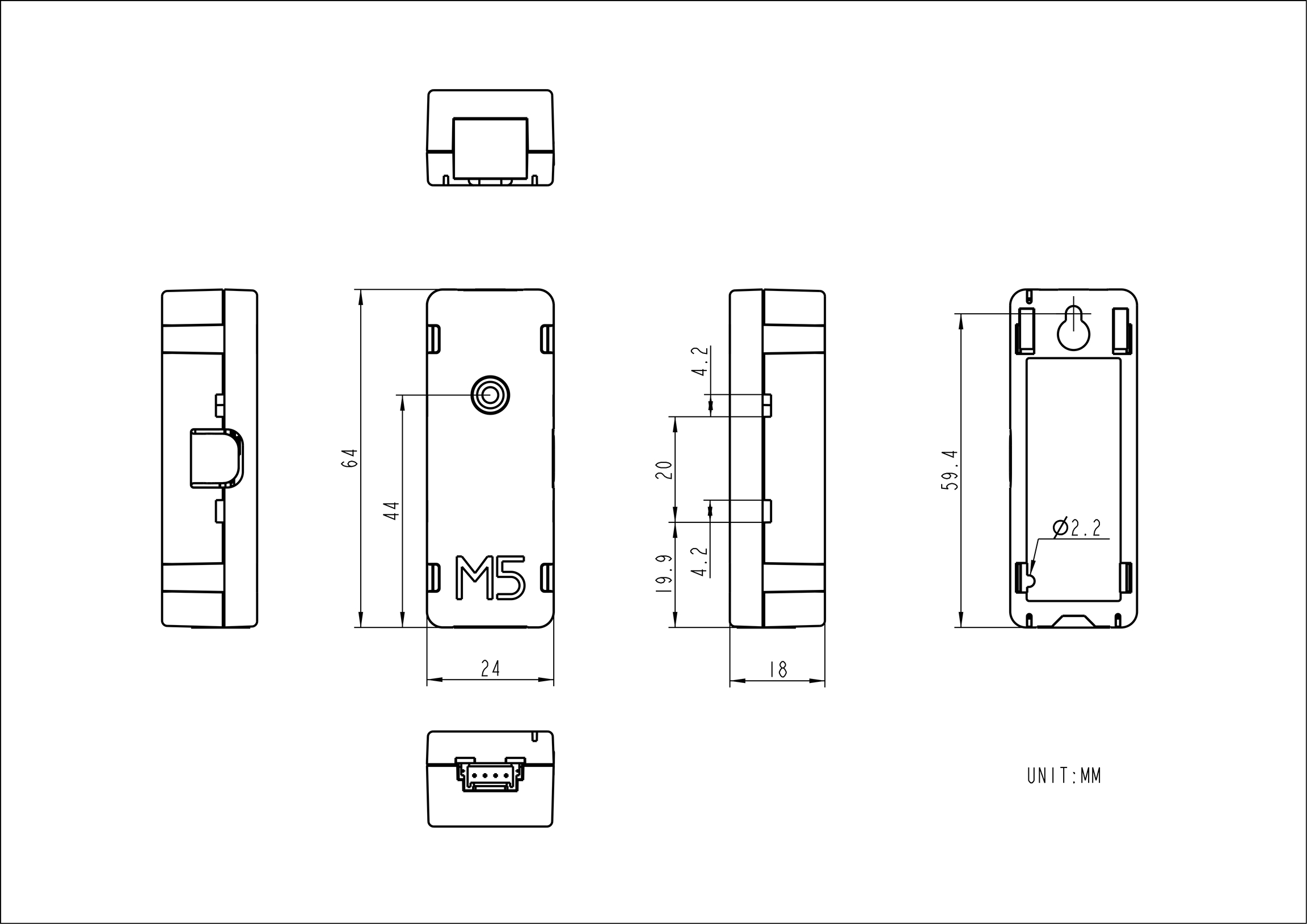

Product Size

64*24*18mm

Package Size

80*37*32mm

Product Weight

38g

Package Weight

45g

Datasheets

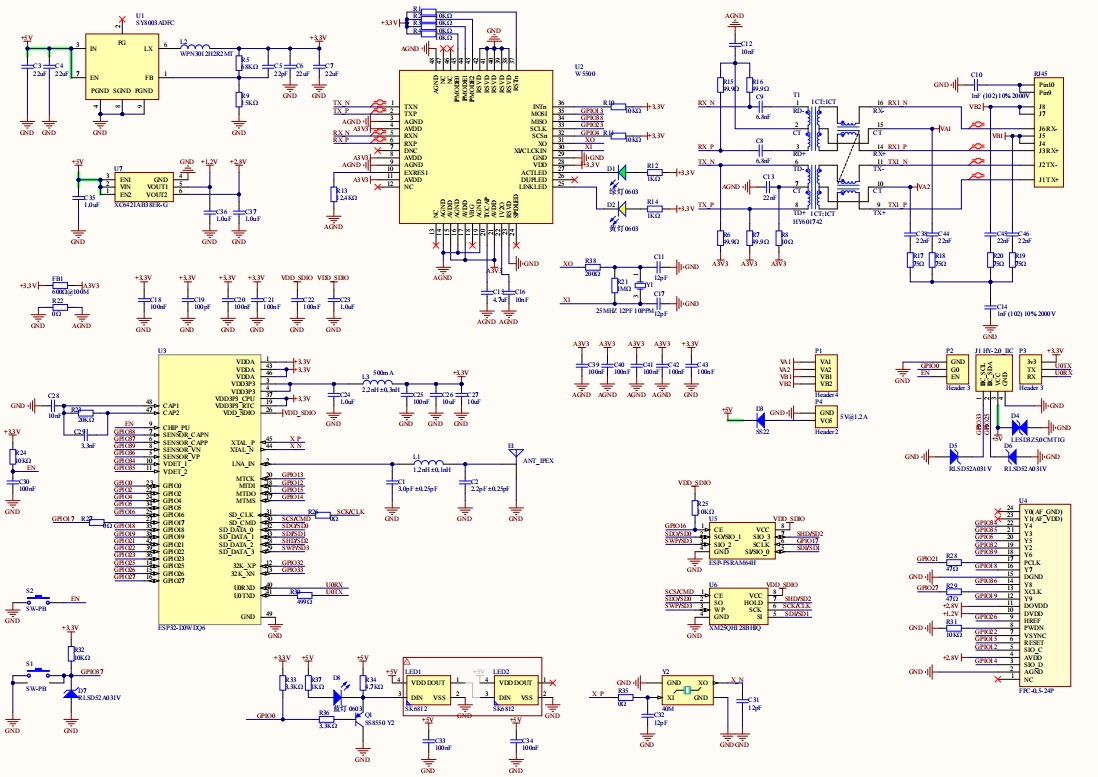

Schematics

PinMap

  • Grove interface & key &led warning lamp

ESP32-D0WDQ6-V3
GPIO33
GPIO25
5V
GND
GPIO37
GPIO0

Grove

SCL

SDA

VCC

GND

Button

Button

LED(Blue)

LED

  • Expansion pin (download pin)

ESP32-D0WDQ6-V3
CHIP_UP
GPIO0
GND
VCC
GPIO1
GPIO3

Expansion pin

EN

G0

G

3.3V

G1

G3

Model Size
