M5Stack Ext Encoder Unit (STM32F030)
Product Link
Description
ExtEncoder unit is an acquisition unit for external rotary encoder, supporting AB/ABZ signal input, using STM32F030 main control integrated encoder signal acquisition and decoding firmware, users can directly obtain the encoded value through the I2C reading operation, suitable for example, robot arm position control, automatic cutting in the field of industrial automation, meter wheel, etc.
Features
Supports signal acquisition with external rotary encoders
Support AB/ABZ signal input
Built-in STM32F030 main control, integrated encoder signal acquisition and decoding firmware
The encoded value can be obtained directly through the I2C read operation
Applications
Meter counting applications
encoder
Automated cutting
Specifications
Sampling accuracy
12 bit
Signal input type
AB/ABZ
I2C Address
0x59
Product Size
40*24*14mm
Package Size
67*53*12mm
Product Weight
8g
Package Weight
21g

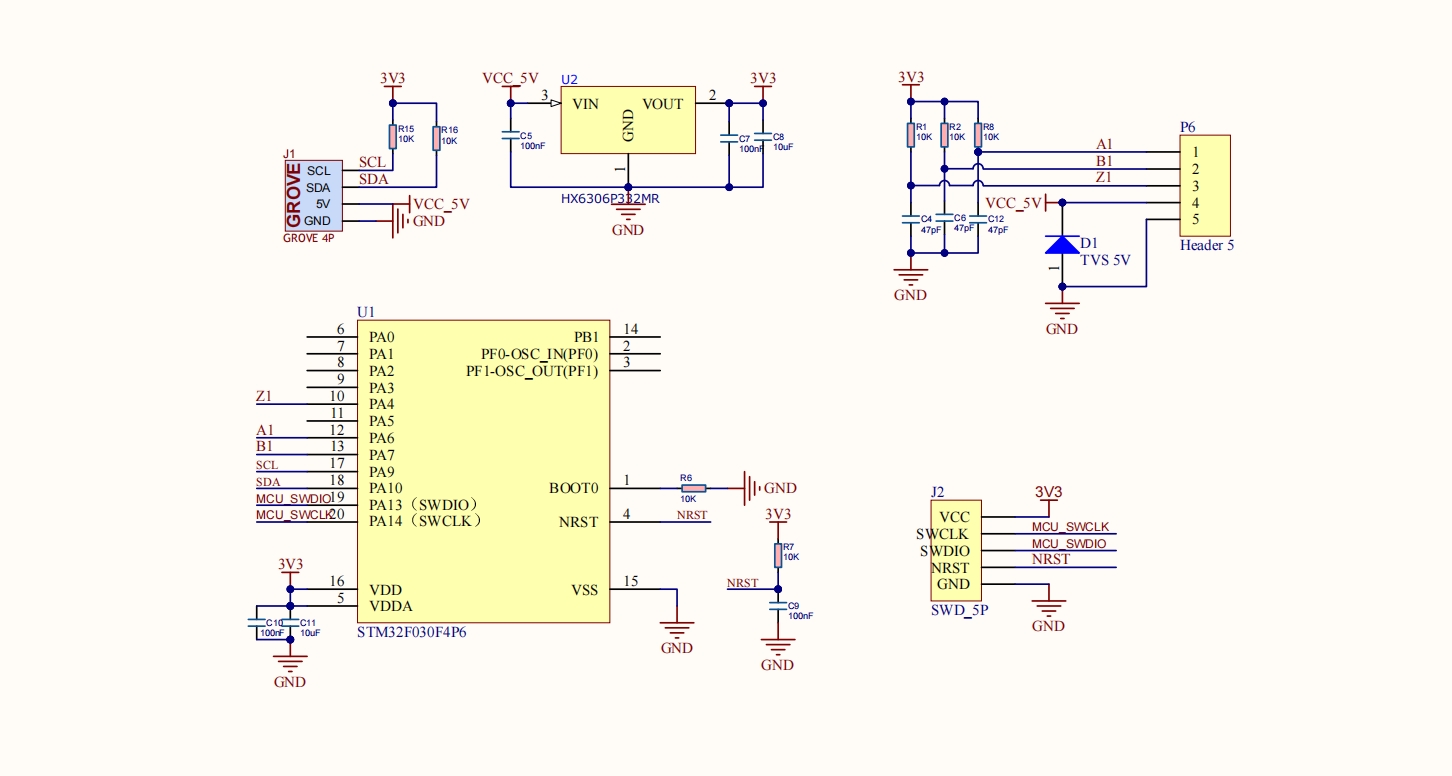

Schematic

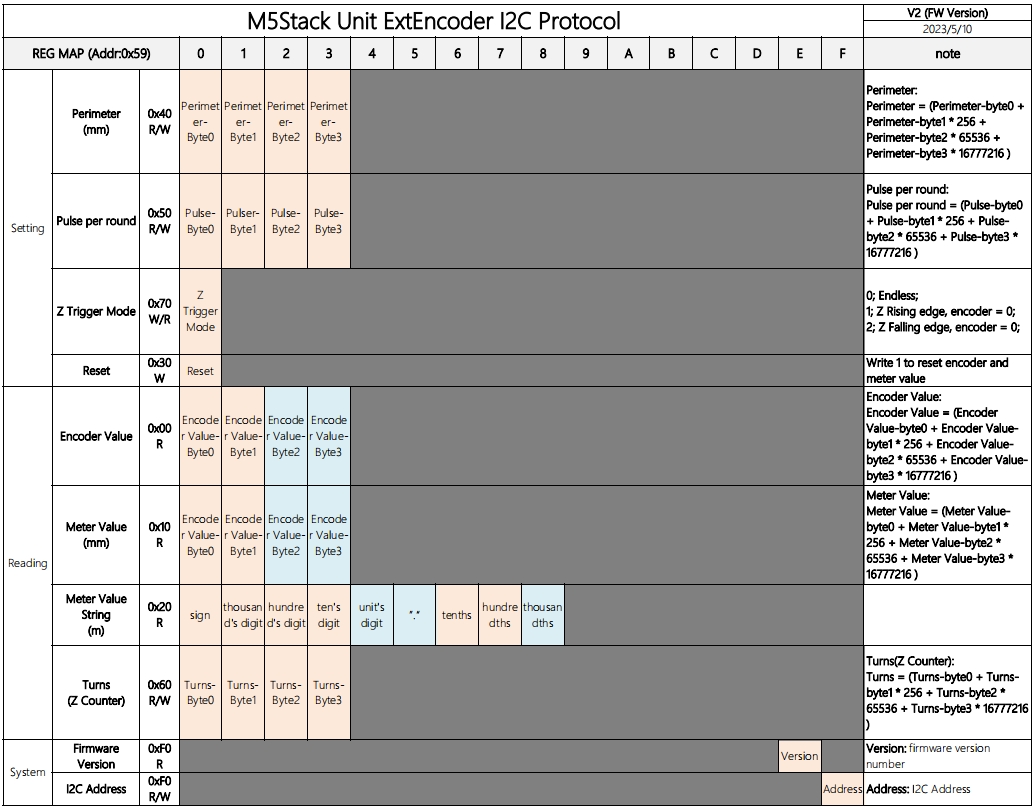

Protocol
