M5Stack I/O Hub 1 to 6 Expansion Unit


Product Link

Description

PbHUB Unit is a 6-channel expansion Unit with I2C control. Each Port B interface is capable of GPIO, PWM, Servo control, ADC sampling, RGB light control and other functions. Adopts STM32F030 for internal control.

Features

  • 6 x GPIO Ports Expansion

  • 1 x I2C Input

  • Internal STM32F030 control

  • 2 x Brick holes

Specifications

Spec
Parameter

Communication protocol

I2C:0x61(Modified by register)

Net weight

6.7g

Gross weight

11.8g

Product Size

48*24*12mm

Package Size

136*92*12mm

Schematic

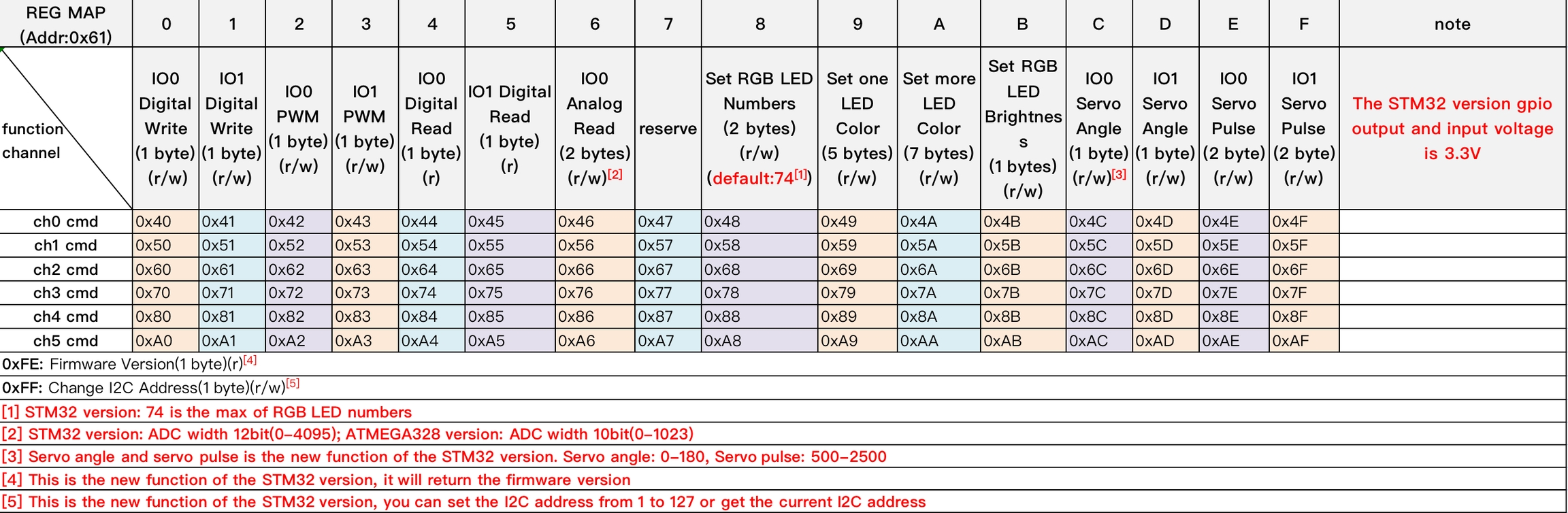

Protocol

Compatible
