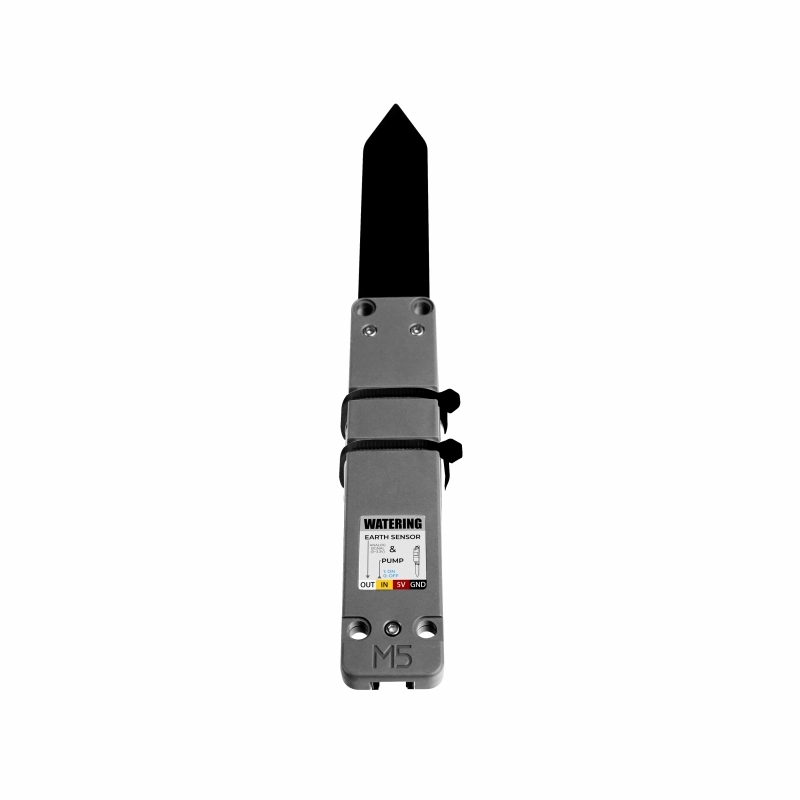

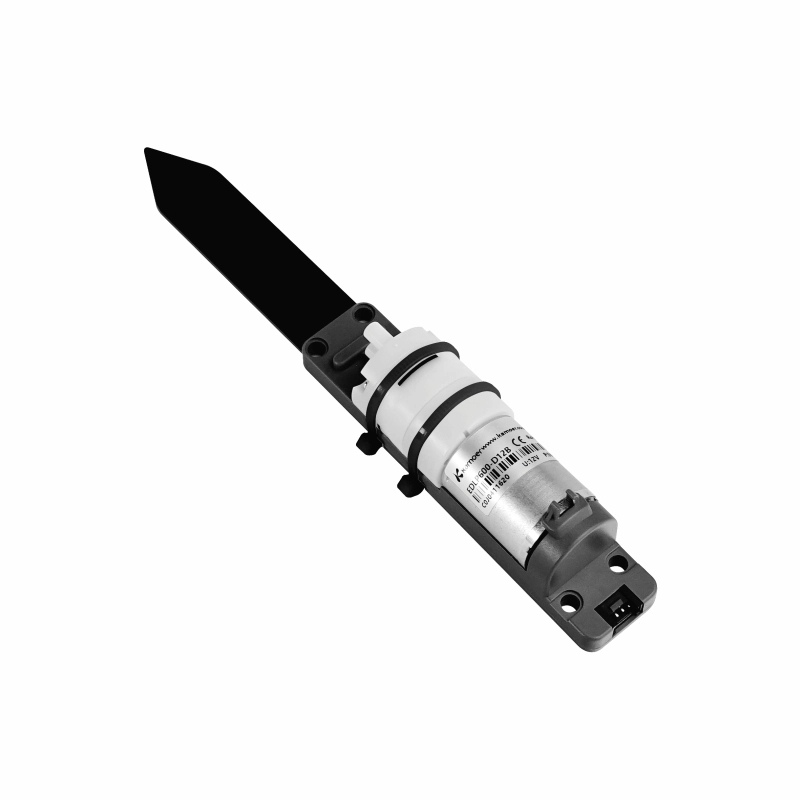

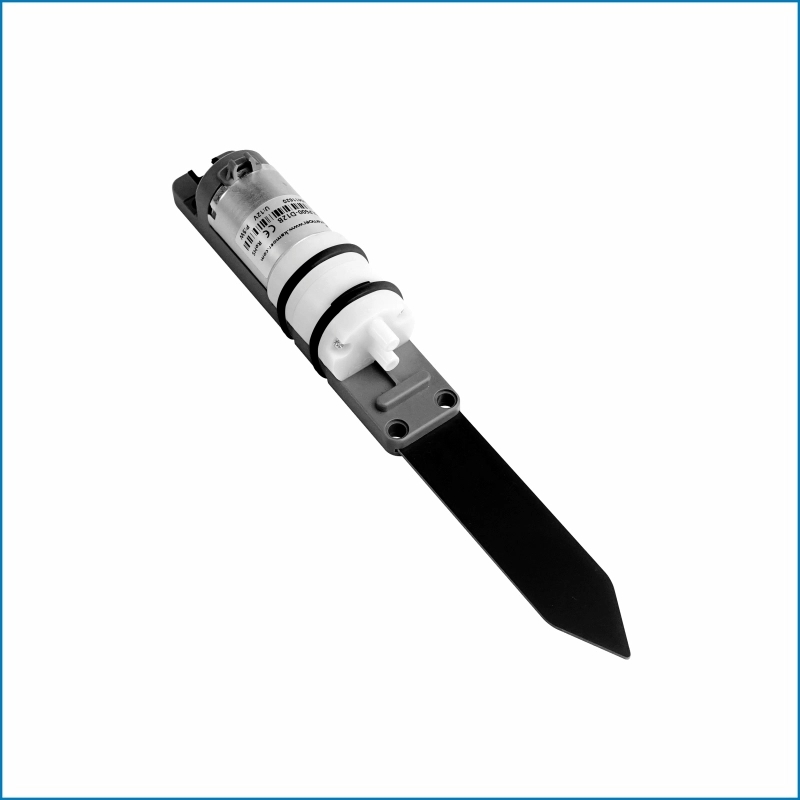

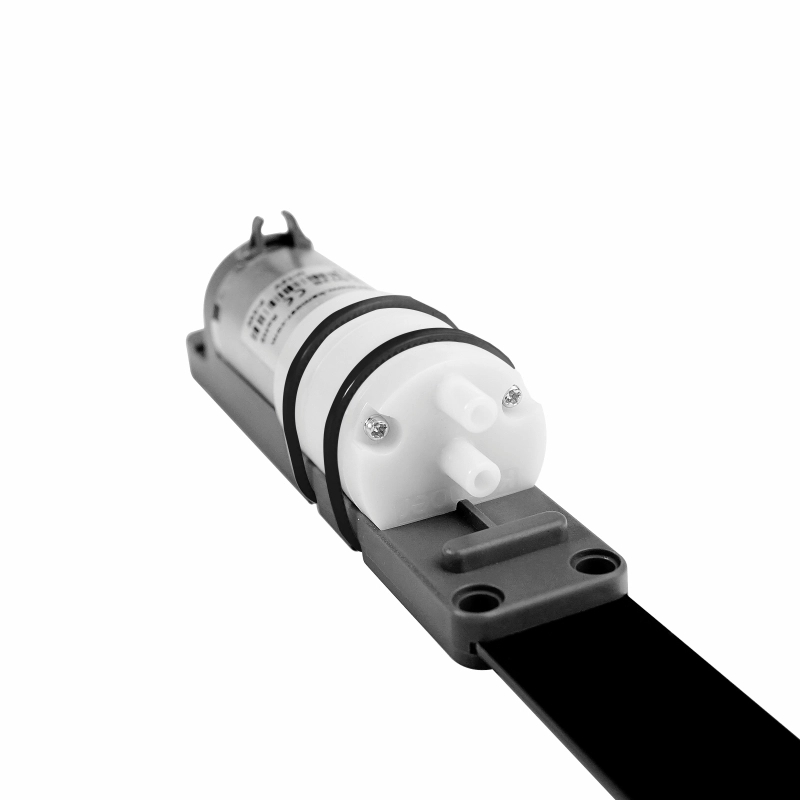

M5Stack Watering Unit with Mositure Sensor and Pump
Product Link
Description
Watering is a capacitive soil moisture detection and adjustment unit. The product integrates water pump and measuring plates for soil moisture detection and pump water control. It can be used for intelligent plant breeding scenarios and can easily achieve humidity detection and Irrigation control. The measurement electrode plate uses the capacitive design, which can effectively avoid the corrosion problem of the electrode plate in actual use compared with the resistive electrode plate.
Features
Capacitive measuring plate (corrosion resistant)
Integrated 5W power water pump
LEGO compatible holes
Application
Plant cultivation
Soil moisture detection
Smart irrigation
Specification
| Resources | Parameter |
|---|---|
Pump power | 5W |
Net Weight | 78g |
Gross Weight | 103g |
Product Size | 192.5*24*33mm |
Package Size | 200*35*45mm |
EasyLoader
Windows
MacOS
Pinout
| M5Core(PORT B) | GPIO26 | GPIO36 | 5V | GND |
|---|---|---|---|---|
Watering Unit | PUMP | INPUT | 5V | GND |

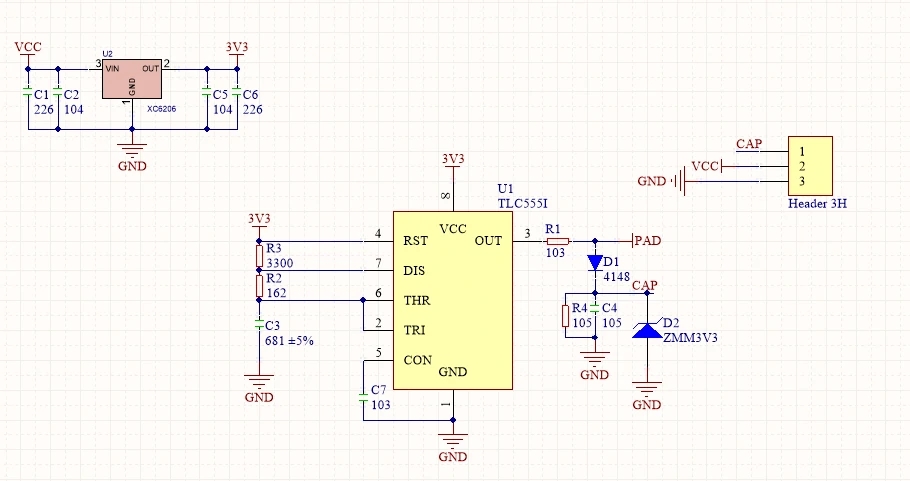

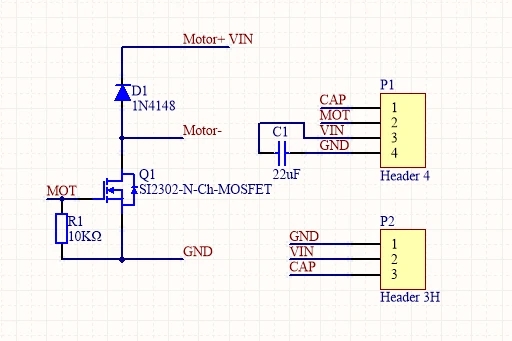

Schematic
Example
Arduino
UIFlow
