M5Stack M5StickC Fingerprint HAT

Product Link

Description

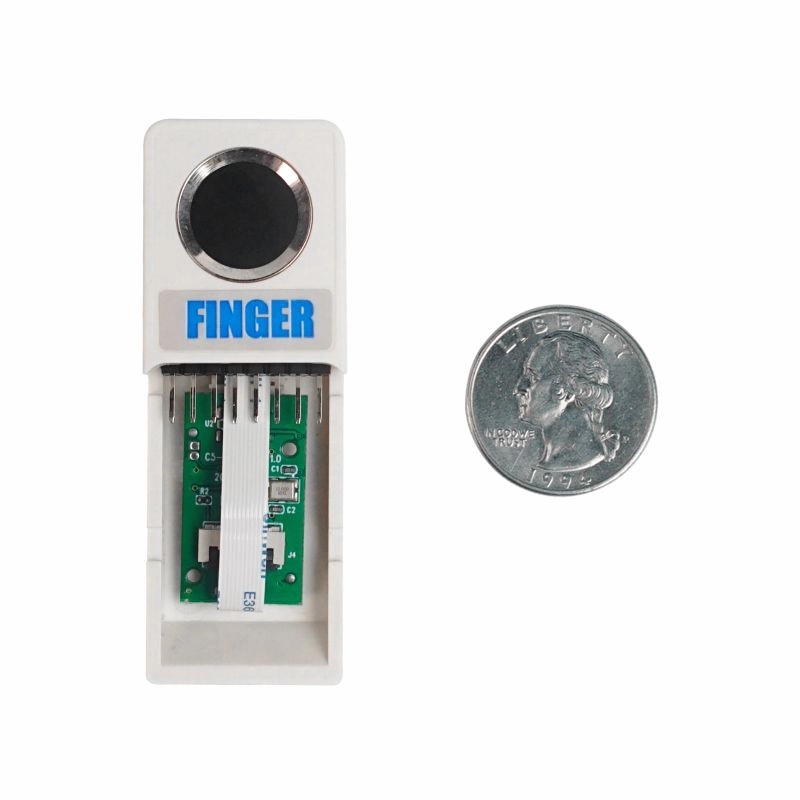

FINGER Hat comes with "FPC1020SC" fingerprint sensor inside. This all-in-one fingerprint sensor makes adding, verification and management of fingerprints super easy. Compact size, serial protocol and 'ultra-low power consumption'- all make this M5 Unit very attractive to be used along with the M5StickC. It performs fast fingerprint matching with the highest security level at the most optimal user convenience. The M5 Unit can be programmed to set customized fingerprint recognition comparison levels and security levels. if you ever consider to make your project more secure with biometrics, don’t forget to include this M5 Unit: "FINGER HAT".

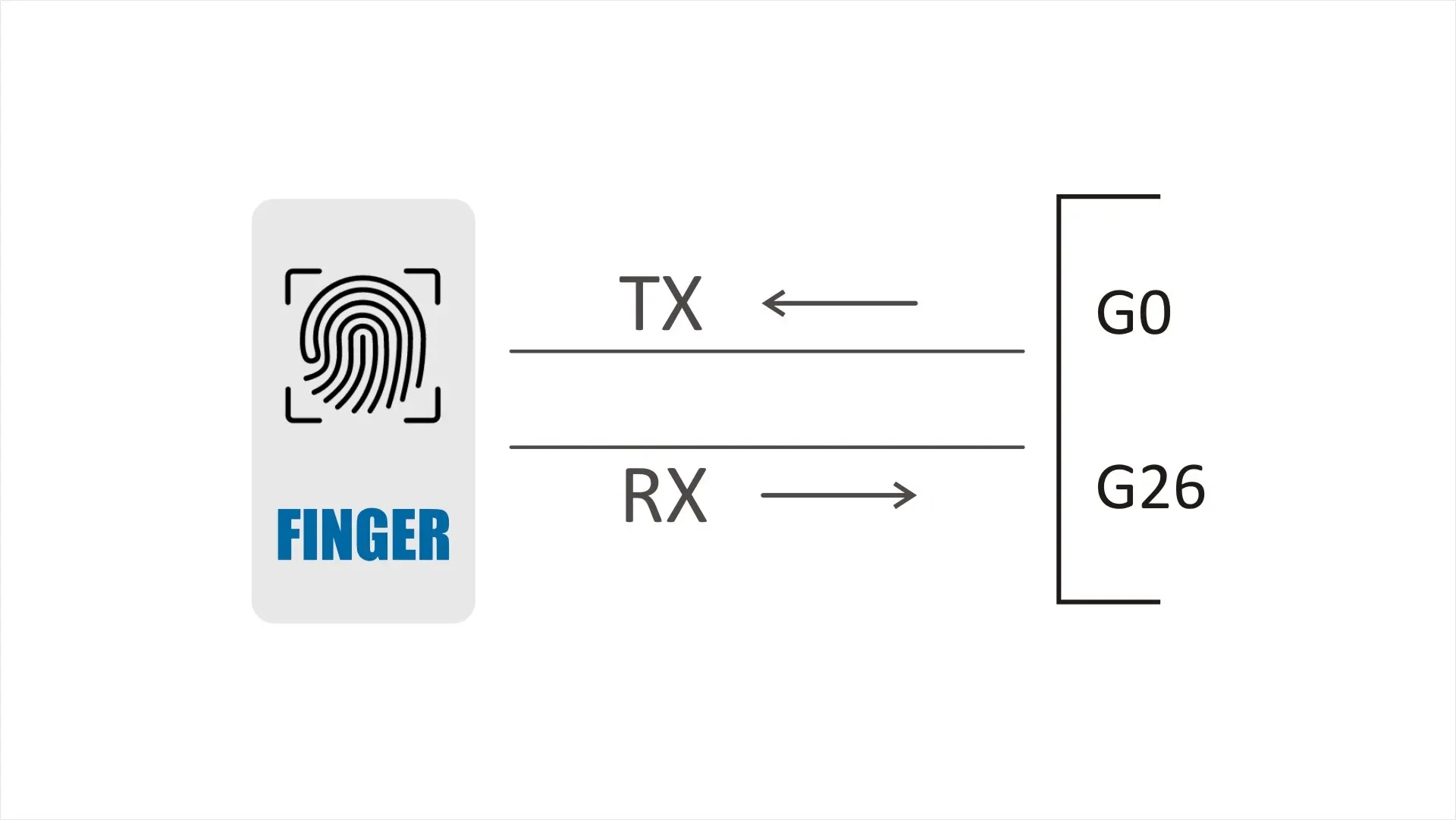

UART settings:

Baudrate: 19200bps(default)
1 Start bit
1 Stop bit
No parity

Features

Fingerprint: 150
Capacitive area array semiconductor fingerprint sensor
The sensor has a pixel quality of 256 gray levels per pixel
1:N recognition and 1:1 verification
Support finger 360 Rotate recognition
Security level that can be adjusted appropriately 0-9, default level 5
Output format: User name、finger image、feature value
Characteristic value size: 193 Bytes
Communication Interface: UART
Supported Baudrate: 9600bps-115200bps（Default:19200bps）
Operating temperature: -10°C - 60°C
Operating humidity: 20% - 80%

Applications

Fingerprint Attendance Machine
Passwordless authentication
User identification

Specification

EasyLoader

download EasyLoader

EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. It can be burned to the M5 device through simple steps, and a series of function verification can be performed.

After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to burn the program (For M5StickC, set the baud rate to 750000 or 115200)
