M5Stack NCIR 2 Thermometer Unit (MLX90614)
Product Link
Description
Living through this pandemic has made contactless temperature sensing a must! The NCIR 2 Thermometer Unit utilizes the MLX90614 temperature sensor, and take ambient and object temperature readings with No Contact. Great for socially-distant reality.
The MLX90614 sensor is factory calibrated in wide temperature range, -40 to 125 ˚C for the ambient temperature and -70 to 380 ˚C for the object temperature. The embedded MCU - STM32 can process the data to achieve high/low temperature alert function. There are also buzzer, RGB LED, function button and reset button on board.
This Unit can either work with M5Core through I2C protocol, or work alone. Suitable for medical, environmental monitoring and home automation applications.
Features
STM32F030F4P6
MLX90614 IR Sensor
HY2.0-4P Connector (I2C)
Program platform: Arduino, UIFlow
Two brick-compatible holes
Applications
High-precision non-contact temperature measurement
Motion detection
Home Automation
Specification
MCU
STM32F030F4P6
Sensor
MLX90614ESF-BAA
Object Measurement Temperature Range
-70°C ~ 380°C
Calibrated Sensor Temperature
-40°C ~ 125˚C
Unit Operation Temperature
0°C ~ 40°C
Accuracy
±0.5°C
Program Platform
Arduino, UIFlow
I2C Address
0x5A
Product Size
48mm × 24mm ×8mm
Package Size
136mm × 92mm × 13mm
Product Weight
7.3g
Package Weight
12.8g
Related Link
Schematic

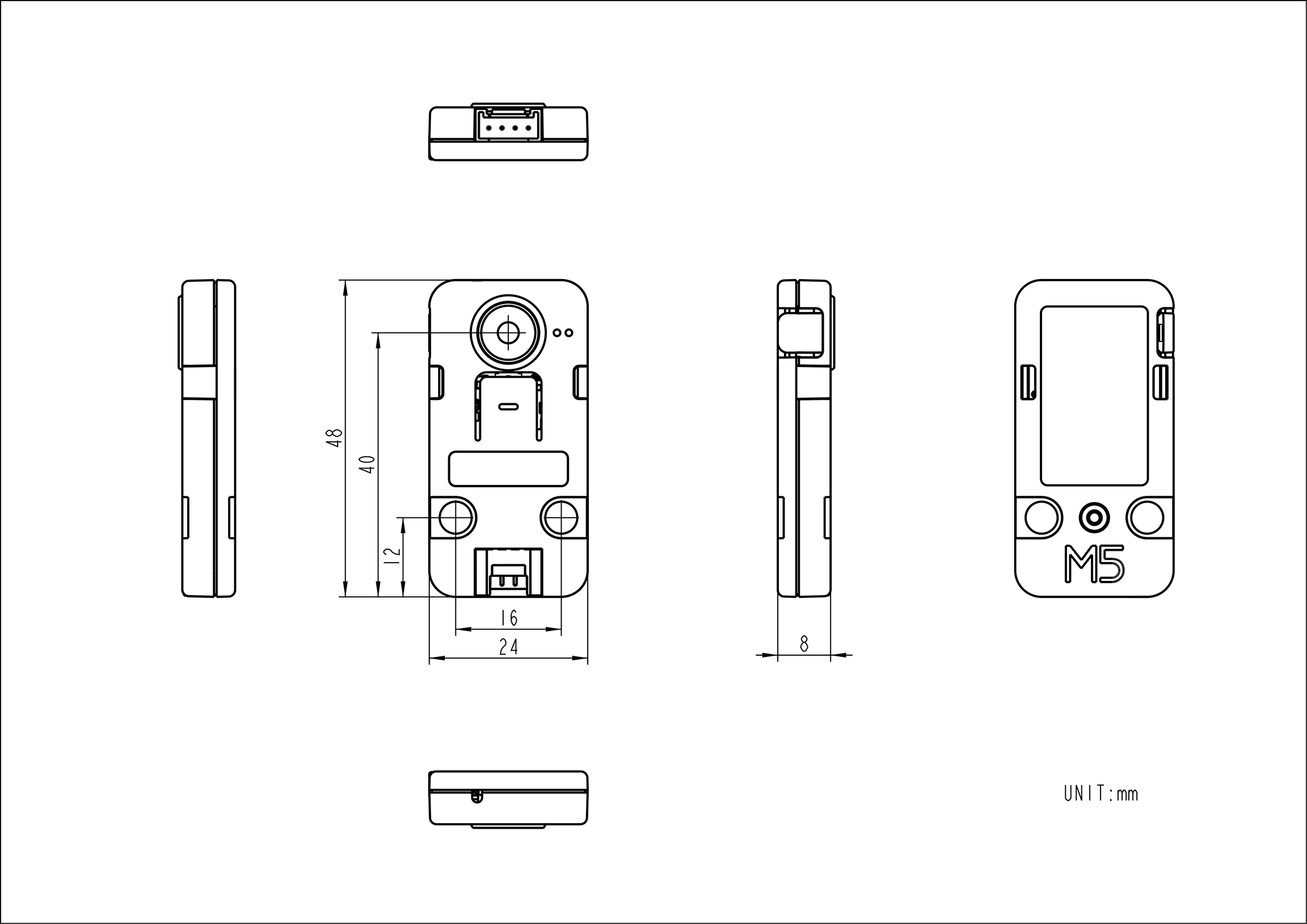

Module Size

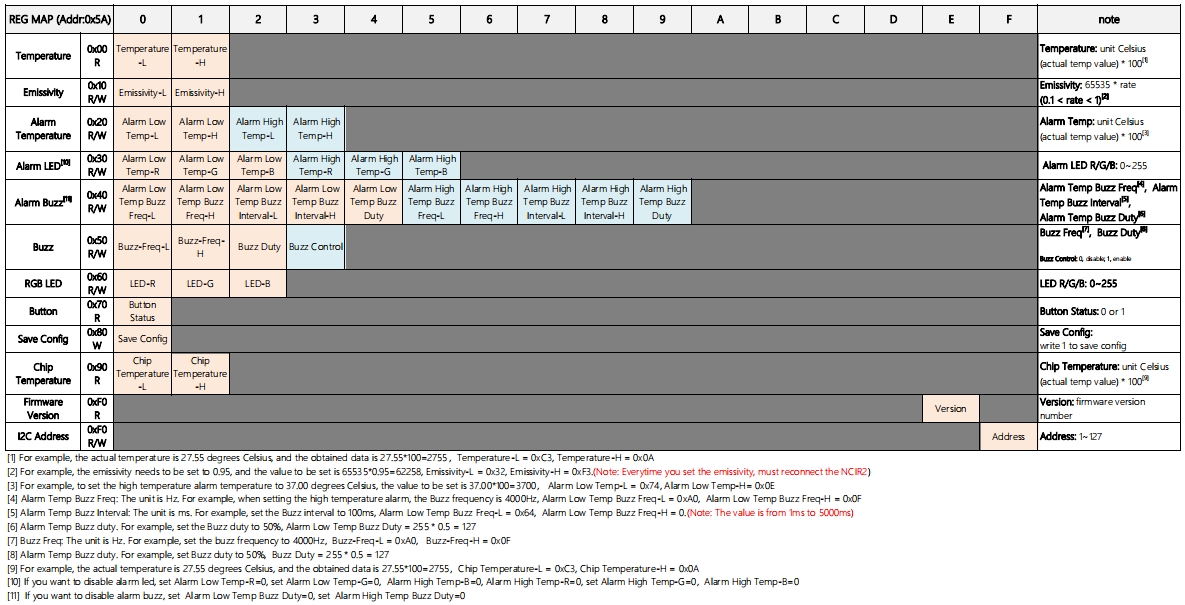

Protocol

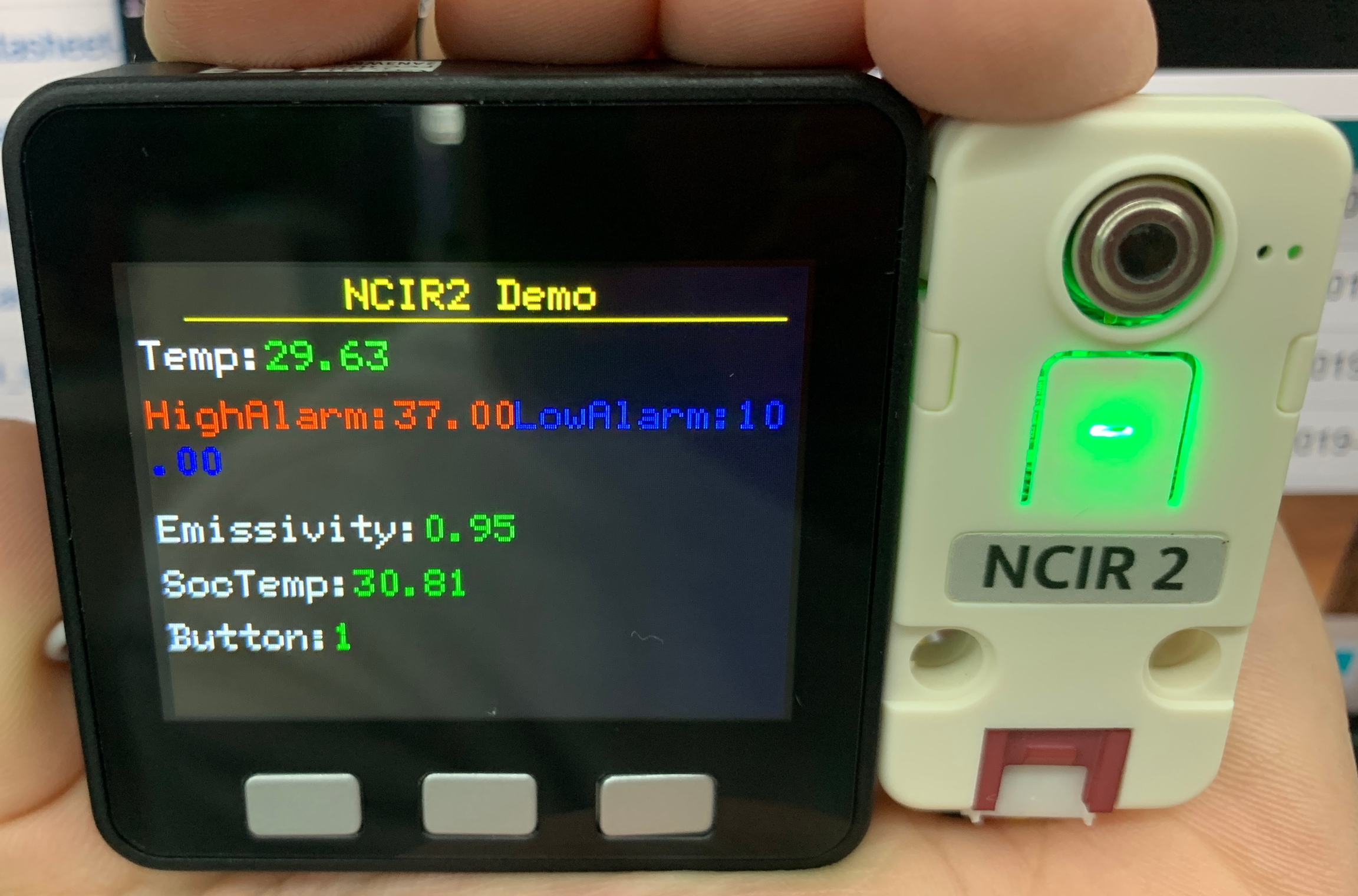

Examples
Arduino
