M5Stack UnitV K210 AI Camera M12 Version


Description

UNIT-V M12 is an AI camera unit with M12 lens specifications and K210 processor, which integrates dual-core 64-bit RISC-V CPU and neural network processor edge computing system-on-chip, it equippes with M12 optical lens OV7740 wide-angle camera module (can replace other M12 lenses), the body is equipped with two programmable buttons and TF card expansion slot. Its bottom provides an HY2.0-4P interface and a TYPE-C interface for data connection to the controller. The UNIT-V M12 AI camera is very small, it is suitable for embedding in various devices, with machine vision processing capabilities, supporting a variety of image recognition capabilities (such as real-time acquisition of the size and coordinates of the detected target Real-time acquisition of the type of detected target), and it can perform convolutional neural network calculations, which is a low-threshold machine vision embedded solution.

Features

  • Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)

  • Dual Independent Double Precision FPU

  • 8MiB 64bit width On-Chip SRAM

  • Neural Network Processor(KPU) / 0.8Tops

  • Field-Programmable IO Array (FPIOA)

  • AES, SHA256 Accelerator

  • Direct Memory Access Controller (DMAC)

  • Micropython Support

  • Firmware encryption support

  • On-board Hardware resources:

    • Flash: 16M

    • Camera :OV7740

    • Button: button * 2

    • External storage: TF card/Micro SD

    • Interface: HY2.0/compatible GROVE

Applications

  • Face recognition/detection

  • Object detection/classification

  • Obtaining size and coordinates of the target in real-time

  • Obtaining the type of detected target in real-time

  • Shape recognition

  • Video recorder

Specifications

Resources
Parameters

Kendryte K210

Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)

SRAM

8MiB

Flash

16M

Input voltage

5V @ 500mA

KPU Neural network parameter size

5.5MiB - 5.9MiB

Interface

TypeC x 1, GROVE(I2C+I/0+UART) x 1

Button

Custom button x 2

Image Sensor

M12 wide-angle lens ov7740

FOV

80°

External storage

TF Card/Micro SD

shell material

Plastic ( PC )+CNC (ALUMINIUM)

Product Size

40* 24* 16.4mm

Package Size

70* 50* 30mm

Product Weight

13.9g

Package Weight

52.6g

Datasheets

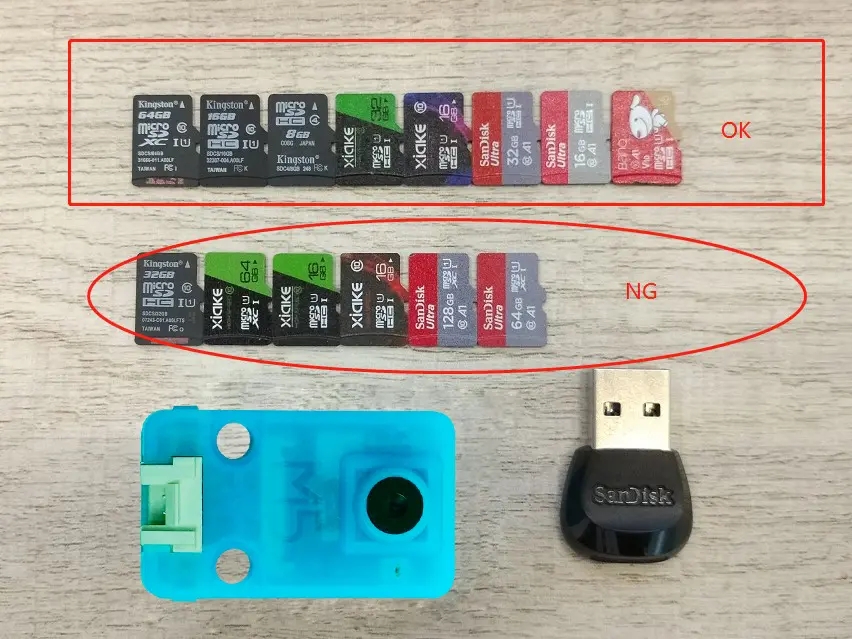

SD card test

UNIT-V does not currently recognize all types of MicroSD cards. We have tested some common SD cards. The test results are as follows.

Brand
Storage
Type
Class
Format
Test Results

Kingston

8G

HC

Class4

FAT32

OK

Kingston

16G

HC

Class10

FAT32

OK

Kingston

32G

HC

Class10

FAT32

NO

Kingston

64G

XC

Class10

exFAT

OK

SanDisk

16G

HC

Class10

FAT32

OK

SanDisk

32G

HC

Class10

FAT32

OK

SanDisk

64G

XC

Class10

/

NO

SanDisk

128G

XC

Class10

/

NO

XIAKE

16G

HC

Class10

FAT32

OK(purple)

XIAKE

32G

HC

Class10

FAT32

OK

XIAKE

64G

XC

Class10

/

NO

TURYE

32G

HC

Class10

/

NO

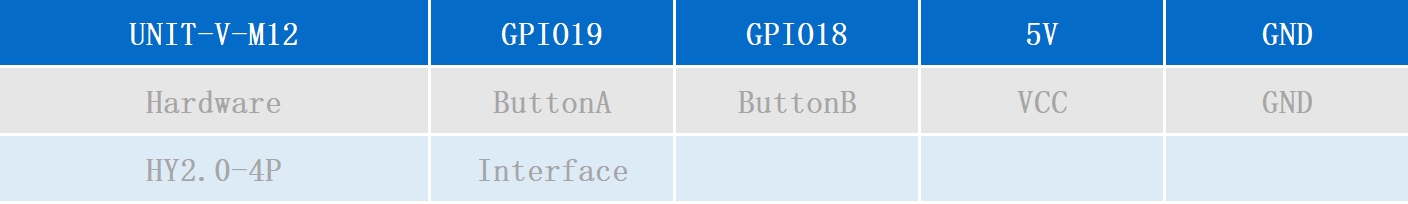

PinMap

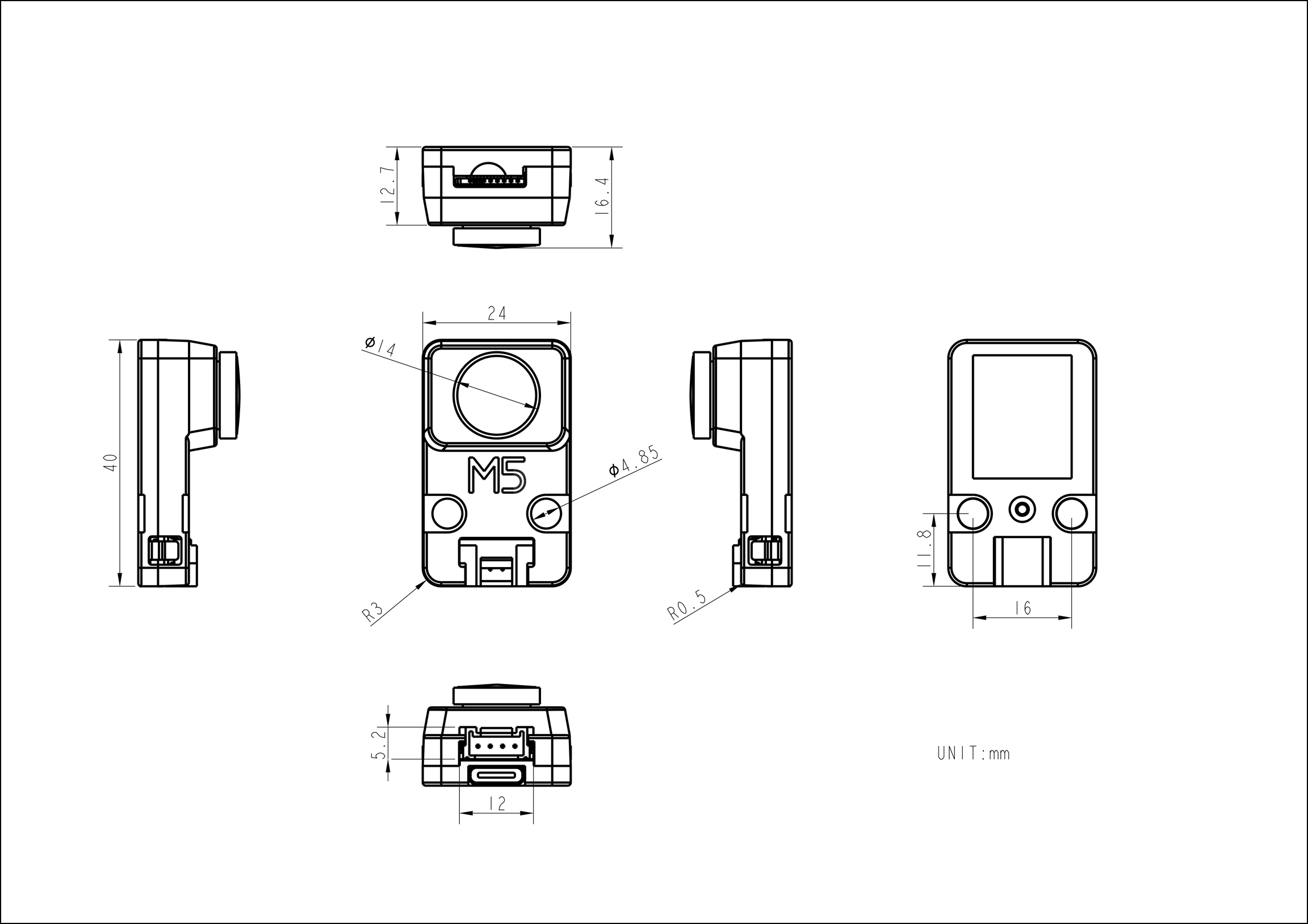

Model Size
