HEX is a hexagon RGB LED panel that integrates a total of 37 RGB LEDs. The HEX board includes an input port and an output port, you can have multiply of them in series connection.
37 integrated LEDs
Software development platform: Arduino, UIFlow (Blockly & python)
RGB LED
SK6812 x 37
Net weight
8g
Gross weight
10g
Product Size
30*35*8mm
Package Size
50*80*10mm

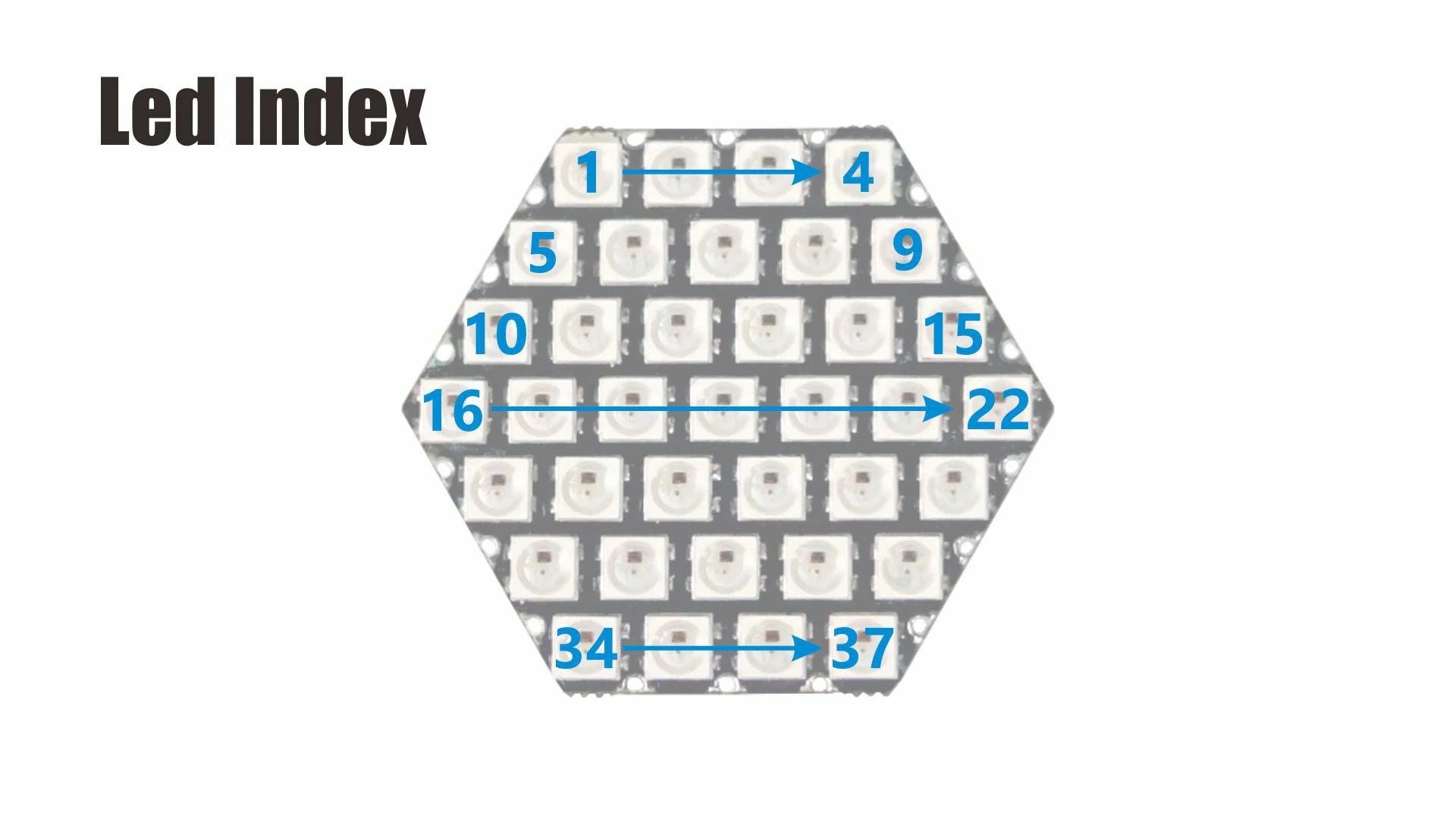

This is how LEDs layout in the panel, Pay attention to the sequence in your code:
If HEX connectors to GROVE A
HEX Unit In
Data Pin
5V
GND
If HEX connectors to GROVE B
HEX Unit In
Data Pin
5V
GND
If HEX connectors to GROVE C
HEX Unit In
Data Pin
5V
GND
