M5Paper ESP32 Development Kit V1.1
Product Link
Description
M5Paper v1.1 is M5Stacks latest core device with a touch enabled E-ink display. Powered by the ESP32-D0WDQ6-V3 this is our first device to integrate a super sized 540*960 @4.7" E-ink display,which supports 16 gray scale levels. The display is a GT911 capacitive touch screen,which supports two point touch and a variety of gesture controls . Compared to a regular LCD,E-ink displays are easier on the eyes, which makes them a great choice for reading or viewing for longer periods. Other benefits are the low power consumption and the ability to retain the image even if power to the display is terminated. Integrated in the CoreInk are an multi-function button for operation, SHT30 temperature and moisture sensor, physical buttons and an TF-card(microSD) port for data storage.
Additionally the FM24C02 internal eeprom chip provided 2K-bit(256x8)-EEPROM can be used to store vital data even when the device is off. A 1150mAh lithium polymer battery keeps the device going for long periods and battery life can be further preserved by using the RTC(BM8563)to set the device into deep sleep and wake it up again when needed。Three HY2.0-4P expansion ports are included which allow for building complex projects using the existing sensors in the M5Stack ecosystem.
Warning:
1. Do not expose to ultraviolet rays for a long time, otherwise it may cause irreversible damage to the ink screen.
2. The low-power power management solution adopted by M5Paper is different from CORE and StickC devices. When using it, the PWR button is used as the power-on button (long press for 2s). If you need to shut down the device, you need to use the software API or It is realized by pressing the reset button on the back. When using USB power supply, it cannot be shut down.
3. During use, if the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.
Features
ESP32 Standard wireless functions Wi-Fi
Internal 16M Flash
Low Power Display
Multi-Point touch screen
180 degree viewing angle
Built-in Magnet
Internal 1150mAh Battery
Expandable - HY2.0-4P 3 x external expansion ports
Applications
IoT Terminal
E-Book
Industrial Control Panel
Smart Home Panel
Version distinction
Hard display panel
Flexible display panel
Specification
ESP32-D0WDQ6-V3
240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash
16MB
PSRAM
8MB
Input Voltage
5V @ 500mA
Ports
TypeC*1, HY2.0-4P*3 , TF-card(microSD) slot
Sleep mode Power consumption
3.7V@10uA (RTC only)
E-Ink Display
Model Number:EPD_ED047TC1 | 540*960@4.7" | Gray scale : 16 Levels | Display area : 58.32*103.68mm | Display Driver : IT8951E
Physical Button
Multi-function button*1 , Reset Button*1
RTC
BM8563
Antenna
2.4G 3D Antenna
PINS
G25, G32, G26, G33, G18, G19
Battery
1150mAh@3.7V
Working Temp
0°C to 60°C
Net Weight
86g
Gross Weight
100g
Product Dimension
118*66*10mm
Packaging Dimension
120*70*14mm
Casing Material
Plastic ( PC )

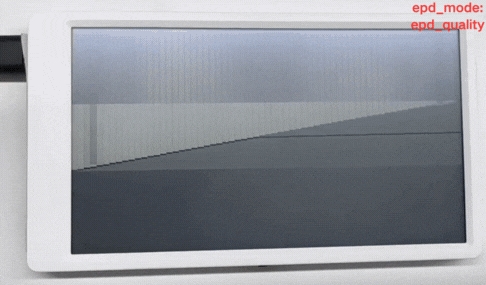

Refresh Mode Comparison
Speed Comparison
Quality Comparison
epd_quality
Best display quality, suitable for high-precision image and text display, detailed and smooth grayscale transition
Slow refresh rate, unsuitable for fast updates
epd_text
Suitable for text display, fast refresh rate, energy-efficient, high text clarity
Limited grayscale support, not ideal for complex images
epd_fast
Faster refresh rate, suitable for frequent updates, maintains a certain level of image quality
Lower image quality, grayscale transition less smooth than high-quality mode
epd_fastest
Fastest refresh rate, ideal for quick-response scenarios
Lowest image quality, poor grayscale transition, unsuitable for high-quality display requirements
PinMap
E-INK & TF-card(microSD)
Resolution:540*960
IT8951E
MISO
MOSI
SCK
CS
/
TF-card(microSD)
MISO
MOSI
SCK
/
CS
Multi-function button & PWR
Multi-function button
Right
BTN/PWR
Left
/
Power Control
/
/
/
MOS
Internal I2C Connection
GT911
SDA
SCL
INT
SHT30
SDA
SCL
/
BM8563
SDA
SCL
/
FM24C02
SDA
SCL
/
USB Serial
CP2104 / Ch9102
RXD
TXD
M5Paper-HY2.0 4P Port
PORT.A
G25,G32
I2C
PORT.B
G26,G33
DAC/ADC
PORT.C
G18,G19
UART
ESP32 ADC/DAC Mappable Pins
8 Channel
10 Channel
2 Channel
2 Channel
G32-39
G0/2/4/12-15/25-27
G25
G26
Schematic
Module Size
