M5Stack Fader Unit with B10K Potentiometer
Product Link
Description
UNIT FADER is a Slide Potentiometer with color indicator, employ a 35mm slide potentiometer + 14x SK6812 programmable RGB lights. The fader has its own center point positioning, and excellent slide appliances for stable, reliable performance and precise control. The integrated beads support digital addressing, which means you can adjust the brightness and color of each LED light. The product is suitable for lighting, music control, and other applications.
Features
With center point positioning
Excellent damping
Single connection 1OkΩ adjustable resistor
Programmable RGB lights
GROVE interface
Development Platform:
Arduino, UIFlow
Application
Human–machine interaction
Light and music control
Adjustment switch
Potentiometer level signal input
Specification
| Specification | Parameter |
|---|---|
Fader stroke | 35mm |
Fader handle length | 10mm |
Single resistor | 1OkΩ |
Output voltage | 0-3.3V (under 5V power supply) |
RGB LED | 14x SK6812 Programmable RGB Lamp |
Working current | 90.04mA (Lighting brightness configuration 50%, fader maximum output) |
Net weight | 15.5g |
Gross weight | 30g |
Product size | 64 * 24 * 24mm |
Packing size | 136 * 92 * 24mm |
Pinout
| M5Core(PORT B) | G36 | G26 | 5V | GND |
|---|---|---|---|---|
UNIT FADER | VALUE-INPUT | SK6812-SIGNAL | VIN | GND |
Schematic
Related Links
Example
Arduino

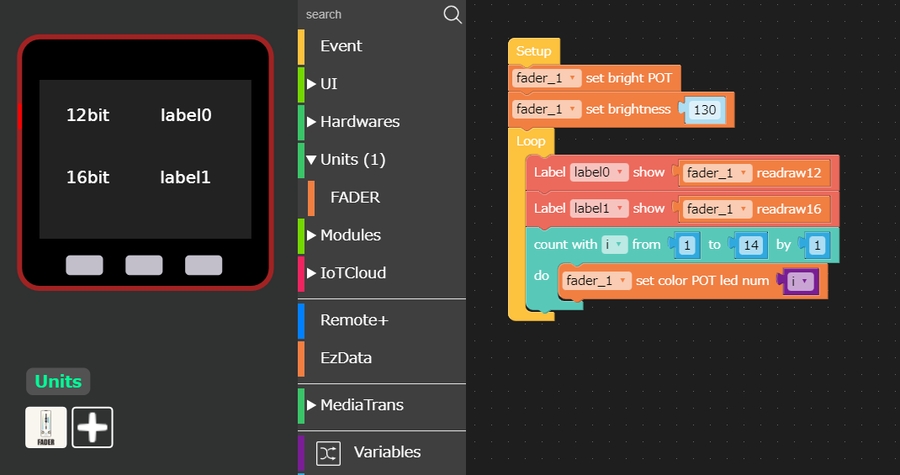

UIFlow example
UIFlow
set led color(RGB565)
set led color(R, G, B)
set brightness
set color POT led num
set bright POT
read raw value of 12bit
read raw value of 16bit
