M5Stack ATOM Echo Smart Speaker Development Ki
Product Link
Introduction
ATOM ECHO is a Programmable Smart Speaker based on the M5ATOM design. With its compact form factor measuring only 24 * 24 * 17 mm, this speaker delivers impressive capabilities. Easily play music wirelessly using the BT capabilities of the ESP32 from your mobile phone or tablet. What sets ATOM ECHO apart is its programmability and integration with cloud platforms such as AWS and Baidu. Utilizing the built-in microphone and speaker, it enables voice interaction and AI functionality. Experience voice control, story-telling, and seamless integration with the Internet of Things (IoT).
The speaker is equipped with an embedded RGB LED (SK6812), allowing for visual display of connection status. Beyond its role as a Bluetooth speaker, ATOM ECHO retains the control abilities of the Atom series. The convenient screw hole on the back facilitates easy installation for users. With ATOM ECHO, you have a powerful, programmable smart speaker that combines compact design, AI capabilities, and seamless IoT integration for an enhanced audio experience in any setting
Features
Light and compact
Support STT services
Based on ESP32 arduino, Support A2DP
2.4G Wi-Fi IEEE 802.11b/g/n
Built-in microphone and speaker
RGB LED status display indication
Grove extension interface
Record and playback
Programmable key
Programming platform:Arduino, ESP-IDF/ADF
Specification
| Resources | Parameter |
|---|---|
SoC | ESP-PICO-D4, 240MHz, Dual Core, Wi-Fi |
Flash | 4MB |
Interface | 1x IR-TX,1x Function Button,1x Reset Button |
PinOut | G21/G25/5V/GND, 3V3/G22/G19/G23/G33 |
RGB LED | SK6812 |
Speaker | 0.5W/NS4168 I2S |
Microphone | SPM1423 PDM |
Net weight | 5g |
Gross weight | 10g |
Product Size | 24*24*17mm |
Package Size | 63*63*12mm |
Case Material | Plastic ( PC ) |
Pinout
| DataOut | BCLK | DataIn | LRCK | RGB | Btn |
|---|---|---|---|---|---|
G22 | G19 | G23 | G33 | G27 | G39 |
How to Use
Driver Installation

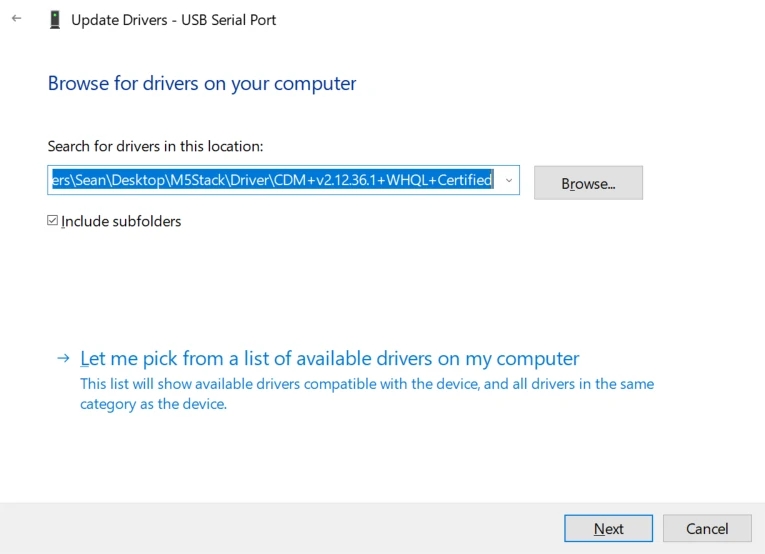

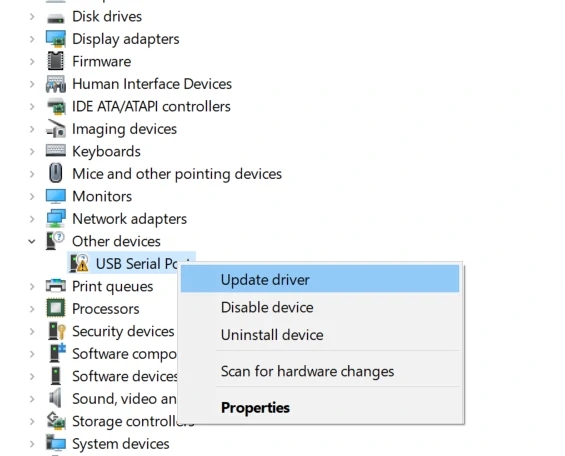

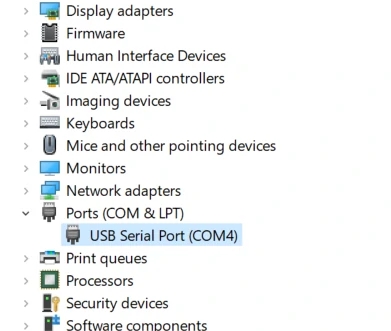

Connect the device to the PC, open the device manager to install FTDI driver for the device. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly). Click here to download FTDI driver
For MacOS users, please tick System Preferences -> Security and Privacy -> General -> Allow downloadable apps from the following locations -> App Store and Approved Developer Options.
BT Speaker
The factory firmware is configured as a BT speaker by default. Users can connect devices such as mobile phones, tablets, PCs and so on with ATOM ECHO to output audio to ATOM ECHO for playback.
Firmware
To burn the firmware, download the corresponding easyloader according to the operating system
Windows:
MacOS:
How to use BT speakers
Turn on the power, the indicator light is red at this time, turn on the device BT, search for nearby devices, the BT device named M5_SPEAKER_T1 is ATOM ECHO. After clicking connect or pairing, ATOM ECHO will send out a BT pairing request. Confirm pairing to establish a BT connection. At this time, the indicator light turns green to indicate that the connection is normal. Once the connection is established, ATOM ECHO can be used as an audio playback device. (Currently the firmware does not support making and receiving calls as a hands-free device)
