M5Stack RF UNIT 433MHz Transmitter
Product Link
Description

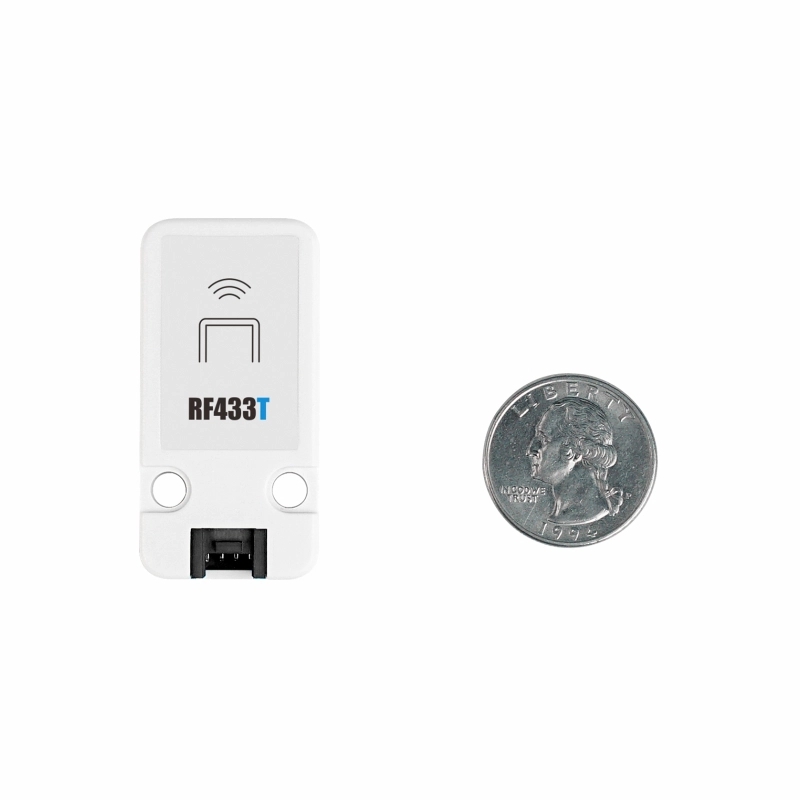

RF433T is a radio frequency (RF) transmitter, using SYN115 radio frequency transmitter IC, working frequency is 433.92MHz (using ASK modulation) commonly used by wireless controllers, built-in PCB antenna, stable signal transmission distance up to 10M, The output power reaches 10dBm. The exquisite and compact housing design can be embedded in a variety of radio frequency remote control applications. It is suitable for security alarm, wireless automatic meter reading, home and industrial automation, remote remote control, wireless data transmission and other system fields.
Product Features
Working frequency: 433.92MHz
Data transmission rate 10kbps (ASK modulation)
Output power 10dBm
PCB antenna
Applications
Building Automation
Security alarm
Home and industrial automation
Remote control
Wireless data transmission and other system fields
Specification
| Resources | Parameter |
|---|---|
Transmitter IC | SYN115 |
Working current | 12mA |
Stable communication distance | 10M |
Output Power | 10dBm |
Antenna type | PCB antenna |
Net weight | 6g |
Gross weight | 21g |
Product Size | 48*24*8mm |
Package Size | 136*92*12mm |
Pinout
| M5Core ( PORT B ) | GPIO26 | 5V | GND |
|---|---|---|---|
RF433T | TX | 5V | GND |
Schematic
Related Link
Datasheet
Example
Arduino
