M5Stack Scales Unit with 20kgs Range (HX711)
Product Link
Introduction
UNIT Scales is a high precision low-cost I2C port weighing sensor, with a total weighing range of 20kgs. Adopt STM32F030 as the controller, HX711 as sampling chip and 20 kgs weighing sensor. With tare button and programable RGB LED. This Unit offers the customer with a highly integrated weighing solution, suitable for the applications of weighing, item counting, item movement Checking and so on.
Features
HX711:
High precision 24bit ADC
Programmable gain amplification 32, 64 and 128
10SPS output data rate
I2C port
Development platform: Arduino, UIFlow(To be supported soon)
Specifications
| Spec | Parameters |
|---|---|
MCU | STM32F030 |
ADC | HX711 |
Communication | I2C:0x26 |
LED | SK6812(PA7) |
Function Button | Tare (PA2) |
Gross Weight | 96g |
Net Weight | 87g |
Package Size | 56*40*41mm |
Product Size | 42*43*58mm |
Enclosure Material | Plastic ( PC ) |
Pinout
| Scales Unit | SCL | SDA | 5V | GND |
|---|---|---|---|---|
M5Core(PORT A) | GPIO22 | GPIO21 | 5V | GND |
M5Core2(PORT A) | GPIO22 | GPIO21 | 5V | GND |
M5Atom(PORT A) | GPIO32 | GPIO26 | 5V | GND |
M5StickC/Plus(PORT A) | GPIO33 | GPIO32 | 5V | GND |
M5Station(PORT A1,A2) | GPIO33 | GPIO32 | 5V | GND |
Dimensions
How to Use
Arduino
After using ATOM to power on with Demo, you need to press the button to return to zero, otherwise the measurement is inaccurate.
UIFlow

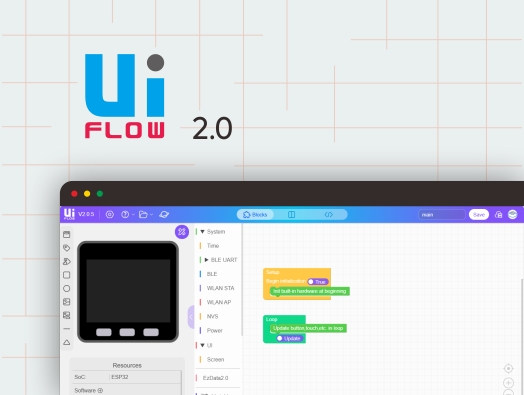

UIFlow2.0UIFlow2.0This tutorial will show you how to initialize the configuration using the UIFlow2.0 graphical programming platform

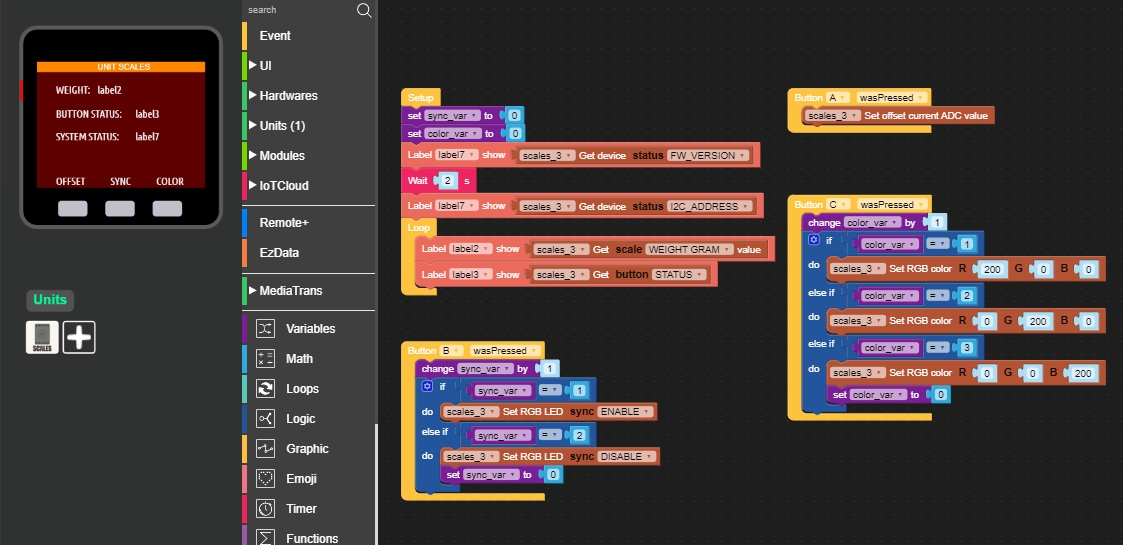

UIFlow example
