M5Stack LoRa Module( 868MHz )


Description

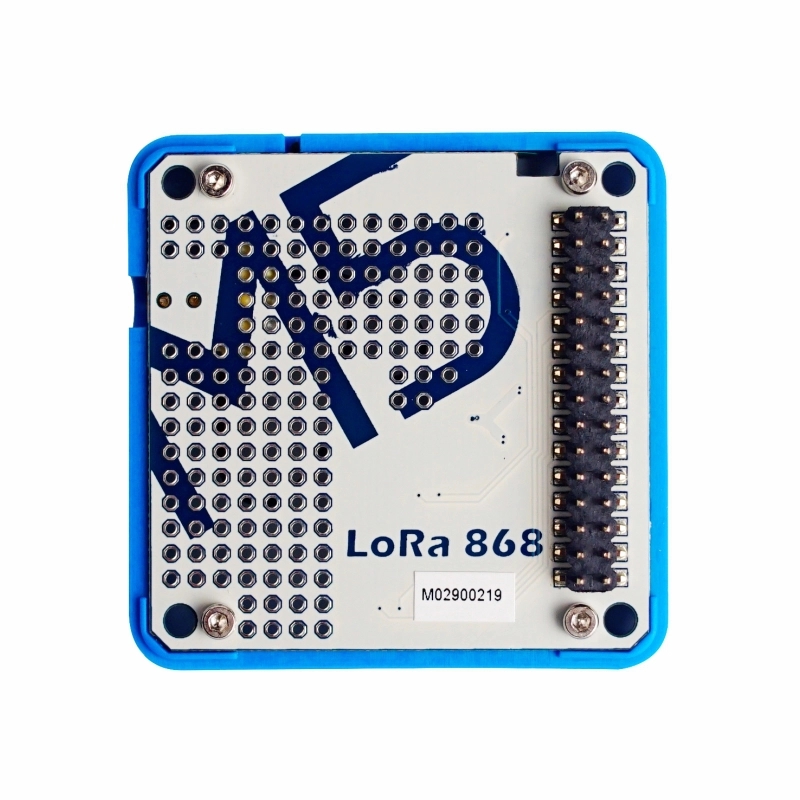

LoRa868 is a LoRa communication module in the M5Stack stack module series (working frequency is 868MHz). A certain expansion space is reserved on the module, which defeats you for more functional design. For wireless communication or projects with more customized elements, the LoRa868 module will be a suitable choice.

Product Features

  • LoRa Module: Ra-01H

  • Communication Protocol: SPI

  • Universal Perfboard

  • Working Frequency: 803~930 MHz

  • Supports: FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation modes

  • Receive sensitivity: lowest to -140 dBm

  • Programmable bit rate up to 300Kbps

  • Built-in FPC Antenna

  • External IPX Antenna connector

  • Program platform: Arduino

Applications

  • Remote electricity meter reading

  • Home automation

  • Remote irrigation system

Specification

Resources
Parameter

Net weight

14g

Gross weight

24g

Product Size

54.2*54.2*13mm

Package Size

60*57*17mm

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description: Two devices will send and receive messages from each other.

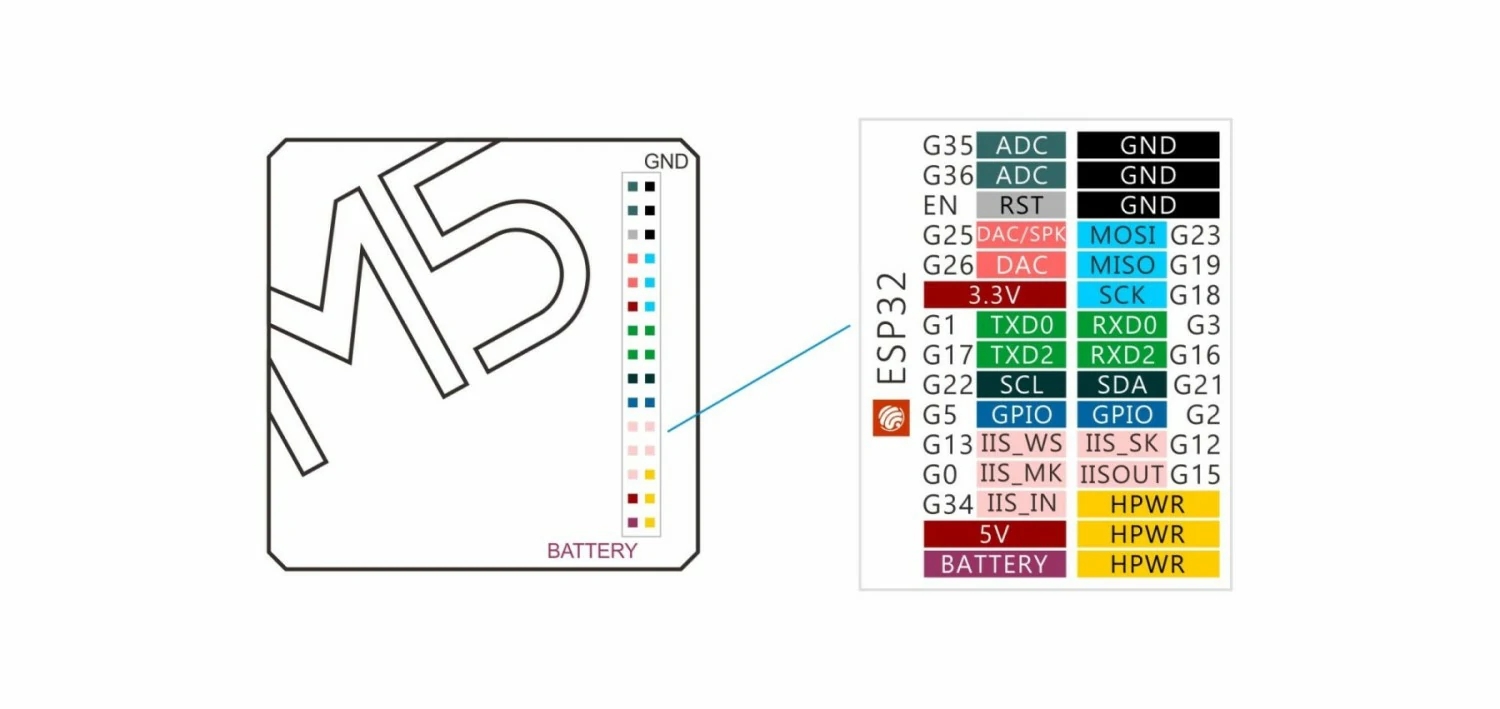

MBUS PinMap

Schematic
