M5Stack Earth Moisture Sensor Unit Analog and Digital Output
Product Link
Description
EARTH unit is a Soil Moisture Sensor for measuring the moisture in soil and similar materials.
The soil moisture sensor usage is pretty straight forward, the two large exposed pads function as probes for the sensor, together acting as a variable resistor.
The higher moisture that is in the soil means the better the conductivity between the two so that the sensor will result in a lower resistance, and a higher SIG out.
You can read the moisture in soil by using the ADC. Inside this Unit we've added an extra potentiometers to change the measurement range.
Features
Adjustable threshold, including 10K adjustable resistor
Analog & Digital output
Two Lego-compatible holes
Applications
Potted soil moisture monitoring
Specifications
Net weight
5g
Gross weight
18g
Product Size
64.4*24.1*8.1mm
Product Size
136*92*12mm
PinMap
EARTH Unit
AnalogSignal Pin
DigitalSignal Pin
5V
GND
Schematics

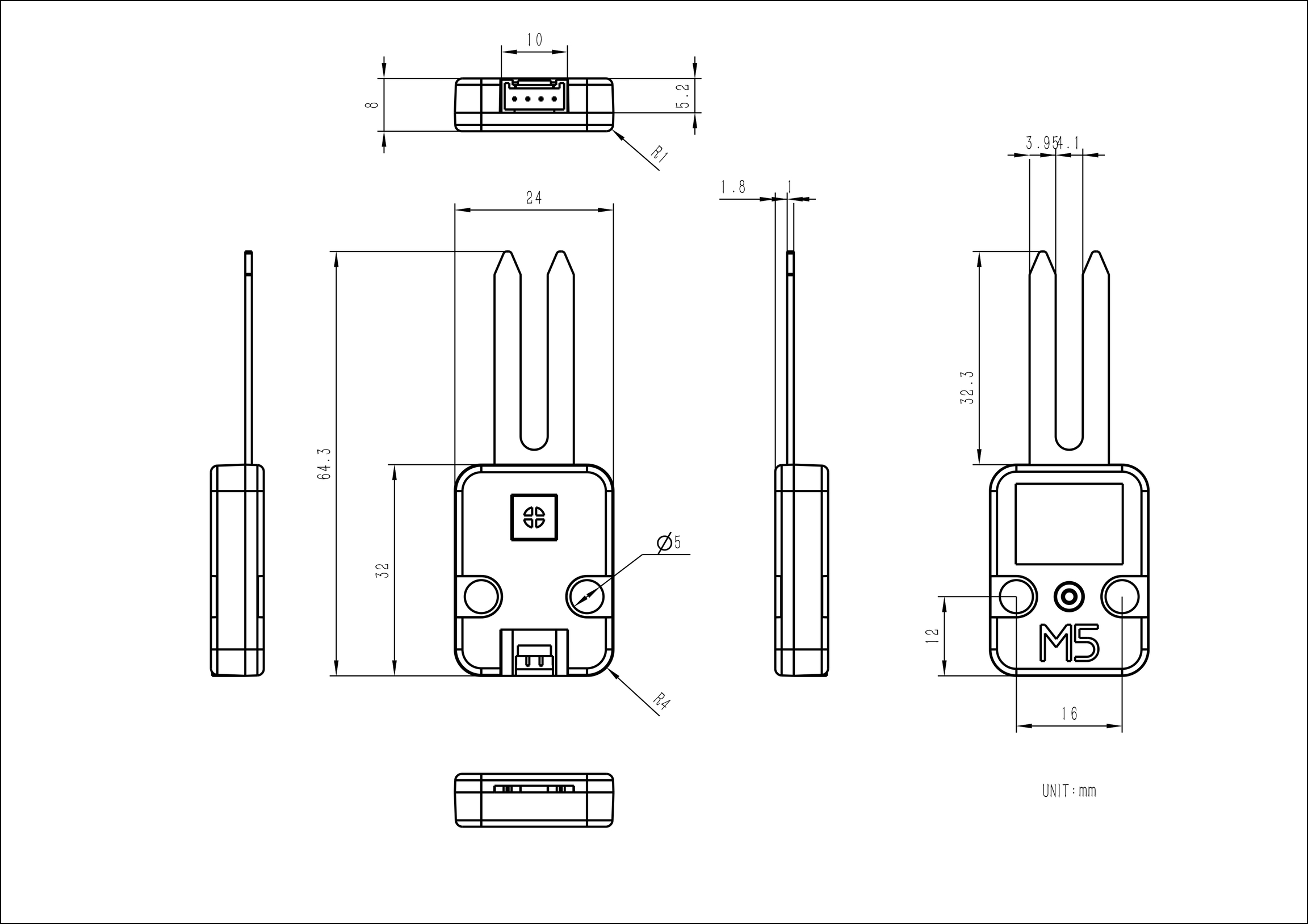

Mdouel Size
Compatible
