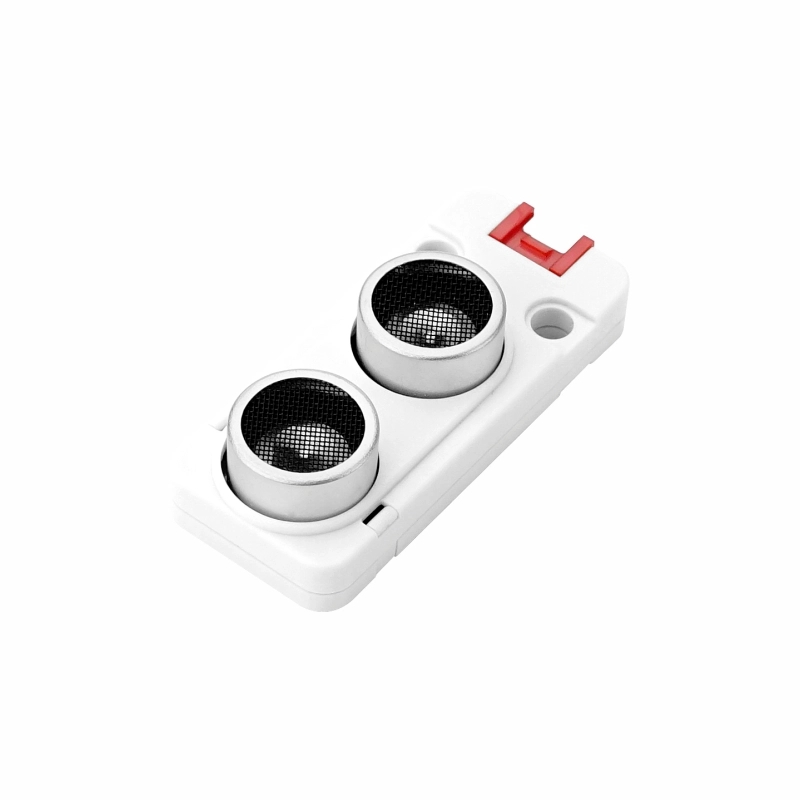

UNIT SONIC I2C is an I2C interface ultrasonic distance sensor. This allows for easy I2C integration and multi-sensor operation using a single BUS, to save I/O resources. The module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%). It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.
Note: When the measurement is more than 3.5m, there will be a slight delay in the response of the distance measurement data.
RCWL-9620 Chip
I2C communication interface (addr: 0x57)
Measuring range: 2cm-450cm
Protective housing
Built-in temperature compensation, reduce the temperature drift
Support UIFlow platform
Robot Obstacle Avoidance
Fluid Level Detection
Sitting Posture Detection
Ultrasonic Ranging Single Chip
RCWL-9620
Range
2cm-450cm
Probe Specifications
16mm
Receiving/Transmitting Frequency
40KHz
Receiving sensitivity
-65dB
Pointing angle
60°
Measurement accuracy
±2%
Measurement period
50ms
Working current
2mA
Net weight
10g
Gross weight
25g
Product size
56 * 24 * 15mm
Packing size
76 * 47 * 29mm
UNIT SONIC I2C
UNIT SONIC I2C
SDA
SCL
VCC
GND
