M5Stack Limit Switch Unit


Product Link

Description

The Unit Limit is a travel switch unit that provides a limit trigger signal to the MCU or other master peripherals by pulling the digital signal interface from 3.3V high to 0V low when the switch handle is closed by an external force. It is suitable for all kinds of moving machinery and equipment to control its stroke and carry out terminal limit protection.

Features

  • Contact limit switch

  • Long durability, upto 400K times lifetime

  • Multiple installation methods

Applications

  • Stop switch/Limit switch

  • 3D printer limit switch

Specification

Resources
Parameters

Switch Bar Length

16mm

Mechnical Lifetime

400K Times

Power Supply

DC 5V

Output Logical Signal

DC 3.3V

Standby Current

DC5V@2mA

Operation Current

DC5V@3mA

Product Size

32mm × 24mm × 9.5mm

Package Size

67mm × 53mm × 12mm

Product Weight

6.3g

Package Weight

11.4g

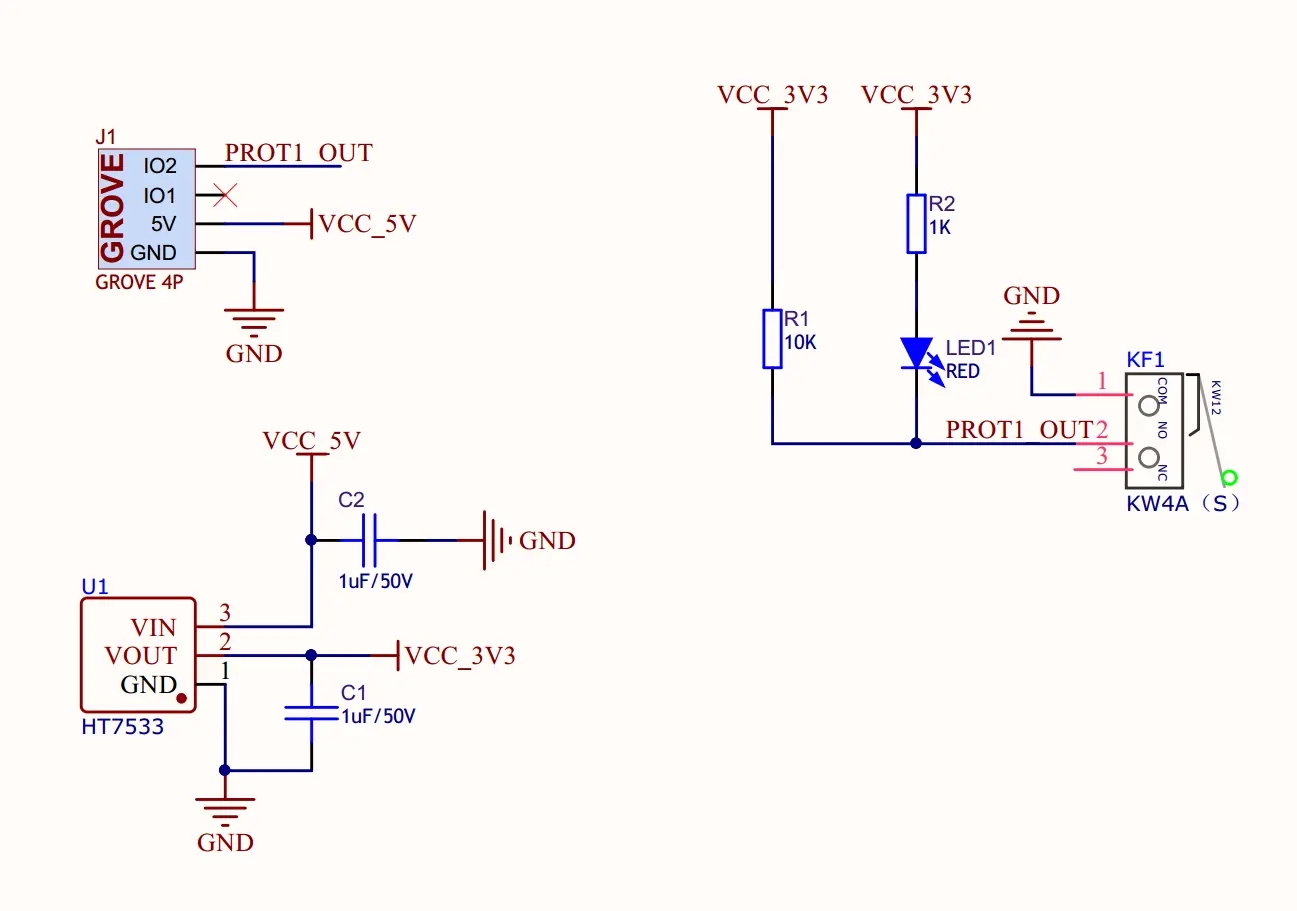

Schematic

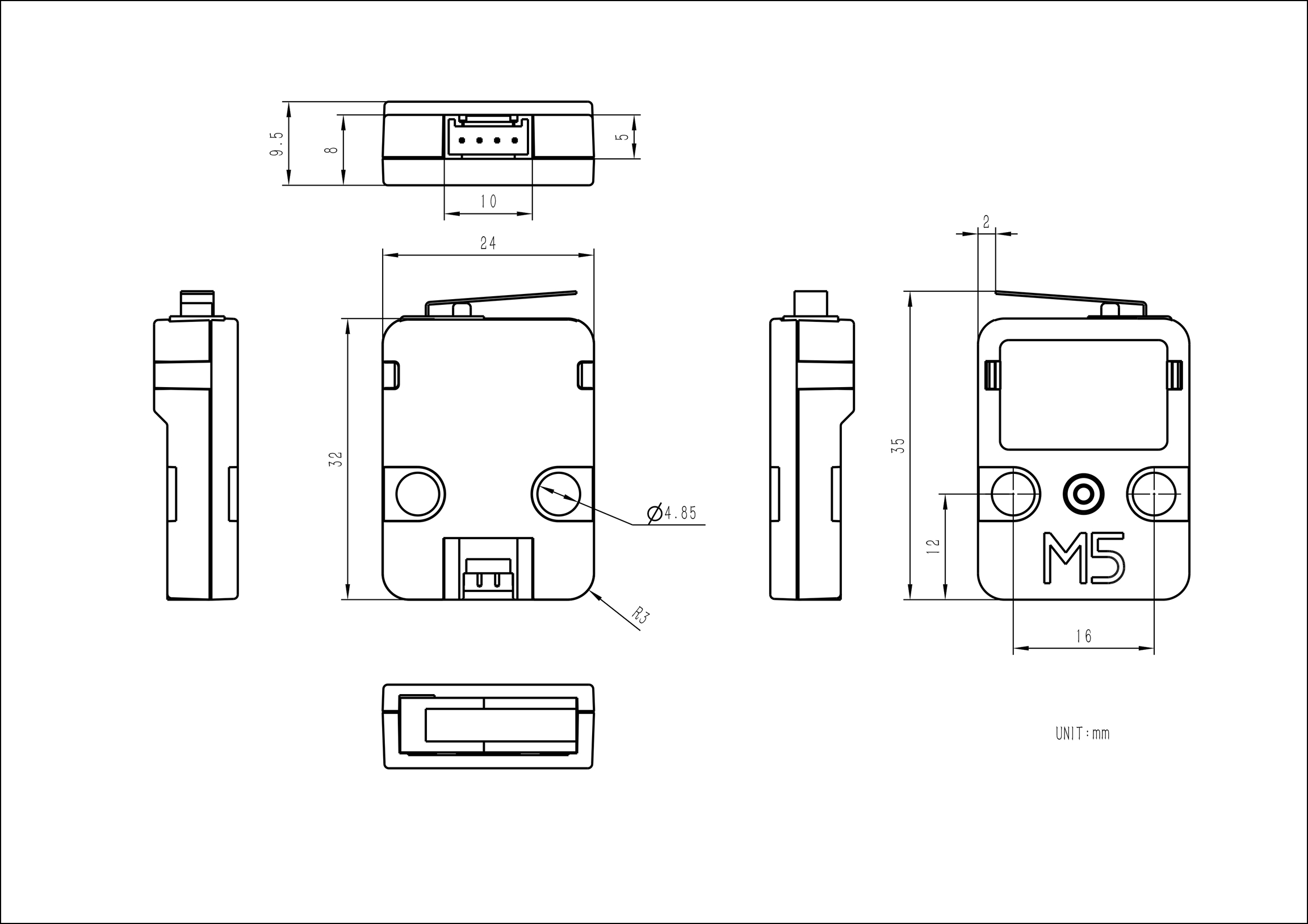

Module Size

Compatible
