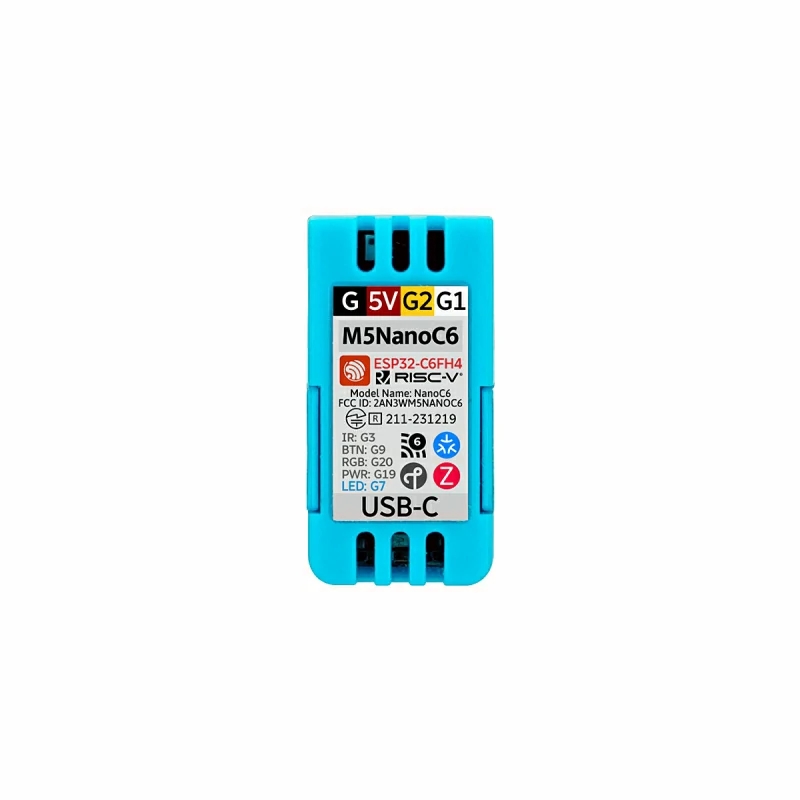

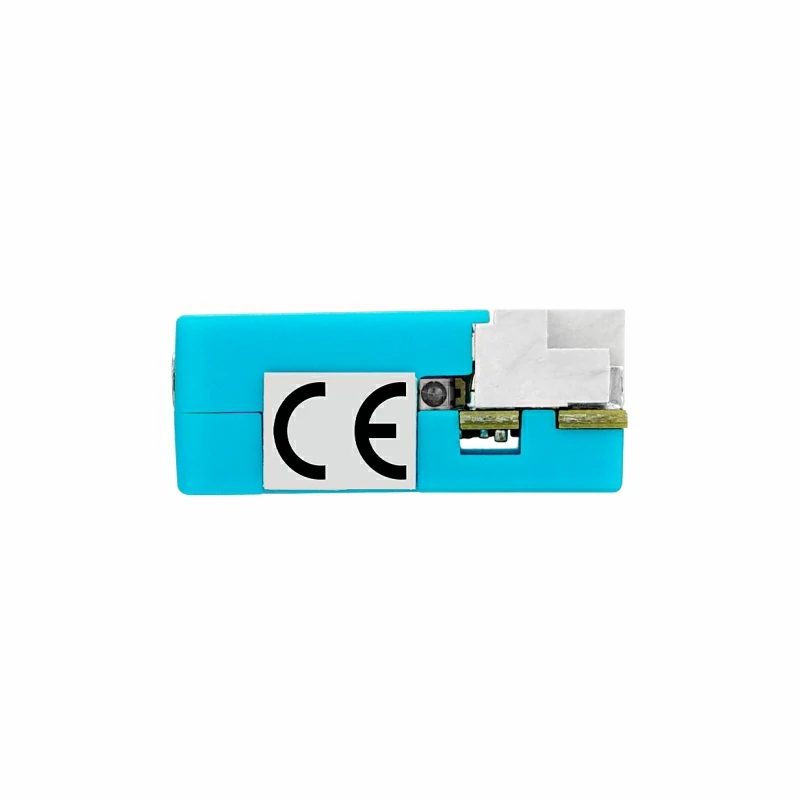

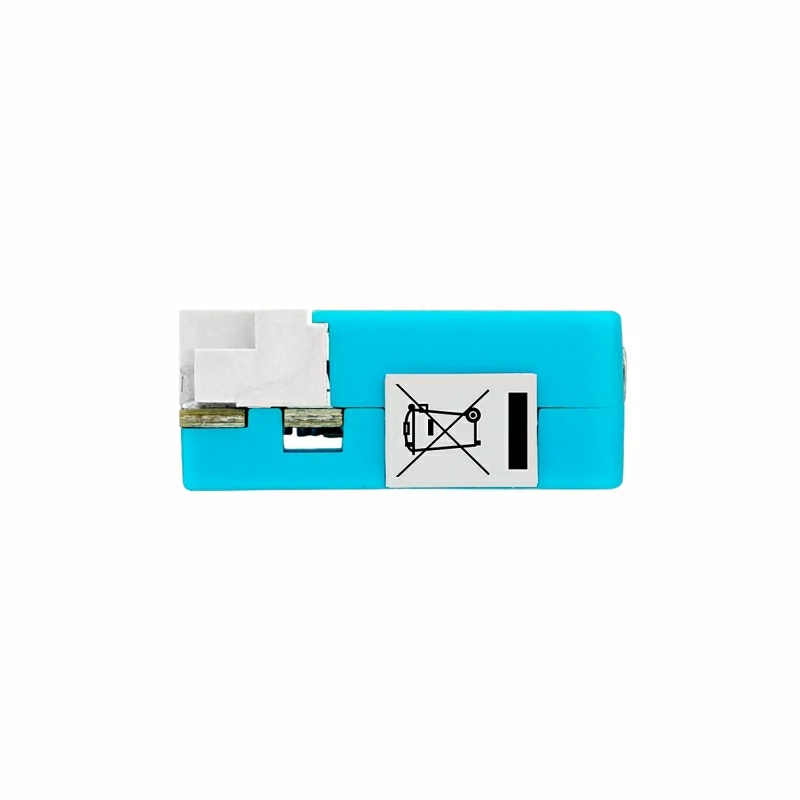

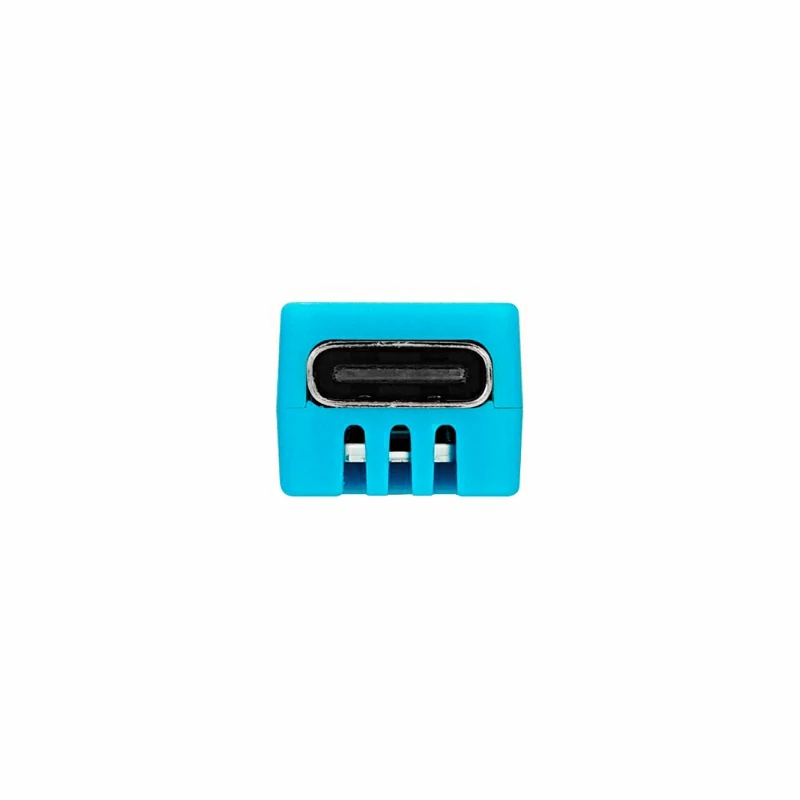

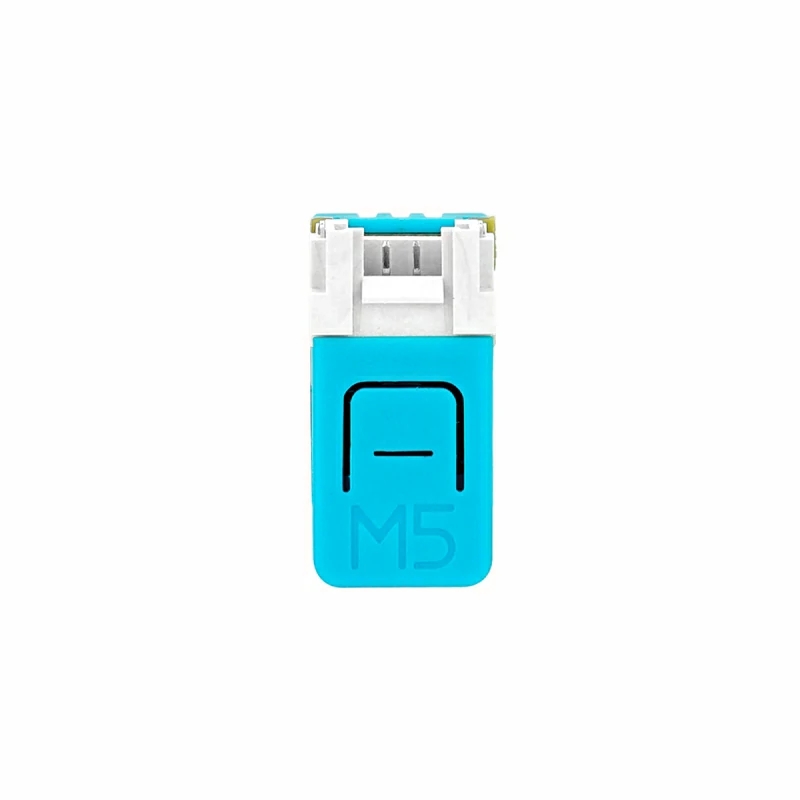

M5Stack NanoC6 Dev Kit
Product Link
Description
The M5NanoC6 is a miniature, low-power IoT development board within the M5Stack development kit series. It is equipped with an ESP32-C6FH4 as the MCU, supporting advanced wireless communication methods such as Wi-Fi 6 and Zigbee, along with a built-in infrared emitter for convenient control of infrared IoT devices. Its onboard ceramic antenna ensures a stable wireless communication connection. Additionally, the device is equipped with programmable RGB beads, adding personalized visual effects to projects. The inclusion of the Grove interface allows the M5NanoC6 to flexibly expand a variety of M5 devices (customizable for different types of devices, such as those using UART, I2C, and other communication protocols), providing developers with rich hardware expansion possibilities. It is suitable for fields such as smart homes, industrial automation, health monitoring, and IoT devices, offering a comprehensive development solution for innovative projects.

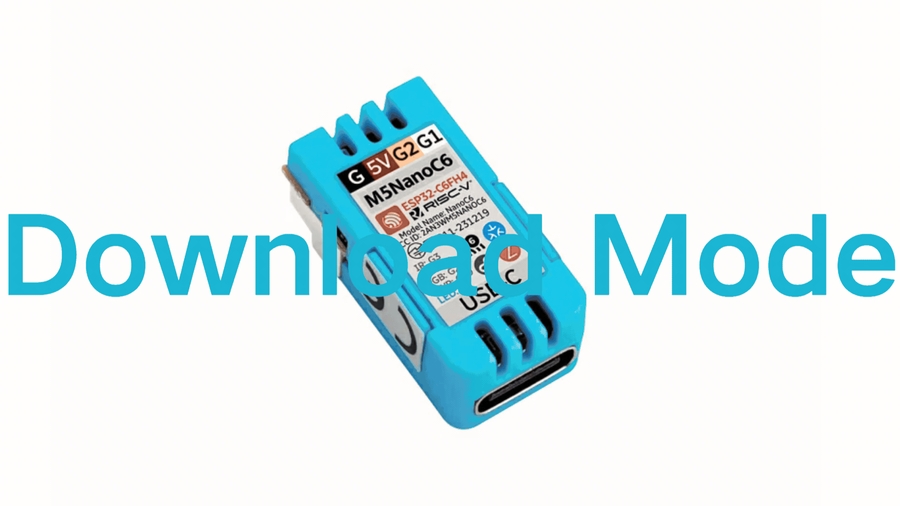

The burning program needs to enter the download mode: press and hold the key (GPIO9), and then connect the data cable to enter the download mode.
The M5NanoC6 is the first WiFi-6-enabled core control board that supports the 2.4GHz Wi-Fi 6 protocol (802.11ax) and is backward compatible with 802.11b /g/n. The WiFi 6 protocol has higher speed, greater capacity, lower latency, and stronger security than previous WiFi protocols.
Features
Support 2.4Ghz Wi-Fi 6, Zigbee, and Thread, Matter wireless protocols.
Built-in infrared LED and RGB

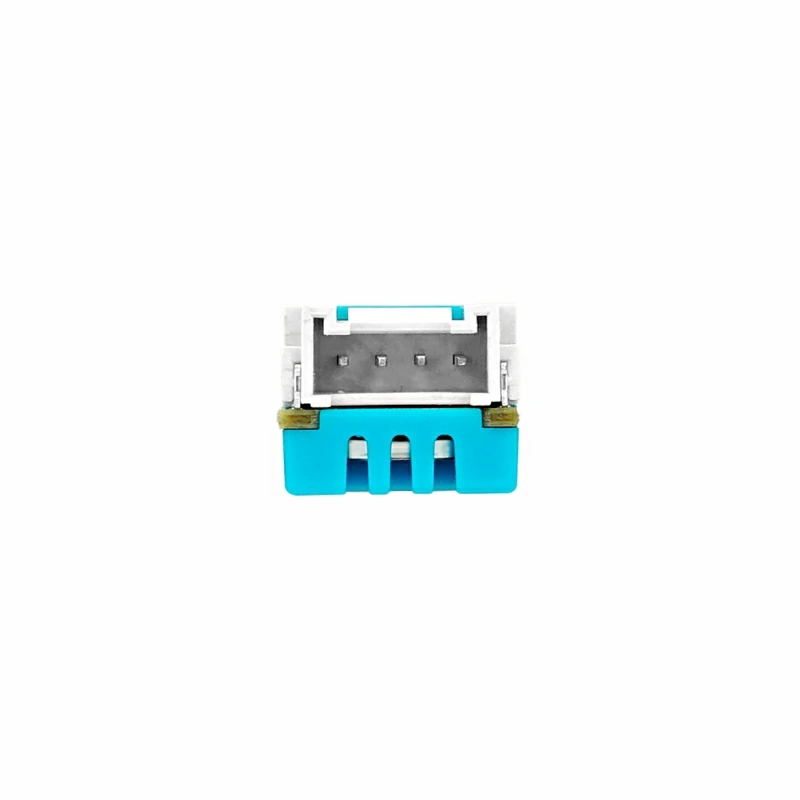

Grove port
Ceramic antenna
Small in size
Applications
Intelligent housing system
Industrial control system
Environmental monitoring system
Agricultural iot systems
Medical treatment
Consumer electronic
Service robot
Specification
SoC
ESP32-C6FH4@RISC-V 160MHz，4M Flash， Wi-Fi 6，Zigbee 3.0，Thread 1.3, Matter，CDC
WIFI protocol
2.4GHz Wi-Fi 6 protocol (802.11ax) and backward compatible with 802.11b /g/n
RGB
WS2812
IR remote control parameters
The infrared emission distance of < 0° is 632CM The infrared emission distance of < 45° is 83CM The infrared emission distance of < 90° is 29CM
Grove outputs maximum current
DC 5V@600mA(Output capacity depends on USB power supply)
Standby current （Deep Sleep Mode)
Type-C Power supply DC [email protected] Grove power supply DC 5V@50uA
Standby current (ULP Mode)
Type-C Power supply DC 5V@252uA Grove power supply DC [email protected]
Operating current
In WIFI mode: DC [email protected]
WI-FI stretch test (antenna back up, back alignment test)
54.9m
Operating temperature
0-40°C
Product Size
23.5*12*9.5mm
Package Size
110*81*11mm
Product Weight
2.5g
Package Weight
11.2g
Related Link

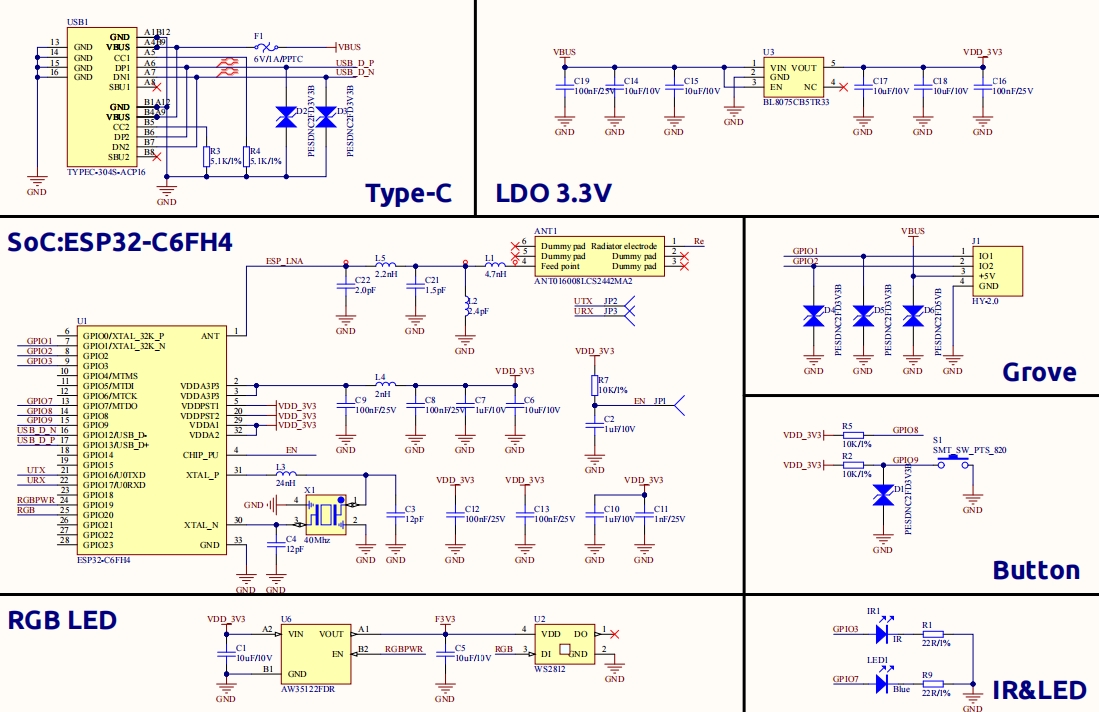

Schematic

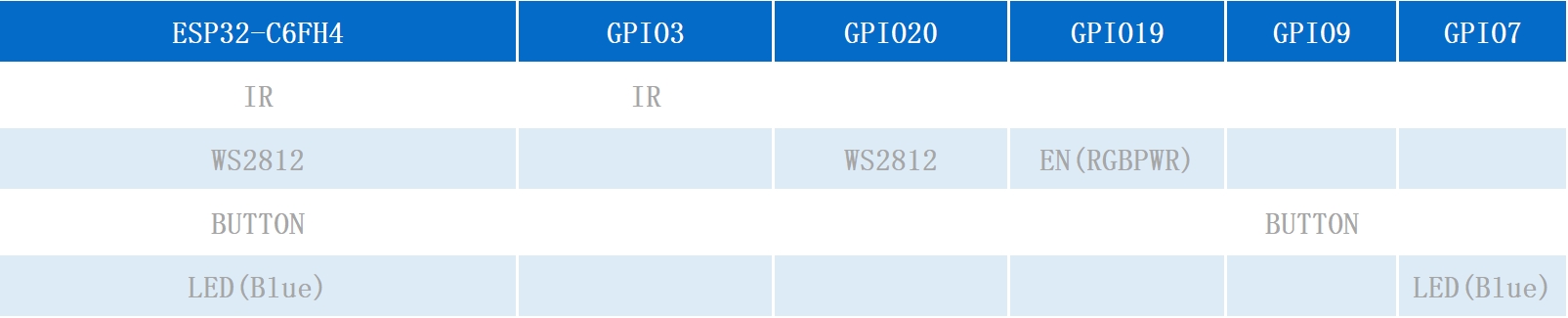

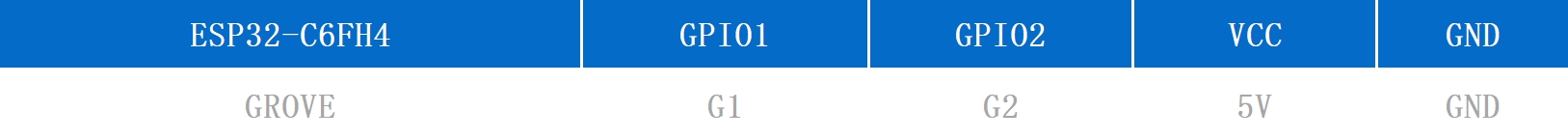

PinMap
When using RGB, remember to turn on the RGB power supply switch, that is, the GPIO19 pin should be set to high level

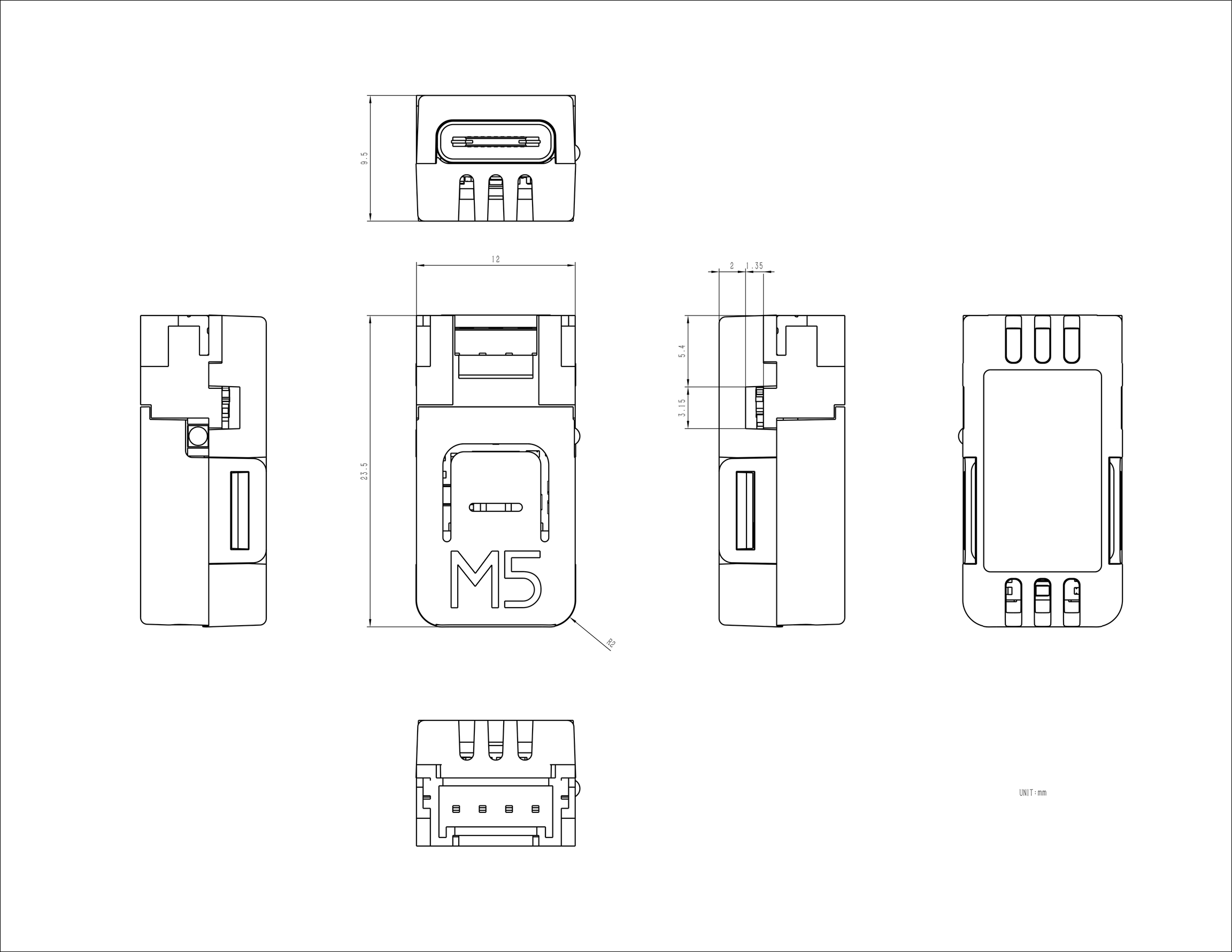

Module Size
