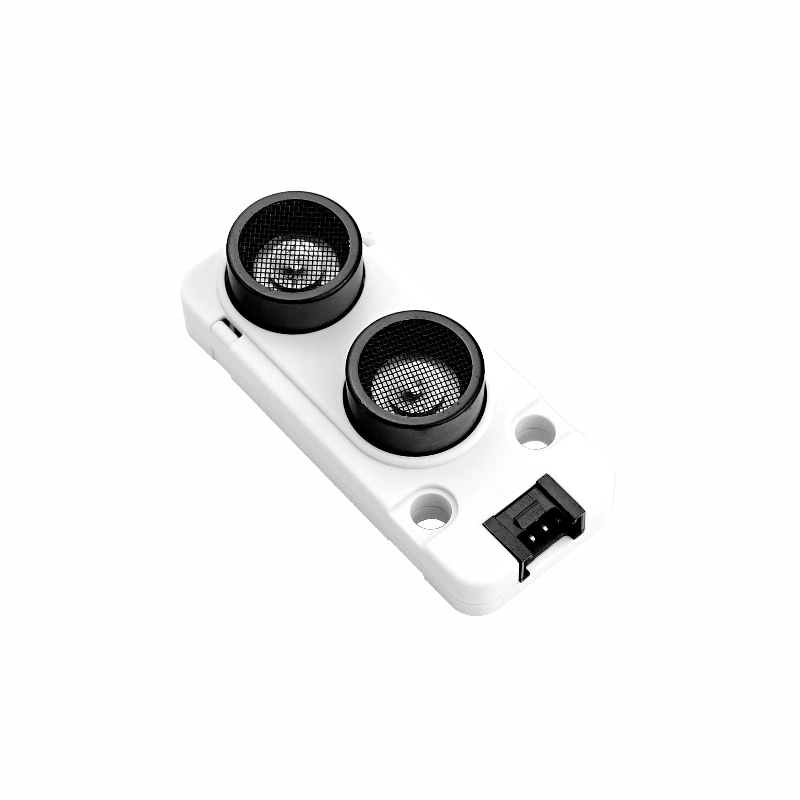

M5Stack Ultrasonic Distance Unit I/O
Product Link
Description
UNIT SONIC IO is a GPIO interface ultrasonic range sensor. This module features an RCWL-9620 ultrasonic distance measurement chip with a 16mm probe, which the ranging accuracy can reach 2cm-450cm (accuracy up to ±2%). This sensor determines the distance to a target by measuring time lapses between the transmitting and receiving of the pulse signal, users can directly obtain the distance value through IO control mode. It is ideal to apply in robotics obstacle avoidance, fluid level detection, and other applications that require you to perform measurements.
Note: When the measurement is more than 3.5m, there will be a slight delay in the response of the distance measurement data.
Features
RCWL-9620
GPIO communication interface
Measuring range: 2cm-450cm
Protective housing
Built-in temperature compensation, reduce the temperature drift
Support UIFlow platform
Application
Robot Obstacle Avoidance
Fluid Level Detection
Sitting Posture Detection
Specifications
| Specifications | Parameters |
|---|---|
Ultrasonic Ranging Single Chip | RCWL-9620 |
Range | 2cm-450cm |
Probe Specifications | 16mm |
Receiving/Transmitting Frequency | 40KHz |
Receiving sensitivity | -65dB |
Pointing angle | 60° |
Measurement accuracy | ±2% |
Measurement period | 50ms |
Working current | 3mA |
Net weight | 11.5g |
Gross weight | 26g |
Product size | 56 * 24 * 15mm |
Packing size | 76 * 47 * 29mm |
Pinout
UNIT SONIC IO
| M5CORE - PORT B | G26 | G32 | 5V | GND |
|---|---|---|---|---|
UNIT SONIC IO | TRIG | ECHO | VCC | GND |

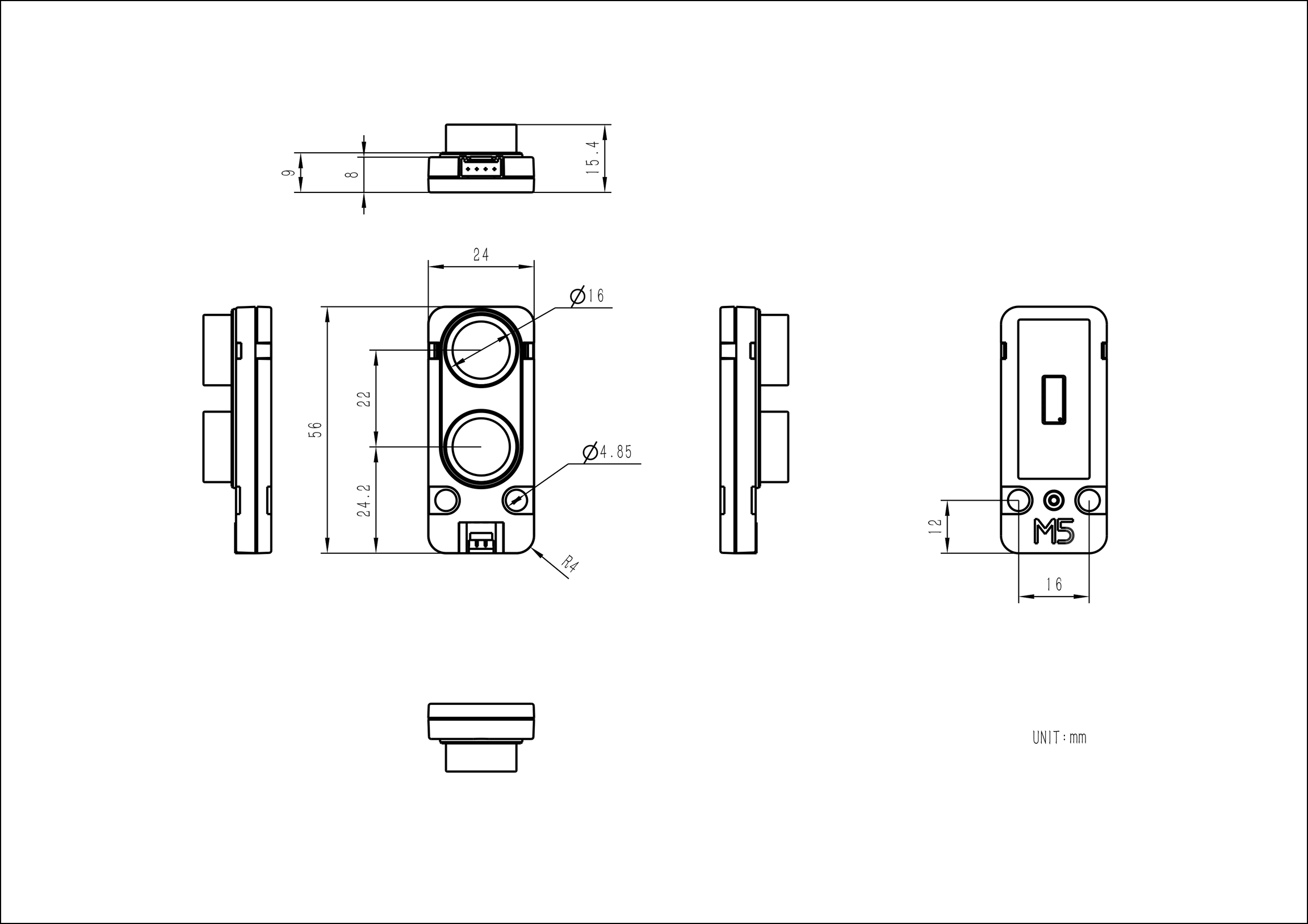

Dimensions
