M5Stack Mini Angle Unit Rotary Switch with Potentiometer
Product Link
Description

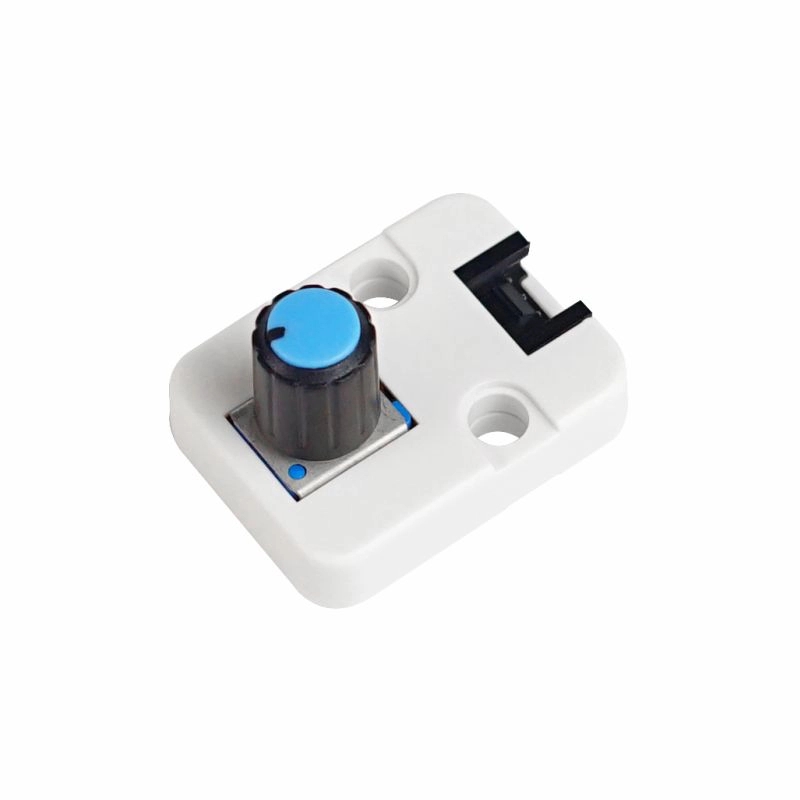

ANGLE is a rotary switch Unit which simply includes a 10K Ohm potentiometer inside. This unit can be used for Continuous signal rotatory control for applications such as volume, brightness, or motor speed.
A potentiometer is a manually adjustable variable resistor with three terminals: Two terminals are connected to a resistive element, the third terminal is connected to an adjustable wiper. The position of the wiper determines the output voltage.
The out voltage is captured and converted by AD on ESP32 on portB.
Features
Output voltage range: 0 ~ 2500mV
Two Lego-compatible holes
Specification
Output voltage
0 ~ 2500mV
Net weight
6g
Gross weight
23g
Product Size
32*24*22mm
Package Size
136*92*22mm
*In M5Stack product system, Normally the Grove color indicates the type of communications.*
Black: Single BUS (AD ,DA ,GPIO)
Red: I2C
Blue:UART
White: Others(depends)
The Unit's Grove interface is black, specify it is an analog interface that should be connected to the M5Core's GROVE B interface.
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
Description: Display knob analog value data.
PinMap
ANGLE Unit
Sensor Pin
5V
GND
Schematic
