M5Stack Red 7-Segment Digit Clock Unit


Description

UNIT-Digi-Clock is a 2.1 inch 4-digit 7-segment display module. There are decimal points on each digit and an extra wire for colon-dots in the center, which can display Decimals and Clock. This module adopts TM1637 as the driver IC, and STM32F030 as I2C communication. I2C address can be modified per 4-bit dip switch. The red LED supports 8 brightness. And we have reserved 4 fixing holes there.

Features

  • 4-digit red dislpay

  • I2C port, adjustable I2C address

  • 8 brightness

  • Low power consumption

  • 4 fixing holes for multiple installations

Applications

  • Clock display

  • Data display

  • Stop watch

Specifications

Spec
Parameters

MCU

STM32F030

Driver IC

TM1637

Communication

I2C, addr: 0x30

Power Supply

5V DC

Net Weight

12.5g

Gross Weight

17.8g

Product Dimension

50 * 31 * 14mm

Package Dimension

136 * 92 * 15mm

Power Consumption Testing

Environments
Current on DC5V

Standby Mode(All off)

2.5mA

SG1

6.6mA

SG2

10.3mA

SG3

17.5mA

SG4

38.7mA

SG5

42.0mA

SG6

45.7mA

SG7

49.2mA

SG8(All on)

52.5mA

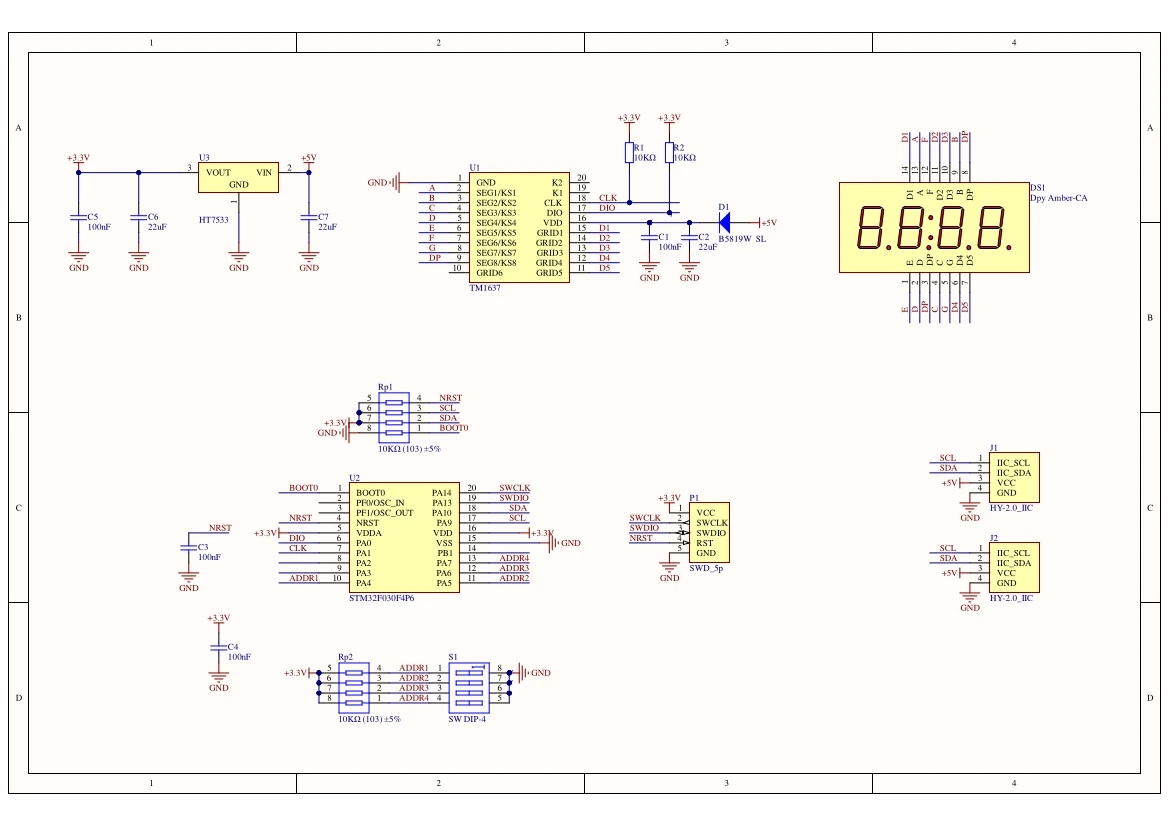

Schematic

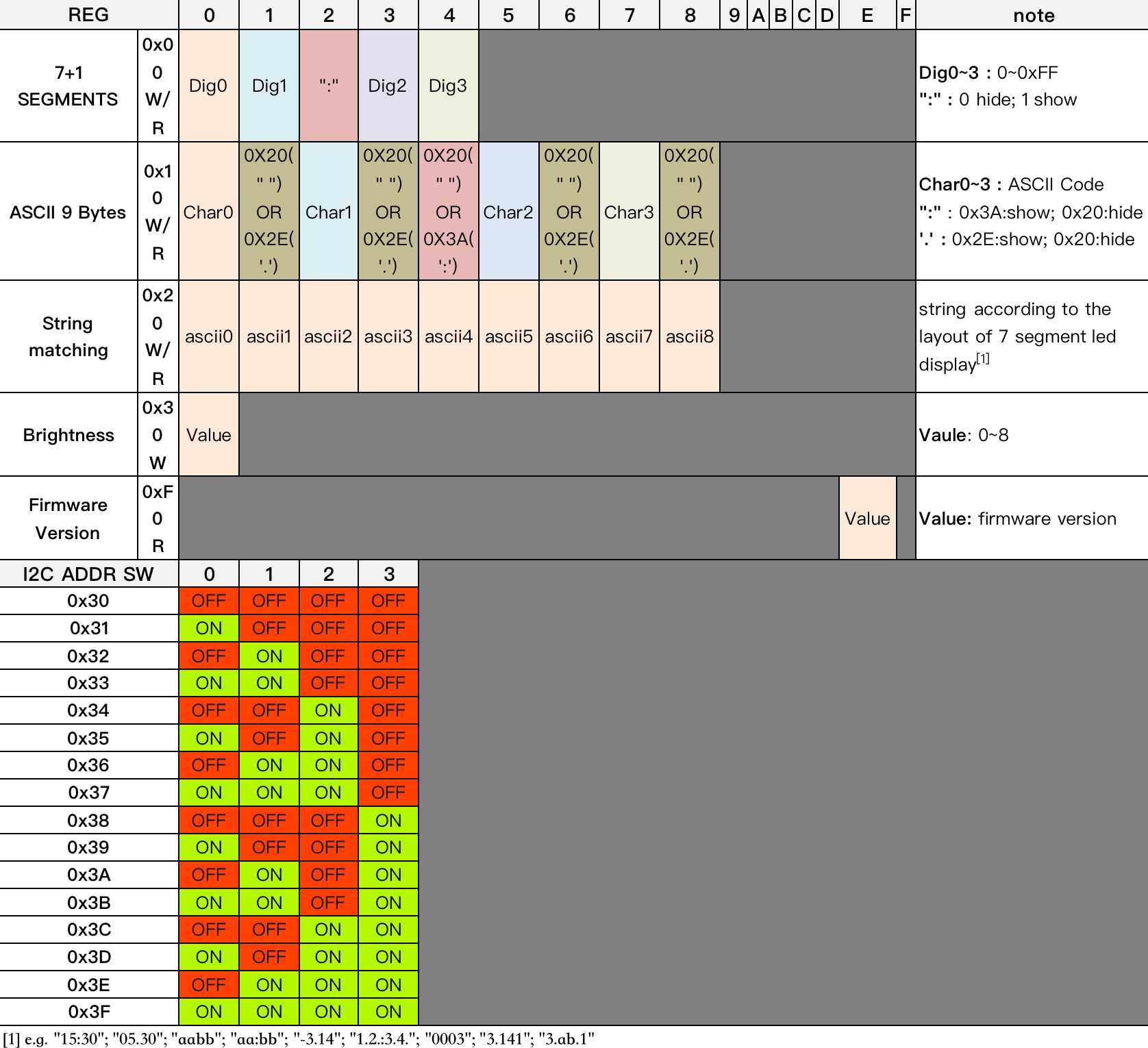

I2C Register Table

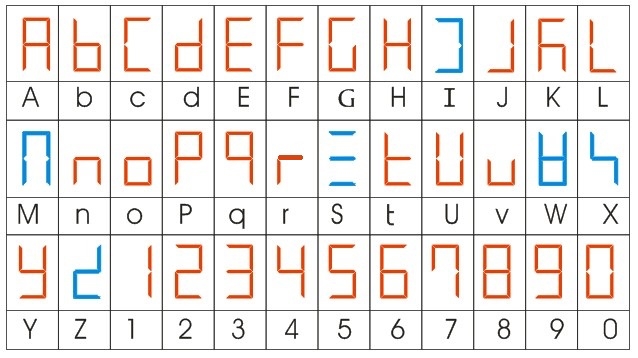

Character cross-reference table
