M5Stack CM4Stack Development Kit


Description

CM4STACK is an all-in-one micro host based on the Raspberry Pi CM4 Core Board, featuring the CM4104032 model with built-in Wi-Fi, 4GB of RAM, and 32GB eMMC. This host includes a wealth of peripherals: a 2.0-inch IPS-LCD touchscreen with a resolution of 320x240, 2 USB3.2-A ports (PCIe + ASM3042), a USB-C (2.0) port with OTG and power delivery support, a high-resolution multimedia signal interface, a Gigabit Ethernet RJ45 port, a DC-JACK power input (12V@3A), 2 HY2.0-4P expansion ports for I2C and UART, a 2W speaker powered by an AW88298 16-Bit I2S amplifier, a secure encryption chip (ATECC608B), and an RTC chip (BM8563). The device also includes an active cooling fan and an aluminum heat dissipation frame. It supports DIN rail, wall mounting, and screw fixing, making it suitable for industrial automation, smart home, IoT, and other applications.

Features

  • High-performance embedded system: Built-in powerful chips and interfaces, equipped with a 2.0-inch LCD screen with touch functionality for high-quality video and image display.

  • Multiple interfaces and features: Includes an antenna port, 2W speaker, high-resolution multimedia signal interface, USB-C (2.0) port, USB3.2 port, Gigabit Ethernet port (RJ45), I2C interface, UART, and DC power input, supporting a wide range of peripherals and data transfer methods.

  • Security features: Equipped with a secure authentication chip AW32901ID-KEY (ATECC608B) for secure data transmission and storage.

  • Clock functionality: Includes an RTC chip BM8563 for real-time clock functions.

  • Cooling design: Comes with a heat dissipation base and cooling fan to ensure long-term stable operation.

Applications

  • Industrial Automation

  • Smart Home

  • Internet of Things (IoT)

  • Education and Development

Specifications

Specifications
Parameter

CM4 Host

CM4104032, Processor: Broadcom BCM2711, Quad-core Cortex-A72 64-bit SoC, Clock Speed: 1.5 GHz, RAM: 4GB, eMMC: 32GB

2.0-inch LCD

Touchscreen with ST7789V2 controller

Touch Chipset

GT911

Antenna Port

For external antenna connection

Speaker

2W audio output with AW88298 driver

USB-C Port

USB 2.0 port with OTG functionality, powered by MP8759 and AW32901 controllers

I2C Interface

For connecting I2C devices

UART

For serial data transmission

AC Power Input Port

Supports 100-240VAC input

DC Power Input Port

Supports 12V/3A DC input

Gigabit Ethernet Port

RJ45 port for Gigabit Ethernet, speed up to 1Gbps

USB3.2 Port

Supports USB 3.2 protocol, powered by ASM3042 high-speed PCIe bridge chip

Heat Dissipation Base

Aluminum base for DIN rail mounting

Cooling Fan

For heat dissipation, powered by ME1502 chip

Boot Button

For entering download mode

High-Resolution Multimedia Signal Interface

For transmitting high-definition video and audio

RTC

Real-time clock module with BM8563

Secure Authentication Chip

ATECC608B chip for secure communication

Aluminum Heat Dissipation Base

Built-in cooling fan (ME1502) and DIN rail mounting support

SY8003 and ME1502

Power management and control integrated circuits

AW8829

Audio amplifier integrated circuit

MP8759 and AW32901

USB power delivery and Type-C interface control integrated circuits

ID-KEY (ATECC608B)

Encryption authentication integrated circuit for secure communication

ASM3042

USB 3.2 main controller

BM8563

Real-time clock integrated circuit

Wi-Fi

2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac

Product Dimensions

59 x 46 x 44mm

Packaging Dimensions

160mm x 107mm x 47mm

Product Weight

118.8g

Packaging Weight

353.4g

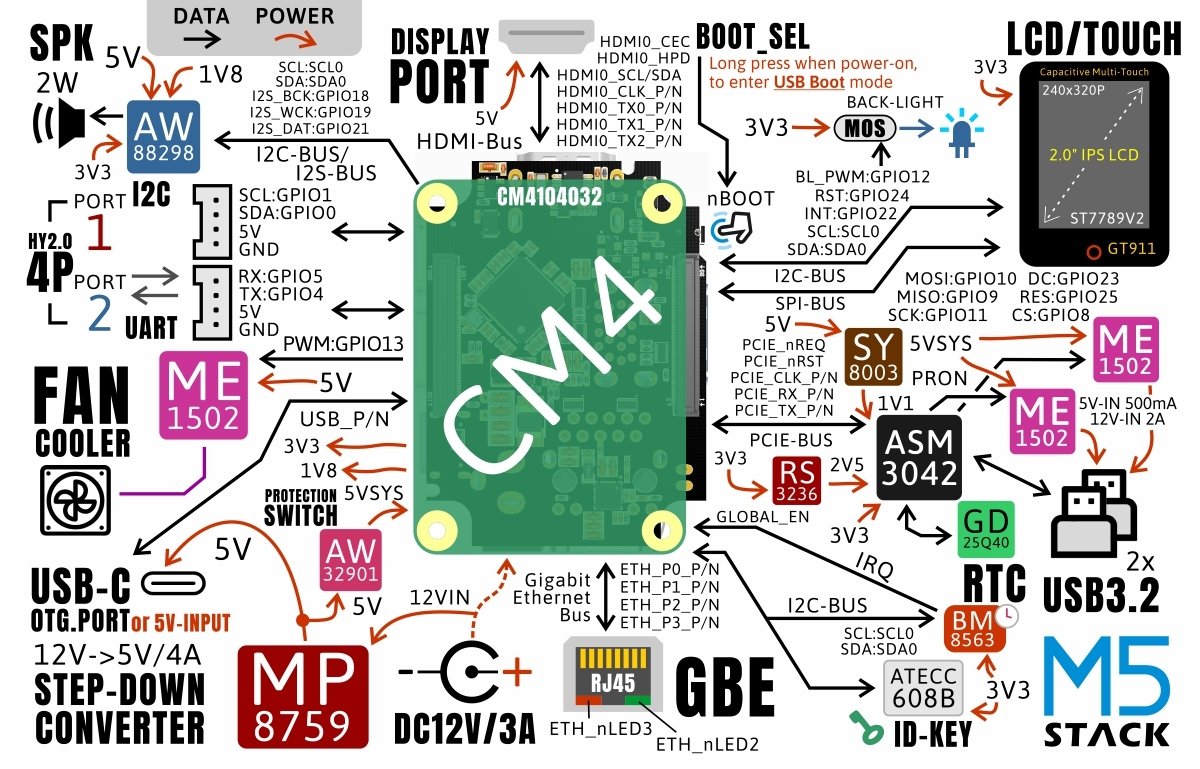

Schematics

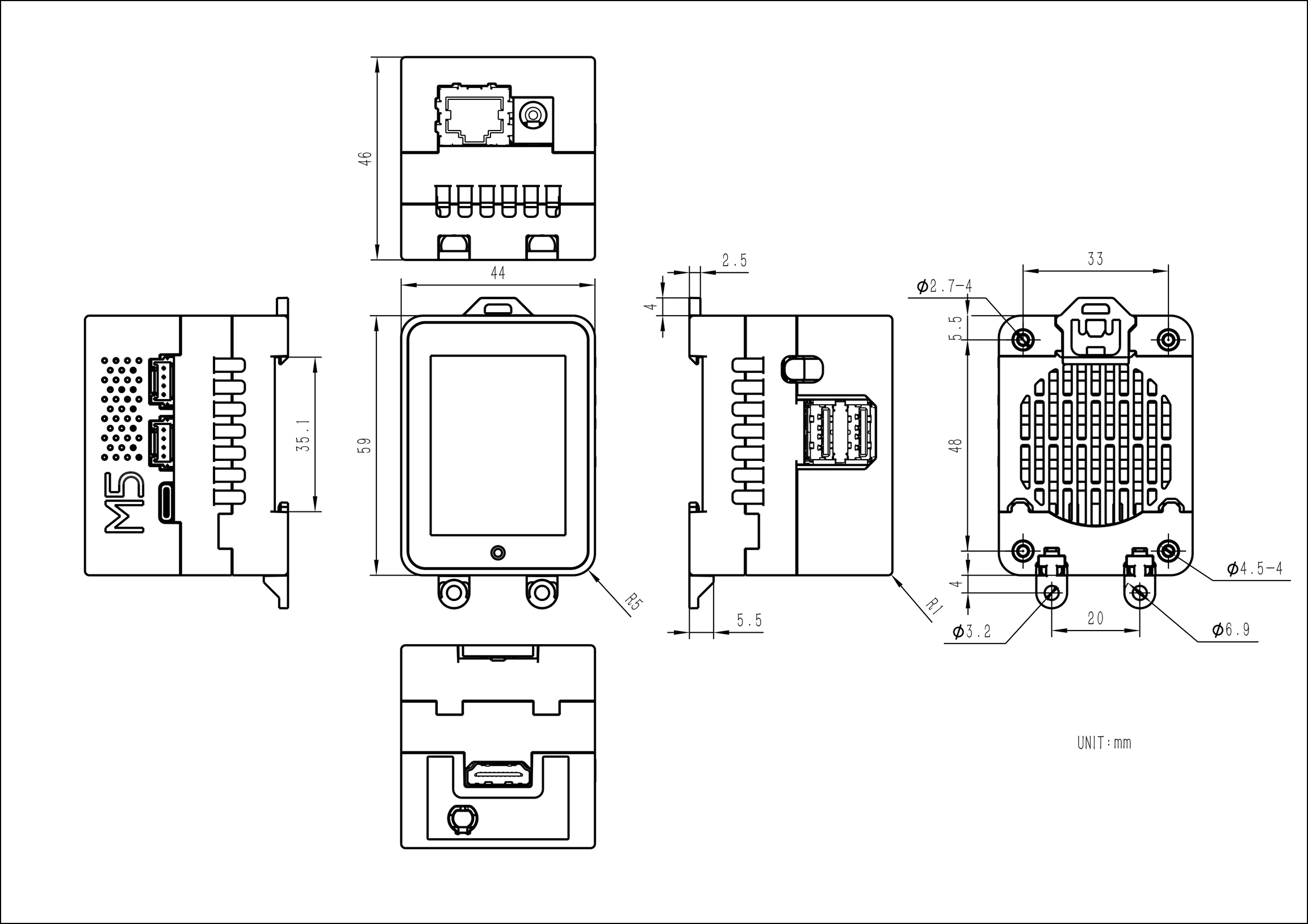

Model Size
