M5Stack 2-Channel SPST Relay Unit
Product Link
Description
2-Channel SPST Relay Unit is a 2-channel SPST relay module, equipped with two high-current relays that work under AC250V 8A or DC28V 8A. Each relay adopts independent IO control, and status indicator LED. It is suitable for home appliance power control, or ON/OFF switch for industrial equipment.
The relay is driven by IO output high and low level signals, so before connecting to the main control, please make sure that the connected port IO supports configuration as output mode. (Note: G36 of ESP32 is not allowed to be configured as output mode, so PortB will not be able to drive normally)
Product Features
2-channel relay
AC-250V/DC-28V @ 8A
Status Indicator LED
Include
1x 2RELAY Unit
1x HY2.0-4P cable (20cm)
2x VH3.96-4P Plug terminal
Applications
AC/DC signal switching
Digital equipment power on and off
Specification
| Specifications | Parameters |
|---|---|
Maximum on-off voltage | AC-250V/DC-28V |
Rated current | 8A |
Coil control voltage | DC5V |
Coil power consumption | 5V@154mA |
Coil action time | ≤ 8ms |
Coil release time | ≤ 5ms |
Contact form | A normally open type |
Contact material | AgSnO2 |
Relay indicator | Blue x2 |
Net weight | 20g |
Gross weight | 31g |
Product size | 56 * 24 * 19mm |
Packing size | 93 * 138mm |
Pinout
2RELAY
| M5CORE - PORT A | G21 | G22 |
|---|---|---|
2RELAY | RELAY-A | RELAY-B |
Schematic
Example
Arduino
UIFlow

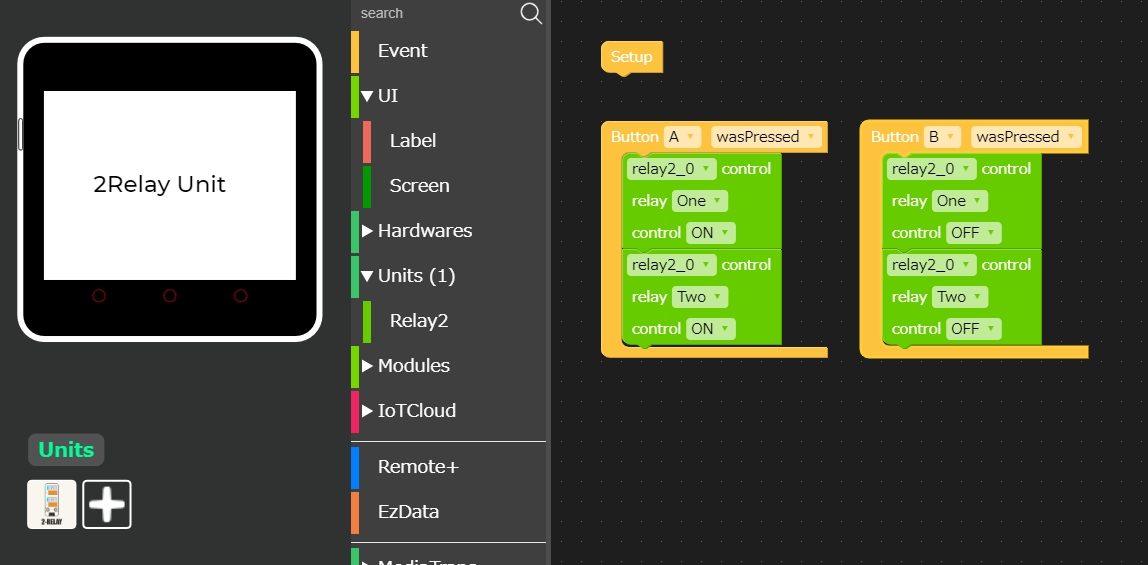

UIFlow Functions
The relay is driven by IO output high and low level signals, so before connecting to the main control, please make sure that the connected port IO supports configuration as output mode. (Note: G36 of ESP32 is not allowed to be configured as output mode, so PortB will not be able to drive normally)
Control relay(relay no., status)
