M5StickC Vibration HAT


Description

HAT-Vibrator is a vibrating motor adapted to the M5StickC/C-Plus series. It is made of cylindrical iron core patch Z3OC1T8219731 motor. The motor speed is 12000 RPM. This product can produce various vibration effects, such as: increase or decrease vibration level, produce "click" effect, produce different buzzer effects, and even vibrate with music/audio input. It can be applied to all kinds of electronic products, as information prompt and touch feedback.

Features

  • The motor rotates clockwise

  • Rotational speed: 12000RPM

  • Compatible with StickC/C-PLUS

  • Supported platforms UIFlow, Arduino .

Applications

  • Touch feedback

  • Vibration information prompt

Specification

Resources
Parameters

Vibrator

Z3OC1T8219731 motor

Motor construction

4mm×3mm cylindrical core SMT motor

Motor Number of magnet poles

2-poles(inner magnet type)

Quota voltage

3.0V

Rated current

85mA

Rated speed

12000RPM

Using voltage

2.3V-4.5V

Operating conditions

0~95%RH , 0-40℃

Vibration Frequency

10 to 55Hz

Product Size

24mm × 21mm × 14mm

Package Size

136mm × 92mm × 14mm

Product Weight

4.7g

Package Weight

7.1g

Schematic

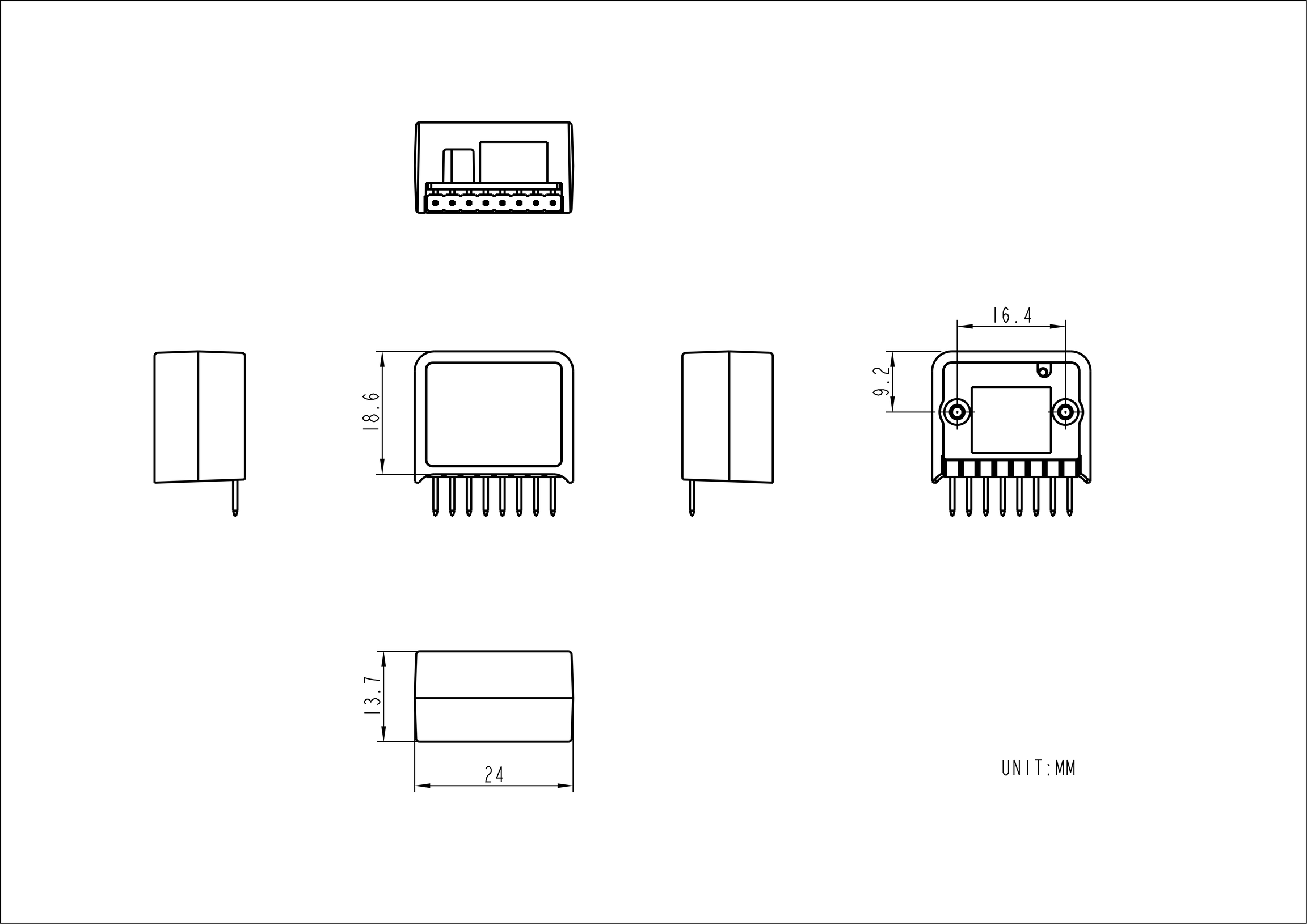

Module Size
