M5Stack Station ESP32 IoT Development Kit


Description

M5Station-485 is a multi-purpose industrial level programmable embedded controller with Espressif ESP32 SOC, integrated Wi-Fi solution, dual core low-power Xtensa® 32-bit LX6 microprocessor, main frequency up to 240MHz. Onboard 16M FLASH, integrated 240*135 1.14" full colour HD IPS display + physical keypad + rich peripherals, two sets of six expansion ports+ Low-power sleep/wakeup function. Multiple power supply options USB Type-C, PWR485, External Battery (battery socket reserved on board). The integrated high power density boost DC/DC converter SCT12A0DHKR on board ensures the stability of the electrical equipment even in complex applications. This device is suitable for industrial control, intelligent buildings, multi-channel data acquisition nodes and prototyping applications.

  • HMI:

    • 1.14" IPS display

    • 3 physical programmable keys

    • 1 ON/OFF button

    • 7 programmable RGB LEDs

  • Power supply:

    • Input:

      • Integrated 9~24V->5V DC/DC SY8303 Buck circuit

      • AXP192 power management chip

    • Output:

      • Each interface (6 Grove, 1 USB-A) is electronically switched on/off by SGM2553D.

      • INA3221 for voltage/current acquisition for Grove interfaces, and INA199 for current acquisition for the USB-A

      • Integrated high power density boost DC/DC converter SCT12A0DHKR

    • Low power consumption:

      • Integrated RTC BM8563 to achieve low power sleep/wakeup function

  • Port Design:

    • 6 way Grove expansion interface

      • Port A1/A2 shared the same power and signal pins

      • Port B1/B2/C1/C2 have separate power and signal pins

    • PWR485 interface (4-wire - VH3.96)

      • RS485

      • 9~24V power input

    • USB Tpye-A power supply output only, no signal pins

  • Mechnical Design:

    • Din rail

    • Magnet

    • Wall Mount

    • Screws

    • Ribbon

  • Programming development:

    • Supports UIFlow graphical programming platform, scripting, compile-free, cloud push

    • Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms

    • Support FreeRTOS, with the help of dual-core and multitasking mechanism, efficient organization of task logic, optimize the execution efficiency of the program.

Applications

  • Industrial Controller

  • Multi-channel data acquisition

  • IoT product prototyping

  • DIY/Prototyping

Specification

Spec
Parameters

ESP32-D0WDQ6-V3

240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi

Flash

16MB

USB powered

5V@1A

RS485 power supply

9~24V@1A

Interface

Type-C * 1, GROVE(I2C+I/0+UART) * 6, Full-Size USB Type-A(OUTPUT),PWR485

LEDs

SK6812 * 7

Pushbuttons

Power Button, Physical Button \ 3

IPS LCD Screen

1.14"@240*135 ST7789V2

RTC

BM8563

PMU

AXP192

Voltage/Current Collector

INA3221 + INA199

USB Chips

CH9102F

TTL-RS485

SP3485

Step-Down Chips

SY8303

DC/DC Boost

SCT12A0DHKR

Power Distribution Switch

SGM2553D

Antenna

2.4G 3D Antenna

Operating Temperature

0°C to 60°C

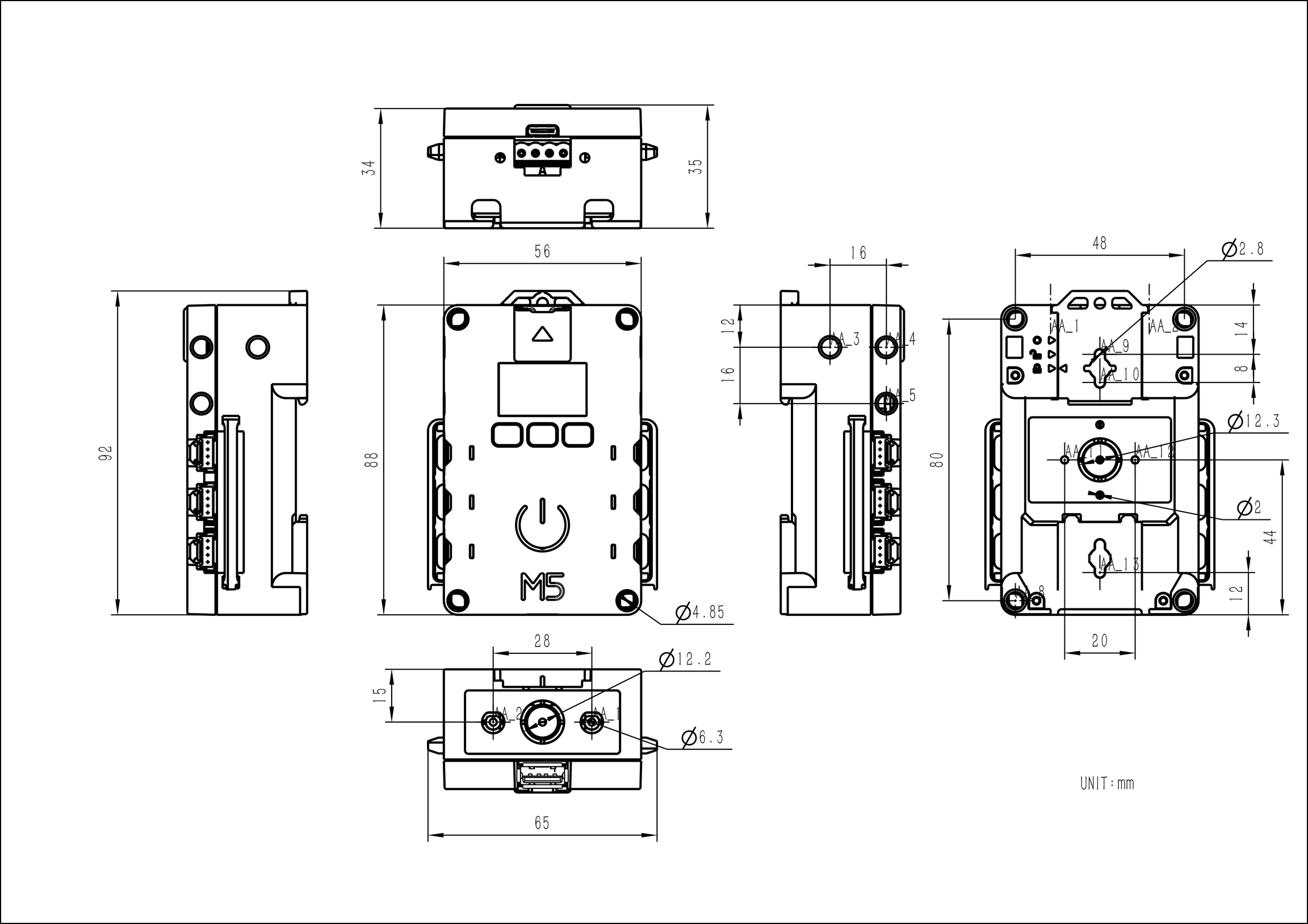

Base Screw Specification

Hexagon socket cup head M2*8 screw

Internal PCB reserved interface

Battery interface(Specification:1.25mm-4P)USB line interface(Specification:1.25mm-4P)

Net Weight

63.1g

Gross Weight

108.1g

Product Dimensions

92 x 64.5 x 35 mm

Package Size

104.5 x 70.5 x 50mm

Case Material

ABS+PC

PinMap

key BUTTON A & key BUTTON B & key BUTTON C & power button

ESP32 Chip
GPIO37
GPIO38
GPIO39

Key Pins

BUTTON A

BUTTON B

BUTTON C

Color TFT screen

Driver chip:ST7789v2 Resolution:135 * 240 @1.14"

ESP32 Chip
GPIO5
GPIO15
GPIO18
GPIO19
GPIO23

AXP192 Chip

AXP_LDO3

LCD

CS

RESET

SCK

RS

MOSI

LCD_BL

RTC

ESP32 Chip
GPIO21
GPIO22

BM8563

SDA

SCL

INT

AXP192

AXP_PWR

Current and Voltage Monitor

ESP32 Chip
GPIO21
GPIO22
Control Channel

INA3221(0x40)

SDA

SCL

AXP_GPIO0,AXP_GPIO1

INA3221(0x41)

SDA

SCL

AXP_GPIO2,AXP_GPIO3,AXP_GPIO4

Internal I2C connection

ESP32 Chip
GPIO21
GPIO22

AXP192

SDA

SCL

BM8563

SDA

SCL

INA3221

SDA

SCL

PWR485

Chip
GPIO3
GPIO1
GPIO2
(DCDC 9~24->5V)
GND

SP3485

TXD

RXD

Send - High Level / Receive - Low Level

GND

SY8303

VIN_12V

Power Management Chips (AXP192)

RTC
LCD BackLight
ESP32-3.3V SK6812,INA3221,CH902F

LDO1

LDO3

DC-DC1

USB to Serial Port

ESP32 Chip
GPIO3
GPIO1

CH9102F

TXD

RXD

M5Station Port Description

PORT
PIN
Metering Port
Notes:

PORT-A1(red)

G32/33(SDA/SCL)

AXP_GPIO0

I2C

PORT-A2(red)

G32/33(SDA/SCL)

AXP_GPIO0

I2C

PORT-B1(black)

G25/35(OUT/IN)

AXP_GPIO1

DAC/ADC

PORT-B2(black)

G26/36(OUT/IN)

AXP_GPIO2

DAC/ADC

PORT-C1(blue)

G14/13(TX/RX)

AXP_GPIO3

UART

PORT-C2(blue)

G17/16(TX/RX)

AXP_GPIO4

UART

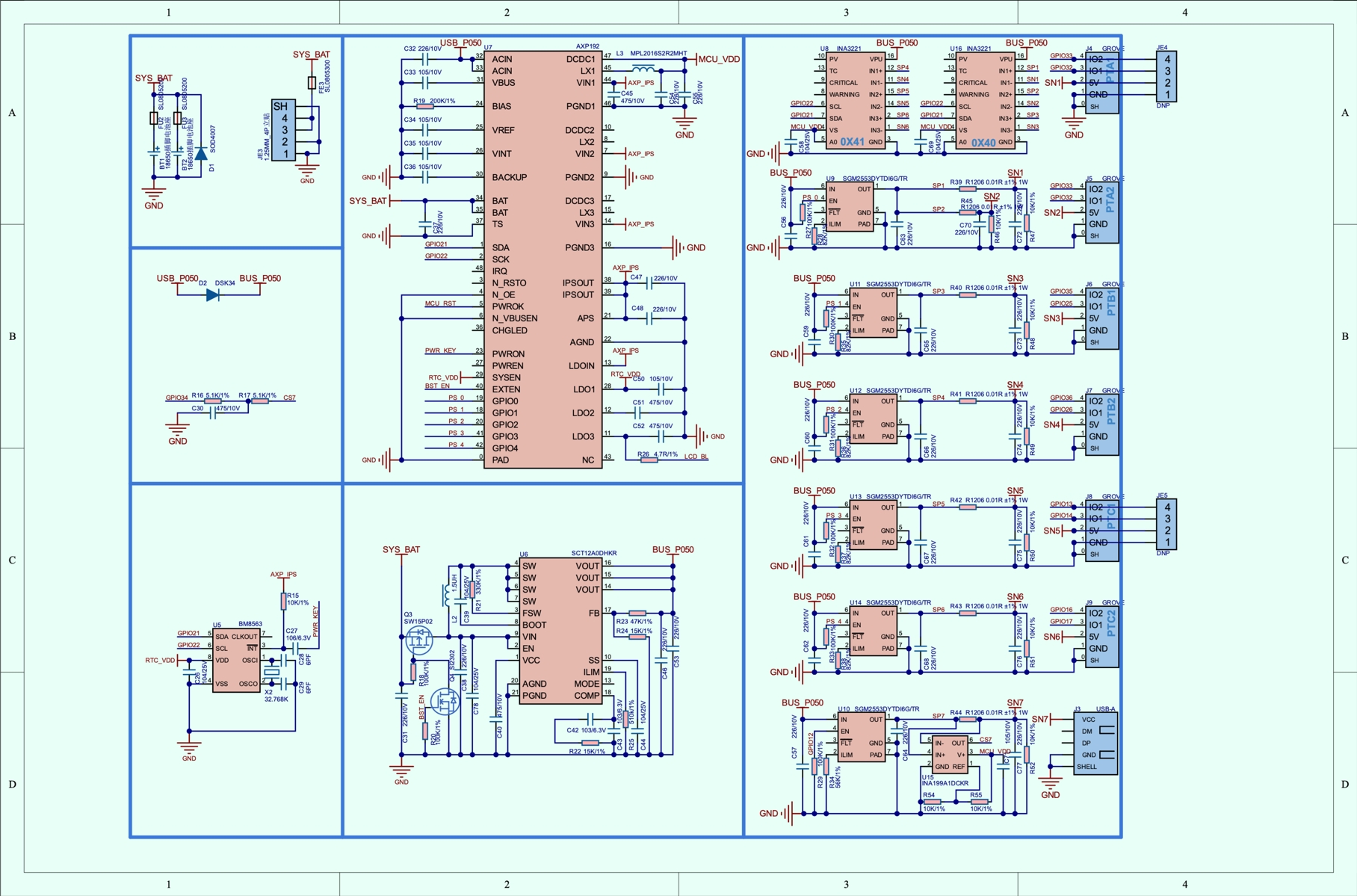

Schematic
