M5Stack H-bridge Unit v1.1


Description

Meet the HBridge v1.1 Unit – a state-of-the-art DC motor drive module that redefines motor control. Powered by the "STM32F030+RZ7899" scheme, this module enables seamless I2C communication with the M5 host, offering precise PWM control for speed adjustment, as well as easy management of forward, reverse, and braking functions.

Safety and reliability take center stage with built-in safeguards against over-current, over-voltage, and over-temperature situations. The module's total power MOSTUBE switch circuit allows dynamic motor control through programming, while the integrated total current acquisition circuit ensures safe motor operation.

Adapting to diverse needs, the module incorporates a smart 6-12V and 5V switching circuit. It's a perfect fit for a range of applications, from robotics, motor drives, and industrial automation to smart homes. Elevate your projects with the HBridge v1.1 Unit – where cutting-edge technology meets simplicity and versatility.

Features

  • Overcurrent, overvoltage, overtemperature protection

  • Power switching

  • I2C address: Default 0x20

  • current detech

  • Programming platform: Arduino, UIFlow

Applications

  • robot

  • Motor driven

  • Industrial automation

  • Smart home

Specification

Resources
Parameters

MCU

STM32F030F4P6

DC bidirectional motor driver chip

RZ7899

Current acquisition chip

INA199A1DCKR

External access DC voltage

MAX 12V

I2C mailing address

Default 0x20 (can be modified by toggle of the encoding switch)

Maximum allowable current

3A

Use temperature

0-40°C

Product Size

48mm* 24mm*8mm

Package Size

136mm* 92mm*13mm

Product Weight

9.1g

Package Weight

14g

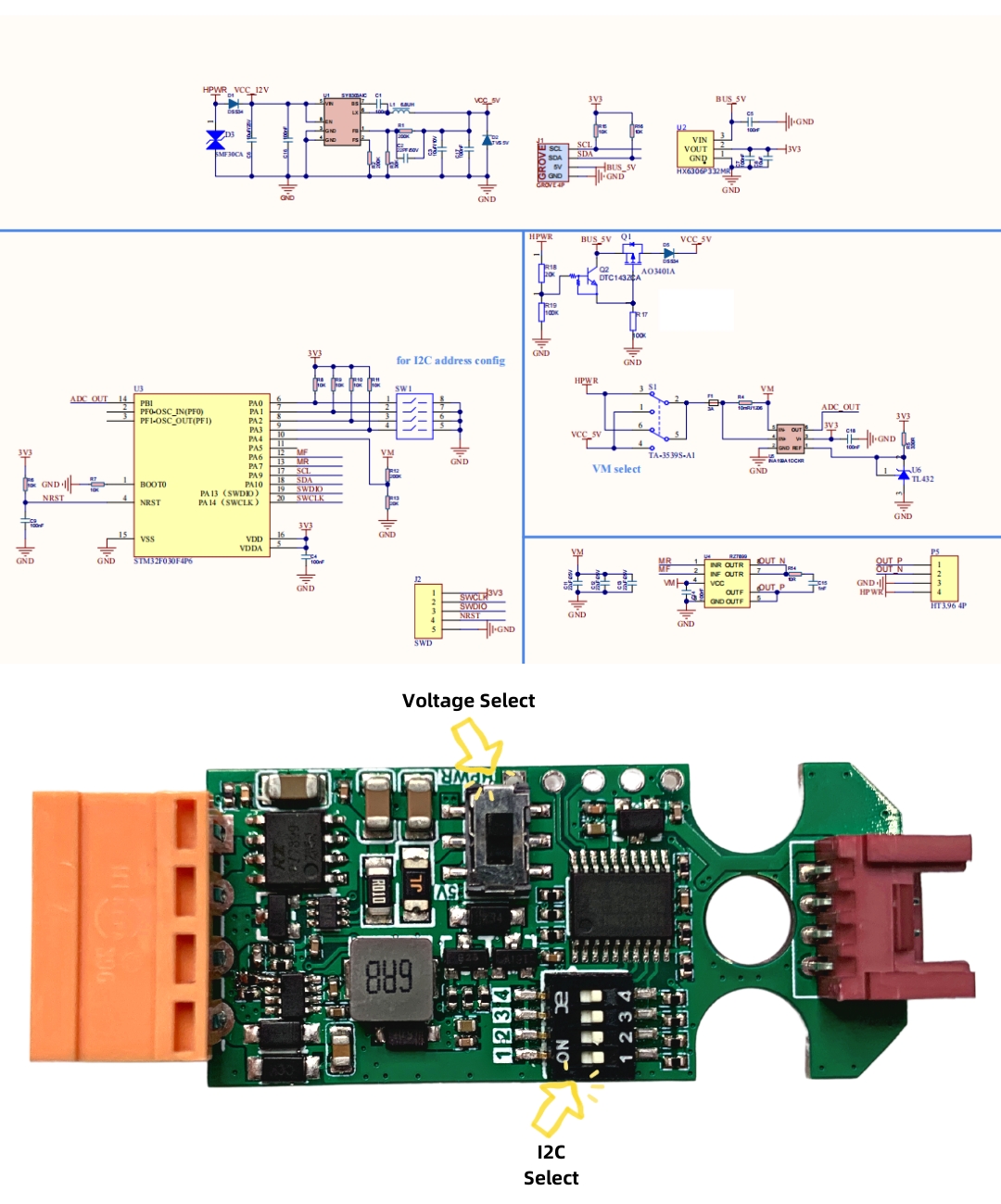

Schematic

Turn the switch to the corresponding position based on the input power supply.

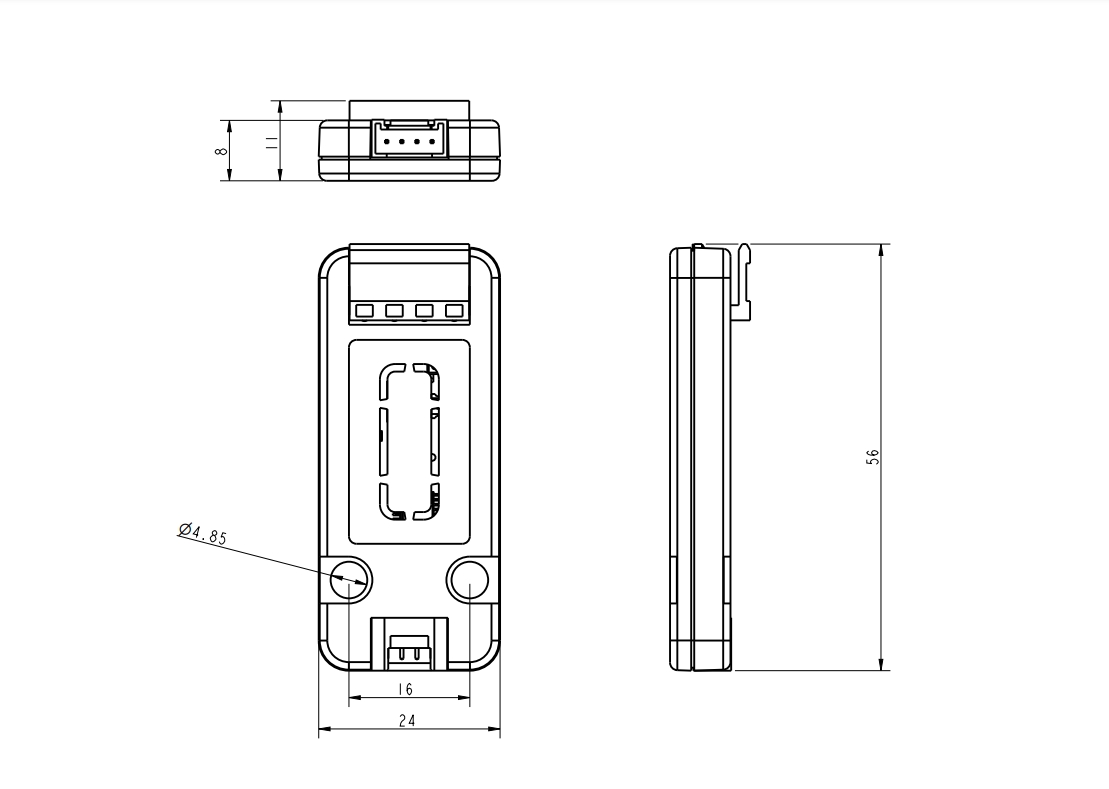

Module Size

Protocol
