M5Stack Tube/Air Pressure Unit

---

Product Link

M5Stack Tube/Air Pressure UnitOpenELAB Technology Ltd.

Description

Tube pressure is a wide range air pressure sensor that supports -100 ~ 200Kpa. You can connect one end of the tube to the gas inlet. This sensor transmitted onto mapping value -100 ~ 200Kpa and 0.1 ~ 3.1V voltage output. Also having a protective housing for long term stability. It’s an accessory that your industrial use cannot live without.

Features

• Includes Integrated piezo-resistive pressure sensor with wide temperature compensation

• Linear output, easy to use

• Measurement range: -100 ~ 200Kpa

• Output: 0.1 ~ 3.1V

• Precision: 1.5Kpa

• 2x LEGO compatible holes

• Support UIFlow graphical programming

Application

• Air pressure measurement

Specification

Specifications	Parameters
Sensor Model	MCP-H10-B200KPPN
Detections	Gas
Measurement range	-100 ~ 200Kpa
Output	0.1 ~ 3.1V
Precision	1.5Kpa (0 ~ 85°C)
Supply voltage	5V
Net weight	4.8g
Gross weight	10g
Product size	24 * 32 * 12mm
Packing size	93 * 138mm

Output voltage and pressure value conversion

//P: Actual test pressure value, unit (Kpa)
//Vout: sensor voltage output value
P = (Vout-0.1)/3.0*300.0-100.0


Schematic

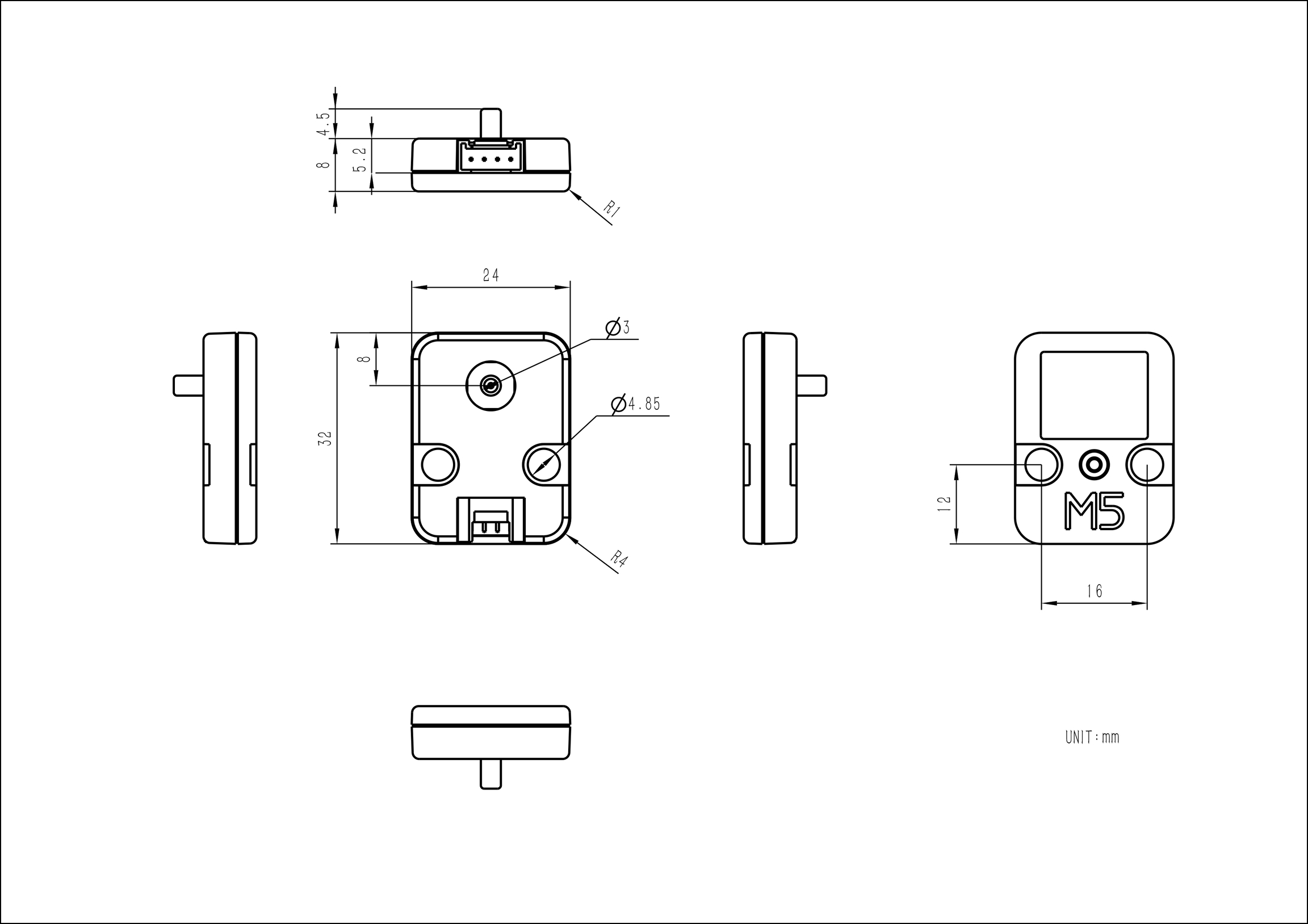

Module Size

Examples

Arduino

#include <Arduino.h>

int sensorPin = 32; // Sensor Pin

void setup() {
  Serial.begin(115200);
  pinMode(sensorPin, INPUT);  //Sets the specified pin to input mode.  设置指定引脚为输入模式
}

void loop() {
  float raw = analogRead(sensorPin);  // read the value from the sensor.  读取当前传感器的值
  float Vout = raw/4095*3.6;
  float P = (Vout-0.1)/3.0*300.0-100.0;
  Serial.printf("pressure: %f.2 Kpa\r\n", P);
  delay(100);
}


UIFlow

COMPATIBLE
