M5Stack DAC Converter Digital to Analog I2C Unit

---

Product Link

M5Stack DAC Converter Digital to Analog I2C UnitOpenELAB

Description

DAC, is a unit with the ability to convert digital signal to analog signal (voltage waveform signal) with support for audio waveform and more. It integrates a 12-bit high resolution DAC chip named MCP4725 which has an on-board non-volatile memory (EEPROM). The unit communicates with the M5Core using the I2C protocol.

The DAC input and configuration data can be programmed to the EEPROM in order for the data to be saved after reboot or system shutdown.

The device I2C address is 0x60 by default unless changed manually.

Features

• Up to 12 bits of resolution

• Output 0~3.3V voltage GROVE interface, support UIFlow and Arduino

• Two Lego-compatible holes

Applications

• MP3 Audio Player

• mini Oscilloscope

Specification

Resources	Parameter
Resolution	12 bit
voltage range	0-3.3V
Communication protocol	I2C: 0x60
Net weight	4g
Gross weight	19g
Product Size	32.2*24.2*10.3mm
Package Size	67*53*12mm

PinMap

M5Core(GROVE A)	GPIO22	GPIO21	5V	GND
DAC Unit	SCL	SDA	5V	GND

Schematic

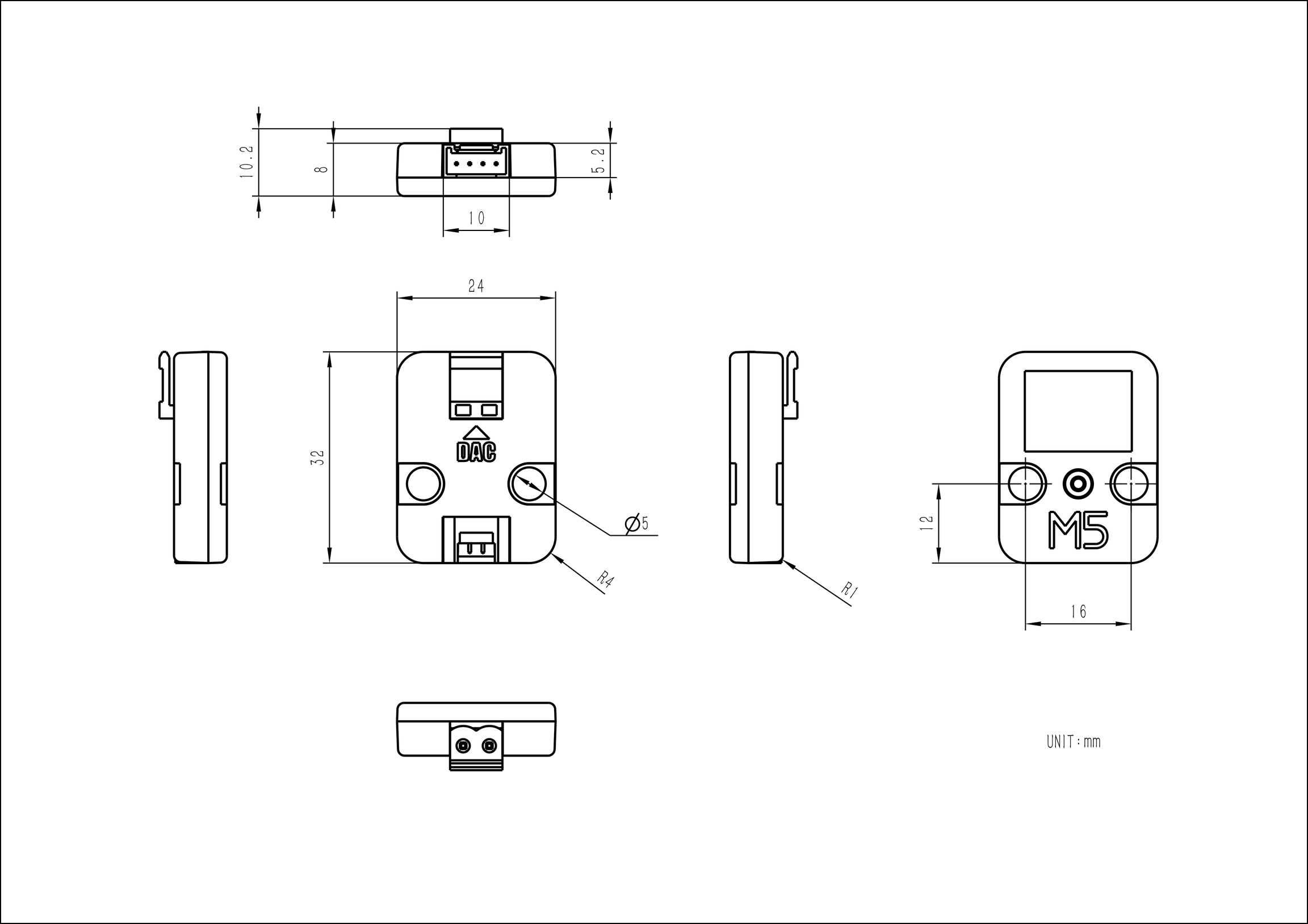

Module Size

Compatible
