M5Stack Flashlight Unit


Description

FlashLight UNIT is an I/O Unit with built-in flash, including AW3641 driver and a white LED, with a color temperature of 5000-5700K. There is a mode selection switch on the board, which can set the flash mode and the constant lighting mode. The communication interface is GPIO. This Unit can be used as a flash or lighting applications.

Features

  • PWM Brightness Adjustment Method

  • Over-Temperature Protection

  • Over-Voltage and Short-Circuit Protection

Applications

  • Light source

  • DIY

  • Alerter

Specification

Resources
Parameters

Driver chip

AW3641EDNR

Adjustment Mode

PWM

AW3641EDNR Operation Temperature Range

-40℃ to +85℃

Unit Operation Temperature

0℃ to +40℃

Color Temperature

6000K~6500K(Kevin)

Product Size

32mm × 24mm × 8mm

Package Size

67mm × 53mm × 12mm

Product Weight

4.7g

Package Weight

9.8g

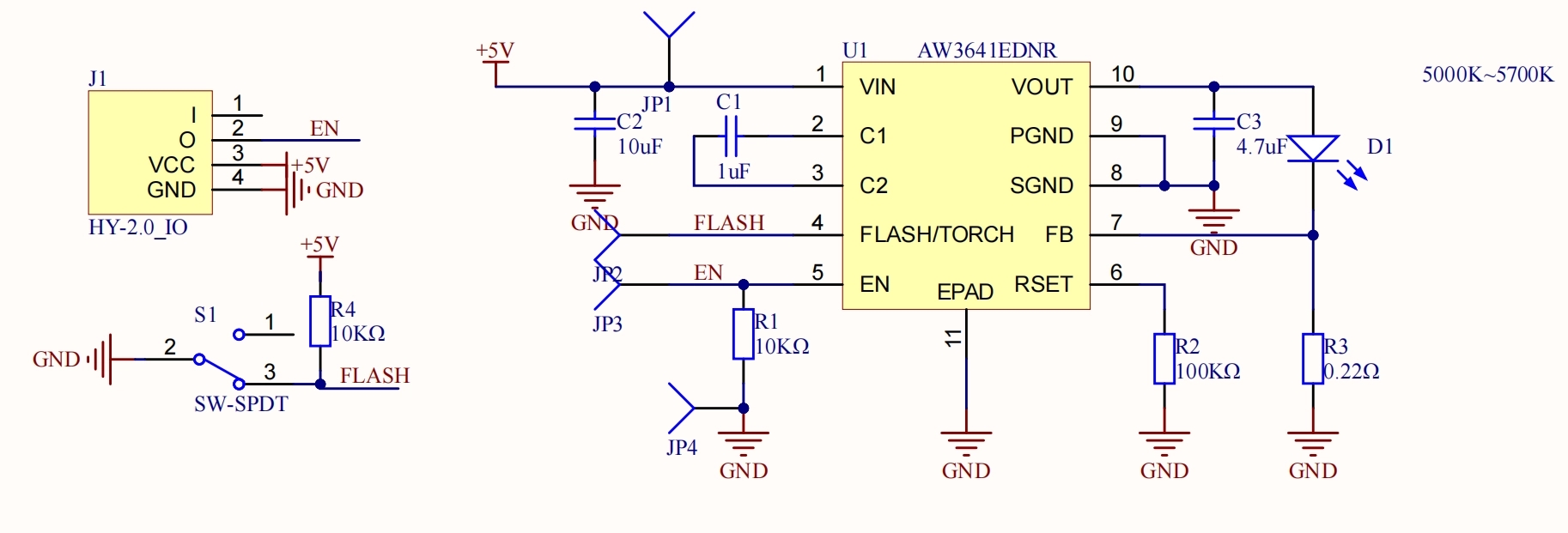

Schematic

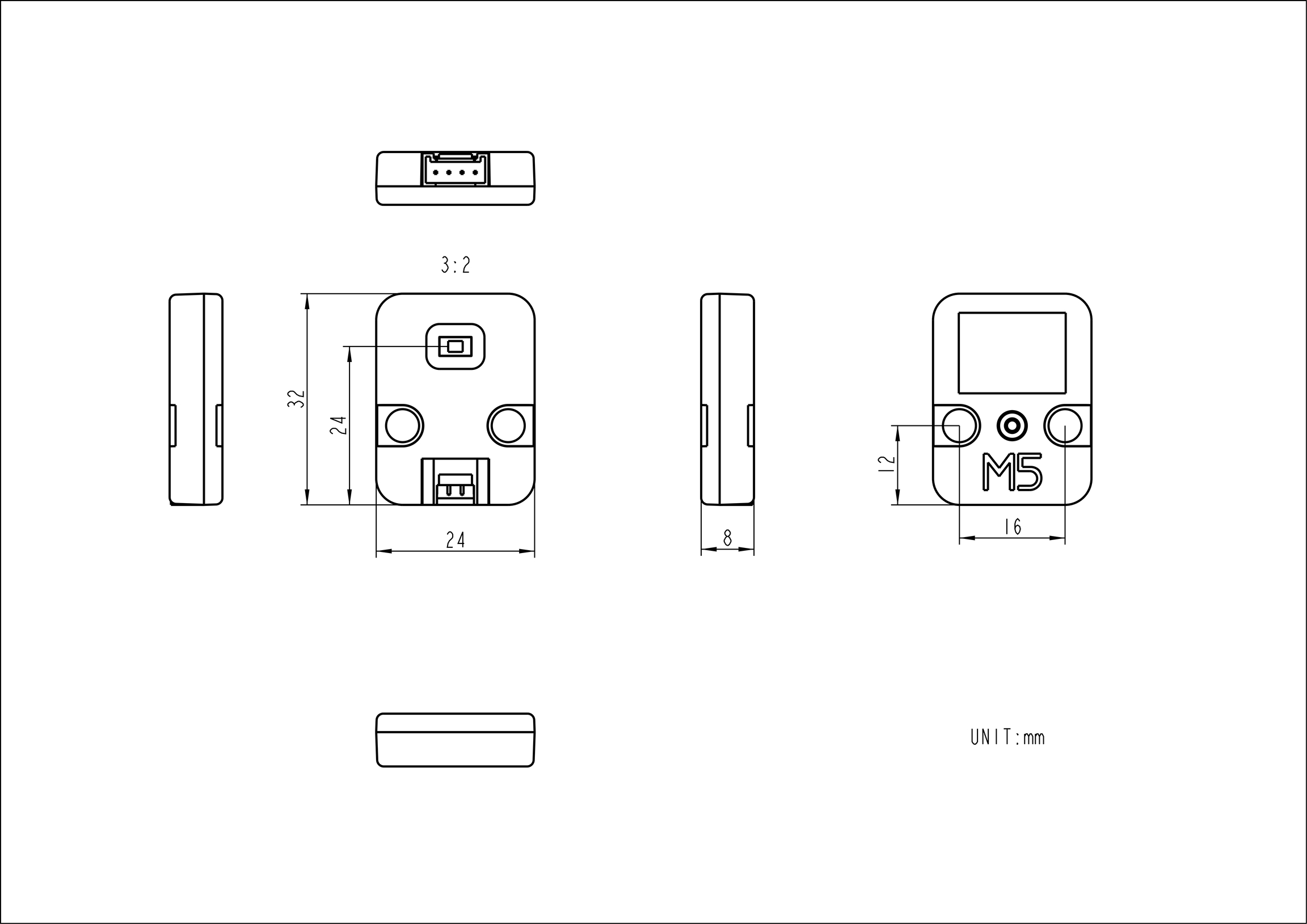

Module Size

Compatible
