M5Stack ESP32 PSRAM Timer Camera Fisheye


Description

The Timer Camera F is a fisheye camera module based on ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. 3.0 megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048x1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled. The module supports Wi-Fi image transfer and USB port debugging, and the HY2.0-4P output on the bottom can be used to expand other peripherals. The on-board LED status indicator and reset button facilitate program development and debugging. In terms of application, M5Stack provides a number of simple and efficient application development methods and interfaces for the TimerCAM series, making it easy for users to use and develop their applications. (including PC/Mobile photo shooting APP, cloud image HTTP interface for timer shooting, cloud AI recognition interface (not online yet), etc.)

Features

  • Design based on esp32

  • Wi-Fi image transmission

  • Timed sleep wake up

  • Status indicator

  • Ultra low power design

  • Built-in 270mAh battery

  • Programming platform:ESP-IDF/Arduino/UIFlow

Applications

  • Take pictures regularly

  • Remote video monitoring

Specifications

Resources
Parameter

PSRAM

8MB

Flash

4M

Battery

270mAh

Image Sensor

OV3660

Maximum resolution

3M pixels

Output format

8-/10-Bit RAW, RGB and YCbCr output, compression.

DFOV

120°

Net weight

21g

Gross weight

44g

Product Size

48*24*22.6mm

Package Size

75*45*30mm

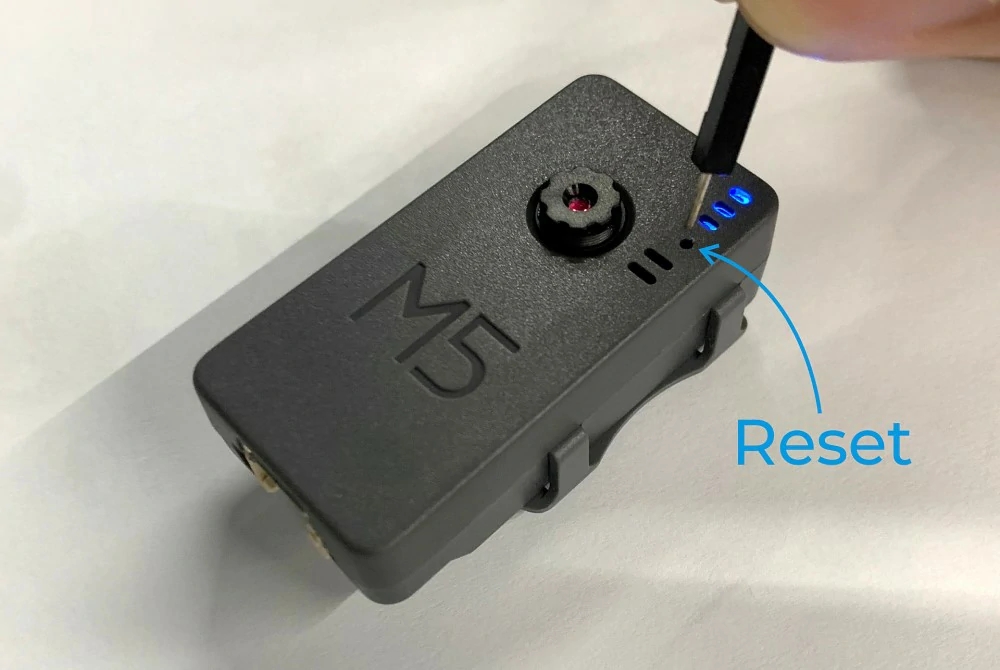

The low-power power management solution adopted by the Timer Camera series is different from the CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the Reset button on the PCB.When using external power supply, the device will remain powered on.

Driver Installation

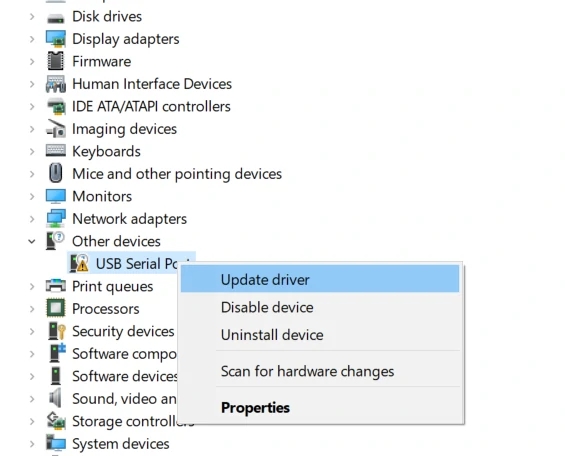

TimerCAM may not work without drive in some systems. Users can manually install FTDI Driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).

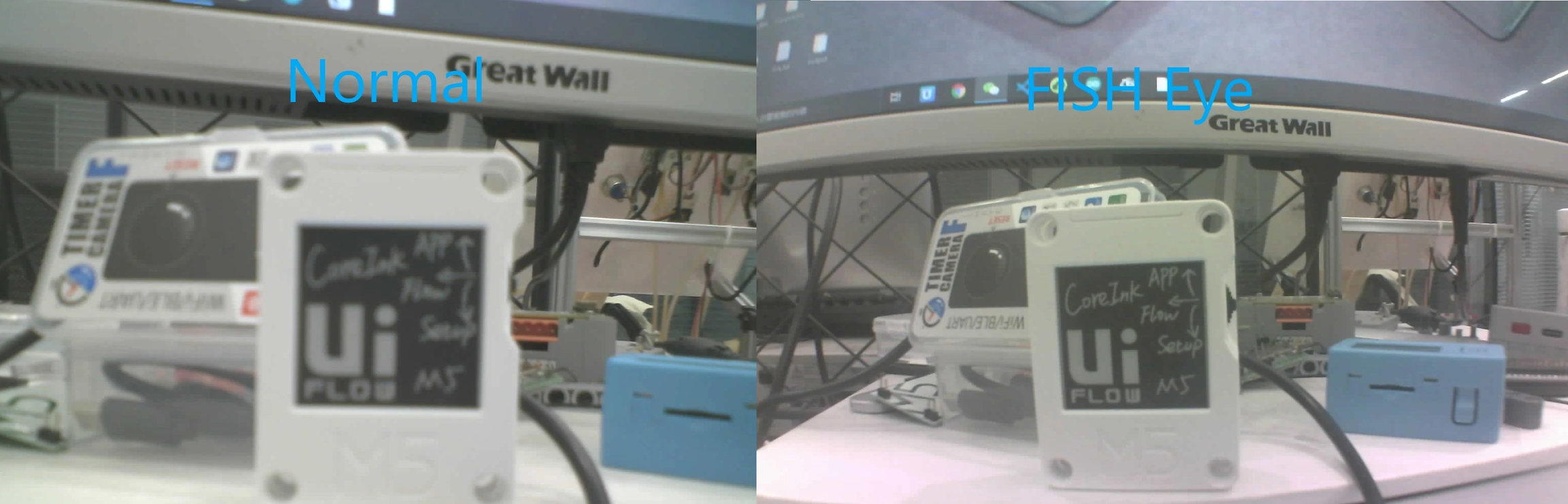

FISH EYE LENS Comparison Normal LENS

PinMap

Camera Interface PinMap

Interface
Camera Pin
TimerCamera

SCCB Clock

SIOC

IO23

SCCB Data

SIOD

IO25

System Clock

XCLK

IO27

Vertical Sync

VSYNC

IO22

Horizontal Reference

HREF

IO26

Pixel Clock

PCLK

IO21

Pixel Data Bit 0

D0

IO32

Pixel Data Bit 1

D1

IO35

Pixel Data Bit 2

D2

IO34

Pixel Data Bit 3

D3

IO5

Pixel Data Bit 4

D4

IO39

Pixel Data Bit 5

D5

IO18

Pixel Data Bit 6

D6

IO36

Pixel Data Bit 7

D7

IO19

Camera Reset

RESET

IO15

Camera Power Down

PWDN

-1

Power Supply 3.3V

3V3

3V3

Ground

GND

GND

HY2.0-4P

HY2.0-4P
TimerCamera

SCL

G13

SDA

G4

5V

5V

GND

GND

LED

LED
TimerCamera

LED_Pin

G2

BUTTON

BUTTON
TimerCamera

BUTTON

G37

BM8563

BM8563
TimerCamera

SCL

G14

SDA

G12

BAT

BAT
TimerCamera

BAT_ADC_Pin

G38

BAT_HOLD_Pin

G33

Schematics

TimerCAM_F

Datasheets

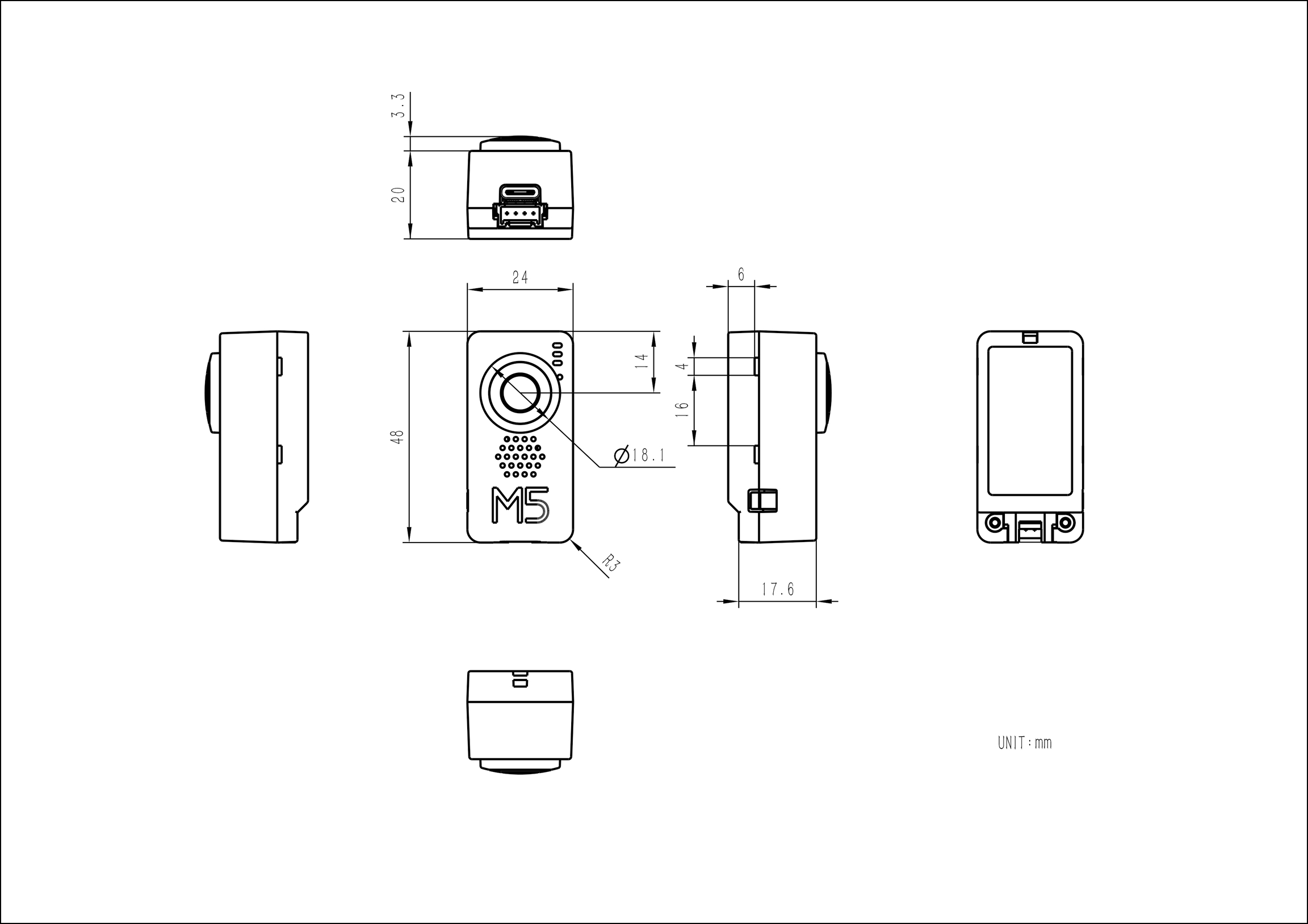

Model Size
