M5Stack M5StampS3 with 1.27/2.54 Header Pin


Description

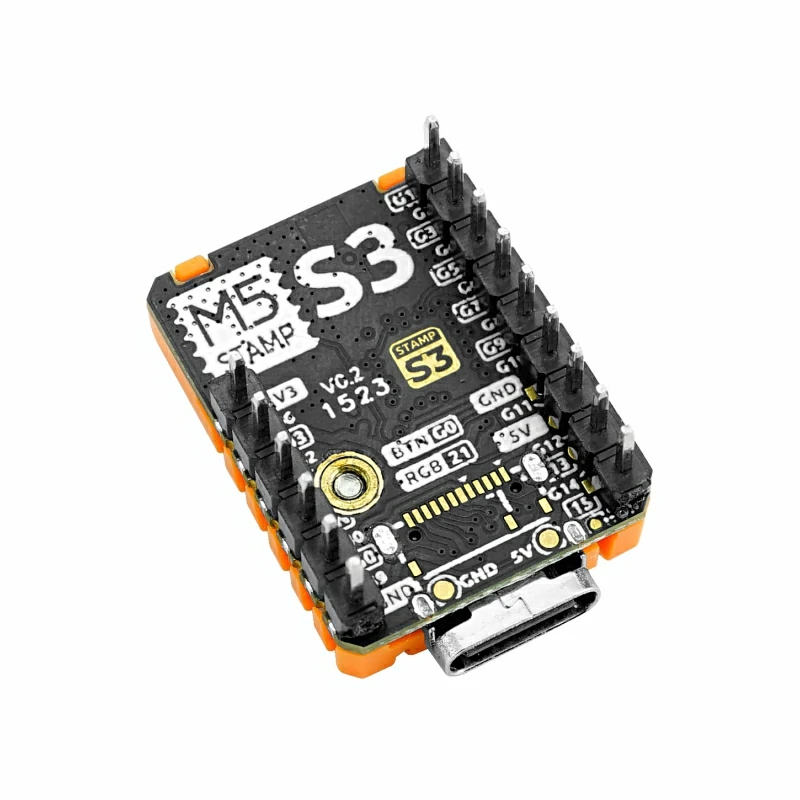

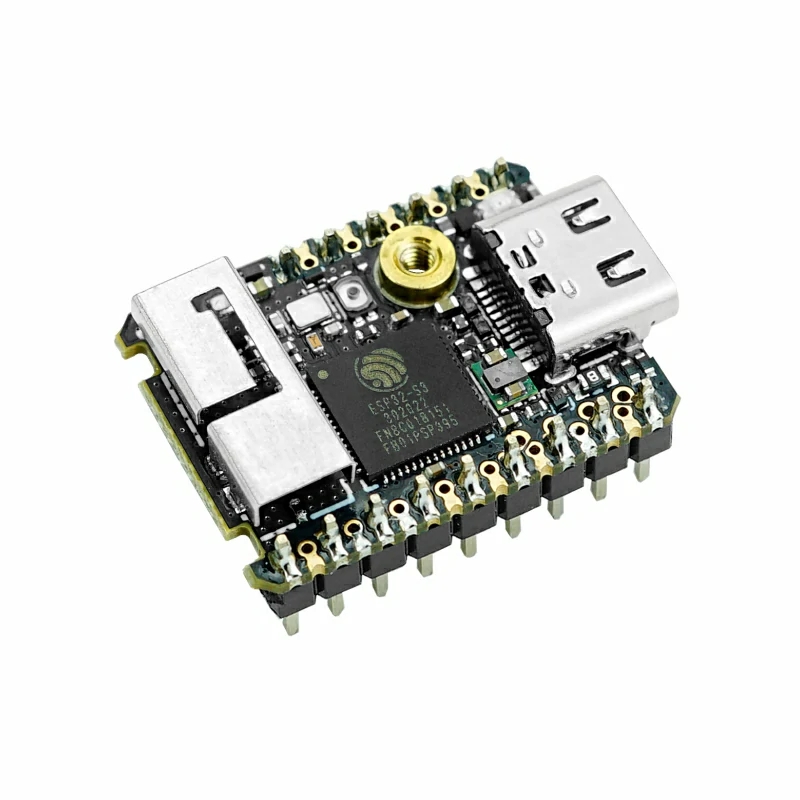

M5StampS3 PIN2.54 is a highly integrated embedded main control core module, using Espressif ESP32-S3FN8 chip,included 8MSPI flash memory, equipped with high-performance Xtensa 32-bit LX7 dual-core processor, main frequency up to 240MHz. Built-in highly integrated 5V to 3.3V circuit, RGB status indicator, programmable button, module leads out 10 GPIOs on ESP32-S3, and it leads out in the form of 2.54MM spacing needle; The product features compact volume, strong performance, rich expansion IO and low power consumption. The module is suitable for IoT application scenarios with embedded main control modules.

If you want to enter download mode, press and hold the G0 button on StampS3 before turning it on, then release it after powering it on.GPIO46 is drop-down by default.

Features

  • ESP32-S3FN8(2.4GHz Wi-Fi)

  • Integrated programmable RGB LED and button

  • 2.54mm pin header

  • Support UIFlow graphical programming

Applications

  • Smart home

  • Wearables

  • Medical equipment

Specification

Resources
Parameters

MCU

ESP32-S3FN8

DCDC

Highly integrated MUN3CAD01-SC

Flash

8MB

Input voltage

5V

Interactive

Programmable physical buttons x 1, programmable RGB LED (WS2812B-2020) x 1

Antenna type

2.4G 3D antenna

Module resource interface

Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter

IO interface x23

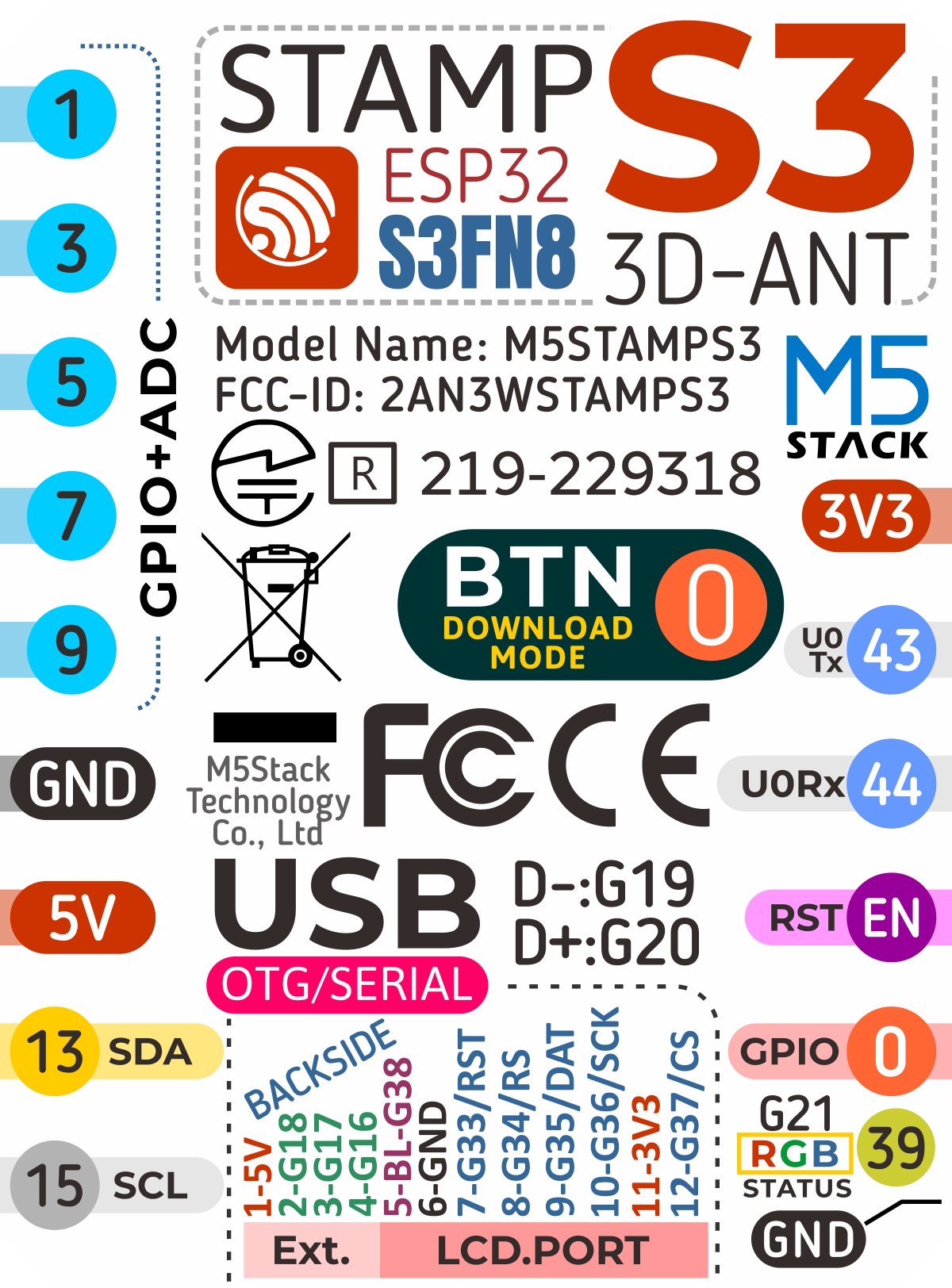

G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46

Pin header spacing

2.54mm

lcd interface spacing

0.5mm@12pin or 8pin

Operating temperature

0°C to 40°C

Product Size

26*18*4.6mm

Package Size

74*48*13mm

Product Weight

3.5g

Package Weight

6.3g
