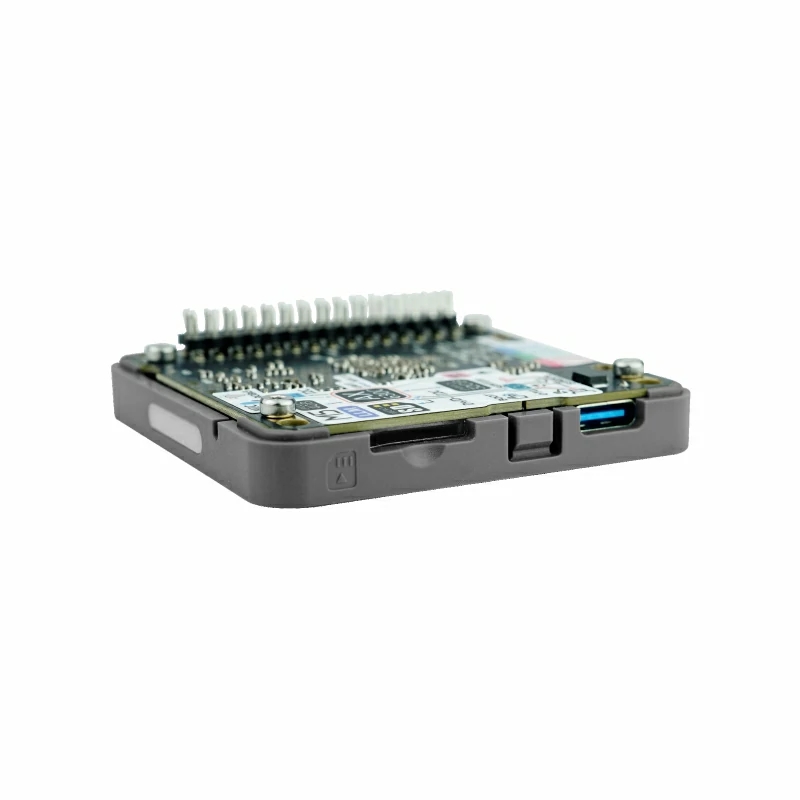

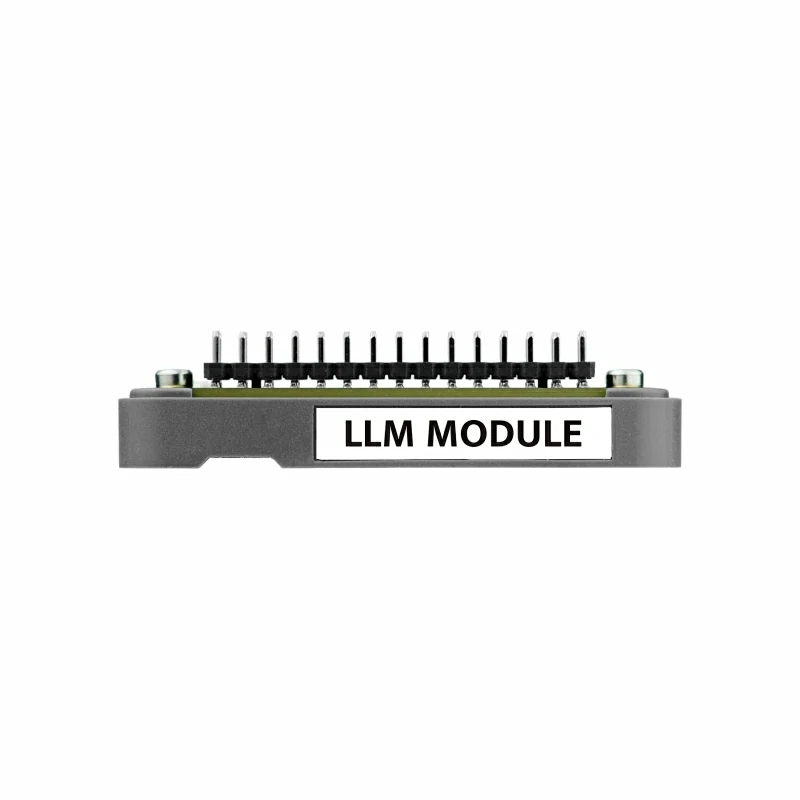

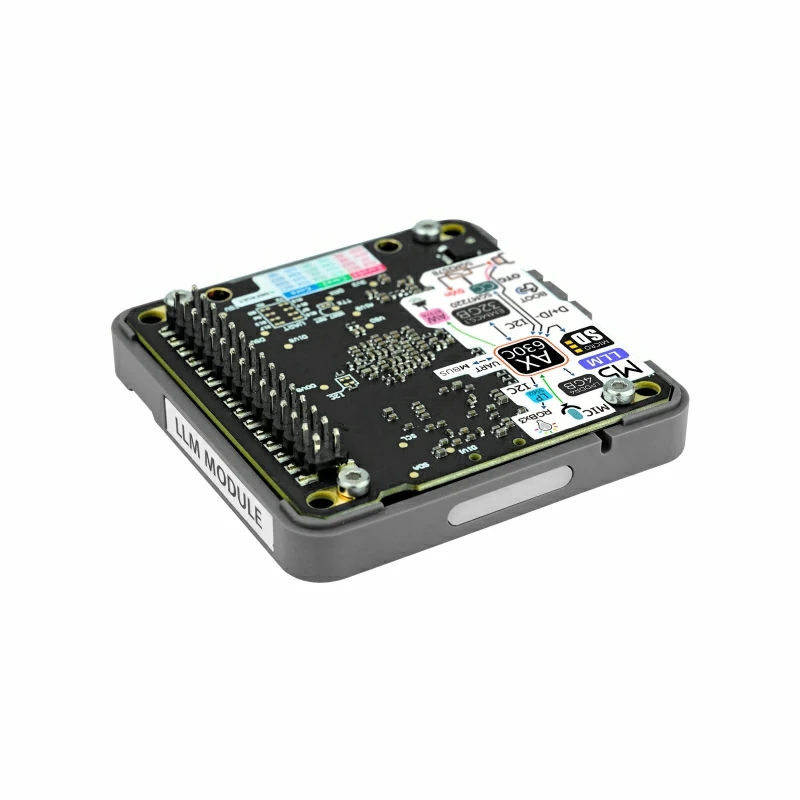

Module LLM is an integrated offline Large Language Model (LLM) inference module designed for terminal devices that require efficient and intelligent interaction. Whether for smart homes, voice assistants, or industrial control, Module LLM provides a smooth and natural AI experience without relying on the cloud, ensuring privacy and stability. Integrated with the StackFlow framework and Arduino/UiFlow libraries, smart features can be easily implemented with just a few lines of code. Powered by the advanced AX630C SoC processor, it integrates a 3.2 TOPs high-efficiency NPU with native support for Transformer models, handling complex AI tasks with ease. Equipped with 4GB LPDDR4 memory (1GB available for user applications, 3GB dedicated to hardware acceleration) and 32GB eMMC storage, it supports parallel loading and sequential inference of multiple models, ensuring smooth multitasking. The main chip's runtime power consumption of approximately 1.5W, making it highly efficient and suitable for long-term operation. It features a built-in microphone, speaker, TF storage card, USB OTG, and RGB status light, meeting diverse application needs with support for voice interaction and data transfer. The module offers flexible expansion: the onboard SD card slot supports cold/hot firmware upgrades, and the UART communication interface simplifies connection and debugging, ensuring continuous optimization and expansion of module functionality. The USB port supports master-slave auto-switching, serving as both a debugging port and allowing connection to additional USB devices like cameras. Users can purchase the LLM debugging kit to add a 100 Mbps Ethernet port and kernel serial port, using it as an SBC. The module is compatible with multiple models and comes pre-installed with the Qwen2.5-0.5B language model. It features KWS (wake word), ASR (speech recognition), LLM (large language model), and TTS (text-to-speech) functionalities, with support for standalone calls or pipeline automatic transfer for convenient development. Future support includes Qwen2.5-1.5B, Llama3.2-1B, and InternVL2-1B models, allowing hot model updates to keep up with community trends and accommodate various complex AI tasks. Vision recognition capabilities include support for CLIP, YoloWorld, and future updates for DepthAnything, SegmentAnything, and other advanced models to enhance intelligent recognition and analysis. Plug and play with M5 hosts, Module LLM offers an easy-to-use AI interaction experience. Users can quickly integrate it into existing smart devices without complex settings, enabling smart functionality and improving device intelligence. This product is suitable for offline voice assistants, text-to-speech conversion, smart home control, interactive robots, and more.

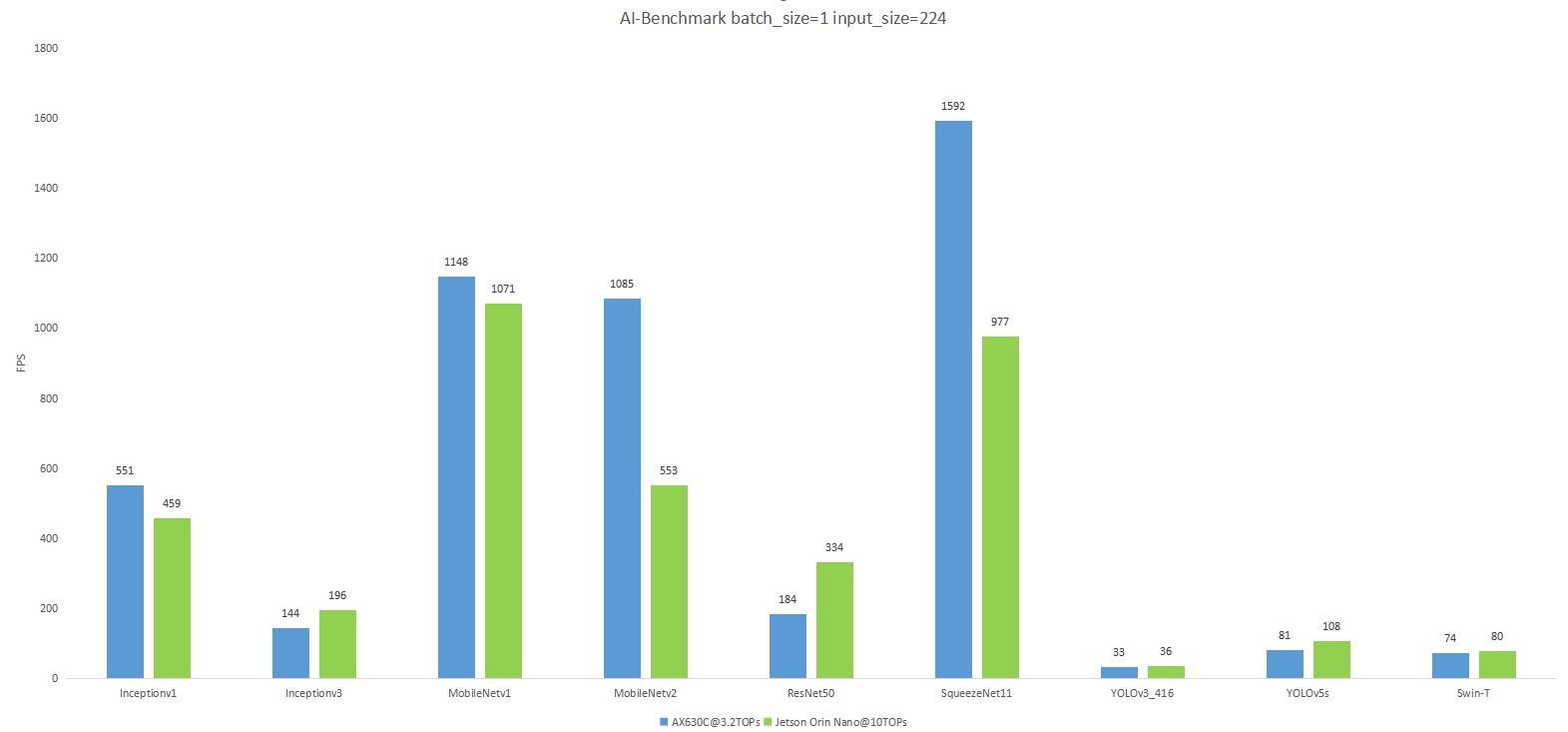

Offline inference, 3.2T@INT8 precision computing power
Integrated KWS (wake word), ASR (speech recognition), LLM (large language model), TTS (text-to-speech generation)
Multi-model parallel processing
Onboard 32GB eMMC storage and 4GB LPDDR4 memory
Onboard microphone and speaker
Serial communication
SD card firmware upgrade
Supports ADB debugging
RGB indicator light
Built-in Ubuntu system
Supports OTG functionality
Compatible with Arduino/UIFlow
Offline voice assistants
Text-to-speech conversion
Smart home control
Interactive robots
LLM Module Pin SwitchingLLM Module has reserved soldering pads for pin switching. In cases of pin multiplexing conflicts, the PCB trace can be cut and reconnected to other sets of pins.
Taking CoreS3

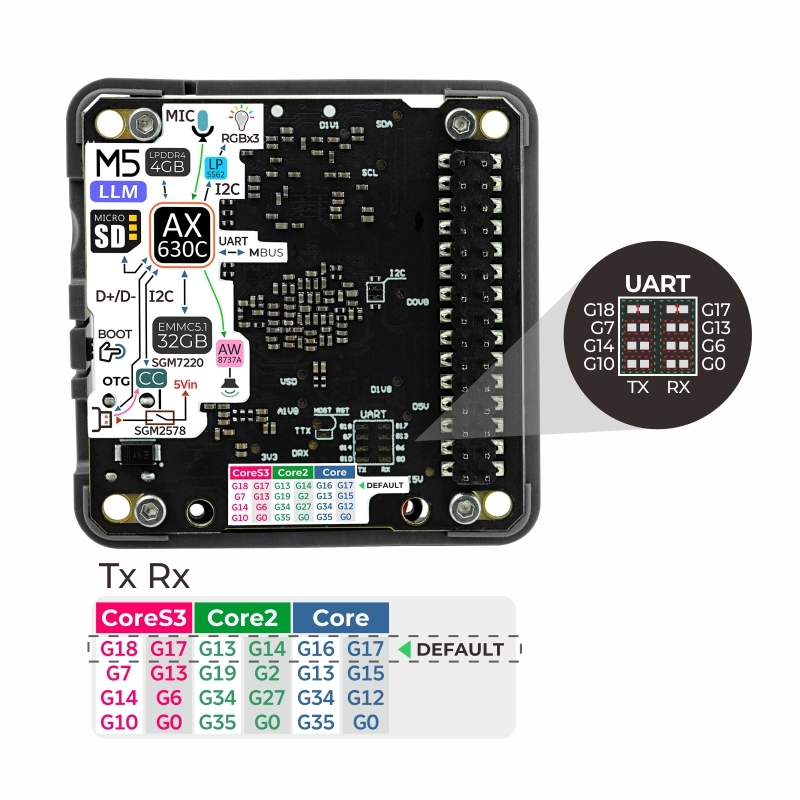

as an example, the first column (left green box) is the TX pin for serial communication, where users can choose one out of four options as needed (from top to bottom, the pins are G18, G7, G14, and G10). The default is set to IO18. To switch to a different pin, cut the connection on the solder pad (at the red line) — it’s recommended to use a blade for this — and then connect to one of the three remaining pins below. The second column (right green box) is for RX pin selection, and, as with the TX pin, it also allows a choice of one out of four options.
LLM Module working status indicator:
Red: Device is initializing
Green: Device initialized successfully
LLM Module upgrade status indicator:
Blue flashing: Application package updating
Red:Application package update failed
Green: Application package updated successfully
Note on Model ReplacementThe LLM Module supports models in a proprietary format requiring special processing to function properly. Therefore, existing models on the market cannot be used directly.
Specification | Parameter |
---|---|
Module LLM | RXD | TXD |
---|---|---|

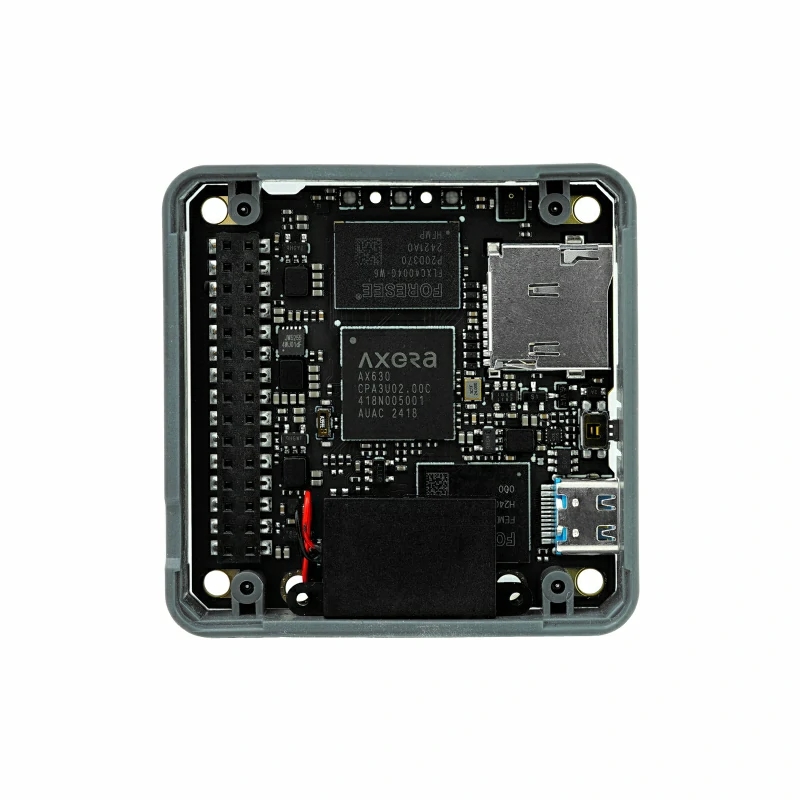

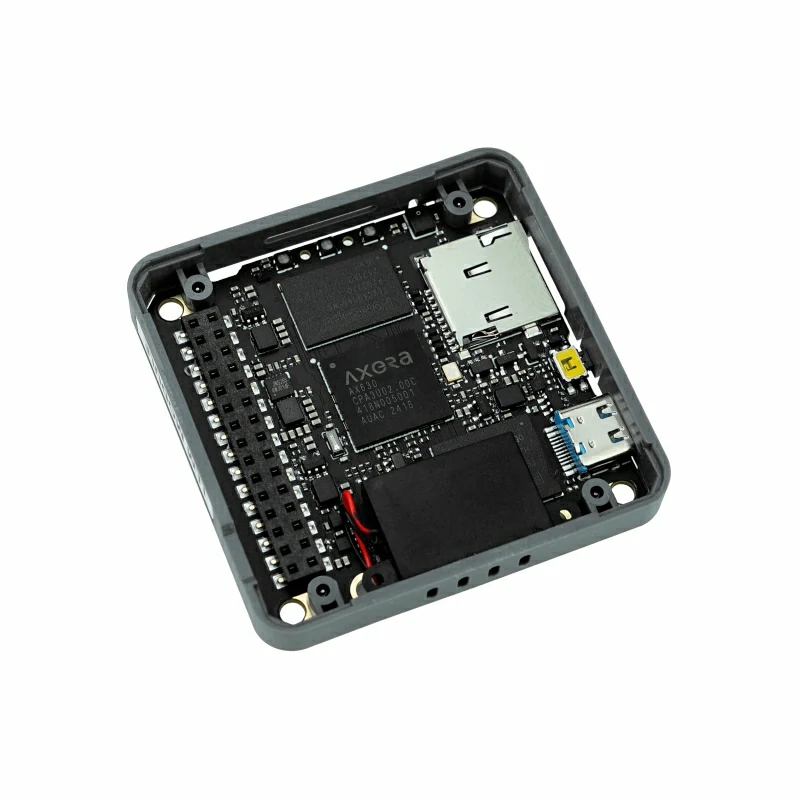

Processor SoC
AX630C@Dual Cortex A53 1.2 GHz MAX.12.8 TOPS @INT4 and 3.2 TOPS @INT8
Memory
4GB LPDDR4 (1GB system memory + 3GB dedicated for hardware acceleration)
Storage
32GB eMMC5.1
Communication
Serial communication default baud rate 115200@8N1 (adjustable)
Microphone
MSM421A
Audio Driver
AW8737
Speaker
8Ω@1W, Size:2014 cavity speaker
Built-in Units
KWS (wake word), ASR (speech recognition), LLM (large language model), TTS (text-to-speech)
RGB Light
3x RGB LED@2020 driven by LP5562 (status indication)
Power
Idle: 5V@0.5W, Full load: 5V@1.5W
Button
For entering download mode for firmware upgrade

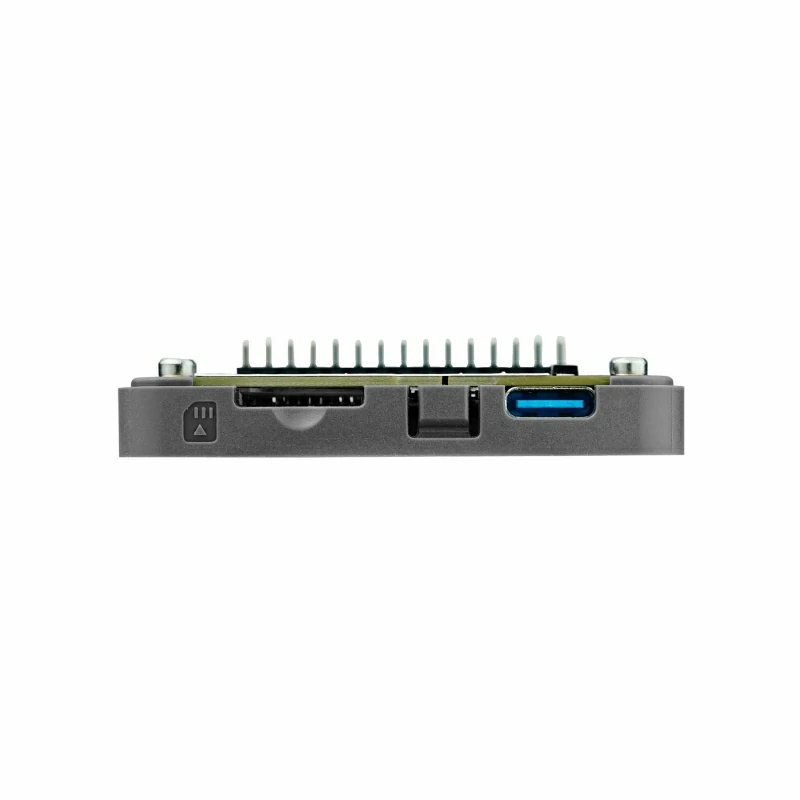

Upgrade Port
SD card / Type-C port
Working Temp
0-40°C

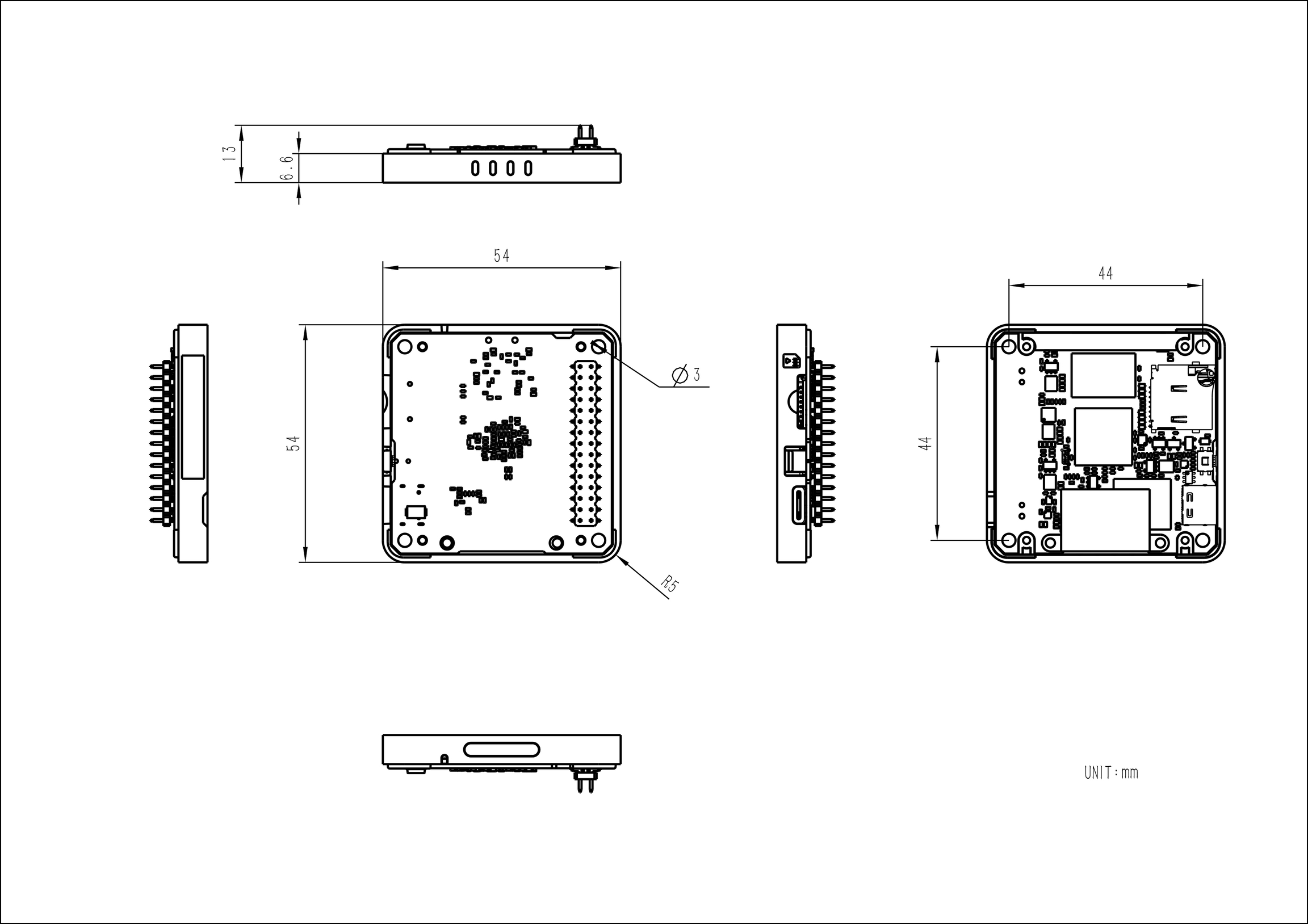

Product Size
54*54*13mm
Packaging Size
133*95*16mm
Product Weight
17.4g
Packaging Weight
32.0g
Core (Basic)
G16
G17
Core2
G13
G14
CoreS3
G18
G17
CoreMP135
PH8
PF11
