M5Stack Mini 3A Relay Unit
Product Link
Description

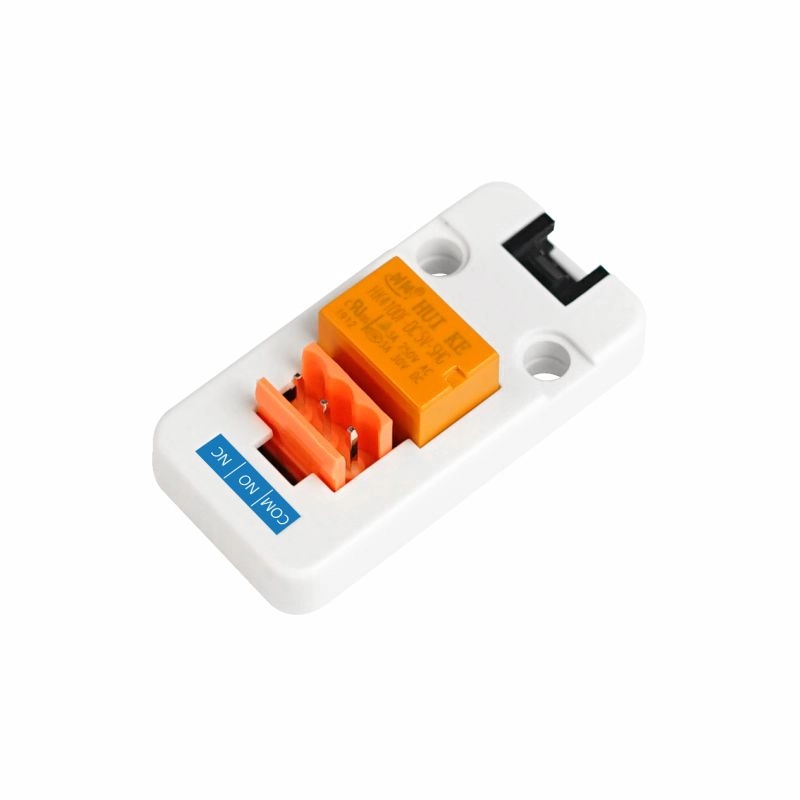

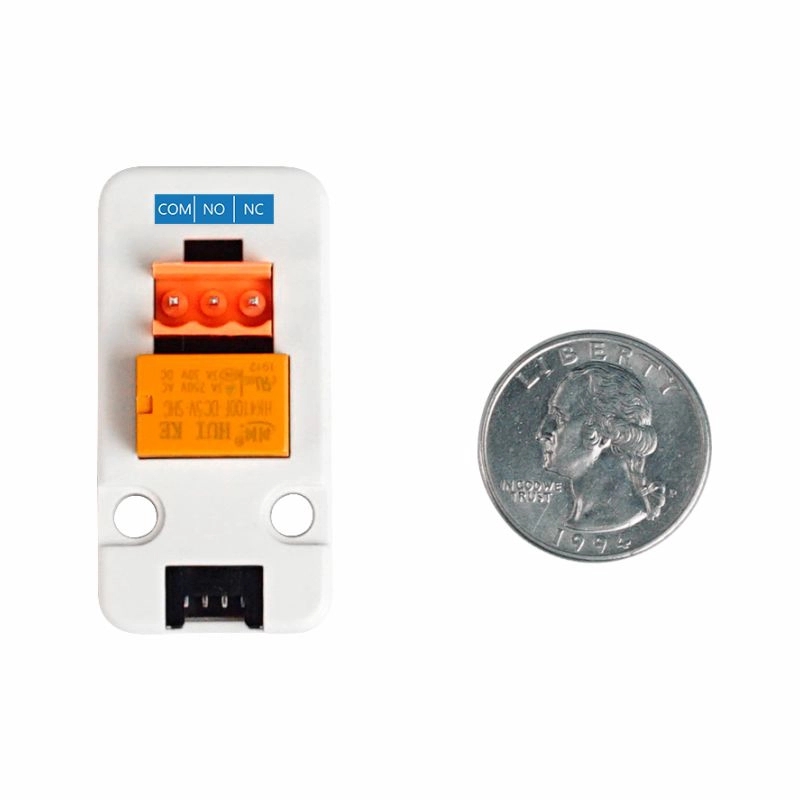

RELAY as it says is an M5Unit that implement a Relay functions. Relay can be used as an electrically operated switch, uses an electromagnet to mechanically operate a switch, where it is necessary to control a large power load circuit by a separate low-power signal such as digital signal output from a microprocessor.
The Relay support input voltage of up to 30V DC and 220V AC.
There are 3 pins named: ON, OFF, COM. You can program to make COM connect to ON or OFF, just by high and low out put of a digital GPIO.
Features
Single-BUS control
Up to 3A @ 30 V DC or 220 V AC
Software Development Platform: Arduino, UIFlow (Blockly, Python)
Two Lego-compatible holes
Applications
Remote control of high-power appliances, such as refrigerators, air conditioners, TVs, etc.
Specification
| Resources | Parameter |
|---|---|
Net weight | 12g |
Gross weight | 26g |
Product Size | 48*24*21mm |
Package Size | 60*57*17mm |
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
Description: The relay coil is turned on and off, and the contact is used as a switch for circuit control.
Pinout
| M5Core(GROVE B) | GPIO36 | GPIO26 | 5V | GND |
|---|---|---|---|---|
RELAY Unit | RELAY Controlling Pin | 5V | GND |
Schematic
Learn
Automation with SIM800L ESP32 M5StackAutomation with SIM800L ESP32 M5StackIt is possible to turn a lamp or fan on and off through an SMS message.
Control sit/stand Desk height with a Paper E-Ink DisplayControl sit/stand Desk height with a Paper E-Ink DisplayControl IKEA Bekant Desk sit/stand height with M5Stack M5Paper using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
Control sit/stand Desk height with a touch screenControl sit/stand Desk height with a touch screenControl IKEA Bekant Desk sit/stand height with M5Stack Core2 using two Relay units and a ToF (time-of-flight sensor VL53L0x) unit.
Alexa enabled device with Atom LiteAlexa enabled device with Atom LiteAtom Lite control device with Alexa. In my house, Amazon echo is located in every room, and the lighting of living room is controlled by Alex
Portable Automatic Faucets Using M5StickC for COVID-19Portable Automatic Faucets Using M5StickC for COVID-19Using the M5StickC, we developed a product that allows you to wash your hands without touching the device.
Try to make a low temperature conditioner with M5StackTry to make a low temperature conditioner with M5StackThe mechanism is simple to monitor the value of the water temperature sensor with the M5Stack, and heater power is controlled by the relay
Example
Arduino
UIFlow

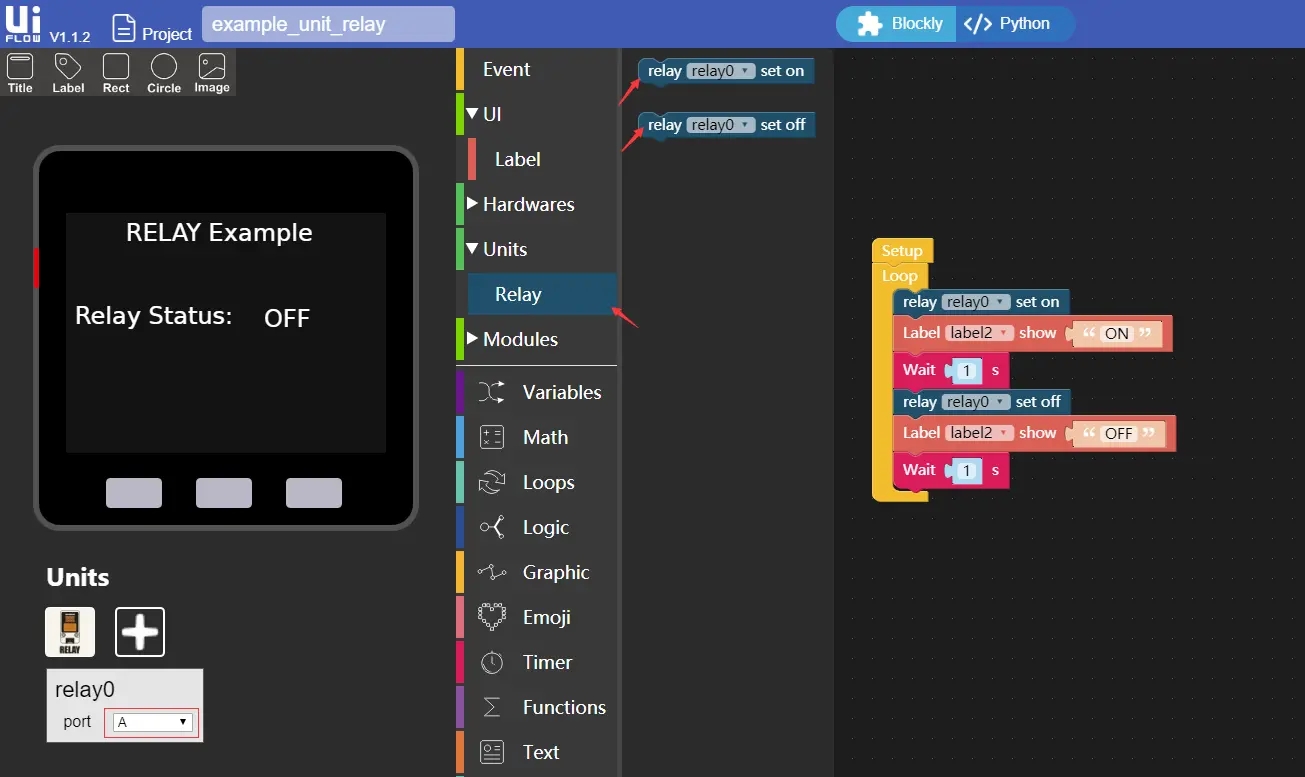

UIFlow2.0UIFlow2.0This tutorial will show you how to initialize the configuration using the UIFlow2.0 graphical programming platform
Feature Introduction
By controlling the opening and closing of the relay to achieve the purpose of weak current control of strong electricity
set COM connect ON Control relay closure
set COM connect OFF Control relay disconnect
