M5Stack Time-of-Flight Distance Unit (VL53L1X)

---

Product Link

M5Stack Time-of-Flight Distance Unit (VL53L1X)OpenELAB

Introduction

ToF that employs time-of-flight techniques to resolve distance between the emit point and the reach point of a subject, measuring the round trip time of an artificial light signal provided by a laser.

This unit integrated a distance measuring sensor VL53L0x providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2m in less than 30ms.

This unit communicates with M5Core via I2C(0x29).

• In this case, make sure you use the 3.3V on SDA and SCL, M5Core GROVE provide 3.3V to data pins, 5V to power pin. only 3.3v allowed on VL53L0x.

Features

• Measure absolute distances up to 2m

• Measurement accuracy ±3%

• The wavelength of laser: 940nm

• Program Platform: Arduino, UIFlow

• Two Lego-compatible holes

Specifications

Resources	Parameters
Sensor	VL53L0X
Measuring distance	0.3-2M
Measurement accuracy	±3%
Product Size	32mm × 24mm × 8mm
Package Size	136mm × 92mm × 13mm
Product Weight	4g
Package Weight	17g

Pinout

• VCC: Power supply (3.3V - 5V)

• GND: Ground

• SDA: I2C Data Line

• SCL: I2C Clock Line

How to Use

Arduino

• Click here to download the Arduino example

UIFlow

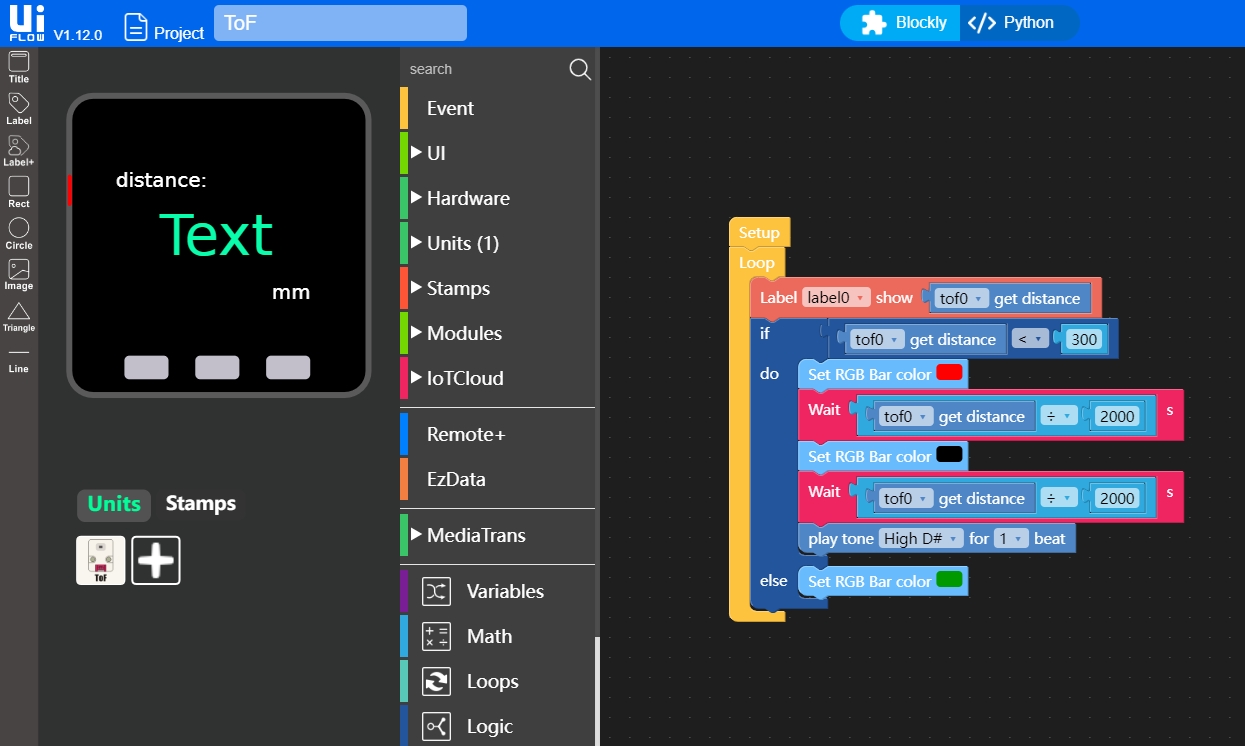

• Click here to download the UIFlow example

FAQ

What is the maximum range of the VL53L1X sensor?

The sensor can measure distances up to several meters depending on environmental conditions.

Can it be used with Arduino or Raspberry Pi?

Yes, it supports both Arduino and Raspberry Pi via the I2C interface.

How accurate is the distance measurement?

The VL53L1X sensor offers high accuracy in distance measurement, suitable for precise applications.
