M5Stack M5StickC PLUS2 with Watch Accessories
Product Link
Description
M5StickC Plus2 with Watch Accessories is a watch kit that includes an M5StickC Plus2, a wristband, a LEGO-compatible adapter, and a wall-mounting accessory. In addition to displaying time, it can also be used for applications such as sports activity monitoring and smart home control. When combined with the M5Stack HAT hardware ecosystem, it offers even more possibilities for smart wearable devices.
There is no doubt about the powerful capabilities of the M5StickC Plus2. As the second generation of M5StickC Plust, M5StickC Plus2 is equipped with a 240*135 color LCD screen, ESP32-PICO-V3-02 chip, MPU6886 6-axis IMU, SPM1423 digital microphone, BM8563 RTC chip, and IR emitter.
The HY2.0-4P interface at the bottom of the M5StickC Plus2 allows for connection to M5Stack's sensor series products, enabling customization of various functions. The [email protected] expansion interface on the top can be directly connected with M5Stack HAT series products, providing users with more development possibilities.
Power on: Wake up can be started by pressing "BUTTON C" for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again. Power off: When no USB external power supply is available, press BUTTON C for more than 6 seconds. Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off. When the USB is connected, press the "BUTTON C" button for more than 6 seconds to turn off the screen and enter the hibernation state, but not power off.
Features
Customization Supports custom display
200mAh battery
Light and portable
Applications
Smart Watch
Specifications
ESP32
ESP32-PICO-V3-02 240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash
PSRAM
2 MB PSRAM
Flash
8 MB flash
Power Input
5V @ 500mA
Port
TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen
1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button
Custom button x 3
Power indicator LED
GREEN LED(non-programmable)
MEMS
MPU6886
Buzzer
built-in buzzer
MIC
SPM1423
RTC
BM8563
Battery
200mAh @ 3.7V
Antenna
2.4G 3D Antenna
PIN port
G0, G25/G36, G26, G32, G33
Operating Temperature
0°C to 40°C
Strap size and weight
230*22*6mm / 12.3g
Product Size
48*25*13mm
Package Size
124*67*23mm
Product Weight
17g
Package Weight
71.8g
Related Link

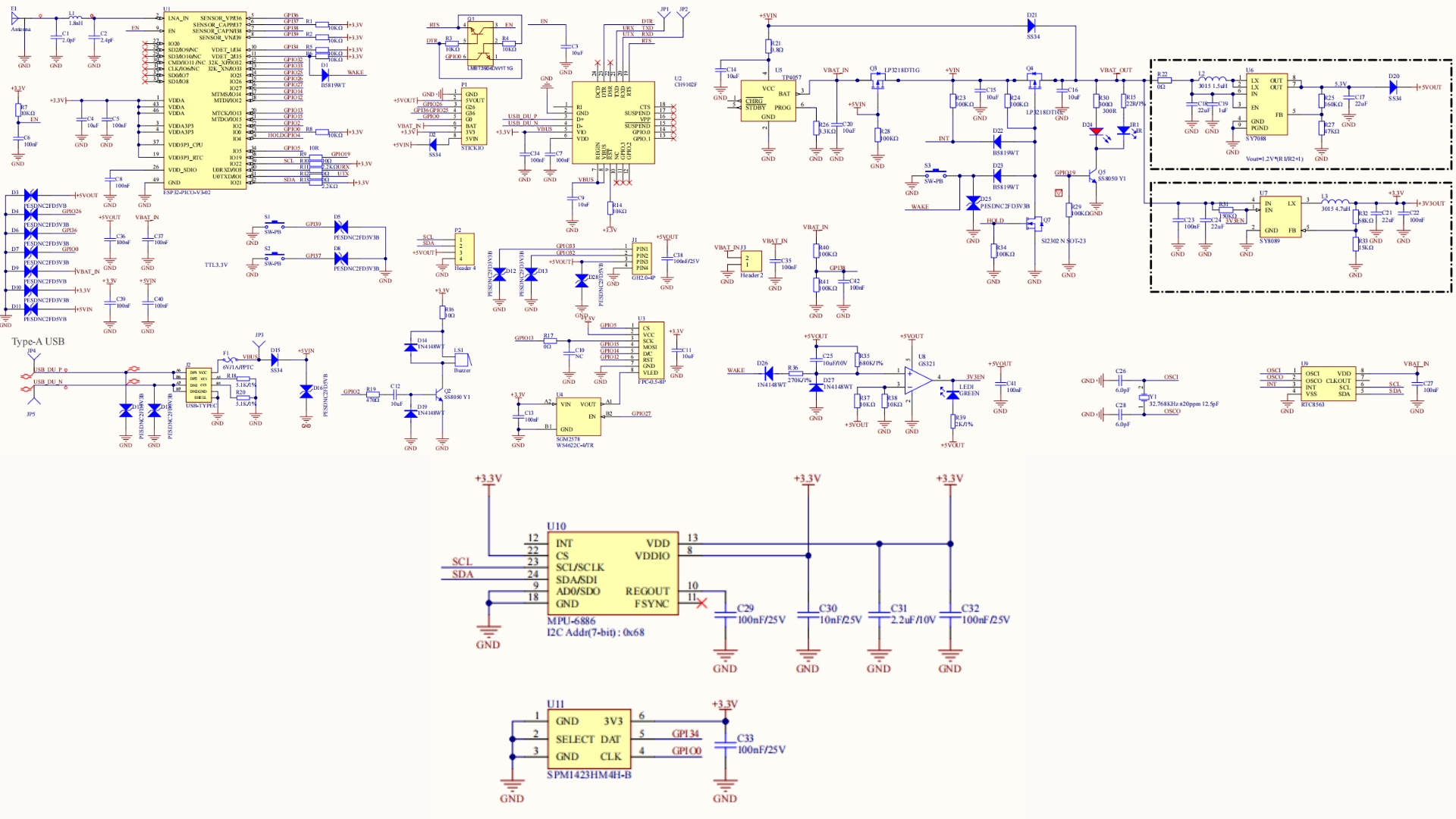

Schematics

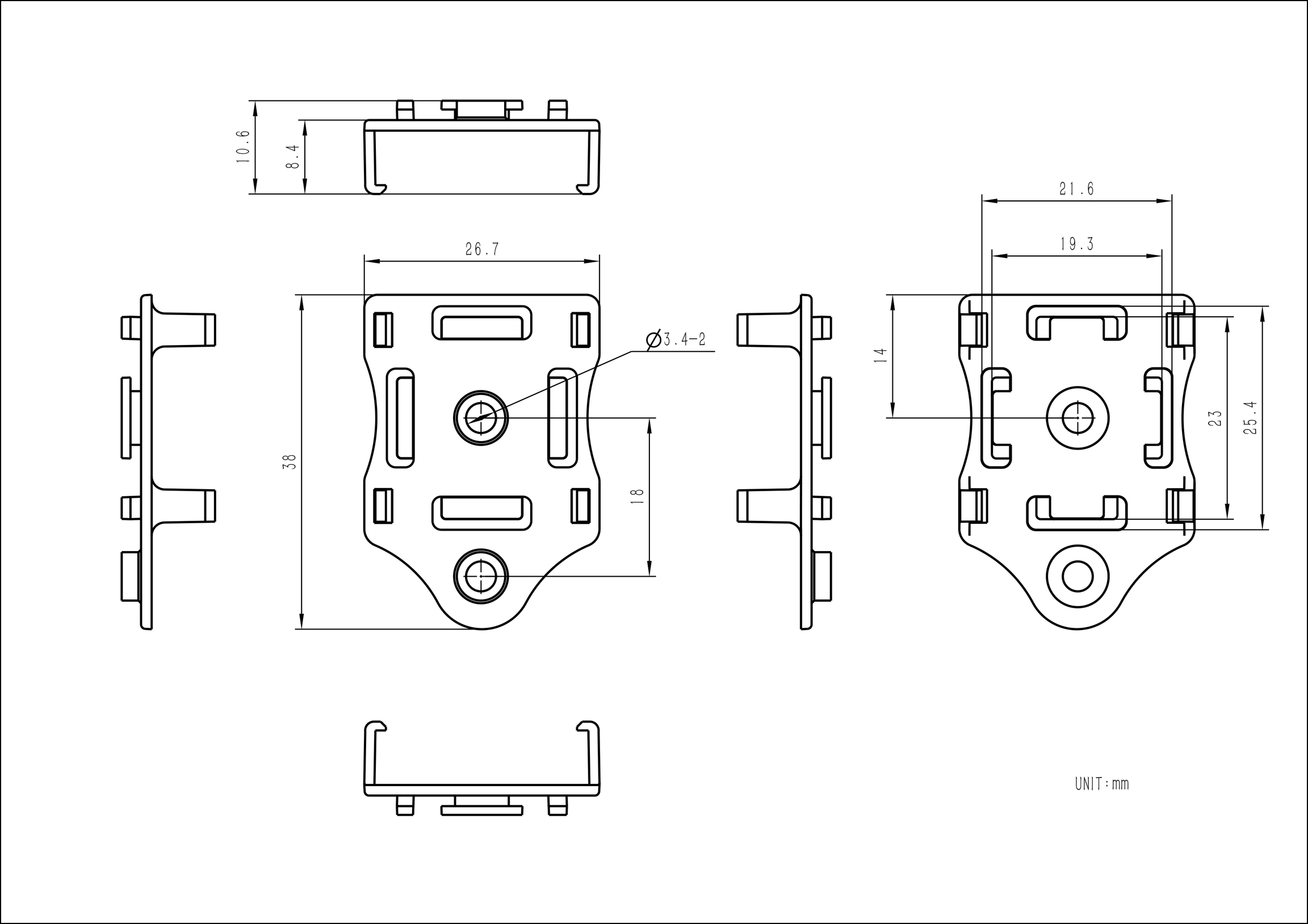

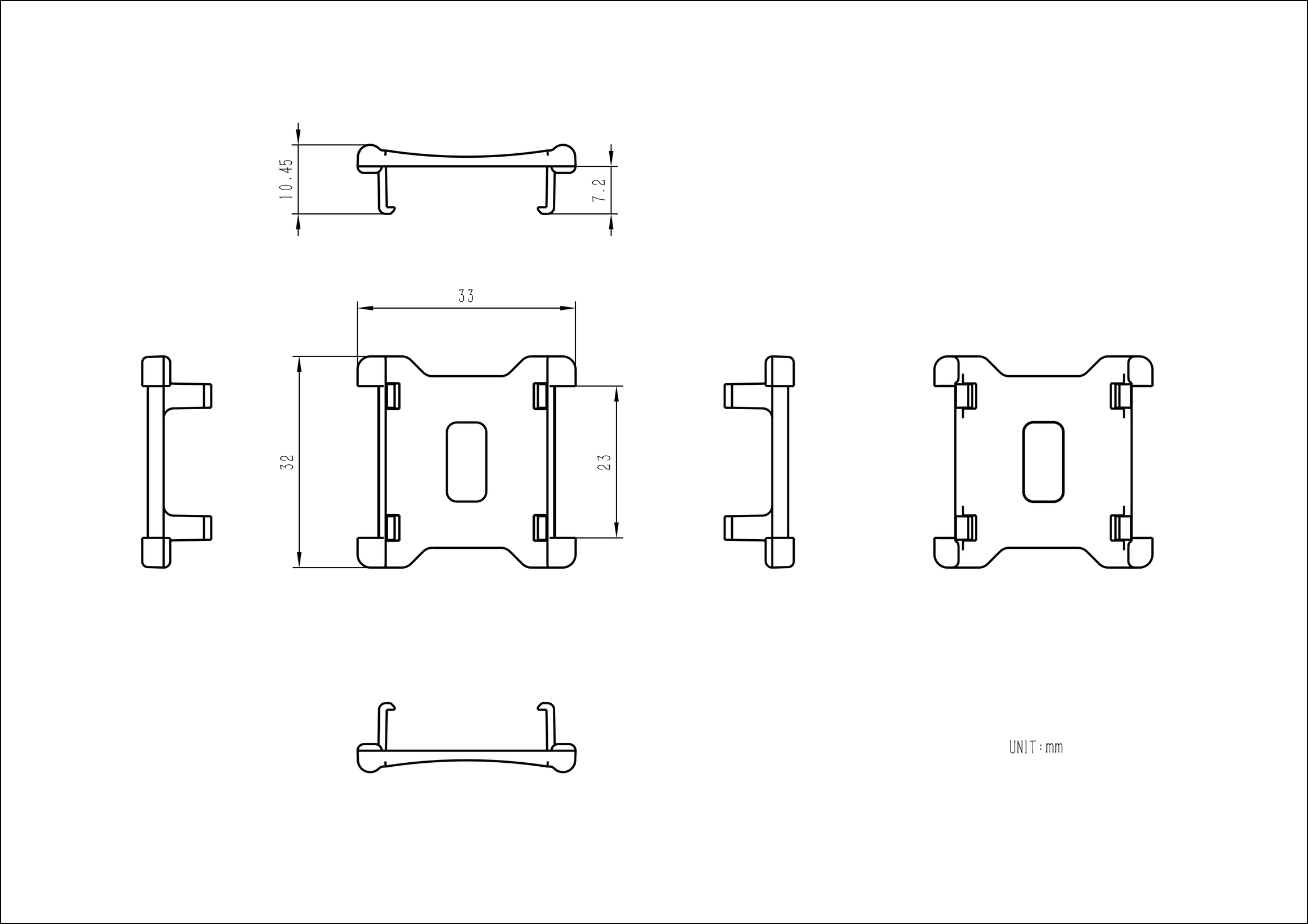

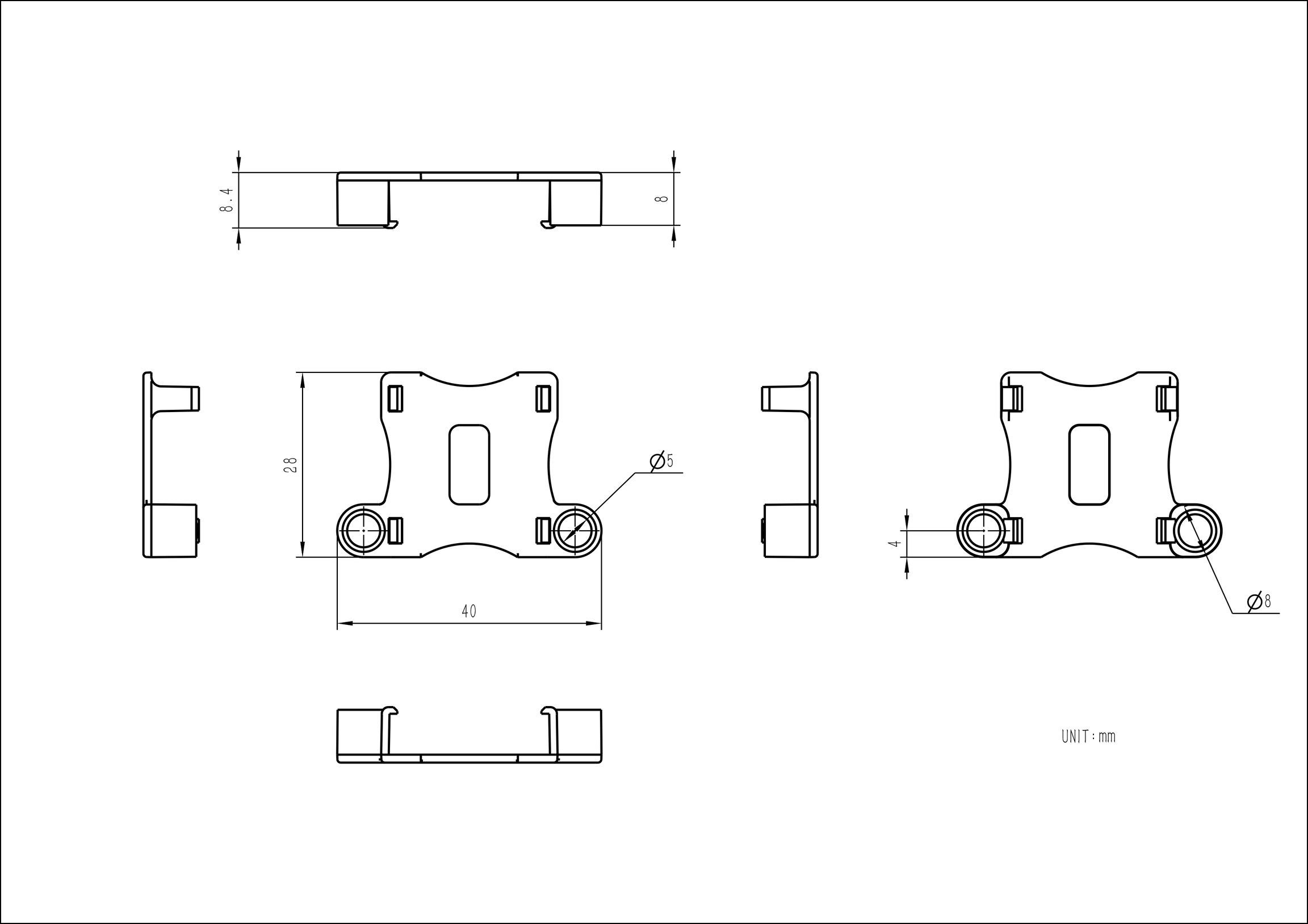

Model Size
