M5Stack I2C Hub 1 to 6 Expansion Unit


Description

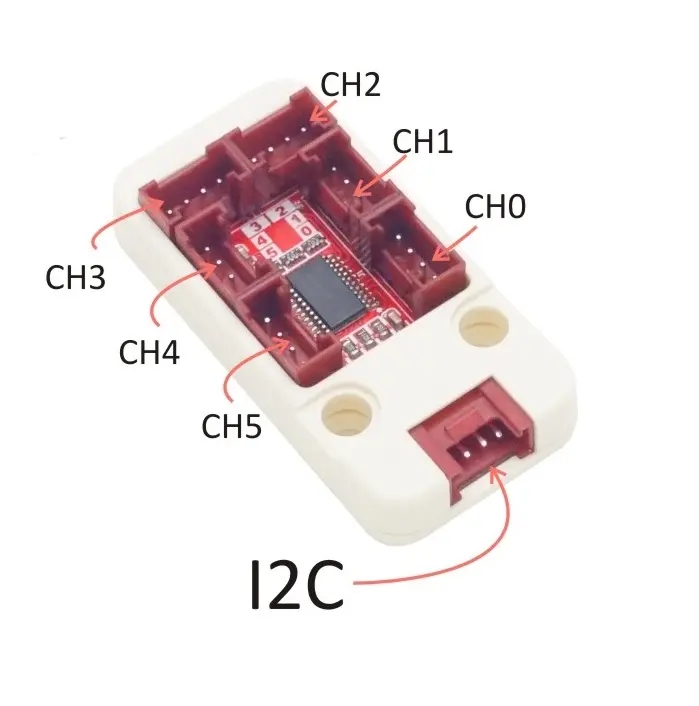

PaHUB2, is an I2C Expandable Hub, which can expand a single I2C HY2.0-4P interface and connects up to 6 I2C channels. It allows you to mount slave devices with the same I2C address (by polling control the different channels to achieve in-device coexistence). Embedded PCA9548AP-I2C multi-channel switch IC, Save you worries with insufficient I2C interface of the expansion.

Features

  • I2C HY2.0-4P PORTA expansion

  • 2x LEGO compatible holes

  • Support multiple nesting

  • 1-6 expansion

Applications

  • I2C device expansion

Specifications

Specifications
Parameters

Channel Control IC

PCA9548AP

Communication protocol

I2C: 0x70 (can be modified by resistance A0, A1, A2)

Net weight

7g

Gross weight

19g

Product size

48 * 24 * 12mm

Packing size

136*92*12mm

Note: When it's connected, the PaHUB2 will be polling control the different channels to achieve in-device coexistence. Please pay attention to the order of channels when programming.

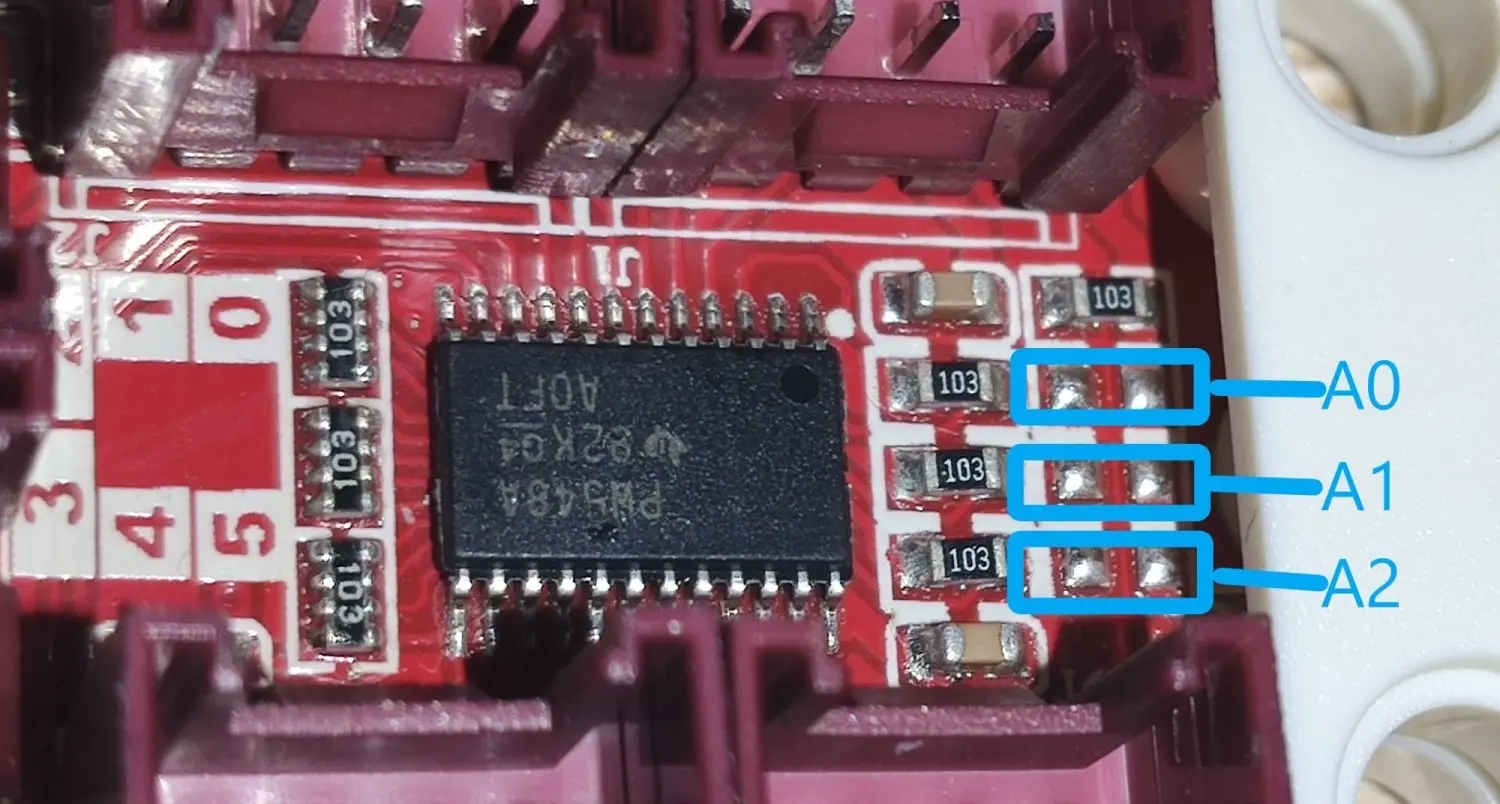

3 Position of Welding patch are reserved on the PCB board of the Unit, A0-A2 respectively, as shown in the figure below.

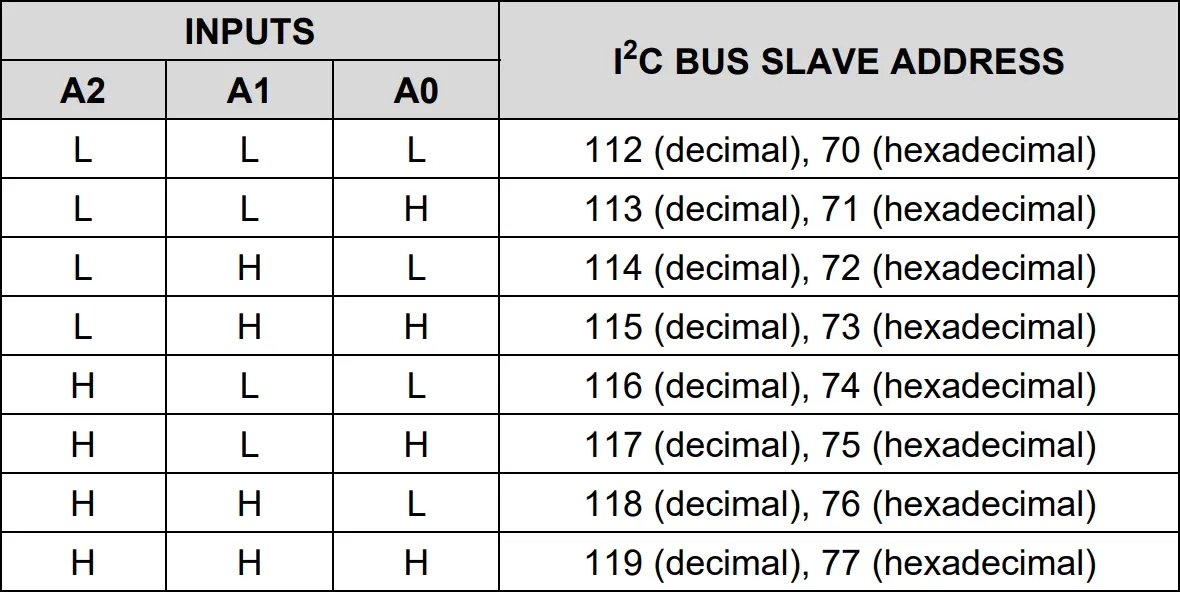

After welding the 0 ohm resistor, the corresponding pin will change from low level to high level. The pin level combination and its corresponding I2C address are shown in the table below.

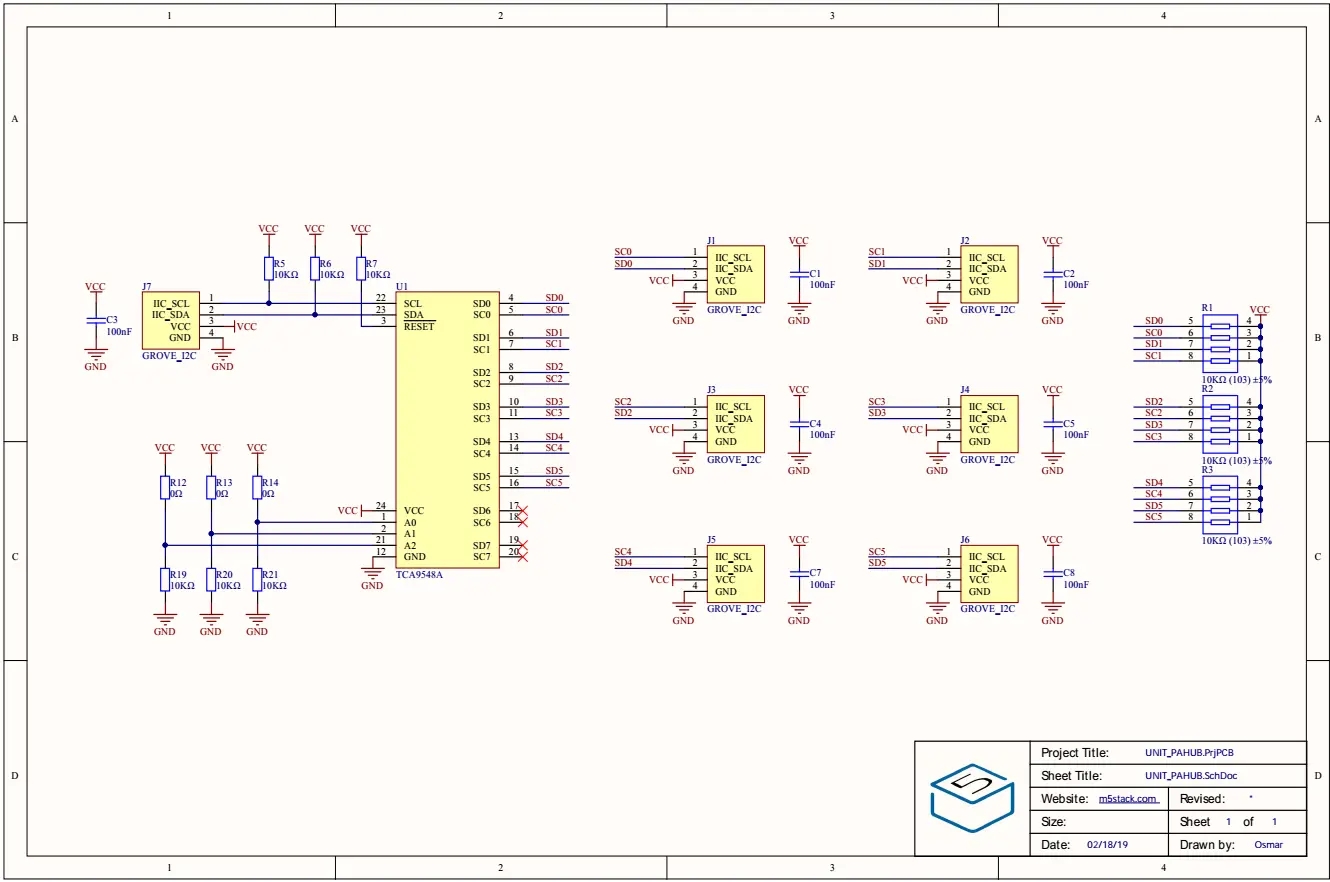

Schematics

Compatible
