M5Stack Battery Bottom 110mAh for M5Stack Basic V1.1
Product Link
Description
BLACK-BOTTOM_V1.1 is a universal base launched for the Basic (Core) console. Compared to the previous generation Core Bottom, the base is equipped with a battery switch at the bottom to extend battery life. It houses a 110mAh lithium battery internally and features 2.54mm spaced pin headers and female headers for convenient user expansion. The base also incorporates embedded magnets for magnetic attachment, making it suitable for a variety of scenarios.
The bottom sticker pin corresponds to the M5Core host, and check the corresponding host pin when matching Core2 and CoreS3.
Features
Compatible with M5Core/Core2/CoreS3
Magnetic base
110mAh battery
Battery operated switch
Specifications
Product Size
54*54*11mm
Package Size
62*57*17mm
Product Weight
22.8g
Package Weight
34.3g

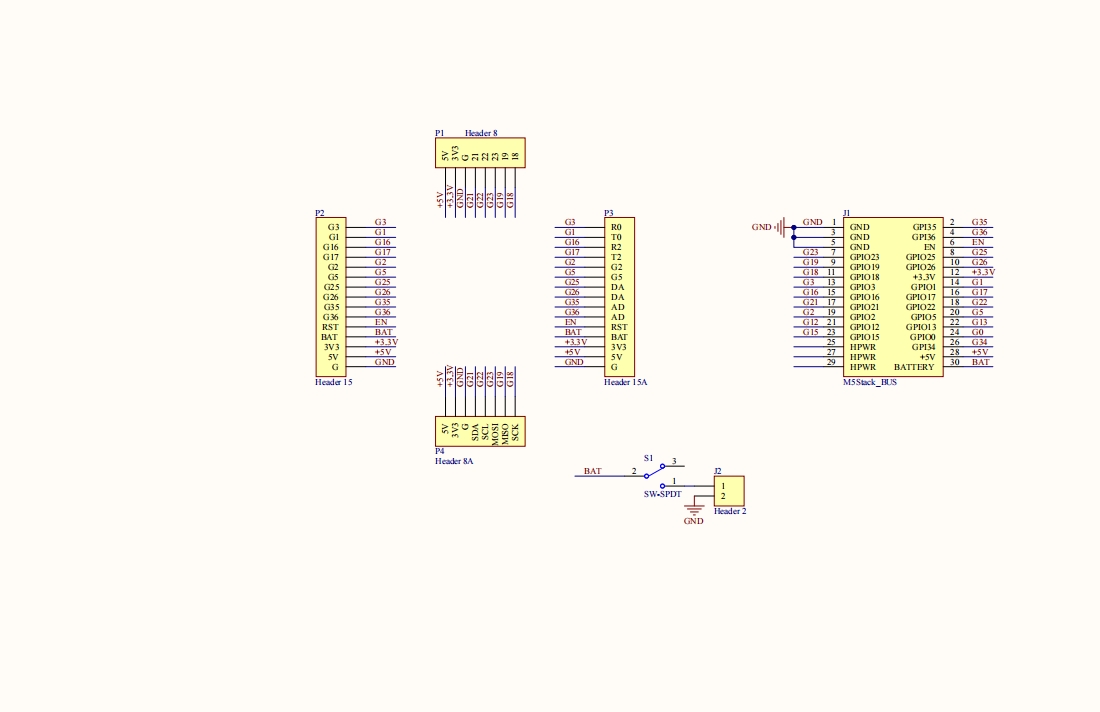

Schematics

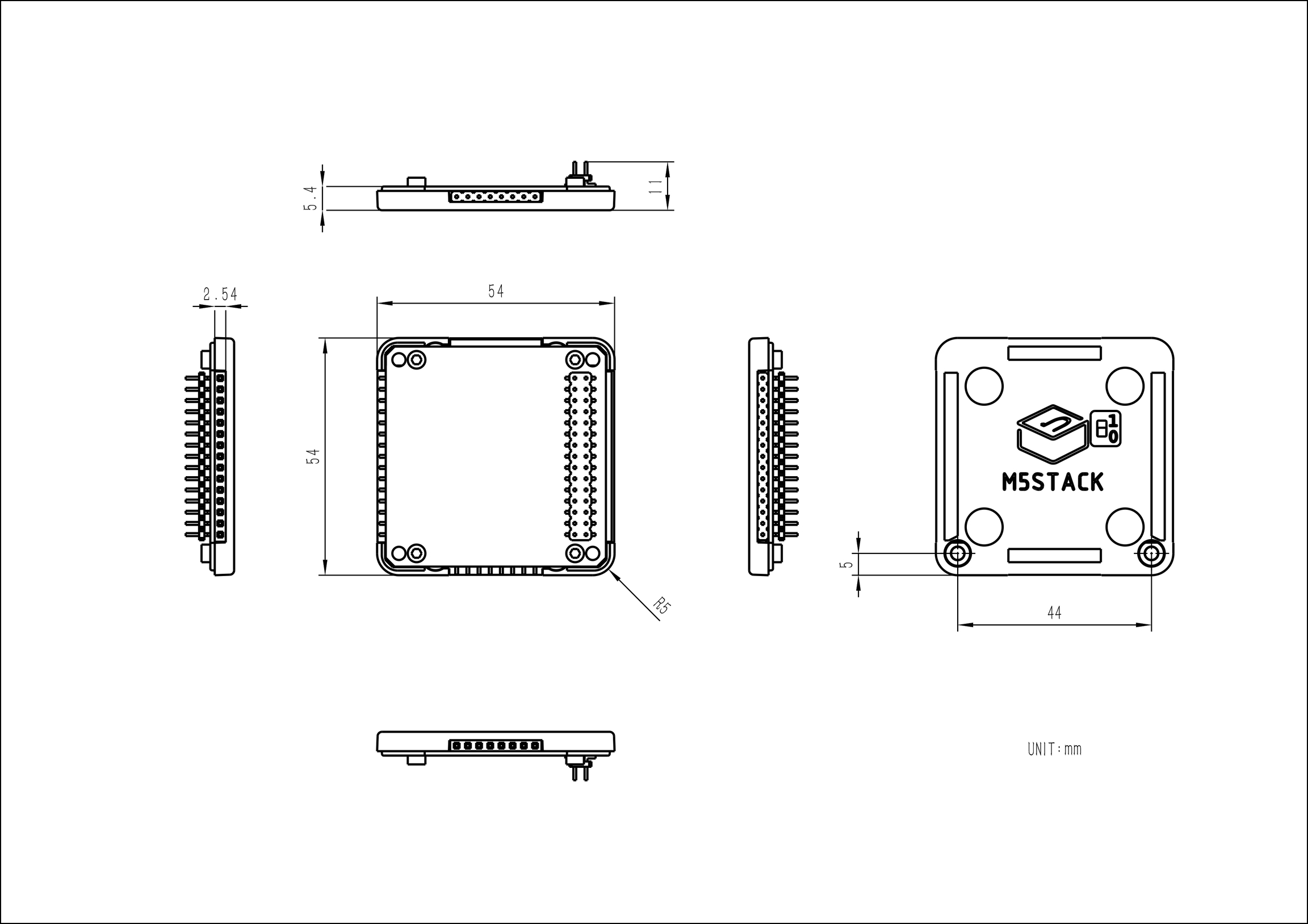

Model Size
Change of version
2017.7
Release
/
2024.3
Add a battery switch for the base
/
