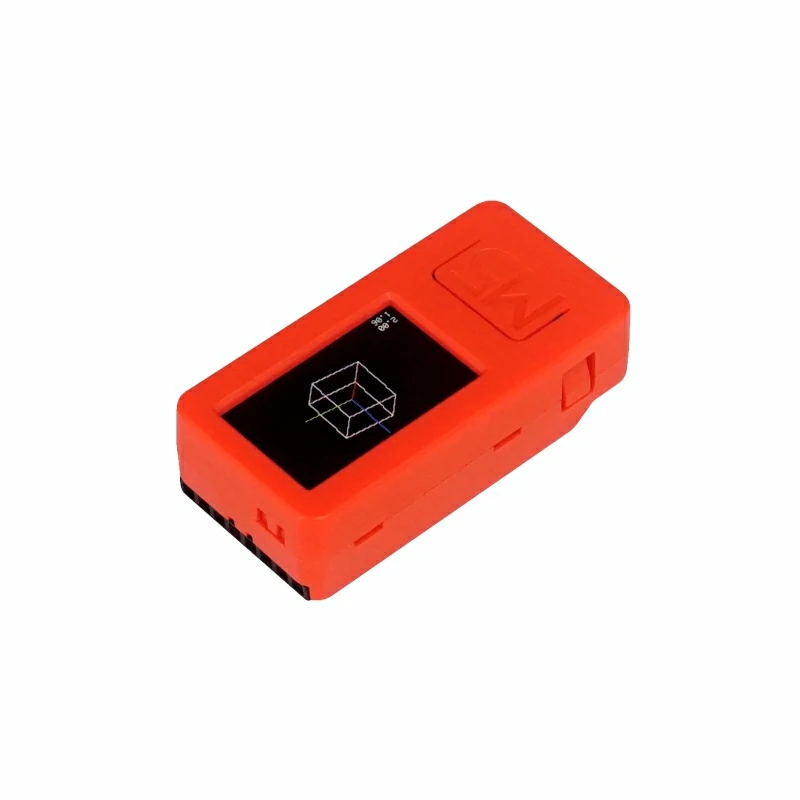

M5StickC PLUS ESP32-PICO Mini IoT Development Kit


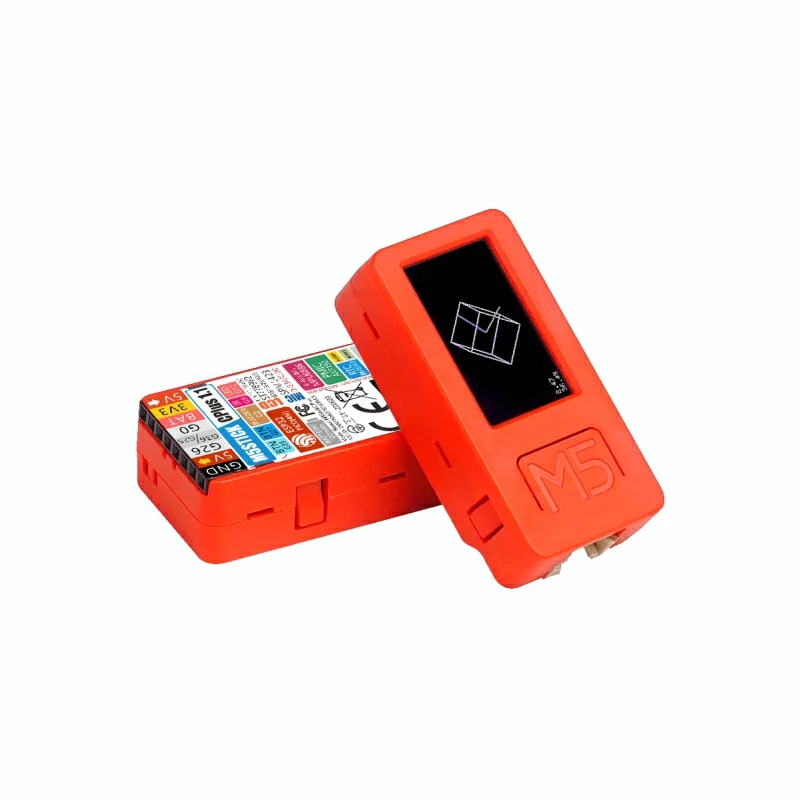

Description

M5StickC PLUS is powered by ESP32-PICO-D4 with Wi-Fi and is an upgrade of the original M5StickC with a bigger screen .It is a portable, easy-to-use, open source, IoT development board. This tiny device will enable you to realize your ideas, enrich your creativity, and speed up your IoT prototyping. Developing with M5StickC PLUS takes away a lot of the pains from the development process. M5StickC Plus is one of the core devices in M5Stacks product series. The compact body is integrated with rich hardware resources, such as infrared, RTC, Microphone, LED, IMU, Buttons, PMU,etc. Improvements from the regular StickC are a buzzer, bigger screen (1.14-inch, 135 * 240 resolution LCD Screen) and more stable hardware design. This revision increases the display area by 18.7%, and the battery capacity from 95mAh to 120mAh. It also supports the HAT and Unit family of products.

Power switch operation:

  • Power on :Press power button for 2 seconds

  • Power off :Press power button for 6 seconds

Features

  • ESP32-based support Wi-Fi

  • Built-in 6-Axis IMU

  • Red LED

  • IR transmitter

  • Microphone

  • RTC

  • Buttons, LCD(1.14 inch)

  • Built-in Lithium Polymer Battery

  • Extendable Socket

  • Built-in Passive Buzzer

  • Wearable & Wall mounted

  • Compatible with multi-platform development:

    • UIFlow

    • MicroPython

    • Arduino

    • .NET nanoFramework

Applications

  • Internet of things terminal controller

  • Wearable devices

  • Stem education product

  • DIY creation

Specification

Resources
Parameter

ESP32

240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi

Flash Memory

4MB

Power Input

5V @ 500mA

Port

TypeC x 1, GROVE(I2C+I/0+UART) x 1

LCD screen

1.14 inch, 135*240 Colorful TFT LCD, ST7789v2

Button

Custom button x 2

LED

RED LED

MEMS

MPU6886

Buzzer

built-in buzzer

IR

Infrared transmission

MIC

SPM1423

RTC

BM8563

PMU

AXP192

Battery

120 mAh @ 3.7V

Antenna

2.4G 3D Antenna

PIN port

G0, G25/G36, G26, G32, G33

Operating Temperature

0°C to 60°C

Net weight

15g

Gross weight

21g

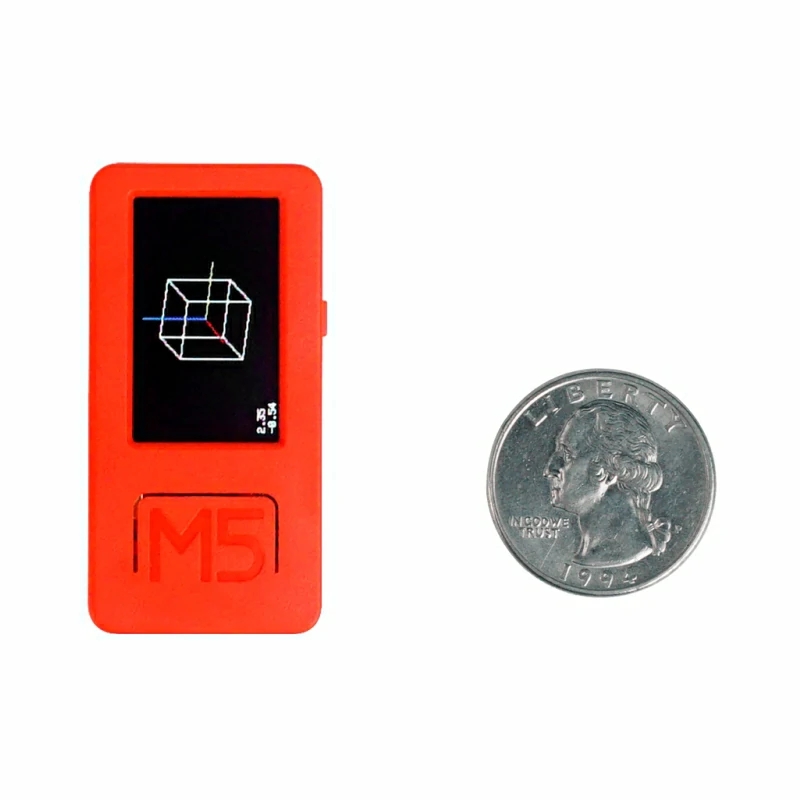

Product Size

48*24*13.5mm

Package Size

114*64*22mm

Case Material

Plastic ( PC )

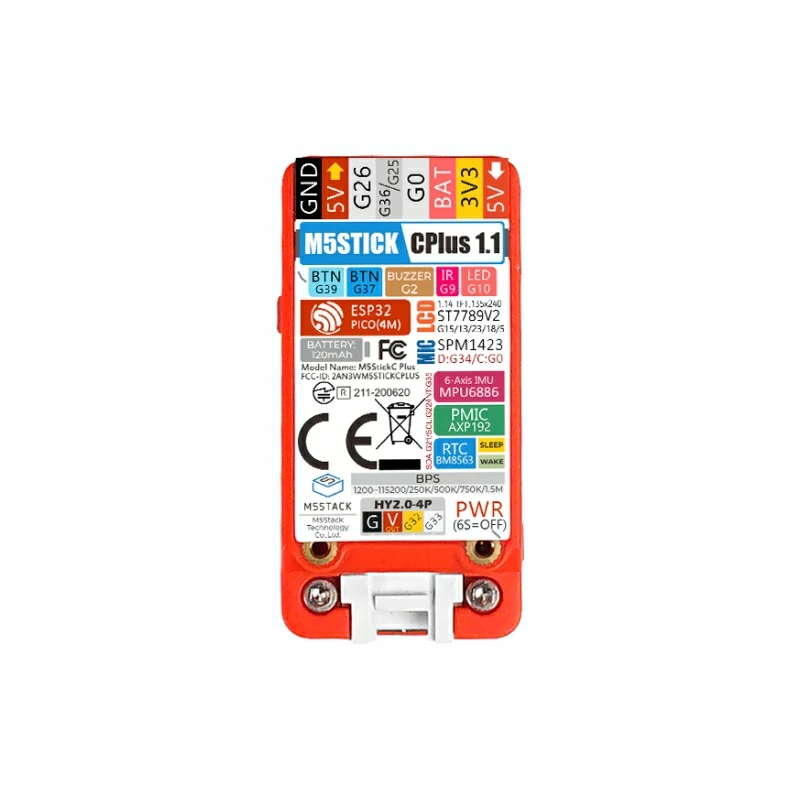

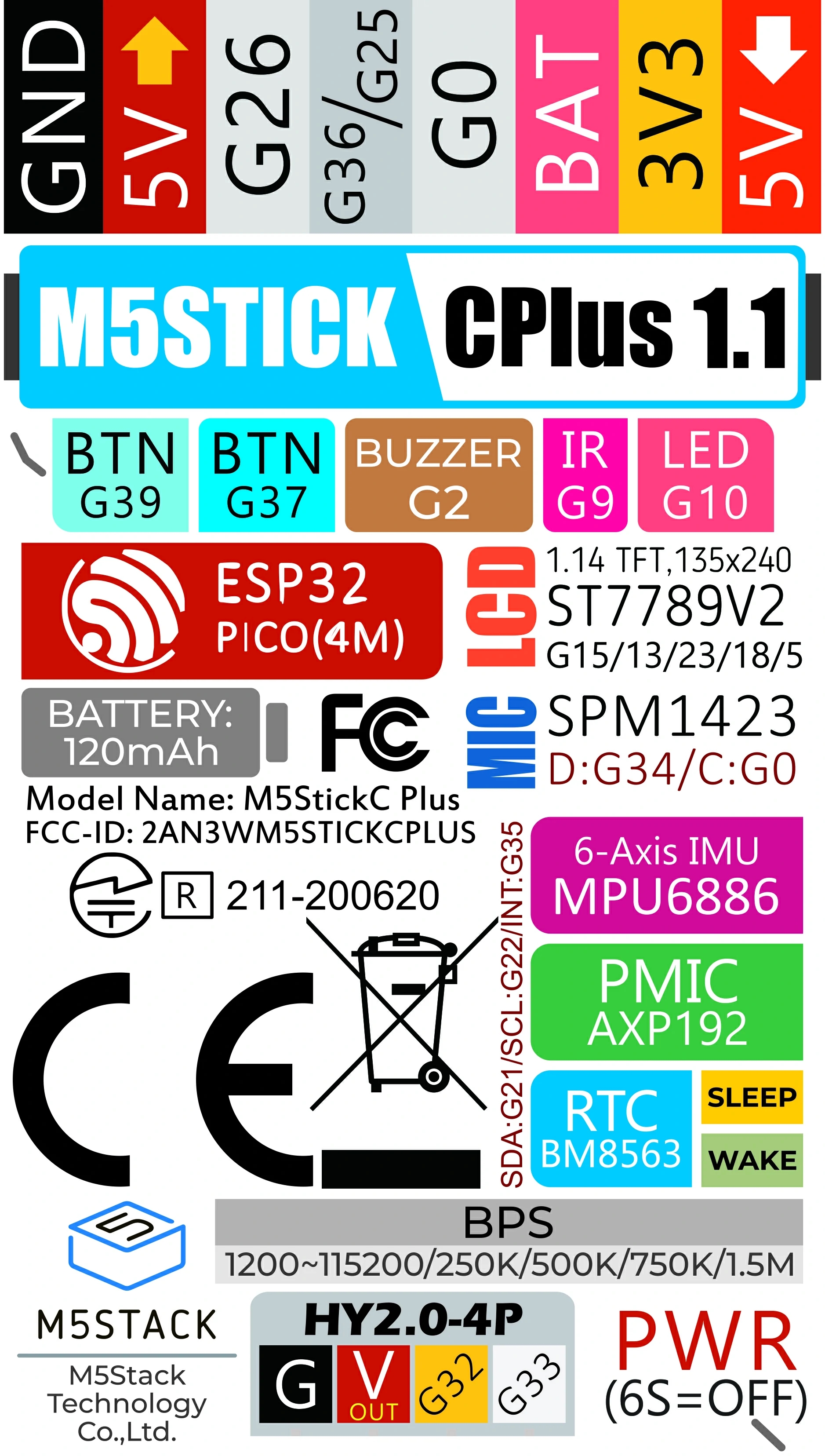

PinMap

RED LED & IR Transmitter & BUTTON A & BUTTON B

ESP32
GPIO10
GPIO9
GPIO37
GPIO39
GPIO2

RED LED

LED Pin

IR Transmitter

Transmitter Pin

BUTTON A

Button Pin

BUTTON B

Button Pin

Buzzer

Buzzer Pin

TFT LCD

Driver IC:ST7789v2

Resolution:135 * 240

ESP32
GPIO15
GPIO13
GPIO23
GPIO18
GPIO5

TFT LCD

TFT_MOSI

TFT_CLK

TFT_DC

TFT_RST

TFT_CS

GROVE PORT

ESP32
GPIO33
GPIO32
5V
GND

GROVE port

SCL

SDA

5V

GND

MIC (SPM1423)

ESP32
GPIO0
GPIO34

MICROPHONE

CLK

DATA

6-Axis posture sensor (MPU6886) & power management IC (AXP192)

ESP32
GPIO22
GPIO21

6-Axis IMU sensor

SCL

SDA

Power management IC

SCL

SDA

AXP192

Microphone
RTC
TFT backlight
TFT IC
ESP32/3.3V MPU6886
5V GROVE

LDOio0

LDO1

LDO2

LDO3

DC-DC1

IPSOUT

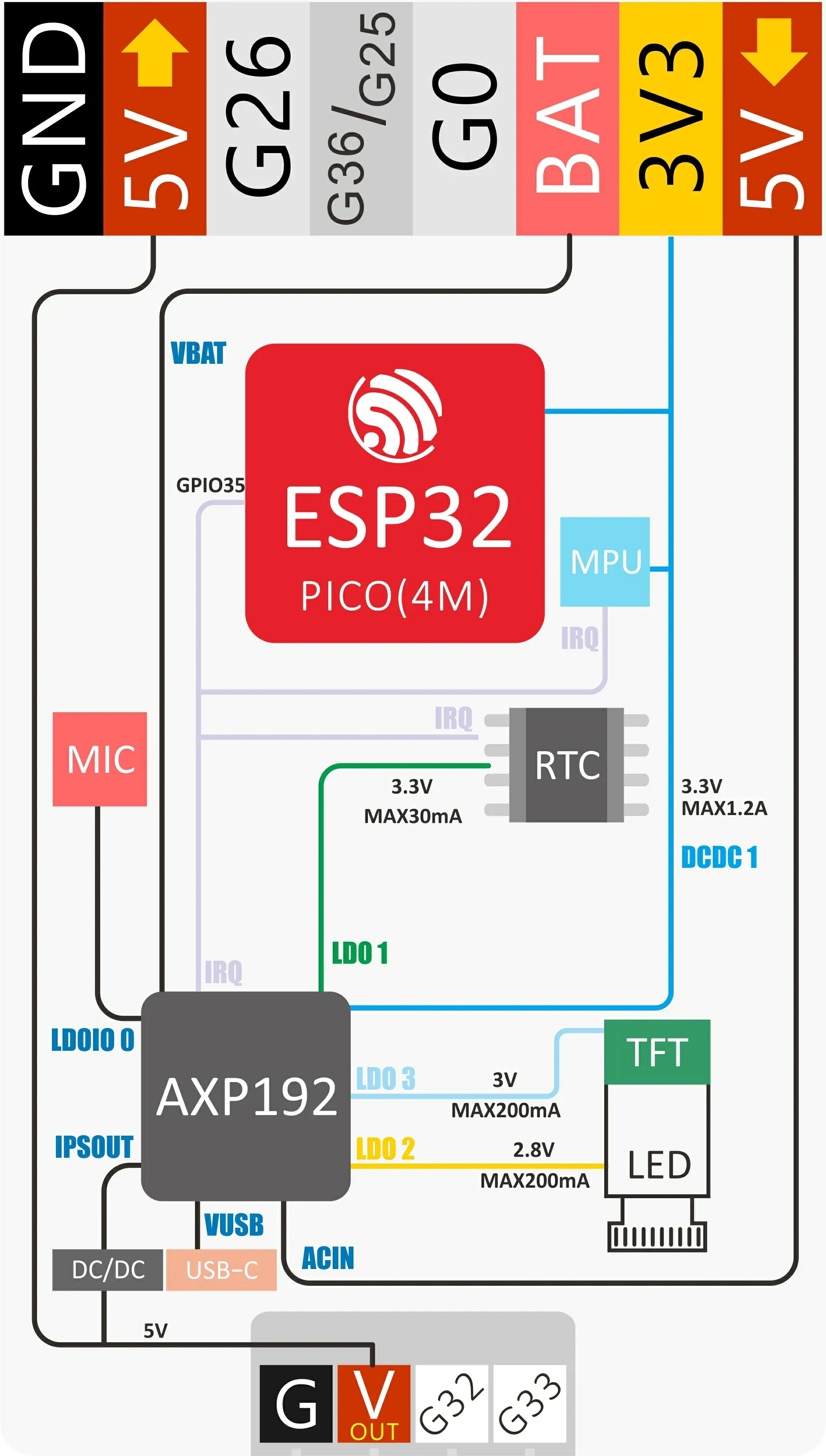

Power structure block diagram

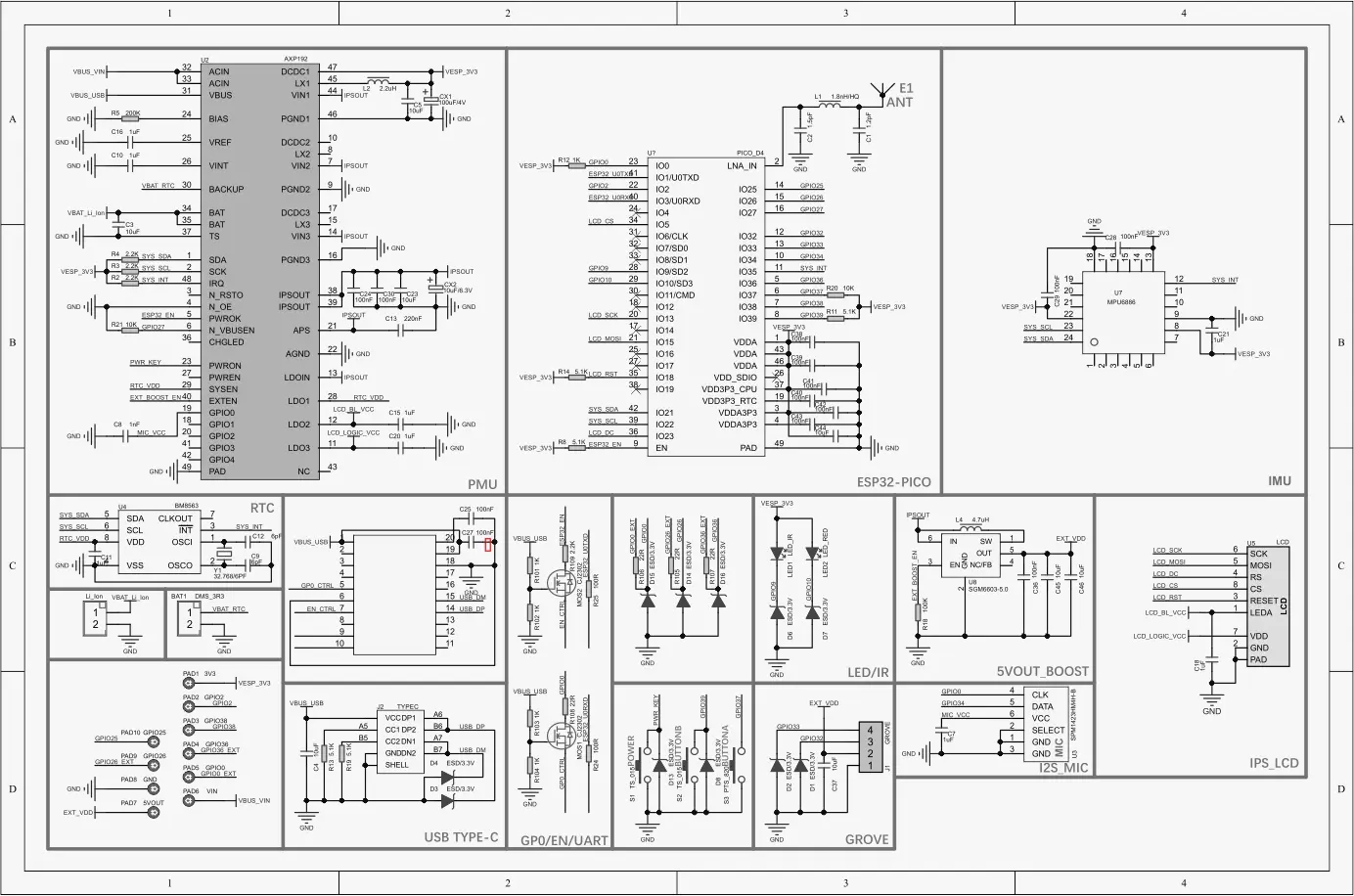

Schematic

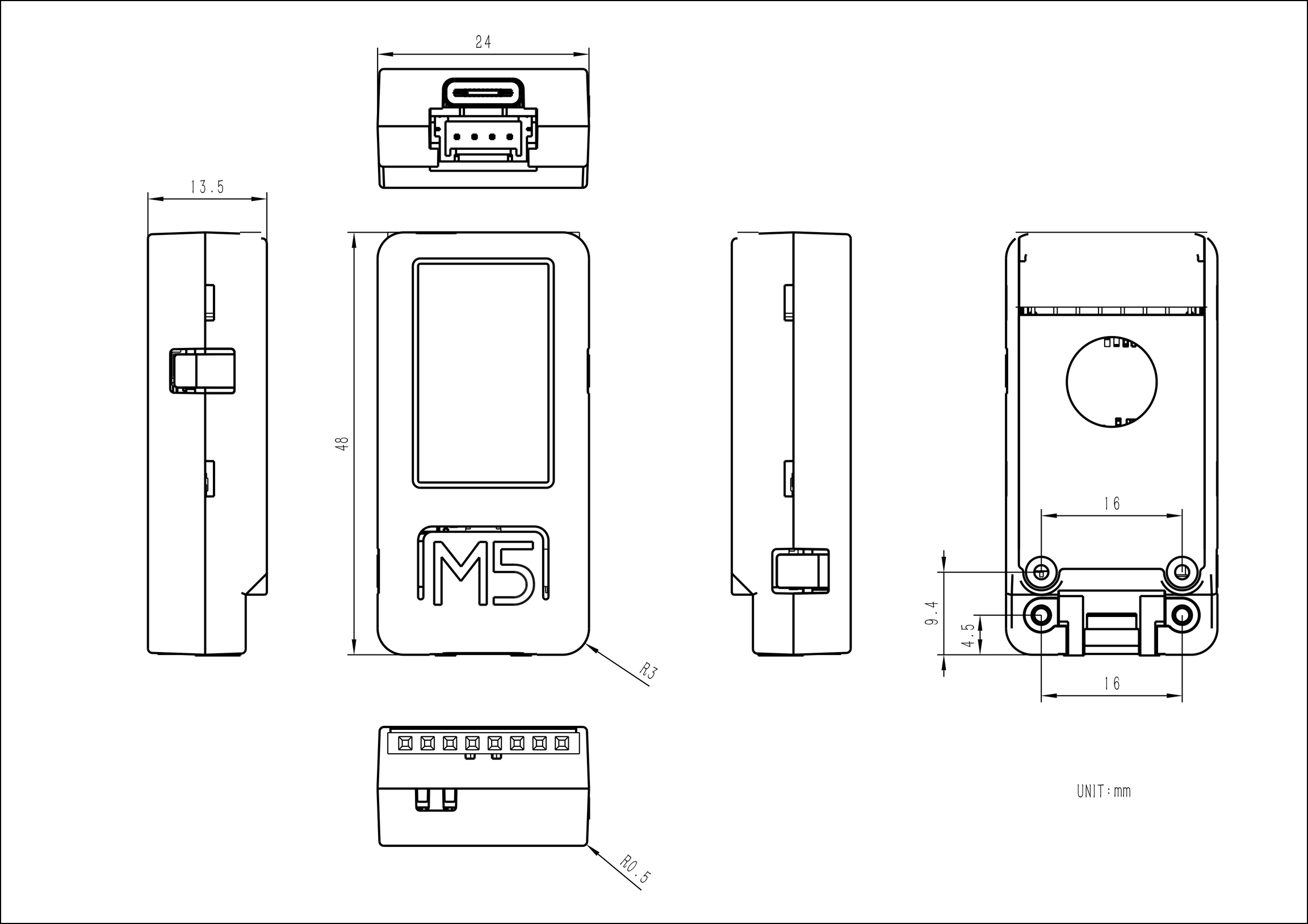

Module Size

Last updated
