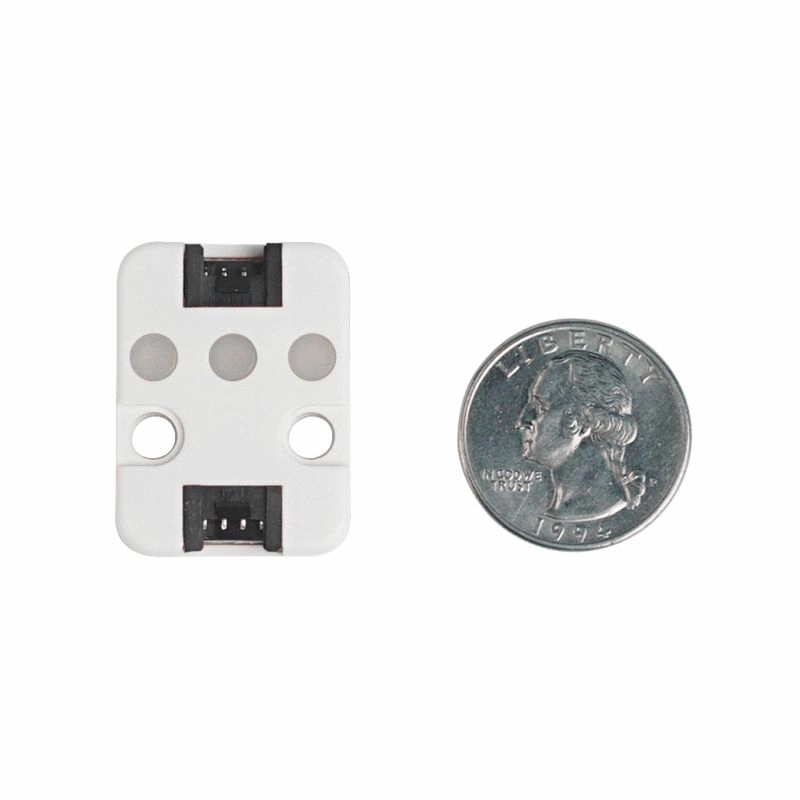

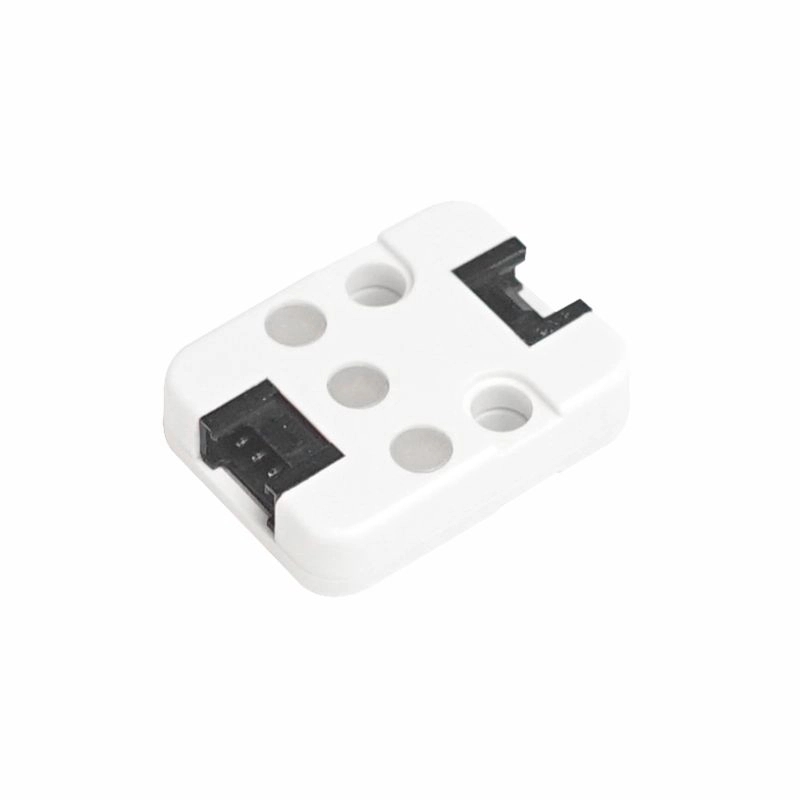

M5Stack RGB LED Unit
Product Link
Description
RGB is LED Unit include 3 individual LEDs. It is also one of the Unit from M5GO Kit. Each one can display any color based on the RGB spectrum. One feature of this Unit is that it's extendable, which means you can have multiple of them wired together.
This is a very useful piece of hardware for a STEM class, students can program it to realize some of cool applications, for example a traffic light.
Features
Program Platform: Arduino, UIFlow(Blockly, Python)
Two Lego-compatible holes
Specification
| Resources | Parameter |
|---|---|
Lamp bead model | SK6812(3535) |
Net weight | 4g |
Gross weight | 17g |
Product Size | 32*24*8mm |
Package Size | 136*92*12mm |
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
Description: Drive RGB LED to light up different colors.
Pinout
| M5Core(GROVE B) | GPIO36 | GPIO26 | 5V | GND |
|---|---|---|---|---|
RGB Unit | Signal Pin | 5V | GND |

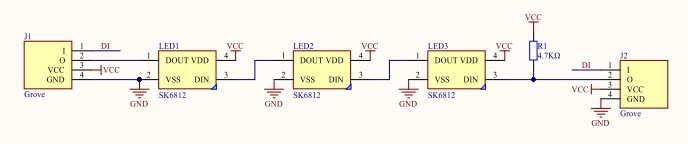

Schematic
Learn
CovidStopCovidStopA technology which increases efficiency in signing in or out during peak hour areas when entering the campus while the SafeEntry implies.
Example
Arduino
UIFlow

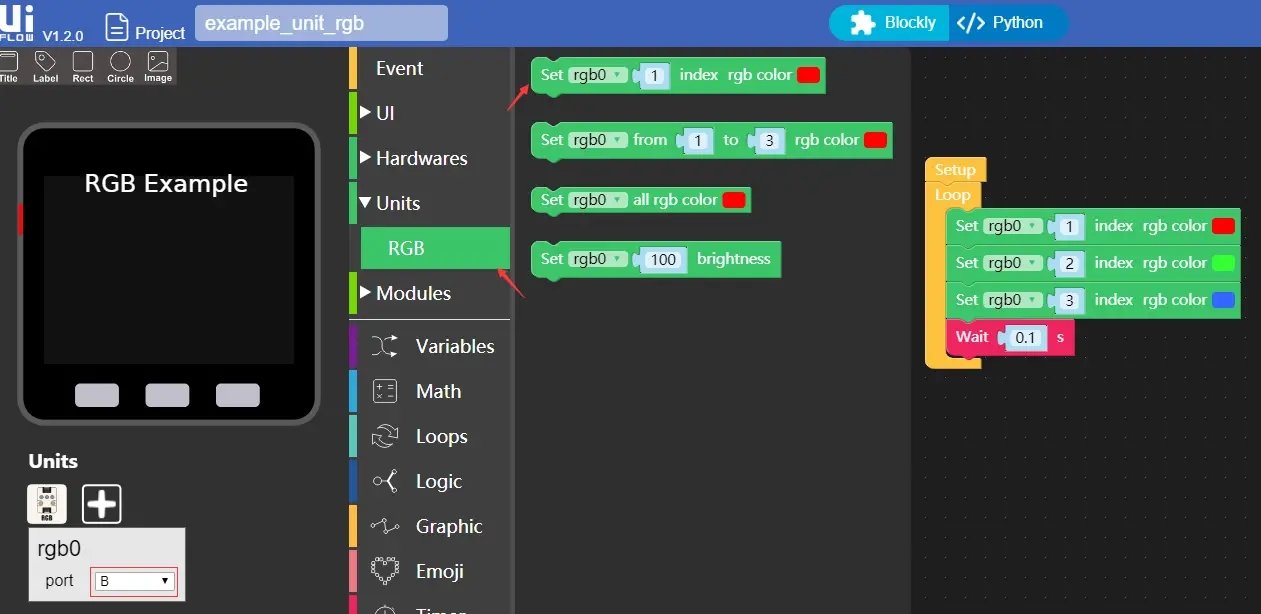

UIFlow2.0UIFlow2.0tutorial will show you how to initialize the configuration using the UIFlow2.0 graphical programming platform
Feature Introduction
Three indicator led
Set index RGB color Specify the color of a serial number light
Set form to RGB color Set the color of multiple RGB LEDs
Set all RGB color Set all of RGB color
Set brightness Set brightness of LED
Usage
