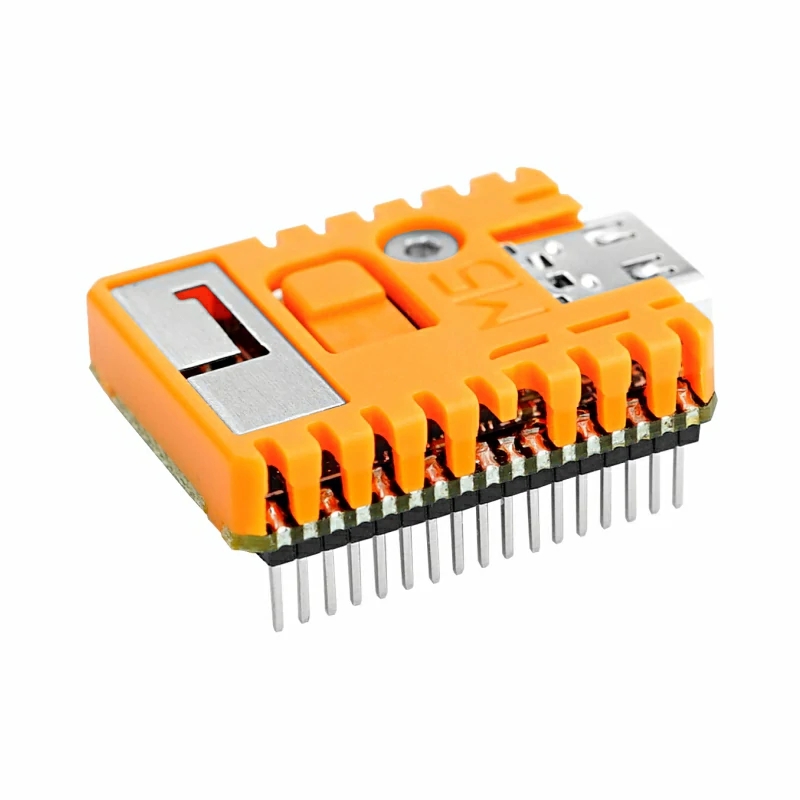

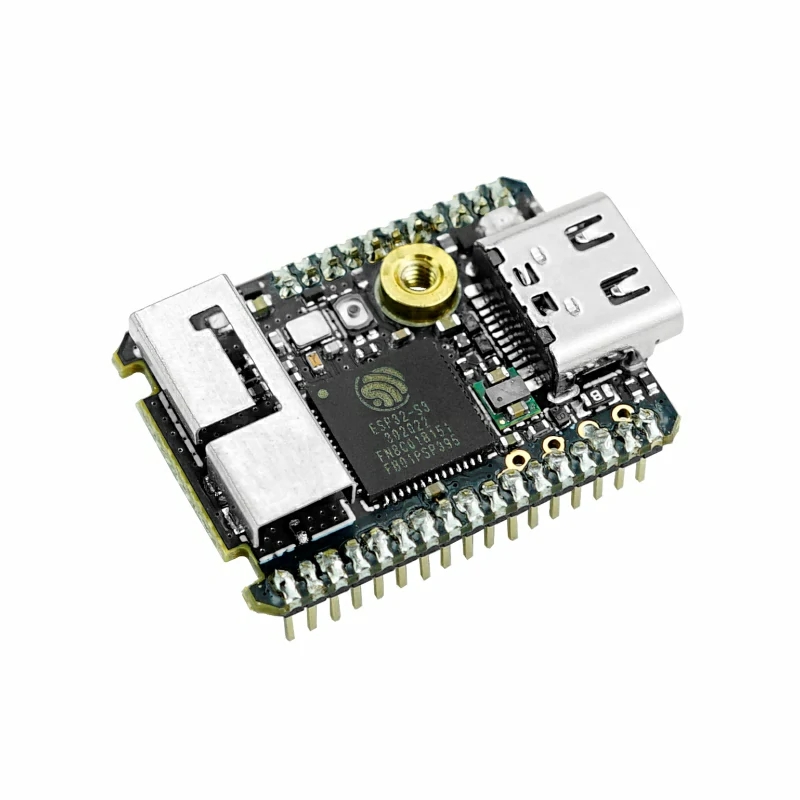

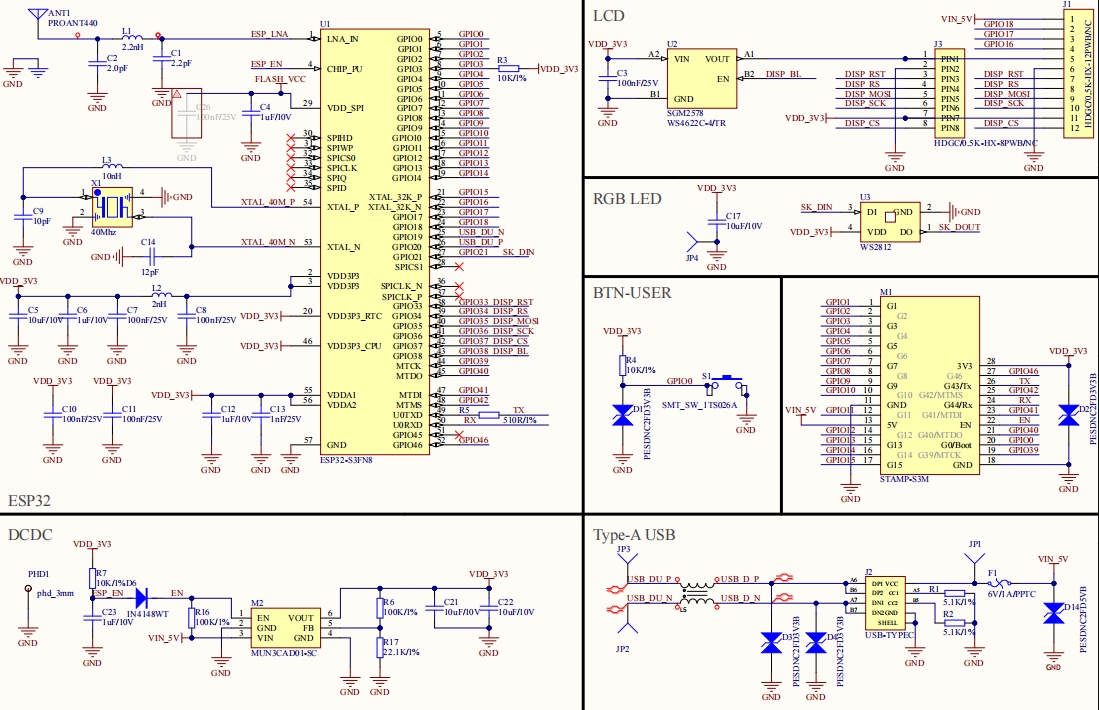

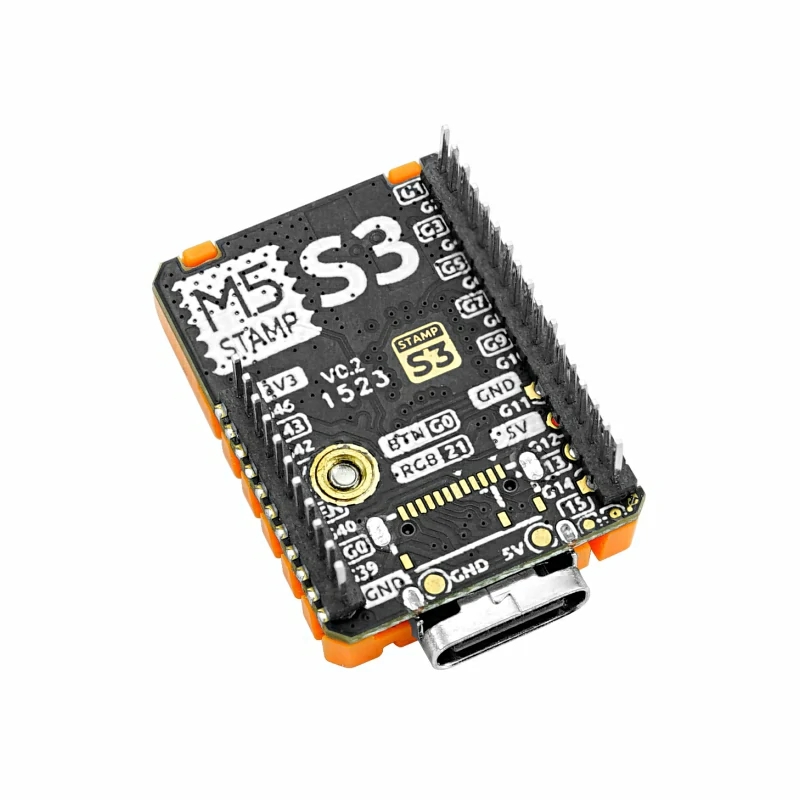

M5StampS3 PIN1.27 is a highly integrated embedded main control core module, using Espressif ESP32-S3FN8 chip,included 8MSPI flash memory, equipped with high-performance Xtensa 32-bit LX7 dual-core processor, main frequency up to 240MHz. Built-in highly integrated 5V to 3.3V circuit, RGB status indicator, programmable button, module leads out 23 GPIOs on ESP32-S3, and it leads out in the form of 1.27MM spacing needle; The product features compact volume, strong performance, rich expansion IO and low power consumption. The module is suitable for IoT application scenarios with embedded main control modules.
If you want to enter download mode, press and hold the G0 button on StampS3 before turning it on, then release it after powering it on.GPIO46 is drop-down by default.
ESP32-S3FN8(2.4GHz Wi-Fi)
Integrated programmable RGB LED and button
1.27mm pin header
Support UIFlow graphical programming
Smart home
Wearables
Medical equipment
MCU
ESP32-S3FN8
DCDC
Highly integrated MUN3CAD01-SC
Flash
8MB
Input voltage
5V
Interactive
Programmable physical buttons x 1, programmable RGB LED (WS2812B-2020) x 1
Antenna type
2.4G 3D antenna
Module resource interface
Touch sensor, SD/SDIO/MMC master controller, SPI, SDIO/SPI slave controller, EMAC, motor PWM, LED PWM, UART, I2C, I2S, GPIO, pulse counter

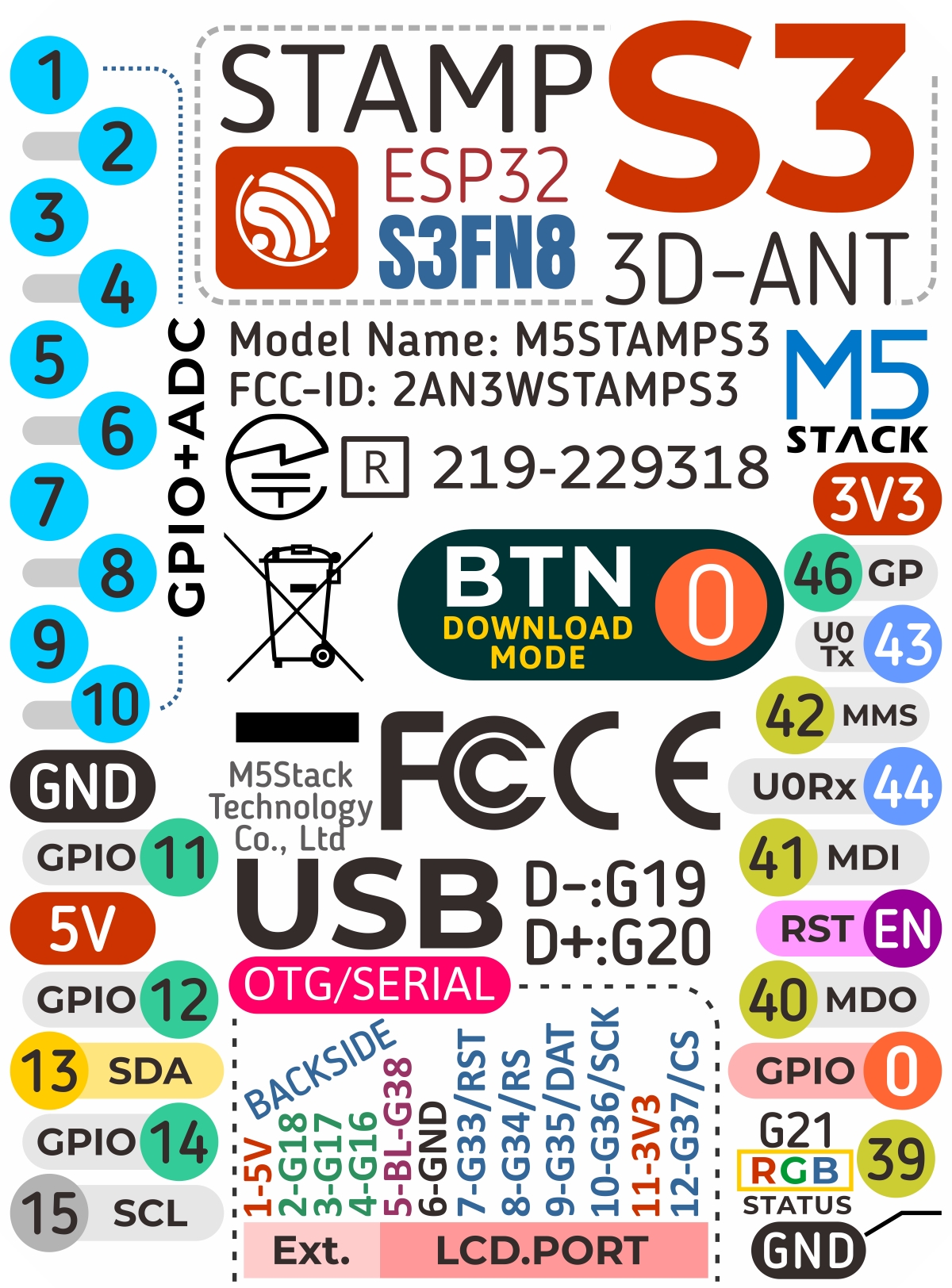

IO interface x23
G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46
Pin header spacing
1.27mm
lcd interface spacing
0.5mm@12pin or 8pin
Operating temperature
0°C to 40°C
Product Size
26*18*4.6mm
Package Size
74*48*13mm
Product Weight
3.1g
Package Weight
5.6g
